SCRs
Browse available SCRs part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Voltage - Off State | Voltage - Gate Trigger (Vgt) (Max) | Current - Gate Trigger (Igt) (Max) | Voltage - On State (Vtm) (Max) | Current - On State (It (AV)) (Max) | Current - On State (It (RMS)) (Max) | Current - Hold (Ih) (Max) | Current - Off State (Max) | Current - Non Rep. Surge 50, 60Hz (Itsm) | SCR Type | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TM8050H-8WSCR 800V 80A TO247 |
709 | - |
|
Datasheet | - | TO-247-3 | Tube | Active | 800 V | 1.5 V | 50 mA | 1.55 V | 50 A | 80 A | 100 mA | 20 µA | 670A, 731A | Sensitive Gate | -40°C ~ 150°C (TJ) | - | - | Through Hole | TO-247-3 |
|
TN5050H-12WYSCR 1.2KV 80A TO247-3 |
762 | - |
|
Datasheet | - | TO-247-3 | Tube | Active | 1.2 kV | 1 V | 50 mA | 1.55 V | 51 A | 80 A | 100 mA | 5 µA | 580A, 633A | Standard Recovery | -40°C ~ 150°C | Automotive | AEC-Q101 | Through Hole | TO-247-3 |
|
VS-40TPS08A-M3SCR 800V 55A TO247AC |
147 | - |
|
Datasheet | - | TO-247-3 | Tube | Active | 800 V | 2.5 V | 150 mA | 1.85 V | 35 A | 55 A | 200 mA | 500 µA | 500A @ 50Hz | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-247AC |
|
TM8050H-8D3-TRSCR 800V 80A D3PAK |
445 | - |
|
Datasheet | - | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tape & Reel (TR) | Active | 800 V | 1.5 V | 50 mA | 1.55 V | 50 A | 80 A | 100 mA | 20 µA | 670A, 731A | Standard Recovery | -40°C ~ 150°C (TJ) | - | - | Surface Mount | D3PAK |
|
S4070WTPSCR 400V 70A TO218X |
170 | - |
|
Datasheet | - | TO-218X-3 | Tube | Active | 400 V | 2 V | 50 mA | 1.8 V | 45 A | 70 A | 80 mA | 20 µA | 800A, 950A | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-218X |
|
S4065KTPSCR 400V 65A TO218 |
227 | - |
|
Datasheet | - | TO-218-3 Isolated Tab, TO-218AC | Tube | Active | 400 V | 2 V | 50 mA | 1.8 V | 41 A | 65 A | 80 mA | 20 µA | 800A, 950A | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-218 Isolated Tab |
|
|
S6070WTPSCR 600V 70A TO218X |
281 | - |
|
Datasheet | - | TO-218X-3 | Tube | Active | 600 V | 2 V | 50 mA | 1.8 V | 45 A | 70 A | 80 mA | 20 µA | 800A, 950A | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-218X |
|
S4065JTPSCR 400V 65A TO218X |
125 | - |
|
Datasheet | - | TO-218X-3 Isolated Tab | Tube | Active | 400 V | 2 V | 50 mA | 1.8 V | 41 A | 65 A | 80 mA | 20 µA | 800A, 950A | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-218X Isolated |
|

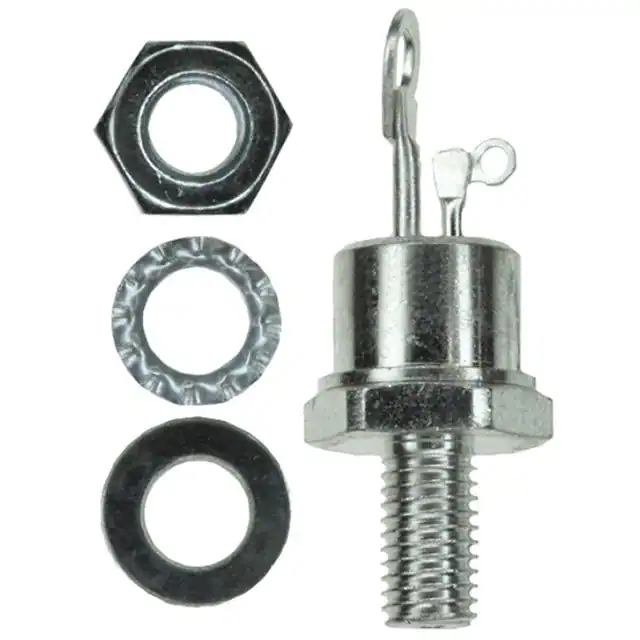

VS-25RIA80SCR 800V 40A TO208AA |
178 | - |
|
Datasheet | - | TO-208AA, TO-48-3, Stud | Bulk | Active | 800 V | 2 V | 60 mA | 1.7 V | 25 A | 40 A | 130 mA | 10 mA | 420A, 440A | Standard Recovery | -65°C ~ 125°C | - | - | Chassis, Stud Mount | TO-208AA (TO-48) |
|
S4008LS3TPSCR 400V 8A ITO220AB |
438 | - |
|
Datasheet | - | TO-220-3 Full Pack, Isolated Tab | Tube | Active | 400 V | 800 mV | 500 µA | 1.6 V | 5.1 A | 8 A | 8 mA | 5 µA | 83A, 100A | Sensitive Gate | -40°C ~ 110°C (TJ) | - | - | Through Hole | ITO-220AB |
,TO-226_straightlead.jpg "SX011U")
|
SX011USCR 800V 1A TO92 |
1,928 | - |
|
Datasheet | - | TO-226-3, TO-92-3 (TO-226AA) | Bulk | Active | 800 V | 800 mV | 200 µA | 1.7 V | - | 1 A | 4 mA | 5 µA | 12A @ 50Hz | Sensitive Gate | -40°C ~ 150°C (TJ) | - | - | Through Hole | TO-92 |
|
SD09A105ETHYRISTOR DO-41 T&R 5K |
5,000 | - |
|
Datasheet | - | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SD09A160ETHYRISTOR DO-41 T&R 5K |
5,000 | - |
|
Datasheet | - | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SX014CRSCR 900V 1.25A TO92CR |
1,960 | - |
|
Datasheet | - | TO-226-3, TO-92-3 (TO-226AA) | Bulk | Active | 900 V | 800 mV | 200 µA | 1.5 V | - | 1.25 A | 4 mA | 5 µA | 20A @ 50Hz | Sensitive Gate | -40°C ~ 110°C (TJ) | - | - | Through Hole | TO-92 |
|
|
SD09A240ETHYRISTOR DO-41 T&R 5K |
5,000 | - |
|
Datasheet | - | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SD1A150ETHYRISTOR DO-41 T&R 5K |
5,000 | - |
|
Datasheet | - | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SD1A180ATHYRISTOR SMA T&R 5K |
5,000 | - |
|
Datasheet | - | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SD1A200ATHYRISTOR SMA T&R 5K |
5,000 | - |
|
Datasheet | - | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SD1A220ATHYRISTOR SMA T&R 5K |
5,000 | - |
|
Datasheet | - | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SD1A150GTHYRISTOR DO-15 T&R 4K |
4,000 | - |
|
Datasheet | - | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
SCRs FAQ
Common questions about selecting, comparing and sourcing SCRs components through Winsun (HK) Electronics.
What should I check when selecting SCRs components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific SCRs part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find SCRs parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for SCRs components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
