SCRs
Browse available SCRs part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Voltage - Off State | Voltage - Gate Trigger (Vgt) (Max) | Current - Gate Trigger (Igt) (Max) | Voltage - On State (Vtm) (Max) | Current - On State (It (AV)) (Max) | Current - On State (It (RMS)) (Max) | Current - Hold (Ih) (Max) | Current - Off State (Max) | Current - Non Rep. Surge 50, 60Hz (Itsm) | SCR Type | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TN1605H-6GSCR 600V 16A D2PAK |
255 | - |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | 600 V | 1.3 V | 6 mA | 1.6 V | 10 A | 16 A | 20 mA | 5 µA | 140A, 153A | Standard Recovery | -40°C ~ 150°C | - | - | Surface Mount | D2PAK |
|
TN1610H-6TSCR 600V 16A TO220AB |
1,587 | - |
|
Datasheet | - | TO-220-3 | Tube | Active | 600 V | 1.3 V | 10 mA | 1.6 V | 10 A | 16 A | 30 mA | 5 µA | 140A, 153A | Standard Recovery | -40°C ~ 150°C | - | - | Through Hole | TO-220 |
|
MCR68-2GSCR 50V 12A TO220AB |
1,865 | - |
|
Datasheet | - | TO-220-3 | Box | Active | 50 V | 1.5 V | 30 mA | 2.2 V | 8 A | 12 A | 50 mA | 10 µA | 100A @ 60Hz | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-220AB |
|
|
TN2010H-6TSCR 600V 20A TO220AB |
580 | - |
|
Datasheet | - | TO-220-3 | Tube | Active | 600 V | 1.3 V | 10 mA | 1.6 V | 12.7 A | 20 A | 40 mA | 5 µA | 197A, 180A | Sensitive Gate | -40°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 |
|
|
2N6397TGSCR 400V 12A TO220AB |
2,831 | - |
|
Datasheet | - | TO-220-3 | Box | Active | 400 V | 1.5 V | 30 mA | 2.2 V | - | 12 A | 50 mA | 10 µA | 100A @ 60Hz | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-220AB |
|

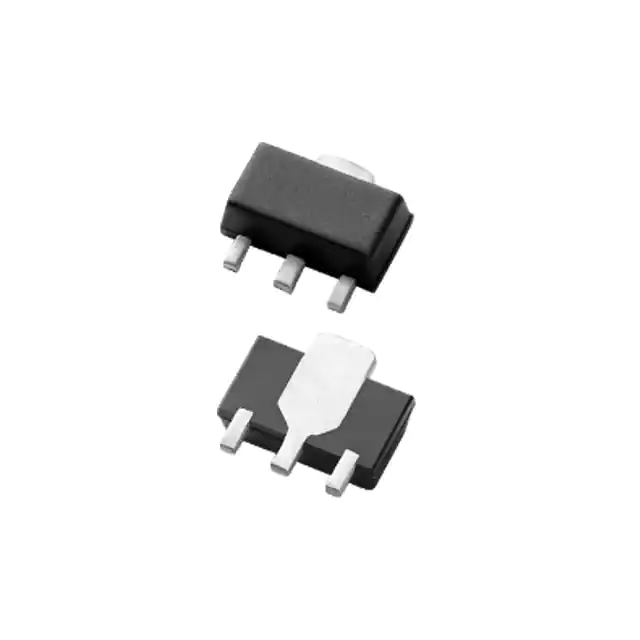

S802TSRPSCR SENSITIVE 800V 1.5A SOT223 |
357 | - |
|
Datasheet | EV | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | 800 V | 800 mV | 100 µA | 1.8 V | 900 mA | 1.5 A | 3 mA | 3 µA | 20A, 24A | Sensitive Gate | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-223 |
|
|
TYN810RGSCR 800V 10A TO220AB |
2,006 | - |
|
Datasheet | - | TO-220-3 | Tube | Active | 800 V | 1.5 V | 15 mA | 1.6 V | 6.4 A | 10 A | 30 mA | 10 µA | 100A, 105A | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-220 |
, Compak.jpg "S6S1RP")
|
S6S1RPSCR 600V 800MA COMPAK |
1,423 | - |
|
Datasheet | - | DO-214AA, SMB (3 Leads), Compak | Tape & Reel (TR) | Active | 600 V | 800 mV | 12 µA | 1.7 V | 510 mA | 800 mA | 5 mA | 1 µA | 16A, 20A | Sensitive Gate | -40°C ~ 110°C | - | - | Surface Mount | Compak |
|
|
TN2010H-6GSCR 700V 20A D2PAK |
712 | - |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | 700 V | 1.3 V | 10 mA | 1.6 V | 12.7 A | 20 A | 40 mA | 5 µA | 197A, 180A | Sensitive Gate | -40°C ~ 150°C (TJ) | - | - | Surface Mount | D2PAK |
|
S4008VTPSCR 400V 8A TO251 |
235 | - |
|
Datasheet | - | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Active | 400 V | 1.5 V | 15 mA | 1.6 V | 5.1 A | 8 A | 30 mA | 5 µA | 83A, 100A | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-251 (V-Pak/I-Pak) |
|
VS-10TTS08-M3SCR 800V 10A TO220AB |
6,607 | - |
|
Datasheet | - | TO-220-3 | Tube | Active | 800 V | 1 V | 15 mA | 1.15 V | 6.5 A | 10 A | 30 mA | 1 mA | 95A @ 50Hz | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
MCR72-8TGSCR 600V 8A TO220AB |
794 | - |
|
Datasheet | - | TO-220-3 | Box | Active | 600 V | 1.5 V | 200 µA | 2 V | - | 8 A | 6 mA | 10 µA | 100A @ 60Hz | Sensitive Gate | -40°C ~ 110°C | - | - | Through Hole | TO-220AB |
|
|
S4S2RPSCR 400V 800MA COMPAK |
2,451 | - |
|
Datasheet | - | DO-214AA, SMB (3 Leads), Compak | Tape & Reel (TR) | Active | 400 V | 800 mV | 50 µA | 1.7 V | 510 mA | 800 mA | 5 mA | 1 µA | 16A, 20A | Sensitive Gate | -40°C ~ 110°C | - | - | Surface Mount | Compak |
|
|
MCR72-8GSCR 600V 8A TO220AB |
2,088 | - |
|
Datasheet | - | TO-220-3 | Tube | Active | 600 V | 1.5 V | 200 µA | 2 V | - | 8 A | 6 mA | 10 µA | 100A @ 60Hz | Sensitive Gate | -40°C ~ 110°C | - | - | Through Hole | TO-220AB |
|
|
S4S1RPSCR 400V 800MA COMPAK |
4,637 | - |
|
Datasheet | - | DO-214AA, SMB (3 Leads), Compak | Tape & Reel (TR) | Active | 400 V | 800 mV | 12 µA | 1.7 V | 510 mA | 800 mA | 5 mA | 1 µA | 16A, 20A | Sensitive Gate | -40°C ~ 110°C | - | - | Surface Mount | Compak |
|
VS-12TTS08HM3SCR 800V 12.5A TO220AB |
967 | - |
|
Datasheet | - | TO-220-3 | Tube | Active | 800 V | 1 V | 15 mA | 1.2 V | 8 A | 12.5 A | 30 mA | 50 µA | 110A @ 50Hz | Standard Recovery | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Through Hole | TO-220-3 |
|
SJ6012D1TP12 AMP HIGH TEMPERATURE STANDARD |
750 | - |
|
Datasheet | SJxx12xx | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Active | 600 V | 1.5 V | 6 mA | 1.6 V | 7.6 A | 12 A | 15 mA | 10 µA | 100A, 120A | Standard Recovery | -40°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252AA |
|
S4006LTPSCR 400V 6A TO220AB-L |
1,790 | - |
|
Datasheet | - | TO-220-3 Isolated Tab | Tube | Active | 400 V | 1.5 V | 15 mA | 1.6 V | 3.8 A | 6 A | 30 mA | 10 µA | 83A, 100A | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-220AB-L |
|
SCT1255ZSCR 1.2KV 55A TO3P |
156 | - |
|
Datasheet | - | TO-3P-3, SC-65-3 | Tube | Active | 1.2 kV | 1.5 V | 50 mA | 1.6 V | - | 55 A | 120 mA | 10 µA | 520A @ 50Hz | Standard Recovery | -40°C ~ 125°C (TJ) | - | - | Through Hole | TO-3P Insulated |
|
|
SJ4008DS2TP8 AMP HIGH TEMPERATURE SENSITIVE |
699 | - |
|
Datasheet | SJxx08xSx | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Active | 400 V | 800 mV | 200 µA | 1.6 V | 5.1 A | 8 A | 6 mA | 5 µA | 83A, 100A | Sensitive Gate | -40°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252AA |
SCRs FAQ
Common questions about selecting, comparing and sourcing SCRs components through Winsun (HK) Electronics.
What should I check when selecting SCRs components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific SCRs part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find SCRs parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for SCRs components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
