TVS Diodes
Browse available TVS Diodes part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMA6J5.0A-TRTVS DIODE 5VWM 13.4VC SMA |
73,887 | - |
|
Datasheet | DO-214AC, SMA | SMA6J, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 1 | - | 5V | 6.4V | 13.4V | 298A (8/20µs) | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
SMBJ5.0CATVS DIODE 5VWM 9.2VC DO214AA |
57,057 | - |
|
Datasheet | DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | - | 1 | 5V | 6.4V | 9.2V | 65.3A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
TPD4E1U06DBVRTVS DIODE 5.5VWM 15VC SOT23-6 |
55,257 | - |
|
Datasheet | SOT-23-6 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5.5V (Max) | 6.5V | 15V (Typ) | 3A (8/20µs) | 45W | Yes | Ethernet, HDMI | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-6 |
|
|
ESDA6V1BC6TVS DIODE 5VWM SOT23-6 |
48,330 | - |
|
Datasheet | SOT-23-6 | ESDA, TRANSIL™ | Tape & Reel (TR) | Active | Zener | - | 4 | 5V | 6.1V | - | - | 80W | No | General Purpose | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-6 |
|
ESDA7P60-1U1MTVS DIODE 5VWM 11.6VC 1610 |
46,235 | - |
|
Datasheet | 2-UDFN | ESDA | Tape & Reel (TR) | Active | Zener | 1 | - | 5V | 6.4V | 11.6V | 60A (8/20µs) | 700W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 1610 |
|
SESD0402X1UN-0020-090TVS DIODE 7VWM 9.2VC 0402/2DFN |
44,939 | - |
|
Datasheet | 0402 (1006 Metric) | SESD, SPA® | Tape & Reel (TR) | Active | Zener | 1 | - | 7V (Max) | 9V (Typ) | 9.2V (Typ) | 2A (8/20µs) | - | No | HDMI | 0.2pF @ 3GHz | -55°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 0402/2DFN (1x0.60) |
|
ESDA25P35-1U1MTVS DIODE 22VWM 41VC 1610 |
32,931 | - |
|
Datasheet | 2-UDFN | ESDA | Tape & Reel (TR) | Active | Zener | 1 | - | 22V | 23.3V | 41V | 35A (8/20µs) | 1400W (1.4kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 1610 |
|
CPDQC3V3T-HFTVS DIODE 3.3VWM 6.2VC 0402C |
32,236 | - |
|
Datasheet | 0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V (Max) | 3.6V | 6.2V | 17A (8/20µs) | 180W | No | General Purpose | 20pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 0402C/SOD-923F |
|
PESD36VS1UJXTVS DIODE 36VWM 80VC SOD323F |
30,057 | - |
|
Datasheet | SC-90, SOD-323F | - | Tape & Reel (TR) | Active | Zener | 1 | - | 36V (Max) | 38.2V | 80V | 2.5A (8/20µs) | 150W | No | - | 18pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-323F |
|
ESDONCAN1LT1GTVS DIODE 24VWM 50VC SOT23-3 |
27,119 | - |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 24V (Min) | 26.2V | 50V | 3A (8/20µs) | - | No | CAN | 10pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3 (TO-236) |
|
ESDALC6V1W5TVS DIODE 3VWM SOT323-5 |
22,751 | - |
|
Datasheet | 5-TSSOP, SC-70-5, SOT-353 | ESDA, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 4 | - | 3V | 6.1V | - | - | 25W | No | General Purpose | - | -40°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-323-5 |
|
SP3205-01ETGTVS DIODE 3.3VWM 12VC SOD882 |
19,898 | - |
|
Datasheet | SOD-882 | 3205 | Tape & Reel (TR) | Active | Zener | 1 | - | 3.3V (Max) | 3.6V | 12V | 4A (8/20µs) | - | No | - | 0.3pF @ 1MHz | -40°C ~ 125°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-882 |
|
SMF17A-TPTVS DIODE 17VWM 27.6VC SOD123FL |
16,165 | - |
|
Datasheet | SOD-123F | - | Tape & Reel (TR) | Active | Zener | 1 | - | 17V | 18.9V | 27.6V | 7.2A | 200W | No | General Purpose | - | -65°C ~ 175°C (TA) | - | - | Surface Mount | SOD-123FL |
|
SMBJ18CATVS DIODE 18VWM 29.2VC DO214AA |
10,732 | - |
|
Datasheet | DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | - | 1 | 18V | 20V | 29.2V | 20.6A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|

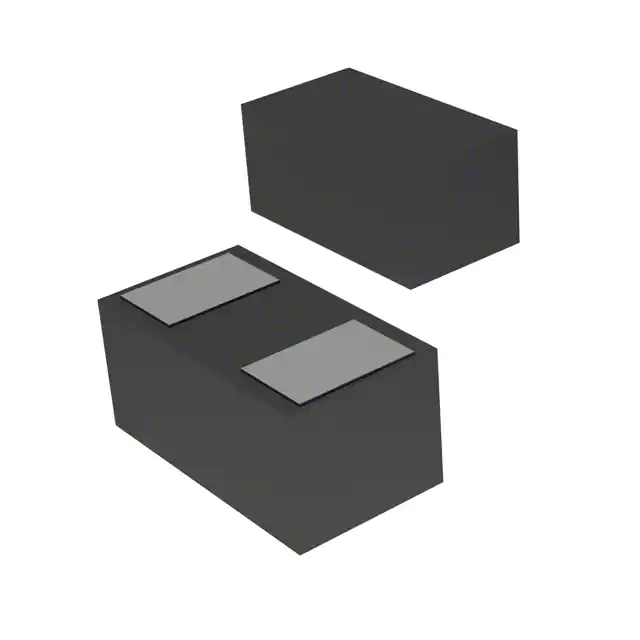

CPDUR5V0R-HFTVS DIODE 5VWM 13VC 0603/SOD523F |
5,182 | - |
|
Datasheet | 2-SMD, No Lead | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 5.6V | 13V | 12A (8/20µs) | - | No | General Purpose | 20pF @ 1MHz | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 0603/SOD-523F |
|
CPDU5V0U-HFTVS DIODE 5VWM 12.5VC 0603 |
227,799 | - |
|
Datasheet | 2-SMD, No Lead | - | Tape & Reel (TR) | Not For New Designs | Zener | 1 | - | 5V | 6V | 12.5V | 16A (8/20µs) | 200W | No | General Purpose | 90pF @ 1MHz | - | - | - | Surface Mount | 0603 (1608 Metric) |
|
SMBJ3V3-E3/52TVS DIODE 3.3VWM 10.3VC DO214AA |
136,957 | - |
|
Datasheet | DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 3.3V | 4.1V | 10.3V | 200A (8/20µs) | 600W | No | General Purpose | 5200pF @ 1MHz | -65°C ~ 175°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
PTVS20VS1UR,115TVS DIODE 20VWM 32.4VC SOD123W |
41,154 | - |
|
Datasheet | SOD-123W | - | Tape & Reel (TR) | Active | Zener | 1 | - | 20V | 22.2V | 32.4V | 12.3A | 400W | No | - | - | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-123W |
|
PESD3V3X1BL,315TVS DIODE 3.3VWM DFN1006-2 |
37,568 | - |
|
Datasheet | SOD-882 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V (Max) | 5V | - | - | - | No | - | 1.3pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | DFN1006-2 |
|
NUP4114UCLW1T2GTVS DIODE 5.5VWM 10V SC88/SC70-6 |
30,009 | - |
|
Datasheet | 6-TSSOP, SC-88, SOT-363 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5.5V (Max) | 5.5V | 10V | 8A (8/20µs) | - | Yes | General Purpose | 0.6pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SC-88/SC70-6/SOT-363 |
TVS Diodes FAQ
Common questions about selecting, comparing and sourcing TVS Diodes components through Winsun (HK) Electronics.
What should I check when selecting TVS Diodes components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific TVS Diodes part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find TVS Diodes parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for TVS Diodes components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
