TVS Diodes
Browse available TVS Diodes part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DRTR5V0U4S-7TVS DIODE 5.5VWM SOT363 |
22,420 | - |
|
Datasheet | 6-TSSOP, SC-88, SOT-363 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5.5V (Max) | 6V | - | - | - | Yes | HDMI | 0.6pF @ 1MHz | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-363 |
|
SMAJ5.0A-TRTVS DIODE 5VWM 13.4VC SMA |
19,137 | - |
|
Datasheet | DO-214AC, SMA | SMAJ, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 1 | - | 5V | 6.4V | 13.4V | 174A (8/20µs) | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|

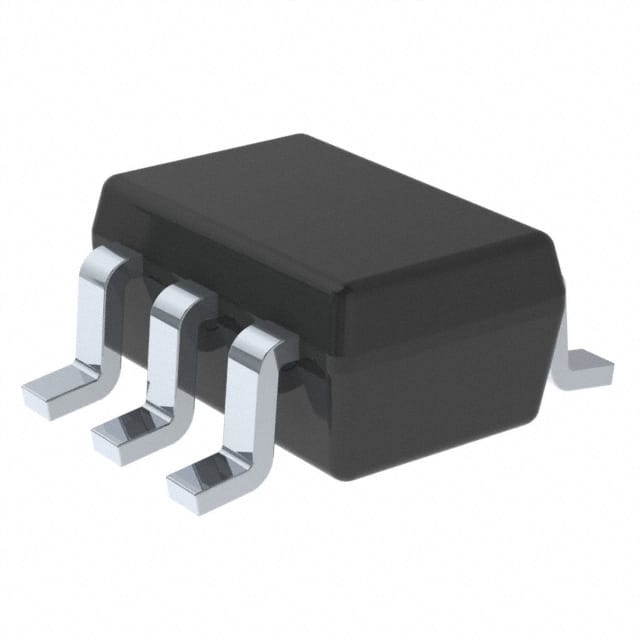

TPD4E1U06DCKRTVS DIODE 5.5VWM 15VC SC70-6 |
15,507 | - |
|
Datasheet | 6-TSSOP, SC-88, SOT-363 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5.5V (Max) | 6.5V | 15V (Typ) | 3A (8/20µs) | 45W | Yes | Ethernet, HDMI | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SC-70-6 |
|
DF3D18FU,LFTVS DIODE 12VWM 33VC USM |
15,382 | - |
|
Datasheet | SC-70, SOT-323 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 12V | 16.2V | 33V | 2.5A (8/20µs) | 80W | No | - | 9pF @ 1MHz | - | - | - | Surface Mount | USM |
|
CUHZ5V6,H3F5.6 V ZENER DIODE, SOD-323HE |
8,999 | - |
|
Datasheet | 2-SMD, Flat Leads | CUHZ | Tape & Reel (TR) | Active | Zener | 1 | - | 5.6V | 5.3V | 5.7V (Typ) | 91A (8/20µs) | 1750W (1.75kW) | No | General Purpose | 860pF @ 1MHz | 150°C (TJ) | - | - | Surface Mount | US2H |
|

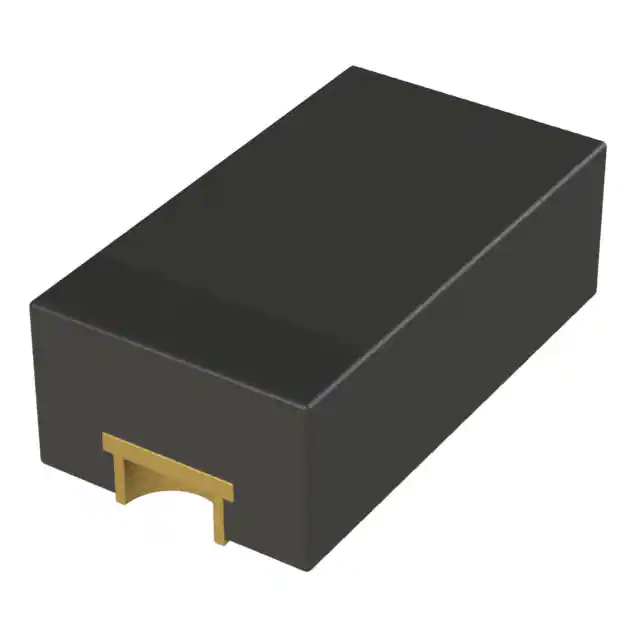

CPDU5V0USP-HFTVS DIODE 5VWM 25VC 0603/SOD523F |
102,633 | - |
|
Datasheet | 0603 (1608 Metric) | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 5.4V | 25V | 3A (8/20µs) | 75W | No | General Purpose | 0.6pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 0603/SOD-523F |
|
SMM4F24A-TRTVS DIODE 24VWM 50VC DO222-AA |
80,930 | - |
|
Datasheet | DO-222AA | SMM4F, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 1 | - | 24V | 26.6V | 50V | 46A (8/20µs) | 400W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO222-AA |
|
ATV02W240B-HFTVS DIODE 24VWM 38.9VC SOD123 |
71,907 | - |
|
Datasheet | SOD-123F | - | Tape & Reel (TR) | Active | Zener | - | 1 | 24V | 26.7V | 38.9V | 5.14A | 200W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123F |
|

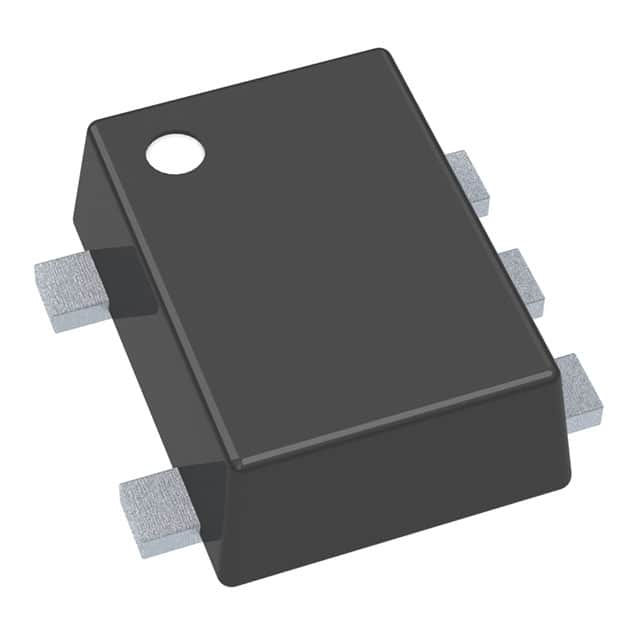

NUP2114UPXV5T1GTVS DIODE 5VWM 10VC SOT553 |
54,266 | - |
|
Datasheet | SOT-553 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 2 | - | 5V (Max) | 5.5V | 10V (Typ) | 8A (8/20µs) | - | Yes | General Purpose | 0.8pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-553 |
|
|
ATV02W360B-HFTVS DIODE 36VWM 58.1VC SOD123 |
49,883 | - |
|
Datasheet | SOD-123F | - | Tape & Reel (TR) | Active | Zener | - | 1 | 36V | 40V | 58.1V | 3.44A | 200W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123F |
|
SD15C-01FTGTVS DIODE 15VWM 31VC SOD323 |
44,530 | - |
|
Datasheet | SC-76, SOD-323 | SD-C, SPA® | Tape & Reel (TR) | Active | Zener | - | 1 | 15V (Max) | - | 31V | 12A (8/20µs) | 450W | No | - | 75pF @ 1MHz | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-323 |
|
ATV02W120B-HFTVS DIODE 12VWM 19.9VC SOD123 |
42,566 | - |
|
Datasheet | SOD-123F | - | Tape & Reel (TR) | Active | Zener | - | 1 | 12V | 13.3V | 19.9V | 10.05A | 200W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123F |
|
NUP4114UCW1T2GTVS DIODE 5.5VWM 10V SC88/SC70-6 |
41,656 | - |
|
Datasheet | 6-TSSOP, SC-88, SOT-363 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5.5V (Max) | 5.5V | 10V | 8A (8/20µs) | - | Yes | General Purpose | 0.6pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SC-88/SC70-6/SOT-363 |
|
|
ATV02W330B-HFTVS DIODE 33VWM 53.3VC SOD123 |
25,996 | - |
|
Datasheet | SOD-123F | - | Tape & Reel (TR) | Active | Zener | - | 1 | 33V | 36.7V | 53.3V | 3.75A | 200W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123F |
|
PTVS10VS1UR,115TVS DIODE 10VWM 17VC SOD123W |
25,842 | - |
|
Datasheet | SOD-123W | - | Tape & Reel (TR) | Active | Zener | 1 | - | 10V | 11.1V | 17V | 23.5A | 400W | No | - | - | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-123W |
|
DT1240A-08LP3810-7TVS DIODE 3.3VWM 10V U-DFN3810-9 |
22,615 | - |
|
Datasheet | 9-UDFN | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 8 | - | 3.3V (Max) | 5V | 10V | 5.5A (8/20µs) | 55W | No | DVI, HDMI, USB | 0.6pF @ 1MHz | -55°C ~ 85°C (TA) | - | - | Surface Mount | U-DFN3810-9 (Type B) |
|
|
PTVS3V3S1UR,115TVS DIODE 3.3VWM 8VC SOD123W |
14,183 | - |
|
Datasheet | SOD-123W | - | Tape & Reel (TR) | Active | Zener | 1 | - | 3.3V | 5.2V | 8V | 43.8A | 350W | No | - | - | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-123W |
|
PESD12VL2BT,215TVS DIODE 12VWM 37VC TO236AB |
10,943 | - |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 12V (Max) | 14.2V | 37V | 5A (8/20µs) | 200W | No | General Purpose | 19pF @ 1MHz | -65°C ~ 150°C (TA) | Automotive | AEC-Q100 | Surface Mount | TO-236AB |
|
|
PTVS5V0S1UR,115TVS DIODE 5VWM 9.2VC SOD123W |
1,805 | - |
|
Datasheet | SOD-123W | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V | 6.4V | 9.2V | 43.5A | 400W | No | - | - | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-123W |
|
AOZ8904CILTVS DIODE 5.5VWM 18VC SOT23-6 |
1,605,364 | - |
|
Datasheet | SOT-23-6 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5.5V (Max) | 6.6V | 18V (Typ) | 4A (8/20µs) | 50W | Yes | General Purpose | 1.25pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-6 |
TVS Diodes FAQ
Common questions about selecting, comparing and sourcing TVS Diodes components through Winsun (HK) Electronics.
What should I check when selecting TVS Diodes components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific TVS Diodes part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find TVS Diodes parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for TVS Diodes components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
