TVS Diodes
Browse available TVS Diodes part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMCJ43CATVS DIODE 43VWM 69.4VC SMC |
2,204 | - |
|
Datasheet | DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | - | 1 | 43V | 47.8V | 69.4V | 21.7A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
1KSMB36CATVS DIODE 30.8VWM 49.9VC DO214AA |
62,033 | - |
|
Datasheet | DO-214AA, SMB | 1KSMB | Tape & Reel (TR) | Active | Zener | - | 1 | 30.8V | 34.2V | 49.9V | 20A | 1000W (1kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
SD12C-01FTGTVS DIODE 12VWM 23VC SOD323 |
33,758 | - |
|
Datasheet | SC-76, SOD-323 | SD-C, SPA® | Tape & Reel (TR) | Active | Zener | - | 1 | 12V (Max) | - | 23V | 17A (8/20µs) | 450W | No | - | 100pF @ 1MHz | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-323 |
;;2.jpg "P6KE30CA")
|
P6KE30CATVS DO15 25.6V 600W BIDIR |
16,985 | - |
|
Datasheet | DO-204AC, DO-15, Axial | P6KE | Cut Tape (CT) | Active | Zener | - | 2 | 25.6V | 28.5V | 41.4V | 14.4A | 600W | Yes | General Purpose | 537.5pF @ 1MHz | -55°C ~ 150°C | - | - | Through Hole | DO-15 |
|
IP4283CZ10-TBR,115TVS DIODE 5.5VWM 9.5VC 10DFN |
11,277 | - |
|
Datasheet | 10-XFDFN | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5.5V | 6V | 9.5V (Typ) | 3.8A (8/20µs) | - | Yes | HDMI | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | DFN2510A-10 |
|
SM6T33ATVS DIODE 28.2VWM 45.7VC SMB |
10,402 | - |
|
Datasheet | DO-214AA, SMB | SM6T, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 1 | - | 28.2V | 31.4V | 45.7V | 13.1A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
PESD5V0X1BL,315TVS DIODE 5VWM DFN1006-2 |
2,785 | - |
|
Datasheet | SOD-882 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 6V | - | - | - | No | - | 0.9pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | DFN1006-2 |
|
CPDV5-3V3UPTVS DIODE 3.3VWM 8VC SOT353 |
276,440 | - |
|
Datasheet | 5-TSSOP, SC-70-5, SOT-353 | - | Tape & Reel (TR) | Active | Zener | 4 | - | 3.3V (Max) | - | 8V | 5A (8/20µs) | 40W | No | General Purpose | - | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-353 |
|
SP0402B-ELC-01ETGTVS DIODE 7VWM 14VC 0402/2DFN |
263,431 | - |
|
Datasheet | 0402 (1006 Metric) | SPA® | Tape & Reel (TR) | Active | Zener | - | 1 | 7V | 9.6V (Typ) | 14V (Typ) | 2.5A (8/20µs) | - | No | General Purpose | 0.15pF @ 1MHz | -30°C ~ 85°C (TA) | - | - | Surface Mount | 0402/2DFN (1x0.60) |
|
|
SP0402U-ULC-01ETGTVS DIODE 5VWM 9.2VC 0402/2DFN |
49,230 | - |
|
Datasheet | 0402 (1006 Metric) | SPA® | Tape & Reel (TR) | Active | Zener | 1 | - | 5V | 9V (Typ) | 9.2V (Typ) | 2A (8/20µs) | - | No | General Purpose | 0.2pF @ 1MHz | -30°C ~ 85°C (TA) | Automotive | AEC-Q101 | Surface Mount | 0402/2DFN (1x0.60) |
|
USBLC6-2SC6YTVS DIODE 5.25VWM 17VC SOT23-6 |
38,766 | - |
|
Datasheet | SOT-23-6 | USBY | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 2 | - | 5.25V | 6V | 17V | 5A (8/20µs) | - | Yes | Ethernet | - | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-6 |
|
TV02W300B-GTVS DIODE 30VWM 48.4VC SOD123 |
30,937 | - |
|
Datasheet | SOD-123 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 30V | 33.3V | 48.4V | 4.13A | 200W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123 |
|
AQ36C-01FTGTVS DIODE 36VWM 62VC SOD323 |
16,575 | - |
|
Datasheet | SC-76, SOD-323 | AQ, SPA® | Tape & Reel (TR) | Active | Zener | - | 1 | 36V (Max) | - | 62V | 5A (8/20µs) | 450W | No | CAN | 30pF @ 1MHz (Max) | -40°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-323 |
|
PRTR5V0U4D,125TVS DIODE 6TSOP |
15,215 | - |
|
Datasheet | SC-74, SOT-457 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | - | 6V | - | - | - | Yes | - | 1pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | 6-TSOP |
|
XGD10603MRTVS DIODE 32VWM 40VC 0603 |
10,305 | - |
|
Datasheet | 0603 (1608 Metric), Concave | XTREME-GUARD™ | Tape & Reel (TR) | Active | Zener | - | 1 | 32V (Max) | - | 40V | - | - | No | General Purpose | - | - | - | - | Surface Mount | 0603 |
|

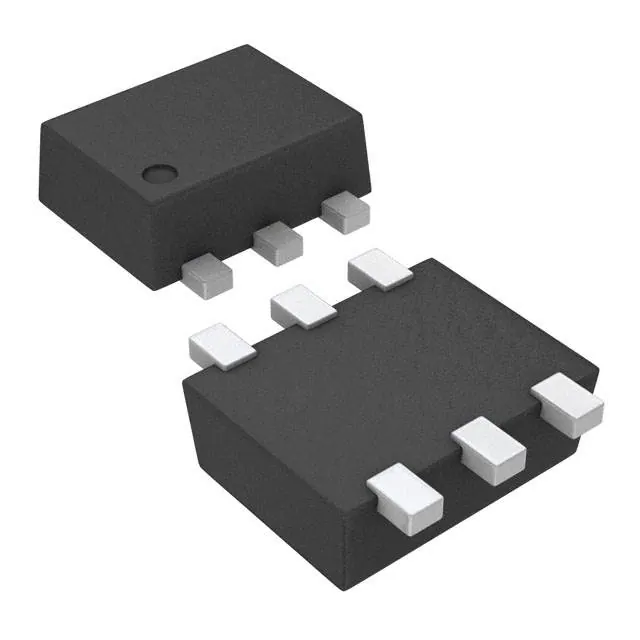

TPD4E001DRLRTVS DIODE 5.5VWM 6SOT |
8,007 | - |
|
Datasheet | SOT-563, SOT-666 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5.5V (Max) | 11V | - | - | 100W | Yes | Ethernet | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-5X3 |
|
PESD0402-140TVS DIODE 14VWM 40VC 0402 |
186,668 | - |
|
Datasheet | 0402 (1005 Metric) | - | Tape & Reel (TR) | Active | - | - | 1 | 14V (Max) | - | 40V | - | - | No | Ethernet, HDMI | - | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 0402 |
|
|
PESD0603-240TVS DIODE 24VWM 45VC 0603 |
126,731 | - |
|
Datasheet | 0603 (1608 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 24V | - | 45V | - | - | No | Ethernet, HDMI | - | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 0603 (1608 Metric) |
|
CPDQR5V0UTVS DIODE 5VWM 12.5V 0402/SOD923 |
123,524 | - |
|
Datasheet | 0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V | 6V | 12.5V | 16A (8/20µs) | 200W | No | General Purpose | 90pF @ 1MHz | - | - | - | Surface Mount | 0402/SOD-923F |
|
SMF3.3TVS DIODE 3.3VWM 6.8VC SOD123FL |
58,491 | - |
|
Datasheet | SOD-123F | SMF | Tape & Reel (TR) | Active | Zener | 1 | - | 3.3V | 3.4V | 6.8V | 30A | 200W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123F |
TVS Diodes FAQ
Common questions about selecting, comparing and sourcing TVS Diodes components through Winsun (HK) Electronics.
What should I check when selecting TVS Diodes components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific TVS Diodes part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find TVS Diodes parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for TVS Diodes components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
