TVS Diodes
Browse available TVS Diodes part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SM05.TCTTVS DIODE 5VWM 9.8VC SOT23-3 |
99,688 | - |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 5V (Max) | 6V | 9.8V | 17A (8/20µs) | 300W | No | General Purpose | 400pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
|
SM24.TCTTVS DIODE 24VWM 43VC SOT23-3 |
76,757 | - |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 24V (Max) | 26.7V | 43V | 5A (8/20µs) | 300W | No | General Purpose | 60pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
UCLAMP0501H.TCTTVS DIODE 5VWM 12.5VC SOD523 |
68,438 | - |
|
Datasheet | SC-79, SOD-523 | µClamp® | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 6V | 12.5V | 16A (8/20µs) | 240W | No | General Purpose | 160pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-523 |
|
|
SM36.TCTTVS DIODE 36VWM 60VC SOT23-3 |
40,092 | - |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 36V (Max) | 40V | 60V | 4A (8/20µs) | 300W | No | General Purpose | 45pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
NUP4202W1T2GTVS DIODE 5VWM 14.5V SC88/SC70-6 |
26,755 | - |
|
Datasheet | 6-TSSOP, SC-88, SOT-363 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5V (Max) | 6V | 14.5V (Typ) | 28A (8/20µs) | 500W | No | General Purpose | 3pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SC-88/SC70-6/SOT-363 |
|
PGB2010402KRHFTVS DIODE 12VWM 40VC 0402 |
8,846 | - |
|
Datasheet | 0402 (1005 Metric) | PulseGuard® PGB2 | Tape & Reel (TR) | Active | Zener | - | 1 | 12V (Max) | - | 40V (Typ) | - | - | No | General Purpose | - | -65°C ~ 125°C (TJ) | - | - | Surface Mount | 0402 |
|
UCLAMP2801T.TCTTVS DIODE 28VWM 60VC SLP1006P2T |
8,484 | - |
|
Datasheet | 0402 (1006 Metric) | uClamp® | Tape & Reel (TR) | Active | Zener | 1 | - | 28V (Max) | 32V | 60V | 4A (8/20µs) | 240W | No | General Purpose | 25pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SLP1006P2T |
|
TPD1E0B04DPYTTVS DIODE 3.6VWM 19VC 2X1SON |
7,792 | - |
|
Datasheet | 0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 3.6V (Max) | 6.7V (Typ) | 19V (Typ) | 1.7A (8/20µs) | 15W | No | General Purpose | 0.13pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 2-X1SON (1x.60) |
|
PGB102ST23WRTVS DIODE 24VWM 150VC SOT23-3 |
38,881 | - |
|
Datasheet | 3-SMD, SOT-23-3 Variant | PulseGuard® PGB | Tape & Reel (TR) | Active | Zener | - | 2 | 24V | - | 150V (Typ) | - | - | No | General Purpose | - | -65°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
SMDJ5.0CATVS DIODE 5VWM 9.2VC DO214AB |
12,380 | - |
|
Datasheet | DO-214AB, SMC | SMDJ | Tape & Reel (TR) | Active | Zener | - | 2 | 5V | 6.4V | 9.2V | 326.09A | 3000W (3kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
1.5SMC550CATVS SMC 495V 1500W BIDIR |
52,822 | - |
|
Datasheet | DO-214AB, SMC | 1.5SMC | Tape & Reel (TR) | Active | Zener | - | 1 | 495V | 522.5V | 760V | 2A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
SP0504BAJTGTVS DIODE 5.5VWM 8.5VC SC70-5 |
17,321 | - |
|
Datasheet | 5-TSSOP, SC-70-5, SOT-353 | SP05, SPA® | Tape & Reel (TR) | Active | Zener | 4 | - | 5.5V (Max) | - | 8.5V | - | - | No | General Purpose | - | -40°C ~ 125°C | - | - | Surface Mount | SC-70-5 |
|
|
TPD1E1B04DPYTTVS DIODE 3.6VWM 8.5VC 2X1SON |
7,838 | - |
|
Datasheet | 0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 3.6V (Max) | 6.4V (Typ) | 8.5V (Typ) | 6.3A (8/20µs) | 50W | No | General Purpose | 1pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 2-X1SON (1x.60) |
|
SMC5K30A-M3/ITVS DIODE 30VWM 48.4VC DO214AB |
7,000 | - |
|
Datasheet | DO-214AB, SMC | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 30V | 33.3V | 48.4V | 103A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
SESD1004Q4UG-0020-090TVS DIODE 7VWM 9.2VC 1004/10DFN |
5,608 | - |
|
Datasheet | 10-XFDFN | SESD, SPA® | Tape & Reel (TR) | Active | Zener | 4 | - | 7V (Max) | 9V (Typ) | 9.2V (Typ) | 2A (8/20µs) | - | No | HDMI | 0.2pF @ 3GHz | -55°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 1004/10DFN (2.5x1.0) |
|
TPSMD36ATVS DIODE 36VWM 58.1VC DO214AB |
2,723 | - |
|
Datasheet | DO-214AB, SMC | TPSMD | Tape & Reel (TR) | Active | Zener | 1 | - | 36V | 40V | 58.1V | 51.6A | 3000W (3kW) | No | - | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMCJ) |
|
|
SP0504BAHTGTVS DIODE 5.5VWM 8.5VC SOT23-5 |
60,018 | - |
|
Datasheet | SC-74A, SOT-753 | SP05, SPA® | Tape & Reel (TR) | Active | Zener | 4 | - | 5.5V (Max) | - | 8.5V | - | - | No | General Purpose | - | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
|
RCLAMP0551P.TSTTVS DIODE 5VWM 20VC SLP1006P2 |
29,497 | - |
|
Datasheet | 0402 (1006 Metric) | RailClamp® | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 6V | 20V | 3A (8/20µs) | 60W | No | General Purpose | 0.25pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SLP1006P2 |
|

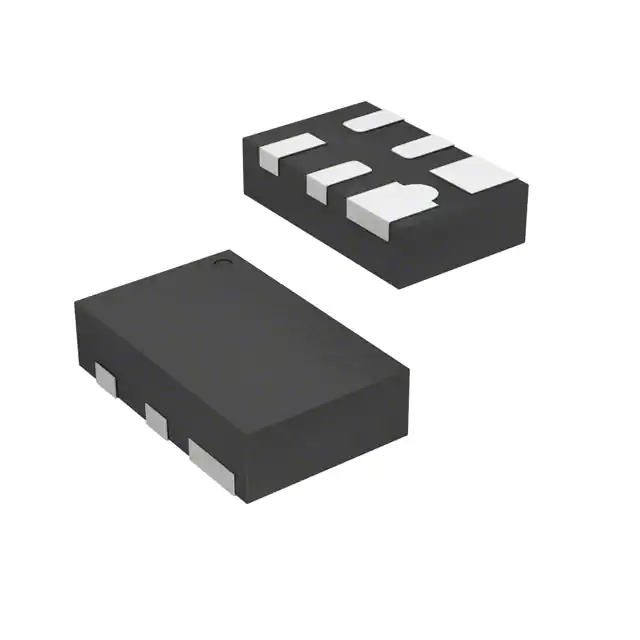

RCLAMP0522P.TCTTVS DIODE 5VWM 15VC SLP1610P4 |
22,838 | - |
|
Datasheet | 6-UFDFN | RailClamp® | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 2 | - | 5V (Max) | 6V | 15V | 5A (8/20µs) | 150W | Yes | HDMI | 0.8pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SLP1610P4 |
|
CDDFN10-2574NTVS DIODE 2.5VWM 11VC 10DFN |
15,496 | - |
|
Datasheet | 10-UDFN Exposed Pad | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 2.5V (Max) | 3V | 11V | 45A (8/20µs) | - | No | Ethernet | 1.7pF @ 1MHz | -55°C ~ 85°C (TA) | - | - | Surface Mount | 10-DFN (3x2) |
TVS Diodes FAQ
Common questions about selecting, comparing and sourcing TVS Diodes components through Winsun (HK) Electronics.
What should I check when selecting TVS Diodes components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific TVS Diodes part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find TVS Diodes parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for TVS Diodes components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
