TVS Diodes
Browse available TVS Diodes part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMDJ58CATVS DIODE 58VWM 93.6VC DO214AB |
4,652 | - |
|
Datasheet | DO-214AB, SMC | SMDJ | Tape & Reel (TR) | Active | Zener | - | 2 | 58V | 64.4V | 93.6V | 32.05A | 3000W (3kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AB (SMCJ) |
|
RCLAMP0521P.TCTTVS DIODE 5VWM 25VC SLP1006P2 |
4,182 | - |
|
Datasheet | 0402 (1006 Metric) | RailClamp® | Tape & Reel (TR) | Not For New Designs | Zener | - | 1 | 5V (Max) | 6V | 25V | 4A (8/20µs) | 100W | No | General Purpose | 0.3pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SLP1006P2 |
|
824014883TVS DIODE 3.3VWM 9VC DFN3810-9 |
5,893 | - |
|
Datasheet | 9-UDFN | WE-TVS | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 8 | - | 3.3V (Max) | 4.5V | 9V (Typ) | 5A (8/20µs) | - | No | General Purpose | 0.5pF @ 1MHz | -55°C ~ 85°C (TA) | - | - | Surface Mount | DFN3810-9 |
|
8240136TVS DIODE 3.3VWM 6VC SOT143-4 |
11,990 | - |
|
Datasheet | TO-253-4, TO-253AA | WE-TVS | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 2 | - | 3.3V (Max) | 4.5V | 6V (Typ) | 12A (8/20µs) | - | Yes | General Purpose | - | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-143-4 |
|
|
SMDJ48CATVS DIODE 48VWM 77.4VC DO214AB |
28,169 | - |
|
Datasheet | DO-214AB, SMC | SMDJ | Tape & Reel (TR) | Active | Zener | - | 2 | 48V | 53.3V | 77.4V | 38.76A | 3000W (3kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
SMDJ40CATVS DIODE 40VWM 64.5VC DO214AB |
7,048 | - |
|
Datasheet | DO-214AB, SMC | SMDJ | Tape & Reel (TR) | Active | Zener | - | 2 | 40V | 44.4V | 64.5V | 46.51A | 3000W (3kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AB (SMCJ) |
|
UCLAMP3301D.TCTTVS DIODE 3.3VWM 9.5VC SOD323 |
88,410 | - |
|
Datasheet | SC-76, SOD-323 | uClamp® | Tape & Reel (TR) | Active | Zener | 1 | - | 3.3V (Max) | 3.5V | 9.5V | 10A (8/20µs) | 100W | No | General Purpose | 50pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-323 |
|
|
UCLAMP2511T.TCTTVS DIODE 2.5VWM 8VC SLP1006P2T |
71,018 | - |
|
Datasheet | 0402 (1006 Metric) | uClamp® | Tape & Reel (TR) | Active | Zener | - | 1 | 2.5V (Max) | 2.7V | 8V | 5A (8/20µs) | 40W | No | General Purpose | 6pF @ 1MHz | -40°C ~ 85°C (TJ) | - | - | Surface Mount | SLP1006P2T |
|
|
RCLAMP3521P.TNTTVS DIODE 3.5VWM 13VC SLP1006P2 |
32,744 | - |
|
Datasheet | 0402 (1006 Metric) | RailClamp® | Tape & Reel (TR) | Active | Zener | - | 1 | 3.5V (Max) | 4.5V | 13V | 4A (8/20µs) | 50W | No | General Purpose | 0.33pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SLP1006P2 |
|
RCLAMP3321P.TNTTVS DIODE 3.3VWM 13VC SLP1006P2 |
30,244 | - |
|
Datasheet | 0402 (1006 Metric) | RailClamp® | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V (Max) | 5.5V | 13V | 4A (8/20µs) | 25W | No | HDMI | 0.22pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SLP1006P2 |
|
|
UCLAMP1211P.TCTTVS DIODE 12VWM 28.5VC SLP1006P2 |
22,014 | - |
|
Datasheet | 0402 (1006 Metric) | uClamp® | Tape & Reel (TR) | Active | Zener | - | 1 | 12V (Max) | 13.3V | 28.5V | 7A (8/20µs) | 200W | No | General Purpose | 25pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SLP1006P2 |
|
|
UCLAMP0511P.TCTTVS DIODE 5VWM 14VC SLP1006P2 |
15,486 | - |
|
Datasheet | 0402 (1006 Metric) | uClamp® | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 6V | 14V | 12A (8/20µs) | 170W | No | General Purpose | 75pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SLP1006P2 |
|
|
SMDJ170CATVS DIODE 170VWM 275VC DO214AB |
14,696 | - |
|
Datasheet | DO-214AB, SMC | SMDJ | Tape & Reel (TR) | Active | Zener | - | 2 | 170V | 189V | 275V | 10.91A | 3000W (3kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AB (SMCJ) |
|
UCLAMP0554T.TNTTVS DIODE 5VWM 12.5VC SLP0808P4T |
14,375 | - |
|
Datasheet | 4-XFDFN Exposed Pad | uClamp® | Tape & Reel (TR) | Active | Zener | 4 | - | 5V (Max) | 6V | 12.5V | 2A (8/20µs) | 25W | No | General Purpose | 4.5pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SLP0808P4T |
|
|
RCLAMP0501T.TNTTVS DIODE 5VWM 15VC SLP1006P2T |
9,620 | - |
|
Datasheet | 0402 (1006 Metric) | RailClamp® | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 6.9V | 15V | 10A (8/20µs) | 150W | No | General Purpose | 1.7pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SLP1006P2T |
|

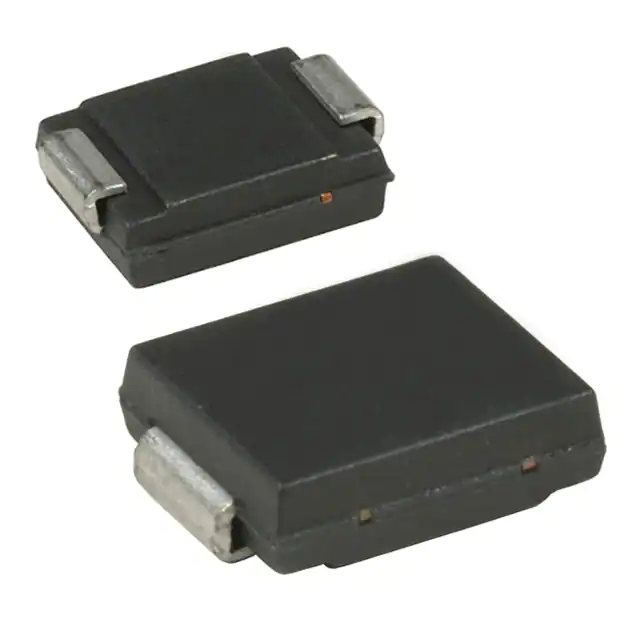

SM15T33CAYTVS DIODE 28.2VWM 59VC SMC |
5,671 | - |
|
Datasheet | DO-214AB, SMC | SM15TY, TRANSIL™ | Tape & Reel (TR) | Active | Zener | - | 1 | 28.2V | 31.4V | 59V | 169A (8/20µs) | 1500W (1.5kW) | No | - | - | -40°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMC |
|

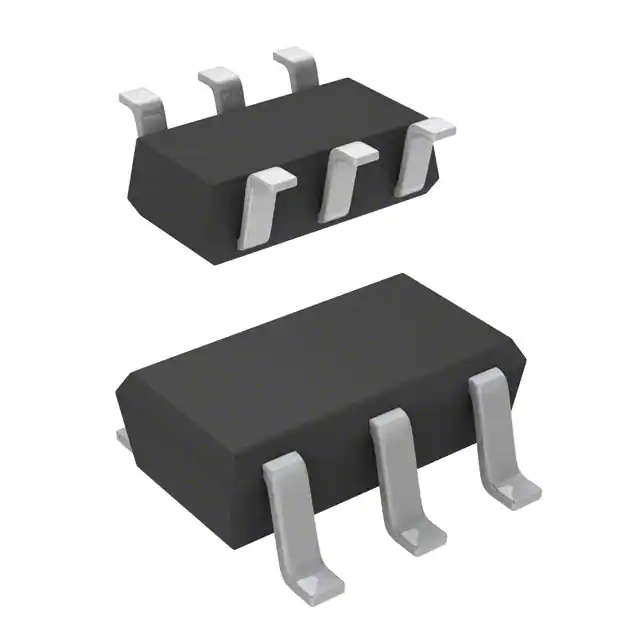

CDSC706-0504CTVS DIODE 5VWM 9VC SC70-6 |
3,260 | - |
|
Datasheet | 6-TSSOP, SC-88, SOT-363 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5V | 6V | 9V | 6.5A (8/20µs) | - | Yes | General Purpose | - | -55°C ~ 85°C (TA) | - | - | Surface Mount | SC-70-6 |
|
TPD6E05U06RVZRTVS DIODE 5.5VWM 14VC 14USON |
17,275 | - |
|
Datasheet | 14-UFDFN | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 6 | - | 5.5V (Max) | 6V | 14V | 2.5A (8/20µs) | 40W | Yes | HDMI | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 14-USON (3.5x1.35) |
|

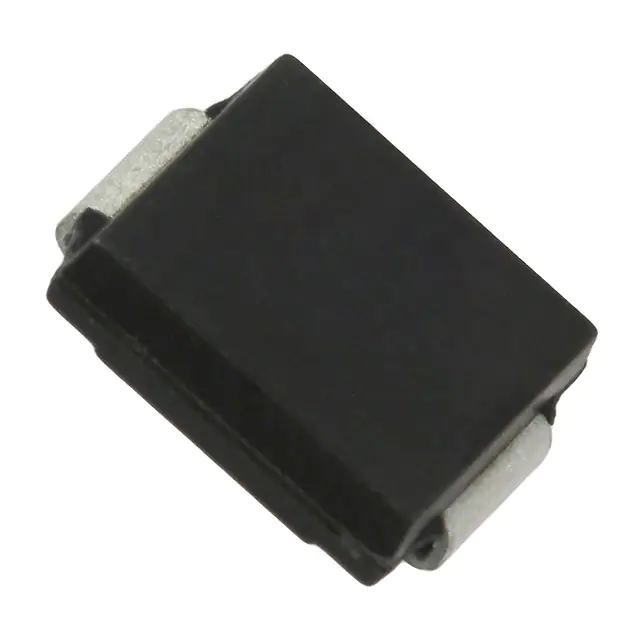

SMLJ24ATVS DIODE 24VWM 38.9VC SMC |
15,365 | - |
|
Datasheet | DO-214AB, SMC | SMLJ | Tape & Reel (TR) | Active | Zener | 1 | - | 24V | 26.7V | 38.9V | 77.2A | 3000W (3kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMC (DO-214AB) |
|
|
SM15T39CATVS DIODE 33.3VWM 69.7VC SMC |
2,976 | - |
|
Datasheet | DO-214AB, SMC | SM15T, TRANSIL™ | Tape & Reel (TR) | Active | Zener | - | 1 | 33.3V | 37.1V | 69.7V | 143A (8/20µs) | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMC |
TVS Diodes FAQ
Common questions about selecting, comparing and sourcing TVS Diodes components through Winsun (HK) Electronics.
What should I check when selecting TVS Diodes components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific TVS Diodes part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find TVS Diodes parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for TVS Diodes components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
