TVS Diodes
Browse available TVS Diodes part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RCLAMP2431T.TCTTVS DIODE 24VWM 50VC SLP1006P2T |
11,324 | - |
|
Datasheet | 0402 (1006 Metric) | RailClamp® | Tape & Reel (TR) | Active | Zener | - | 1 | 24V (Max) | 26.7V | 50V | 2A (8/20µs) | 100W | No | General Purpose | 0.35pF @ 1MHz | -40°C ~ 85°C (TJ) | - | - | Surface Mount | SLP1006P2T |
|
|
RCLAMP0531T.TCTTVS DIODE 5VWM 20VC SLP1006P2T |
7,936 | - |
|
Datasheet | 0402 (1006 Metric) | RailClamp® | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 6V | 20V | 4A (8/20µs) | 80W | No | General Purpose | 0.5pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SLP1006P2T |
|
CDDFN10-3304NATVS DIODE 3.3VWM 18VC 10DFN |
5,006 | - |
|
Datasheet | 10-UFDFN Exposed Pad | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 3.3V (Max) | 3.9V | 18V | 25A (8/20µs) | - | Yes | DVI | 4pF @ 1MHz | -55°C ~ 150°C (TA) | - | - | Surface Mount | 10-DFN (2.5x2.5) |
|
SRDA05-4R2GTVS DIODE 5VWM 12VC 8-SOIC |
24,994 | - |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5V | 6V | 12V | 10A (8/20µs) | 500W | Yes | General Purpose | 10pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
SMLJ36CATVS DIODE 36VWM 58.1VC SMC |
20,409 | - |
|
Datasheet | DO-214AB, SMC | SMLJ | Tape & Reel (TR) | Active | Zener | - | 1 | 36V | 40V | 58.1V | 51.6A | 3000W (3kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMC (DO-214AB) |
|
SD15C.TCTTVS DIODE 15VWM 29VC SOD323 |
89,126 | - |
|
Datasheet | SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 15V (Max) | 16.7V | 29V | 12A (8/20µs) | 350W | No | General Purpose | 75pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-323 |
|
|
SD12C.TCTTVS DIODE 12VWM 24VC SOD323 |
29,719 | - |
|
Datasheet | SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 12V (Max) | 13.3V | 24V | 15A (8/20µs) | 350W | No | General Purpose | 100pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-323 |
|
RCLAMP3324P.TNTTVS DIODE 3.3VWM 4.5VC SGP2510P8 |
27,837 | - |
|
Datasheet | 10-UFDFN | RailClamp® | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 3.3V (Max) | 8V (Typ) | 4.5V | 4.5A (8/20µs) | - | Yes | - | 0.6pF @ 1MHz | -55°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | SGP2510P8 |
|
|
SD05C.TCTTVS DIODE 5VWM 14.5VC SOD323 |
21,818 | - |
|
Datasheet | SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 6V | 14.5V | 24A (8/20µs) | 350W | No | General Purpose | 200pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-323 |
|

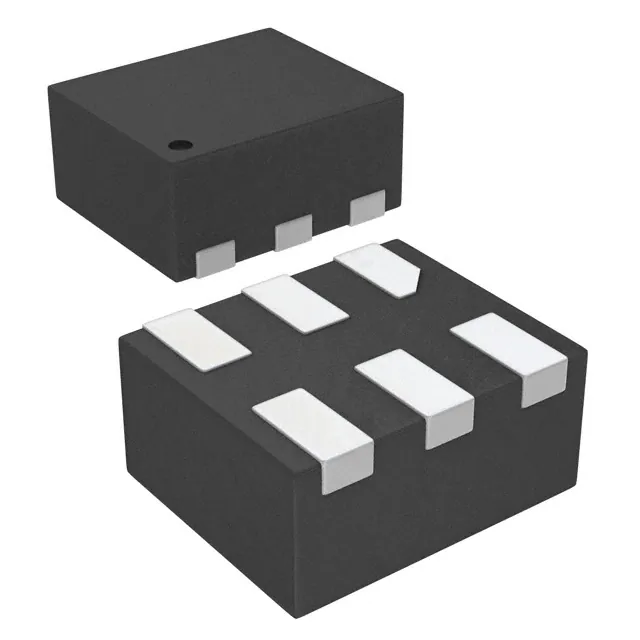

RCLAMP0502N.TCTTVS DIODE 6.5VWM 30VC SLP1210N6 |
17,086 | - |
|
Datasheet | 6-UFDFN | RailClamp® | Tape & Reel (TR) | Not For New Designs | Steering (Rail to Rail) | 3 | - | 6.5V (Max) | 7V | 30V | 3A (8/20µs) | 100W | Yes | General Purpose | 0.3pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SLP1210N6 (1.2x1.0) |
|
CDSOT236-0504CTVS DIODE 5VWM 10VC SOT23-6 |
15,138 | - |
|
Datasheet | SOT-23-6 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5V | 6V | 10V | 5.5A (8/20µs) | - | Yes | HDMI | - | -55°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-6 |
|
|
SMLJ33CATVS DIODE 33VWM 53.3VC SMC |
14,521 | - |
|
Datasheet | DO-214AB, SMC | SMLJ | Tape & Reel (TR) | Active | Zener | - | 1 | 33V | 36.7V | 53.3V | 56.2A | 3000W (3kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMC (DO-214AB) |
|
SMDA24E3/TR7TVS DIODE 24VWM 43VC 8-SO |
2,858 | - |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | TVSarray™ | Tape & Reel (TR) | Active | Zener | 4 | - | 24V | 26.7V | 43V | 5A (8/20µs) | 300W | No | General Purpose | 90pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
RCLAMP0552T.TNTTVS DIODE 5VWM 20VC SLP1006N3T |
13,243 | - |
|
Datasheet | 3-XDFN | RailClamp® | Tape & Reel (TR) | Active | Zener | - | 2 | 5V (Max) | 6.5V | 20V | 3A (8/20µs) | 60W | No | HDMI | 0.21pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SLP1006N3T |
|
SP3304NUTGTVS DIODE 3.3VWM 11.5VC 10UDFN |
12,402 | - |
|
Datasheet | 10-UFDFN Exposed Pad | SP3304N, SPA® | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 3.3V (Max) | - | 11.5V | 20A (8/20µs) | 300W | Yes | Ethernet | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 10-UDFN (2.6x2.6) |
|
|
RCLAMP0821P.TCTTVS DIODE 8VWM 25VC SLP1006P2 |
3,397 | - |
|
Datasheet | 0402 (1006 Metric) | RailClamp® | Tape & Reel (TR) | Active | Zener | - | 1 | 8V (Max) | 10V | 25V | 4A (8/20µs) | 100W | No | General Purpose | 0.3pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SLP1006P2 |
|
SP2555NUTGTVS DIODE 2.5VWM 19VC 10UDFN |
5,559 | - |
|
Datasheet | 10-UDFN Exposed Pad | SP2555, SPA® | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 2.5V | - | 19V | 45A (8/20µs) | 1000W (1kW) | Yes | Ethernet | 2.5pF @ 1MHz | -40°C ~ 125°C (TA) | Automotive | AEC-Q101 | Surface Mount | 10-UDFN (3x2) |
|
CDDFN10-0524PTVS DIODE 5VWM 12VC 10DFN |
14,956 | - |
|
Datasheet | 10-UFDFN | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5V (Max) | 6V | 12V (Typ) | 3.8A (8/20µs) | 30W | Yes | HDMI | - | -55°C ~ 85°C (TA) | - | - | Surface Mount | 10-DFN (2.5x1) |
|
RCLAMP0504S.TCTTVS DIODE 5VWM 25VC SOT23-6 |
208,644 | - |
|
Datasheet | SOT-23-6 | RailClamp® | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5V | 6V | 25V | 6A (8/20µs) | 150W | Yes | Ethernet, USB OTG | 3pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-6 |
|
RCLAMP0582B.TCTTVS DIODE 5VWM 20VC SC75 |
123,934 | - |
|
Datasheet | SC-75, SOT-416 | RailClamp® | Tape & Reel (TR) | Active | Zener | 2 | - | 5V (Max) | 6V | 20V | 15A (8/20µs) | 300W | No | General Purpose | 1.2pF @ 1MHz | -40°C ~ 105°C (TJ) | - | - | Surface Mount | SC-75 (SOT523) |
TVS Diodes FAQ
Common questions about selecting, comparing and sourcing TVS Diodes components through Winsun (HK) Electronics.
What should I check when selecting TVS Diodes components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific TVS Diodes part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find TVS Diodes parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for TVS Diodes components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
