TVS Diodes
Browse available TVS Diodes part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CPDV5-5V0UTVS DIODE 5VWM 10VC SOT353 |
135,059 | - |
|
Datasheet | 5-TSSOP, SC-70-5, SOT-353 | - | Tape & Reel (TR) | Active | Zener | 4 | - | 5V | 6.1V | 10V | 8A (8/20µs) | 80W | No | General Purpose | - | - | - | - | Surface Mount | SOT-353 |
|
SMAJ22A-13-FTVS DIODE 22VWM 35.5VC SMA |
123,920 | - |
|
Datasheet | DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | 1 | - | 22V | 24.4V | 35.5V | 11.2A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMA |
|
ESDA12-1KTVS DIODE 12VWM 28VC SOD523 |
115,121 | - |
|
Datasheet | SC-79, SOD-523 | ESDA, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 1 | - | 12V | 12V | 28V | 16A (8/20µs) | 450W | No | General Purpose | 150pF @ 1MHz | -40°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-523 |
|
PESD15VL1BA,115TVS DIODE 15VWM 44VC SOD323 |
89,488 | - |
|
Datasheet | SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 15V (Max) | 17.1V | 44V | 5A (8/20µs) | 200W | No | General Purpose | 16pF @ 1MHz | -65°C ~ 150°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOD-323 |
|
ESDCAN06-2BWYTVS DIODE 35VWM 59VC SOT323-3 |
62,224 | - |
|
Datasheet | SC-70, SOT-323 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 35V | 38V | 59V | 3A (8/20µs) | 170W | No | CAN | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-323-3 |
|
ESDA051-1JYTVS DIODE 5VWM 12.8VC SOD323 |
61,663 | - |
|
Datasheet | SC-76, SOD-323 | ESDA | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 6.2V | 12.8V | 20A (8/20µs) | - | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-323 |
|
SMBJ14ATVS DIODE 14VWM 23.2VC SMB |
59,426 | - |
|
Datasheet | DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | 1 | - | 14V | 15.6V | 23.2V | 25.9A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
D3V3H1B2LP-7BTVS DIODE 3.3VWM 9.5VC DFN1006-2 |
58,548 | - |
|
Datasheet | 0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V (Max) | 3.8V | 9.5V | 40A (8/20µs) | 380W | No | General Purpose | 100pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | X1-DFN1006-2 |
|
PUSB3AB6ZTVS DIODE 3.3VWM 6VC 7XSON |
53,272 | - |
|
Datasheet | 7-XFDFN | - | Tape & Reel (TR) | Active | Zener | - | 6 | 3.3V (Max) | 6V | 6V (Typ) | 5A (8/20µs) | - | No | General Purpose | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 7-XSON (1.1x2.1) |
|
HSP051-4N10TVS DIODE 3.6VWM 10VC 10UQFN |
47,558 | - |
|
Datasheet | 10-XFDFN | HSP | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 3.6V | 4.5V | 10V | 1A (8/20µs) | - | Yes | HDMI | 0.4pF @ 200MHz ~ 2.5GHz | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 10-uQFN (1.9x1) |
|
ESDA8P30-1T2TVS DIODE 6.3VWM 12VC SOD882T |
46,826 | - |
|
Datasheet | SOD-882 | ESDA | Tape & Reel (TR) | Active | Zener | 1 | - | 6.3V | 6.9V | 12V | 30A (8/20µs) | 300W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-882T |
|
SMBJP6KE15A-TPTVS DIODE 12.8VWM 21.2VC DO214AA |
43,483 | - |
|
Datasheet | DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | 1 | - | 12.8V | 14.3V | 21.2V | 28.8A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
SMBJ36A-13-FTVS DIODE 36VWM 58.1VC SMB |
40,653 | - |
|
Datasheet | DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | 1 | - | 36V | 40V | 58.1V | 10.3A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|

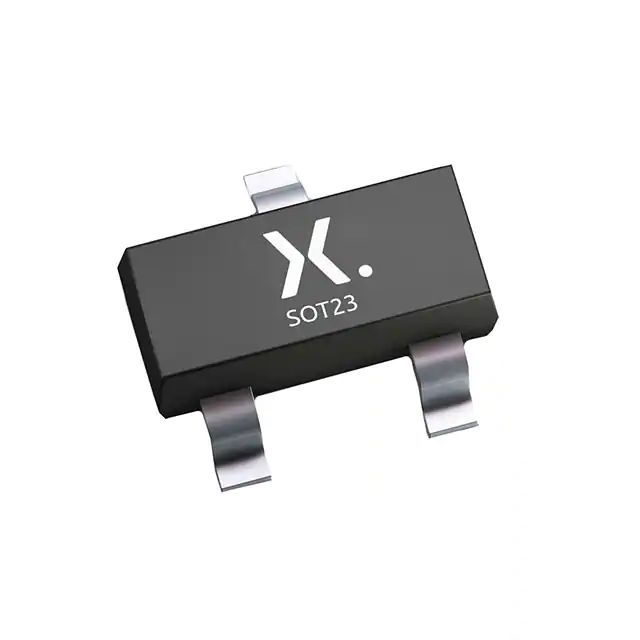

PESD2USB5UX-TRTVS DIODE 5VWM TO236AB |
38,875 | - |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 5V | - | - | 4A (8/20µs) | - | No | HDMI, USB | - | - | Automotive | AEC-Q100 | Surface Mount | TO-236AB |
|
|
SMBJ60ATVS DIODE 60VWM 96.8VC DO214AA |
37,522 | - |
|
Datasheet | DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | 1 | - | 60V | 66.7V | 96.8V | 6.2A | 600W | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AA (SMBJ) |
|
SMBJ24A-TRTVS DIODE 24VWM 38.9VC SMB |
35,945 | - |
|
Datasheet | DO-214AA, SMB | SMBJ, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 1 | - | 24V | 26.7V | 38.9V | 16A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
PESD3V3C1BSFYLTVS DIODE 3.3VWM 5.5VC DSN0603-2 |
34,845 | - |
|
Datasheet | 0201 (0603 Metric) | TrEOS | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V (Max) | 6V | 5.5V | 9A (8/20µs) | - | No | General Purpose | 0.2pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | DSN0603-2 |
|
SMAJ64CATVS DIODE 64VWM 103VC DO214AC |
32,063 | - |
|
Datasheet | DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | - | 2 | 64V | 71.1V | 103V | 3.9A | 400W | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AC (SMAJ) |
|
|
PESD5V0L1BA,135TVS DIODE 5VWM 33VC SOD323 |
28,793 | - |
|
Datasheet | SC-76, SOD-323 | - | Tape & Reel (TR) | Not For New Designs | Zener | - | 1 | 5V (Max) | 7V | 33V | 15A (8/20µs) | 500W | No | General Purpose | 75pF @ 1MHz | 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | SOD-323 |
|
PESD2USB5UV-TRTVS DIODE 5VWM TO236AB |
28,026 | - |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 5V | - | - | 10A (8/20µs) | - | No | HDMI, USB | - | - | Automotive | AEC-Q100 | Surface Mount | TO-236AB |
TVS Diodes FAQ
Common questions about selecting, comparing and sourcing TVS Diodes components through Winsun (HK) Electronics.
What should I check when selecting TVS Diodes components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific TVS Diodes part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find TVS Diodes parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for TVS Diodes components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
