TVS Diodes
Browse available TVS Diodes part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMAJ100A-13-FTVS DIODE 100VWM 162VC SMA |
25,667 | - |
|
Datasheet | DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | 1 | - | 100V | 111V | 162V | 2.5A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMA |
|
SMAJ7.0ATVS DIODE 7VWM 12VC DO214AC |
21,979 | - |
|
Datasheet | DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | 1 | - | 7V | 7.78V | 12V | 33.3A | 400W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
NUP5120X6T1GTVS DIODE 5VWM SOT563 |
20,364 | - |
|
Datasheet | SOT-563, SOT-666 | - | Tape & Reel (TR) | Active | Zener | 5 | - | 5V (Max) | 6.2V | - | - | 90W | No | General Purpose | 54pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-563 |
.jpg "PESD3V3U1UB,115")
|
PESD3V3U1UB,115TVS DIODE 3.3VWM SOD523 |
19,461 | - |
|
Datasheet | SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 3.3V (Max) | 4.5V | - | - | - | No | - | 2.6pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-523 |
|
STS321033U202TVS DIODE 3.3VWM 15VC SOD323 |
19,342 | - |
|
Datasheet | SC-76, SOD-323 | ST | Tape & Reel (TR) | Active | Zener | 1 | - | 3.3V (Max) | 4V | 15V | 25A (8/20µs) | 350W | No | General Purpose | 200pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-323 |
|
SMAJ70ATVS DIODE 70VWM 113VC DO214AC |
18,334 | - |
|
Datasheet | DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | 1 | - | 70V | 77.8V | 113V | 3.5A | 400W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
ESDR0502NMUTAGTVS DIODE 5.5VWM 6UDFN |
18,098 | - |
|
Datasheet | 6-UFDFN | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 3 | - | 5.5V (Max) | 6V | - | - | 100W | Yes | Ethernet | 0.3pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-UDFN (1.2x1) |
|
|
SMAJ48A-QTVS DIODE 48VWM 77.4VC SMA |
16,955 | - |
|
Datasheet | DO-214AC, SMA | SMAJ-Q | Tape & Reel (TR) | Active | Zener | 1 | - | 48V | 53.3V | 77.4V | 5.2A | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
D5V0S1U2WS-7TVS DIODE 5.5VWM 16VC SOD323 |
12,587 | - |
|
Datasheet | SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5.5V (Max) | 6.2V | 16V | 70A (8/20µs) | 1000W (1kW) | No | - | 950pF @ 1MHz | -55°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-323 |
|

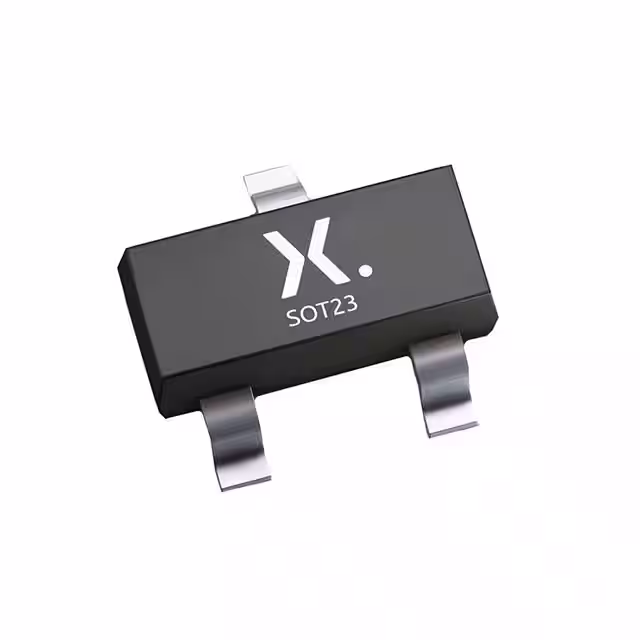

PESD2USB3UX-TRTVS DIODE 3.3VWM TO236AB |
12,270 | - |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 3.3V | - | - | 4A (8/20µs) | - | No | HDMI, USB | - | - | Automotive | AEC-Q100 | Surface Mount | TO-236AB |
|
SP36-01WTG-C-HVTVS DIODE 36VWM 48VC 2FLIPCHIP |
12,045 | - |
|
Datasheet | 2-XFDFN, FCDFN | SPXX, SPA® | Tape & Reel (TR) | Active | Zener | - | 1 | 36V (Max) | 40V | 48V | 1.5A (8/20µs) | 100W | No | General Purpose | 10pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 2-FlipChip |
|
DF2S6P2FU,H3FTVS DIODE 5.5VWM 23.7VC USC |
10,569 | - |
|
Datasheet | SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5.5V (Max) | 5.6V | 23.7V | 80A (8/20µs) | 1900W (1.9kW) | No | General Purpose | 600pF @ 1MHz | 150°C (TJ) | - | - | Surface Mount | USC |
|
DT2636-04S-7TVS DIODE 5.5VWM 9VC SOT363 |
10,477 | - |
|
Datasheet | 6-TSSOP, SC-88, SOT-363 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5.5V (Max) | 7V | 9V (Typ) | 5A (8/20µs) | 60W | No | HDMI | 0.75pF @ 1MHz | -55°C ~ 85°C (TA) | - | - | Surface Mount | SOT-363 |
|
PESD12VS2UT,215TVS DIODE 12VWM 35VC TO236AB |
9,455 | - |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 12V (Max) | 14.7V | 35V | 5A (8/20µs) | 180W | No | General Purpose | 38pF @ 1MHz | -65°C ~ 150°C (TA) | Automotive | AEC-Q100 | Surface Mount | TO-236AB |
|
P6KE68CATVS DIODE 58.1VWM 92VC DO204AC |
8,833 | - |
|
Datasheet | DO-204AC, DO-15, Axial | P6KE | Tape & Reel (TR) | Active | Zener | - | 1 | 58.1V | 64.6V | 92V | 6.6A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
PESD3V3L1BAFTVS DIODE 3.3VWM 26VC SOD323 |
8,529 | - |
|
Datasheet | SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V (Max) | 5.8V | 26V | 18A (8/20µs) | 500W | No | General Purpose | 101pF @ 1MHz | 150°C (TJ) | - | - | Surface Mount | SOD-323 |
|
P6SMB27CATVS DIODE 23.1VWM 37.5VC DO214AA |
8,186 | - |
|
Datasheet | DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Active | Zener | - | 1 | 23.1V | 25.7V | 37.5V | 16.3A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
SMAJ85ATVS DIODE 85VWM 137VC DO214AC |
7,631 | - |
|
Datasheet | DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | 1 | - | 85V | 94.4V | 137V | 2.9A | 400W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
SMBJ5.0CA-TPTVS DIODE 5VWM 9.2VC DO214AA |
7,468 | - |
|
Datasheet | DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V | 6.4V | 9.2V | 65.2A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
VCAN16A2-03G-E3-08TVS DIODE 16VWM 28VC SOT323 |
7,271 | - |
|
Datasheet | SC-70, SOT-323 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 16V (Max) | 17.1V | 28V | 5A (8/20µs) | 140W | No | CAN | 15.5pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-323 |
TVS Diodes FAQ
Common questions about selecting, comparing and sourcing TVS Diodes components through Winsun (HK) Electronics.
What should I check when selecting TVS Diodes components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific TVS Diodes part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find TVS Diodes parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for TVS Diodes components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
