Wireless Charging Coils
Browse available Wireless Charging Coils part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Function | Type | Inductance | Tolerance | DC Resistance (DCR) | Q @ Freq | Current Rating (Amps) | Current - Saturation (Isat) | Frequency - Self Resonant | Operating Temperature | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2677QI WIRELESS CHARGING RECEIVER |
1,883 | - |
|
Datasheet | - | Bulk | Obsolete | Receiver | - | - | - | - | - | - | - | - | - | 3.94" L x 1.50" W x 0.059" H (100.0mm x 38.0mm x 1.5mm) |
|
QPT-0003Transmitter |
3,453 | - |
|
Datasheet | - | Bulk | Active | Transmitter | 1 Coil, 1 Layer | 6.5µH | ±10% | 35mOhm | 100 @ 100kHz | - | - | - | 0°C ~ 40°C | 2.11" L x 2.11" W x 0.13" H (53.5mm x 53.5mm x 3.3mm) |
|
QPT-0039ATransmitter |
2,614 | - |
|
Datasheet | - | Box | Active | Transmitter | 1 Coil, 1 Layer | 6.5µH | ±10% | 35mOhm | 65 @ 100kHz | - | - | - | 0°C ~ 40°C | 1.97" Dia x 0.09" H (50.0mm x 2.3mm) |
|
WTM905525-12F2-12V-GWIRELESS POWER TRANSFER TX COIL |
1,713 | - |
|
Datasheet | WTM | Box | Obsolete | Transmitter | 1 Coil, 1 Layer | - | - | - | - | - | - | - | - | 3.43" L x 2.05" W x 0.197" H (87.0mm x 52.0mm x 5.0mm) |
|
IWAS4832FFEB9R7J50RX 1 COIL 1 LAYER BIFILAR 9.7UH |
3,723 | - |
|
Datasheet | - | Bulk | Obsolete | Receiver | 1 Coil, 1 Layer, Bifilar | 9.7µH | ±5% | 200mOhm | 30 @ 200kHz | - | - | - | - | 1.89" L x 1.26" W x 0.04" H (48.0mm x 32.0mm x 1.1mm) |
|
IWAS3827ECEB100J50RX 1 COIL 1 LAYER 10.7UH |
4,475 | - |
|
Datasheet | - | Bulk | Obsolete | Receiver | 1 Coil, 1 Layer | 10.7µH | ±5% | 183mOhm | 30 @ 200kHz | - | - | - | - | 1.50" L x 1.05" W x 0.04" H (38.1mm x 26.7mm x 1.0mm) |
|
WT-505060-10K2-A11-GTX 1 COIL 1 LYR 6.3UH |
2,210 | - |
|
Datasheet | WT | Tray | Obsolete | Transmitter | 1 Coil, 1 Layer | 6.3µH | ±10% | 60mOhm Max | 70 @ 100kHz | - | - | - | -30°C ~ 70°C | 1.97" Dia x 0.13" H (50.0mm x 3.4mm) |
|
TMX-66-2M7RX 1 COIL 1 LYR |
4,622 | - |
|
Datasheet | - | Tray | Obsolete | Receiver | 1 Coil, 1 Layer | - | - | - | 24 @ 100kHz | - | - | - | - | 1.46" L x 1.25" W x 0.03" H (38.0mm x 32.0mm x 1.0mm) |
|
WR-483250-15M2-GRX 1 COIL 1 LYR BIFILAR 10.5UH |
3,483 | - |
|
Datasheet | WR | Tray | Obsolete | Receiver | 1 Coil, 1 Layer, Bifilar | 10.5µH | ±5% | 200mOhm Max | - | - | - | - | -30°C ~ 70°C | 1.90" L x 1.27" W x 0.04" H (48.2mm x 32.2mm x 1.1mm) |
|
WR-383250-17M2-GRX 1 COIL 1 LYR BIFILAR 11.1UH |
2,546 | - |
|
Datasheet | WR | Tray | Obsolete | Receiver | 1 Coil, 1 Layer, Bifilar | 11.1µH | ±5% | 270mOhm Max | - | - | - | - | -30°C ~ 70°C | 1.50" L x 1.26" W x 0.04" H (38.1mm x 32.0mm x 1.0mm) |
|
AWCCA-48R32H11-C01-BRX 1 COIL 1 LAYER 10.5UH 2.6A |
1,285 | - |
|
Datasheet | AWCCA-48R32 | Box | Active | Receiver | 1 Coil, 1 Layer | 10.5µH | ±10% | 190mOhm | 28 @ 100kHz | 2.6A | 15A | 11MHz | -25°C ~ 85°C | 1.90" L x 1.28" W x 0.04" H (48.5mm x 32.5mm x 1.2mm) |
|

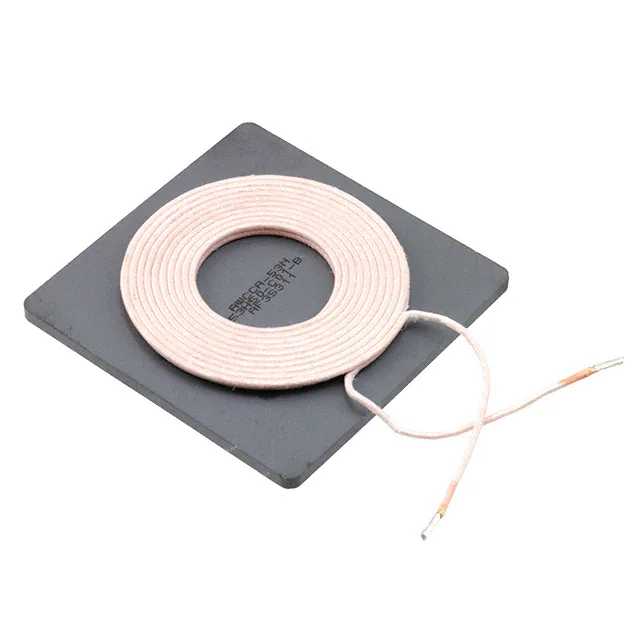

AWCCA-53N53H50-C01-BRX TX 1 COIL 1 LAYER 24UH 5.7A |
1,788 | - |
|
Datasheet | AWCCA-53N53 | Box | Active | Receiver, Transmitter | 1 Coil, 1 Layer | 24µH | ±10% | 72mOhm | 170 @ 100kHz | 5.7A | 30A | 2.8MHz | -25°C ~ 85°C | 2.08" L x 2.08" W x 0.19" H (53.0mm x 53.0mm x 5.0mm) |
|

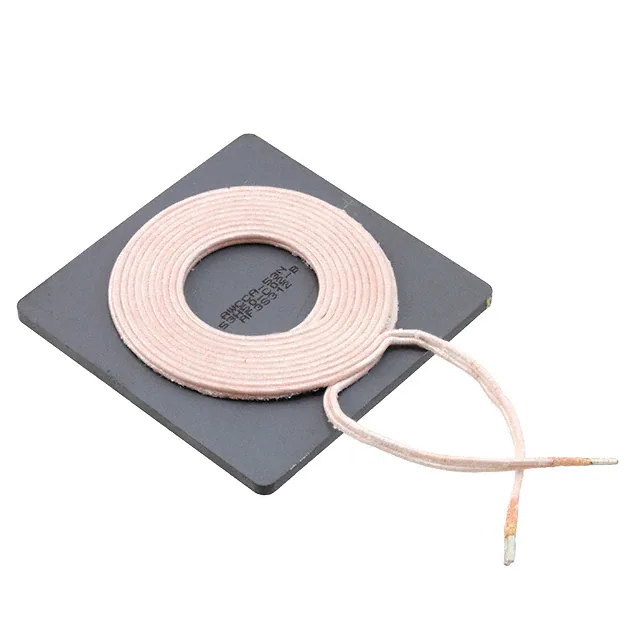

AWCCA-53N53H50-C02-BRX TX 1 COIL 1 LAYER 6.3UH 11A |
4,086 | - |
|
Datasheet | AWCCA-53N53 | Box | Active | Receiver, Transmitter | 1 Coil, 1 Layer | 6.3µH | ±10% | 19mOhm | 66 @ 100kHz | 11A | 40A | 6.4MHz | -25°C ~ 85°C | 2.08" L x 2.08" W x 0.19" H (53.0mm x 53.0mm x 5.0mm) |
|

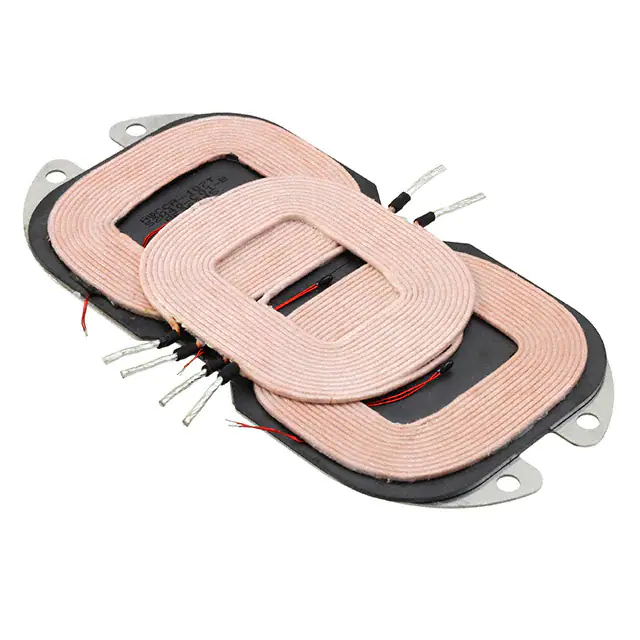

AWCCA-107T52H40-C01-BTX 3 COIL 1 LAYER 11.5UH 12UH |
2,065 | - |
|
Datasheet | AWCCA-107T52 | Box | Discontinued at Digi-Key | Transmitter | 3 Coil, 1 Layer | 11.5µH, 12µH | ±10% | 56mOhm | 80 @ 100kHz | 7.5A | 18A | 7MHz | -25°C ~ 85°C | 4.25" L x 2.06" W x 0.15" H (108.0mm x 52.5mm x 4.0mm) |
|
IWAS4832ECEB160J50RX 1 COIL 1 LAYER 16.2UH |
1,069 | - |
|
Datasheet | - | Bulk | Obsolete | Receiver | 1 Coil, 1 Layer | 16.2µH | ±5% | 366mOhm Max | 30 @ 200kHz | - | - | - | - | 1.89" L x 1.26" W x 0.04" H (48.0mm x 32.0mm x 1.1mm) |
|
IWAS4832FEEB150J50RX 1 COIL 1 LAYER 16.2UH |
2,148 | - |
|
Datasheet | - | Bag | Obsolete | Receiver | 1 Coil, 1 Layer | 16.2µH | ±5% | 366mOhm | 30 @ 200kHz | - | - | - | - | - |
|
SWC4242KB120-100RX 1 COIL 1 LAYER 12.5UH |
2,536 | - |
|
Datasheet | SWC | Box | Active | Receiver | 1 Coil, 1 Layer | 12.5µH | ±10% | 240mOhm Max | 20 @ 100kHz | - | - | - | -40°C ~ 85°C | 1.65" L x 1.65" W x 0.03" H (42.0mm x 42.0mm x 0.7mm) |
|
WRM483245-15F5-5V-G1RX 1 COIL 1 LYR 13UH |
1,236 | - |
|
Datasheet | WRM | Tray | Obsolete | Receiver | 1 Coil, 1 Layer | 13µH | - | 270mOhm Max | - | - | - | - | - | - |
|
WRM483245-15F5-5V-G2RX 1 COIL 1 LYR 13UH |
1,573 | - |
|
Datasheet | WRM | Tray | Obsolete | Receiver | 1 Coil, 1 Layer | 13µH | - | 270mOhm Max | - | - | - | - | - | - |
|
WTM505090-10K2-5V-G1TX 1 COIL 1 LYR 6.3UH |
3,155 | - |
|
Datasheet | WTM | Tray | Obsolete | Transmitter | 1 Coil, 1 Layer | 6.3µH | - | 60mOhm Max | - | - | - | - | - | - |
Wireless Charging Coils FAQ
Common questions about selecting, comparing and sourcing Wireless Charging Coils components through Winsun (HK) Electronics.
What should I check when selecting Wireless Charging Coils components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Wireless Charging Coils part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Wireless Charging Coils parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Wireless Charging Coils components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
