Wireless Charging Coils
Use the filters and product table below to compare Wireless Charging Coils components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Function | Type | Inductance | Tolerance | DC Resistance (DCR) | Q @ Freq | Current Rating (Amps) | Current - Saturation (Isat) | Frequency - Self Resonant | Operating Temperature | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

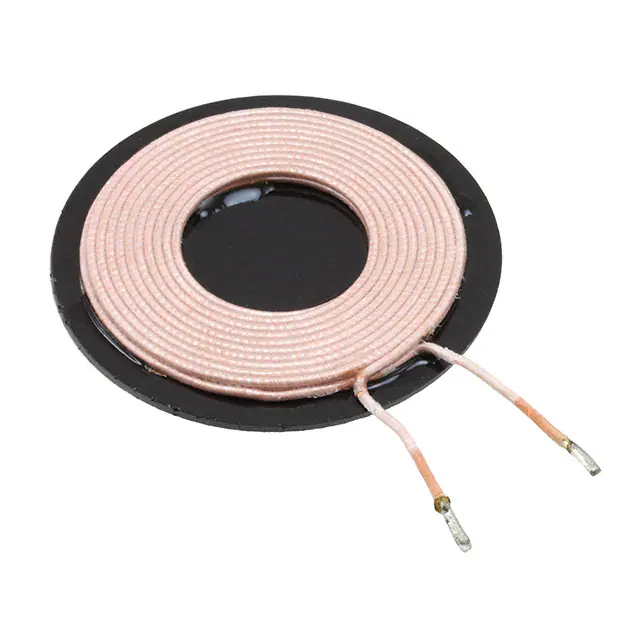

WT505090-20K2-A10-GTX 1 COIL 2 LYR 24UH |
3,222 | - |
|
Datasheet | WT | Tray | Active | Transmitter | 1 Coil, 2 Layer | 24µH | - | 100mOhm | - | - | - | - | - | 1.97" Dia x 0.15" H (50.0mm x 3.8mm) |
|

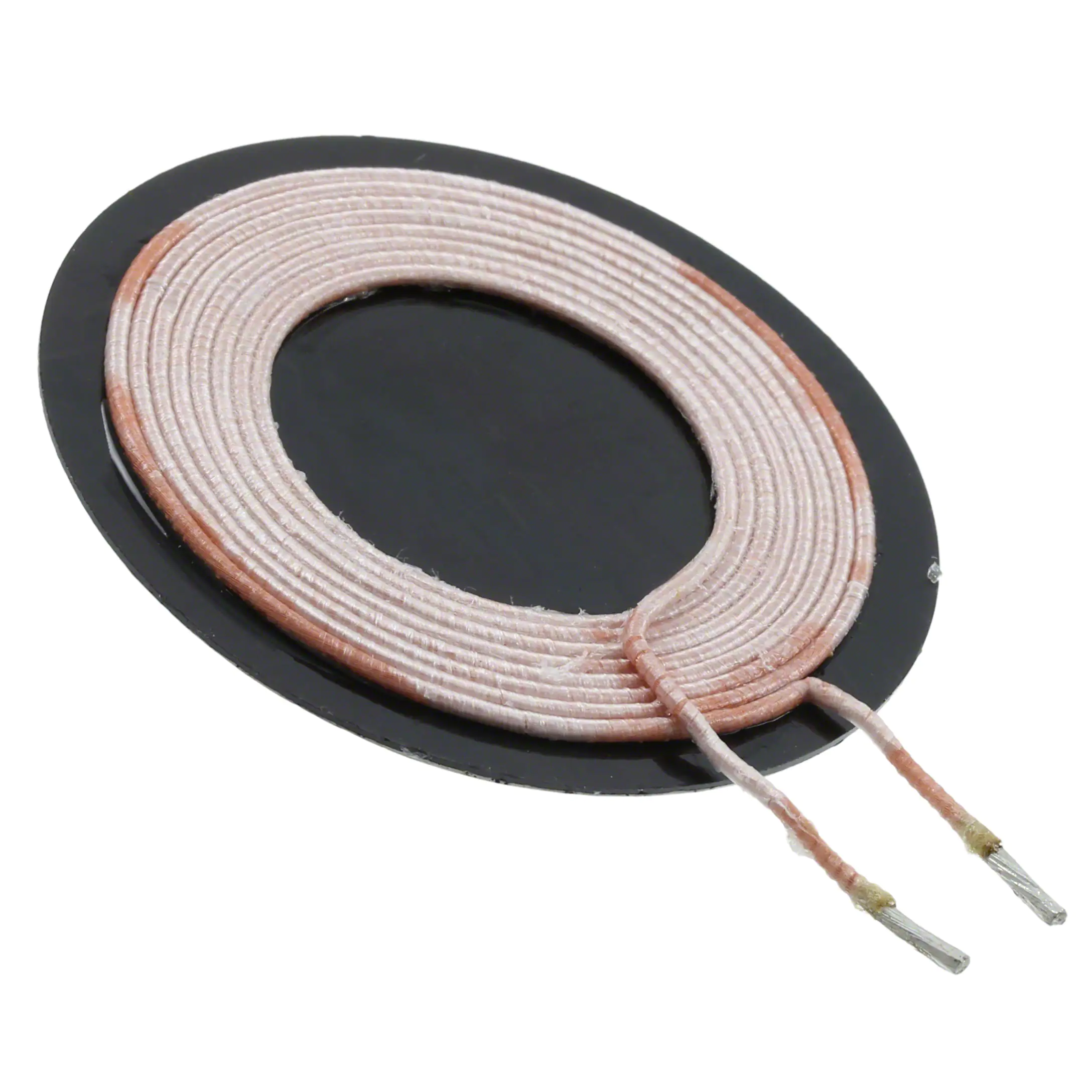

WT-505060-8K2-LTTX 1 COIL 1 LYR 4.95UH |
4,687 | - |
|
Datasheet | WT | Tray | Active | Transmitter | 1 Coil, 1 Layer | 4.95µH | - | 30mOhm | 97 @ 100kHz | - | - | - | - | - |
|
WT202030-16M8-GTX 1 COIL, 1 LYR 6.2UH |
1,137 | - |
|
Datasheet | WT | Tray | Active | Transmitter | 1 Coil, 1 Layer | 6.2µH | - | 190mOhm | - | - | - | - | - | - |
|

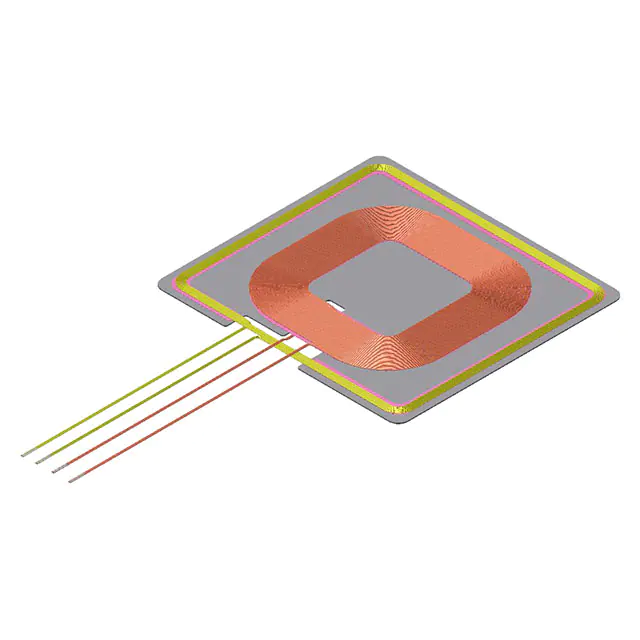

WR524825-17M6-NF-GRX 1 COIL, 1 LYR 16.8UH |
1,206 | - |
|
Datasheet | WR | Tray | Active | Receiver | 1 Coil, 1 Layer | 16.8µH | - | 750mOhm | - | - | - | - | - | 2.05" L x 1.89" W x 0.02" H (52.0mm x 48.0mm x 0.5mm) |
|
WT505090-10F2-LP-GTX 1 COIL, 1 LYR 6.3UH |
2,766 | - |
|
Datasheet | WT | Tray | Not For New Designs | Transmitter | 1 Coil, 1 Layer | 6.3µH | - | 60mOhm | - | - | - | - | - | 1.97" Dia x 0.10" H (50.0mm x 2.5mm) |
|

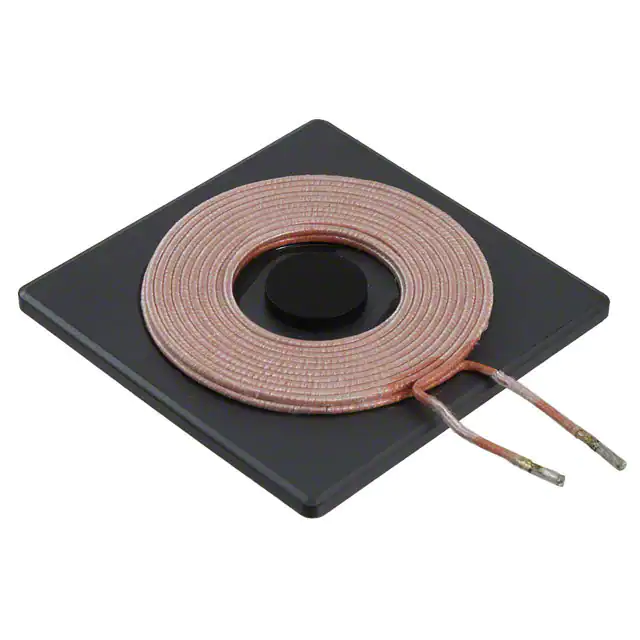

WT525225-20K2-A1-GTX 1 COIL 2 LYR 24UH |
4,182 | - |
|
Datasheet | WT | Tray | Obsolete | Transmitter | 1 Coil, 2 Layer | 24µH | ±10% | 100mOhm Max | 80 @ 100kHz | - | - | - | -30°C ~ 70°C | 2.05" L x 2.05" W x 0.22" H (52.0mm x 52.0mm x 5.6mm) |
|
WT1005690-11F2-M9-GTX COIL UNIT |
1,668 | - |
|
Datasheet | WT | Box | Active | - | - | - | - | - | - | - | - | - | - | - |
|

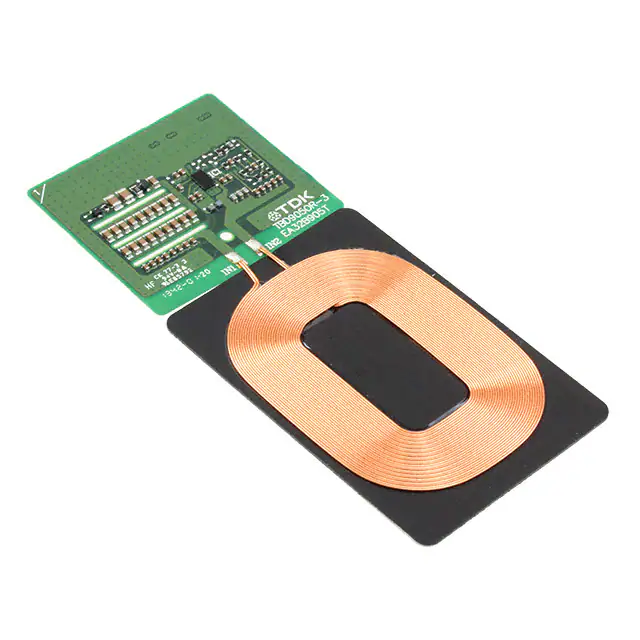

WRM483245-15F5-5V-GRX 1 COIL 1 LYR 13UH |
4,966 | - |
|
Datasheet | WRM | Tray | Obsolete | Receiver | 1 Coil, 1 Layer | 13µH | - | 270mOhm | - | - | - | - | - | 2.99" L x 1.26" W x 0.04" H (76.0mm x 32.0mm x 1.0mm) |
|

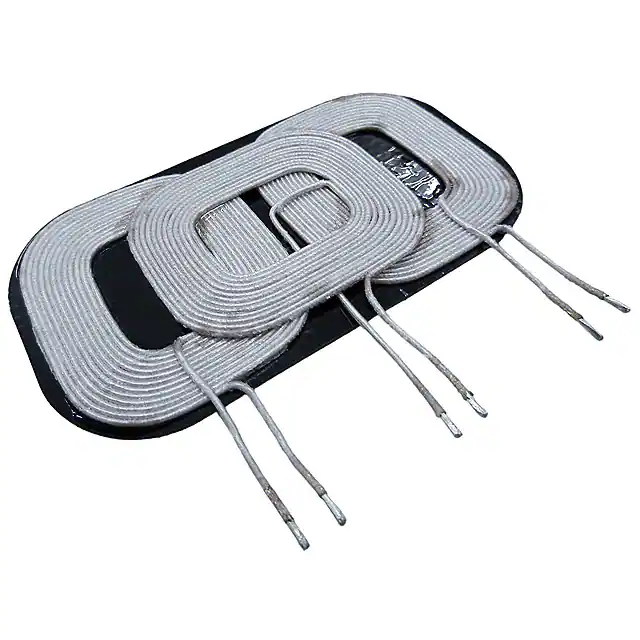

WT-1005660-12K2-A6-GTX 3 COIL 1 LYR 12.5UH/11.5UH |
2,826 | - |
|
Datasheet | WT | Tray | Not For New Designs | Transmitter | 3 Coil, 1 Layer | 12.5µH, 11.5µH, 12.5µH | ±10% | 80mOhm Max | 70 @ 100kHz | - | - | - | -30°C ~ 70°C | 3.94" L x 2.20" W x 0.11" H (100.0mm x 56.0mm x 2.8mm) |
|

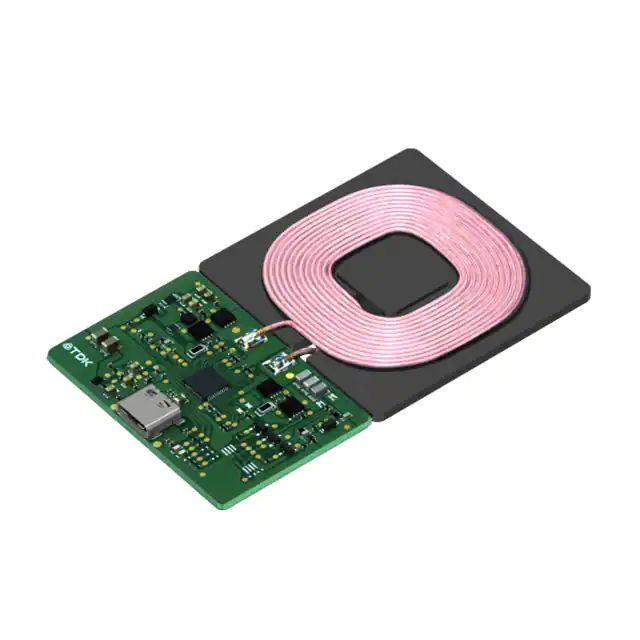

WTM905525-12F2-12V-GWIRELESS POWER TRANSFER TX COIL |
1,713 | - |
|
Datasheet | WTM | Box | Obsolete | Transmitter | 1 Coil, 1 Layer | - | - | - | - | - | - | - | - | 3.43" L x 2.05" W x 0.197" H (87.0mm x 52.0mm x 5.0mm) |
