Arrays, Signal Transformers
Browse available Arrays, Signal Transformers part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Coils | Inductance - Connected In Parallel | Inductance - Connected In Series | Tolerance | Current Rating - Parallel | Current Rating - Series | Current Saturation - Parallel | Current Saturation - Series | DC Resistance (DCR) - Parallel | DC Resistance (DCR) - Series | Shielding | Ratings | Operating Temperature | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744870006INDUCT ARRAY 2 COIL 6.8UH SMD |
459 | - |
|
Datasheet | WE-DD | Nonstandard | Tape & Reel (TR) | Active | 2 | 3.4 µH | 13.6 µH | ±20% | 3.2 A | 1.6 A | 8 A | 4 A | 35mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
|
|
744870004INDUCT ARRAY 2 COIL 4.7UH SMD |
390 | - |
|
Datasheet | WE-DD | Nonstandard | Tape & Reel (TR) | Active | 2 | 2.35 µH | 9.4 µH | ±20% | 3.6 A | 1.8 A | 8 A | 4 A | 30mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
|
|
744870470INDUCT ARRAY 2 COIL 47UH SMD |
353 | - |
|
Datasheet | WE-DD | Nonstandard | Tape & Reel (TR) | Active | 2 | 23.5 µH | 94 µH | ±20% | 1.45 A | 725 mA | 3.1 A | 1.55 A | 150mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
|
|
744873220INDUCT ARRAY 2 COIL 22UH SMD |
267 | - |
|
Datasheet | WE-DD | Nonstandard | Tape & Reel (TR) | Active | 2 | 11 µH | 44 µH | ±20% | 2.79 A | 1.395 A | 5 A | 2.5 A | 70mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
|
|
744873470INDUCT ARRAY 2 COIL 47UH SMD |
257 | - |
|
Datasheet | WE-DD | Nonstandard | Tape & Reel (TR) | Active | 2 | 23.5 µH | 94 µH | ±20% | 2.02 A | 1.01 A | 3.1 A | 1.55 A | 120mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
|
|
744873330INDUCT ARRAY 2 COIL 33UH SMD |
246 | - |
|
Datasheet | WE-DD | Nonstandard | Tape & Reel (TR) | Active | 2 | 16.5 µH | 66 µH | ±20% | 2.25 A | 1.125 A | 3.9 A | 1.95 A | 105mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
|
|
744873221INDUCT ARRAY 2 COIL 220UH SMD |
156 | - |
|
Datasheet | WE-DD | Nonstandard | Tape & Reel (TR) | Active | 2 | 110 µH | 440 µH | ±20% | 910 mA | 455 mA | 1.6 A | 800 mA | 580mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
|
B82477D6473M603FIXED IND 47UH 2.83A 94MOHM SMD |
525 | - |
|
Datasheet | B82477D6 | Nonstandard | Tape & Reel (TR) | Active | 2 | 47 µH | 188 µH | ±20% | - | 2.83 A | 4.7 A | 2.35 A | 47mOhm Max | 188mOhm Max | Shielded | AEC-Q200 | -55°C ~ 150°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.413" (10.50mm) |
|
7448991068SMT MOLDED COUPLED INDUCTOR SIZE |
733 | - |
|
Datasheet | WE-MCRI | Nonstandard | Tape & Reel (TR) | Active | 2 | 6.8 µH | - | ±20% | 5 A | - | 12 A | - | 44mOhm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.161" (4.10mm) |
|

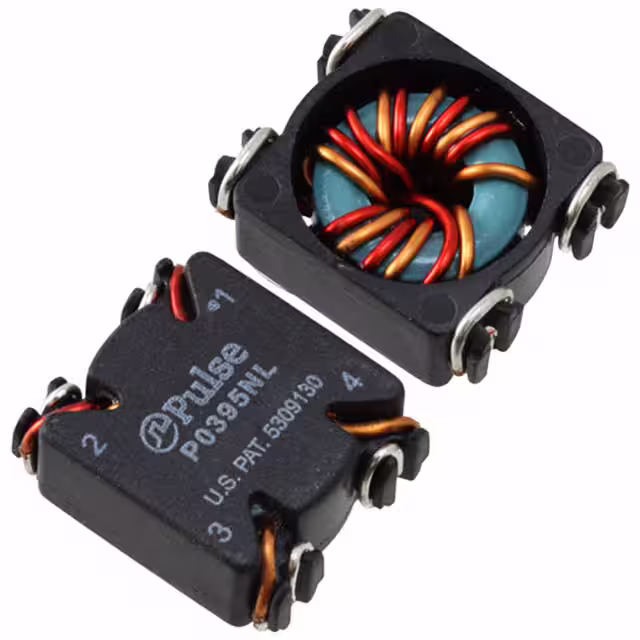

P0395NLINDUCT ARRAY 2 COIL 2.2UH SMD |
1,145 | - |
|
Datasheet | Tomcat | Nonstandard | Tube | Active | 2 | 2.2 µH | 9 µH | ±20% | 14.4 A | 7.2 A | - | - | 4.41mOhm | 17.6mOhm | Unshielded | - | -40°C ~ 130°C | Surface Mount | 0.715" L x 0.590" W (18.16mm x 14.99mm) | 0.310" (7.87mm) |
|
|
P0401NLINDUCT ARRAY 2 COIL 27.4UH SMD |
1,008 | - |
|
Datasheet | Tomcat | Nonstandard | Tube | Active | 2 | 27.4 µH | 109.8 µH | ±20% | 4.4 A | 2.2 A | - | - | 38.15mOhm | 152.6mOhm | Unshielded | - | -40°C ~ 130°C | Surface Mount | 0.715" L x 0.590" W (18.16mm x 14.99mm) | 0.310" (7.87mm) |
|
B82477C6473M603INDUCT ARRAY 2 COIL 47UH SMD |
449 | - |
|
Datasheet | B82477C6xxxM603 | Nonstandard | Tape & Reel (TR) | Active | 2 | 47 µH | 188 µH | ±20% | - | 3.02 A | 4.8 A | 2.4 A | 42.5mOhm Max | 170mOhm Max | Shielded | AEC-Q200 | -55°C ~ 150°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.413" (10.50mm) |
|
|
7448709330INDUCT ARRAY 2 COIL 33UH SMD |
569 | - |
|
Datasheet | WE-DD | Nonstandard | Tape & Reel (TR) | Active | 2 | 16.5 µH | 66 µH | ±20% | 2 A | 1 A | 4.4 A | 2.2 A | 100mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.413" (10.50mm) |
|
|
7448709470INDUCT ARRAY 2 COIL 47UH SMD |
212 | - |
|
Datasheet | WE-DD | Nonstandard | Tape & Reel (TR) | Active | 2 | 23.5 µH | 94 µH | ±20% | 1.9 A | 950 mA | 3.6 A | 1.8 A | 130mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.413" (10.50mm) |
|
7448991220SMT MOLDED COUPLED INDUCTOR SIZE |
834 | - |
|
Datasheet | WE-MCRI | Nonstandard | Tape & Reel (TR) | Active | 2 | 22 µH | - | ±20% | 2.2 A | - | 6.1 A | - | 160mOhm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.161" (4.10mm) |
|
SDQ12-150-RINDUCT ARRAY 2 COIL 15.21UH SMD |
3,776 | - |
|
Datasheet | SDQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 15.21 µH | 60.84 µH | ±20% | 658 mA | 329 mA | 779 mA | 390 mA | 576.6mOhm | 2.31Ohm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.047" (1.19mm) |
|
|
SDQ12-8R2-RINDUCT ARRAY 2 COIL 8.41UH SMD |
750 | - |
|
Datasheet | SDQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 8.41 µH | 33.64 µH | ±20% | 868 mA | 434 mA | 1.05 A | 524 mA | 331.8mOhm | 1.33Ohm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.047" (1.19mm) |
|
CTX10-3P-RINDUCT ARRAY 2 COIL 9.79UH SMD |
3,200 | - |
|
Datasheet | Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 9.79 µH | 39.15 µH | ±20% | 2.7 A | 1.35 A | - | - | 33mOhm Max | 131mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.190" (4.83mm) |
|
CTX10-1P-RINDUCT ARRAY 2 COIL 9.62UH SMD |
1,296 | - |
|
Datasheet | Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 9.62 µH | 38.48 µH | ±20% | 1.7 A | 850 mA | - | - | 57mOhm Max | 227mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.165" (4.19mm) |
|
7448990047INDUCT ARRAY 2 COIL 4.7UH SMD |
474 | - |
|
Datasheet | WE-MCRI | Nonstandard | Tape & Reel (TR) | Active | 2 | 4.7 µH | - | ±20% | 5.9 A | - | 24.2 A | - | 40mOhm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.354" (9.00mm) |
Arrays, Signal Transformers FAQ
Common questions about selecting, comparing and sourcing Arrays, Signal Transformers components through Winsun (HK) Electronics.
What should I check when selecting Arrays, Signal Transformers components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Arrays, Signal Transformers part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Arrays, Signal Transformers parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Arrays, Signal Transformers components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
