Arrays, Signal Transformers

Browse available Arrays, Signal Transformers part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.

For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.

Compare Part Numbers Review available models and manufacturers

Datasheets & Specifications Access technical references quickly

RFQ & BOM Support Send quantities for sourcing and quotation

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Number of Coils	Inductance - Connected In Parallel	Inductance - Connected In Series	Tolerance	Current Rating - Parallel	Current Rating - Series	Current Saturation - Parallel	Current Saturation - Series	DC Resistance (DCR) - Parallel	DC Resistance (DCR) - Series	Shielding	Ratings	Operating Temperature	Mounting Type	Size / Dimension	Height

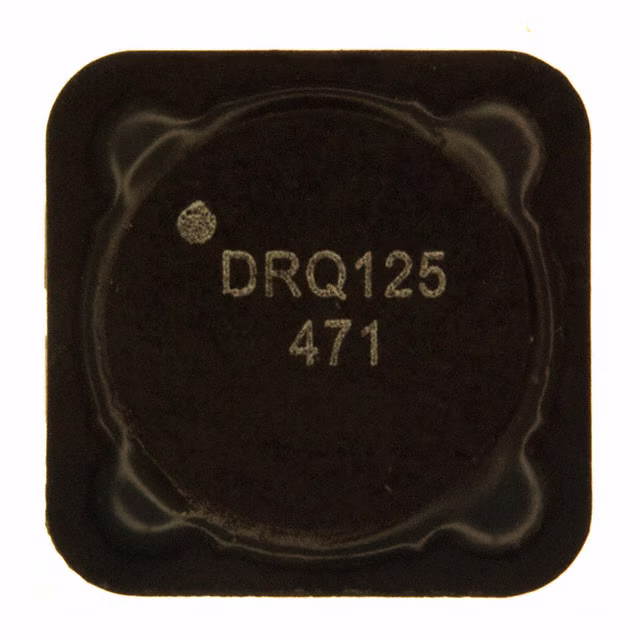

DRQ125-471-R INDUCT ARRAY 2 COIL 473.1UH SMD Eaton - Electronics Division	1,000	-	RFQ	Datasheet	DRQ	Nonstandard	Tape & Reel (TR)	Active	2	473.1 µH	1.892 mH	±20%	870 mA	434 mA	1.02 A	510 mA	718mOhm	2.87Ohm	Shielded	-	-40°C ~ 125°C	Surface Mount	0.492" L x 0.492" W (12.50mm x 12.50mm)	0.236" (6.00mm)
PF0553.223NLT INDUCT ARRAY 2 COIL 23UH SMD Pulse Electronics	2,612	-	RFQ	Datasheet	PF0553NL	Nonstandard	Tape & Reel (TR)	Active	2	23 µH	92 µH	±20%	3.9 A	2 A	7.6 A	3.8 A	39mOhm Max	160mOhm Max	Shielded	-	-40°C ~ 125°C	Surface Mount	0.492" L x 0.492" W (12.50mm x 12.50mm)	0.315" (8.00mm)
DRQ127-102-R INDUCT ARRAY 2 COIL 1.005MH SMD Eaton - Electronics Division	909	-	RFQ	Datasheet	DRQ	Nonstandard	Tape & Reel (TR)	Active	2	1.005 mH	4.02 mH	±20%	610 mA	307 mA	1.14 A	571 mA	1.66Ohm	6.64Ohm	Shielded	-	-40°C ~ 125°C	Surface Mount	0.492" L x 0.492" W (12.50mm x 12.50mm)	0.315" (8.00mm)
74489430180 INDUCT ARRAY 2 COIL 18UH SMD Würth Elektronik	1,635	-	RFQ	Datasheet	WE-TDC	Nonstandard	Tape & Reel (TR)	Active	2	18 µH	72 µH	±20%	800 mA	400 mA	1.2 A	600 mA	380mOhm Max	-	Shielded	-	-40°C ~ 125°C	Surface Mount	0.315" L x 0.315" W (8.00mm x 8.00mm)	0.083" (2.10mm)
74489430010 INDUCT ARRAY 2 COIL 1UH SMD Würth Elektronik	550	-	RFQ	Datasheet	WE-TDC	Nonstandard	Tape & Reel (TR)	Active	2	1 µH	4 µH	±30%	2.85 A	1.425 A	5.1 A	2.55 A	28mOhm Max	-	Shielded	-	-40°C ~ 125°C	Surface Mount	0.315" L x 0.315" W (8.00mm x 8.00mm)	0.083" (2.10mm)
74489430056 INDUCT ARRAY 2 COIL 5.6UH SMD Würth Elektronik	550	-	RFQ	Datasheet	WE-TDC	Nonstandard	Tape & Reel (TR)	Active	2	5.6 µH	22.4 µH	±30%	1.45 A	725 mA	2.2 A	1.1 A	131mOhm Max	-	Shielded	-	-40°C ~ 125°C	Surface Mount	0.315" L x 0.315" W (8.00mm x 8.00mm)	0.083" (2.10mm)
744894300068 INDUCT ARRAY 2 COIL 680NH SMD Würth Elektronik	550	-	RFQ	Datasheet	WE-TDC	Nonstandard	Tape & Reel (TR)	Active	2	680 nH	2.72 µH	±30%	3.3 A	1.65 A	6.5 A	3.25 A	21mOhm Max	-	Shielded	-	-40°C ~ 125°C	Surface Mount	0.315" L x 0.315" W (8.00mm x 8.00mm)	0.083" (2.10mm)
74489430120 INDUCT ARRAY 2 COIL 12UH SMD Würth Elektronik	540	-	RFQ	Datasheet	WE-TDC	Nonstandard	Tape & Reel (TR)	Active	2	12 µH	48 µH	±20%	950 mA	475 mA	1.55 A	775 mA	227mOhm Max	-	Shielded	-	-40°C ~ 125°C	Surface Mount	0.315" L x 0.315" W (8.00mm x 8.00mm)	0.083" (2.10mm)
744894300033 INDUCT ARRAY 2 COIL 330NH SMD Würth Elektronik	338	-	RFQ	Datasheet	WE-TDC	Nonstandard	Tape & Reel (TR)	Active	2	330 nH	1.32 µH	±30%	4 A	2 A	9 A	4.5 A	15mOhm Max	-	Shielded	-	-40°C ~ 125°C	Surface Mount	0.315" L x 0.315" W (8.00mm x 8.00mm)	0.083" (2.10mm)
B82472D6682M000 FIXED IND 6.8UH 2.75A 75 MOHM EPCOS - TDK Electronics	825	-	RFQ	Datasheet	B82472D6	Nonstandard	Tape & Reel (TR)	Active	2	6.8 µH	27.2 µH	±20%	-	2.75 A	4.6 A	2.3 A	37.5mOhm Max	150mOhm Max	Shielded	AEC-Q200	-55°C ~ 150°C	Surface Mount	0.287" L x 0.287" W (7.30mm x 7.30mm)	0.189" (4.80mm)
B82472D6153M000 FIXED IND 15UH 1.85A 158 MOHM EPCOS - TDK Electronics	630	-	RFQ	Datasheet	B82472D6	Nonstandard	Tape & Reel (TR)	Active	2	15 µH	60 µH	±20%	-	1.85 A	3 A	1.5 A	79mOhm Max	316mOhm Max	Shielded	AEC-Q200	-55°C ~ 150°C	Surface Mount	0.287" L x 0.287" W (7.30mm x 7.30mm)	0.189" (4.80mm)
SRF1280-330M INDUCT ARRAY 2 COIL 33UH SMD Bourns Inc.	1,514	-	RFQ	Datasheet	SRF1280	Nonstandard	Tape & Reel (TR)	Active	2	33 µH	132 µH	±20%	3.23 A	1.61 A	6.22 A	3.11 A	66.4mOhm Max	265mOhm Max	Shielded	-	-40°C ~ 125°C	Surface Mount	0.492" L x 0.492" W (12.50mm x 12.50mm)	0.315" (8.00mm)
SRF1280-R47Y INDUCT ARRAY 2 COIL 470NH SMD Bourns Inc.	1,458	-	RFQ	Datasheet	SRF1280	Nonstandard	Tape & Reel (TR)	Active	2	470 nH	1.88 µH	±30%	17.9 A	8.94 A	56 A	28 A	5.5mOhm Max	21.6mOhm Max	Shielded	-	-40°C ~ 125°C	Surface Mount	0.492" L x 0.492" W (12.50mm x 12.50mm)	0.315" (8.00mm)
SRF1280-681M INDUCT ARRAY 2 COIL 680UH SMD Bourns Inc.	700	-	RFQ	Datasheet	SRF1280	Nonstandard	Tape & Reel (TR)	Active	2	680 µH	2.72 mH	±20%	760 mA	380 mA	1.39 A	697 mA	1.296Ohm Max	4.888Ohm Max	Shielded	-	-40°C ~ 125°C	Surface Mount	0.492" L x 0.492" W (12.50mm x 12.50mm)	0.315" (8.00mm)

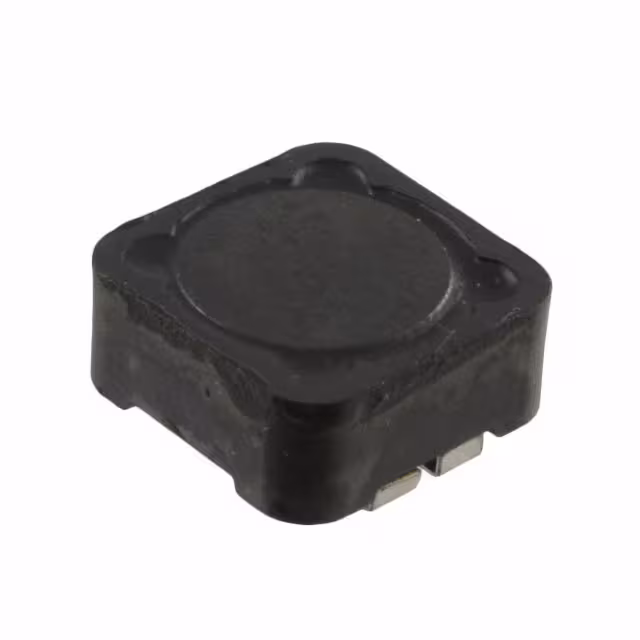

DRQ125-681-R INDUCT ARRAY 2 COIL 679.8UH SMD Eaton - Electronics Division	345	-	RFQ	Datasheet	DRQ	Nonstandard	Tape & Reel (TR)	Active	2	679.8 µH	2.719 mH	±20%	700 mA	350 mA	850 mA	425 mA	1.1Ohm	4.42Ohm	Shielded	-	-40°C ~ 125°C	Surface Mount	0.492" L x 0.492" W (12.50mm x 12.50mm)	0.236" (6.00mm)
PM3602-15-RC INDUCT ARRAY 2 COIL 15UH SMD Bourns Inc.	740	-	RFQ	Datasheet	PM3600	Nonstandard	Tape & Reel (TR)	Active	2	15 µH	60 µH	±20%	1.45 A	730 mA	-	-	63mOhm Max	250mOhm Max	Unshielded	-	-55°C ~ 125°C	Surface Mount	0.452" L x 0.354" W (11.48mm x 8.99mm)	0.225" (5.72mm)
PM3602-200-RC INDUCT ARRAY 2 COIL 200UH SMD Bourns Inc.	204	-	RFQ	Datasheet	PM3600	Nonstandard	Tape & Reel (TR)	Active	2	200 µH	800 µH	±20%	400 mA	200 mA	-	-	840mOhm Max	3.36Ohm Max	Unshielded	-	-55°C ~ 125°C	Surface Mount	0.452" L x 0.354" W (11.48mm x 8.99mm)	0.225" (5.72mm)

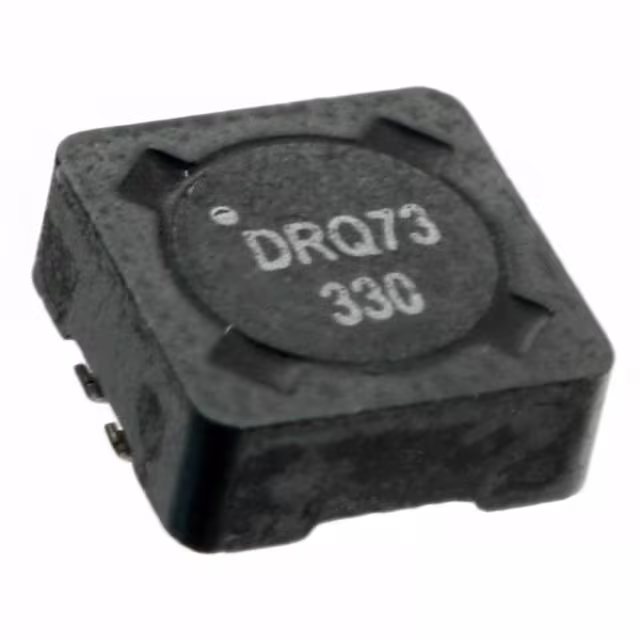

DRQ73-330-R INDUCT ARRAY 2 COIL 34.41UH SMD Eaton - Electronics Division	1,744	-	RFQ	Datasheet	DRQ	Nonstandard	Tape & Reel (TR)	Active	2	34.41 µH	137.6 µH	±20%	1.31 A	653 mA	1.35 A	680 mA	166mOhm	665mOhm	Shielded	-	-40°C ~ 125°C	Surface Mount	0.299" L x 0.299" W (7.60mm x 7.60mm)	0.140" (3.55mm)
DRQ73-R33-R INDUCT ARRAY 2 COIL 306NH SMD Eaton - Electronics Division	1,288	-	RFQ	Datasheet	DRQ	Nonstandard	Tape & Reel (TR)	Active	2	306 nH	1.224 µH	±20%	6.19 A	3.1 A	14.4 A	7.18 A	7.4mOhm	29.6mOhm	Shielded	-	-40°C ~ 125°C	Surface Mount	0.299" L x 0.299" W (7.60mm x 7.60mm)	0.140" (3.55mm)
DRQ74-4R7-R INDUCT ARRAY 2 COIL 5.182UH SMD Eaton - Electronics Division	1,298	-	RFQ	Datasheet	DRQ	Nonstandard	Tape & Reel (TR)	Active	2	5.182 µH	20.73 µH	±20%	3.34 A	1.67 A	4.37 A	2.19 A	25.4mOhm	102mOhm	Shielded	-	-40°C ~ 125°C	Surface Mount	0.299" L x 0.299" W (7.60mm x 7.60mm)	0.175" (4.45mm)

WINSUN SOURCING SUPPORT

Need Arrays, Signal Transformers Sourcing Support?

Send the manufacturer, part number, quantity and target delivery requirement. Winsun (HK) Electronics can assist with availability checks, quotation support, shortage sourcing and hard-to-find or obsolete components.

Global component sourcing support BOM, shortage and EOL support

Send part number & quantity Request a Quote

Need sourcing assistance? Contact Sales

FREQUENTLY ASKED QUESTIONS

Arrays, Signal Transformers FAQ

Common questions about selecting, comparing and sourcing Arrays, Signal Transformers components through Winsun (HK) Electronics.

What should I check when selecting Arrays, Signal Transformers components?

Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.

Can Winsun help source specific Arrays, Signal Transformers part numbers?

Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.

Do you support shortage, obsolete or hard-to-find Arrays, Signal Transformers parts?

Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.

How do I request a quote for Arrays, Signal Transformers components?

Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
