Arrays, Signal Transformers

Browse available Arrays, Signal Transformers part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.

For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.

Compare Part Numbers Review available models and manufacturers

Datasheets & Specifications Access technical references quickly

RFQ & BOM Support Send quantities for sourcing and quotation

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Number of Coils	Inductance - Connected In Parallel	Inductance - Connected In Series	Tolerance	Current Rating - Parallel	Current Rating - Series	Current Saturation - Parallel	Current Saturation - Series	DC Resistance (DCR) - Parallel	DC Resistance (DCR) - Series	Shielding	Ratings	Operating Temperature	Mounting Type	Size / Dimension	Height
7448990100 INDUCT ARRAY 2 COIL 10UH SMD Würth Elektronik	273	-	RFQ	Datasheet	WE-MCRI	Nonstandard	Tape & Reel (TR)	Active	2	10 µH	-	±20%	4.5 A	-	17 A	-	69mOhm	-	Shielded	-	-40°C ~ 125°C	Surface Mount	0.453" L x 0.394" W (11.50mm x 10.00mm)	0.354" (9.00mm)
CTX25-2P-R INDUCT ARRAY 2 COIL 24.79UH SMD Eaton - Electronics Division	853	-	RFQ	Datasheet	Econo-Pac™	Nonstandard	Tape & Reel (TR)	Active	2	24.79 µH	99.14 µH	±20%	1.4 A	700 mA	-	-	109mOhm Max	436mOhm Max	Unshielded	-	-40°C ~ 85°C	Surface Mount	0.450" L x 0.450" W (11.43mm x 11.43mm)	0.235" (5.97mm)
CTX100-2P-R INDUCT ARRAY 2 COIL 99.14UH SMD Eaton - Electronics Division	1,962	-	RFQ	Datasheet	Econo-Pac™	Nonstandard	Tape & Reel (TR)	Active	2	99.14 µH	396.58 µH	±20%	620 mA	310 mA	-	-	541mOhm Max	2.162Ohm Max	Unshielded	-	-40°C ~ 85°C	Surface Mount	0.450" L x 0.450" W (11.43mm x 11.43mm)	0.235" (5.97mm)

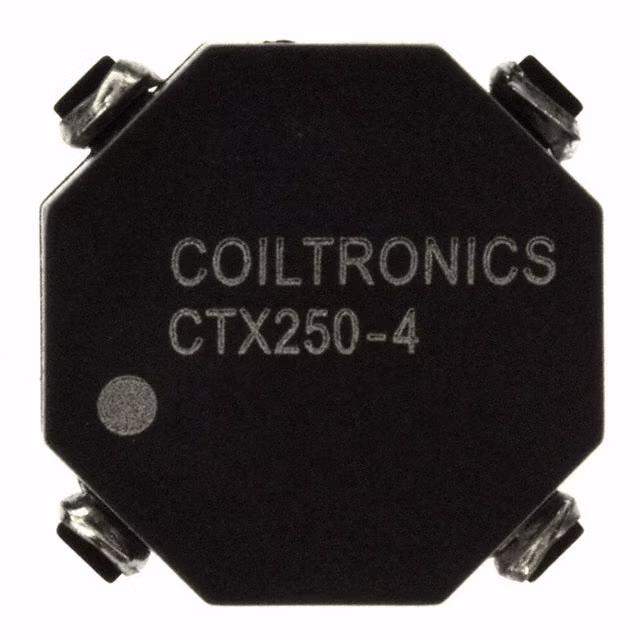

CTX250-4-R INDUCT ARRAY 2 COIL 250UH SMD Eaton - Electronics Division	1,503	-	RFQ	Datasheet	OCTA-PAC®	Nonstandard	Tape & Reel (TR)	Active	2	250 µH	1 mH	±20%	650 mA	330 mA	-	-	-	-	Unshielded	-	-40°C ~ 85°C	Surface Mount	0.550" L x 0.550" W (13.97mm x 13.97mm)	0.250" (6.35mm)
74485540820 INDUCT ARRAY 2 COIL 8.2UH SMD Würth Elektronik	314	-	RFQ	Datasheet	WE-CFWI	4-SMD	Tape & Reel (TR)	Active	2	8.2 µH	-	±20%	13.5 A	-	14 A	-	13mOhm	-	Shielded	-	-40°C ~ 150°C	Surface Mount	0.610" L x 0.520" W (15.50mm x 13.20mm)	0.492" (12.50mm)
P0174NL INDUCT ARRAY 2 COIL 2.2UH SMD Pulse Electronics	230	-	RFQ	Datasheet	Polecat	Nonstandard	Tube	Active	2	2.2 µH	8.75 µH	±10%	8.3 A	4.16 A	-	-	7.6mOhm Max	32mOhm Max	Unshielded	-	-40°C ~ 130°C	Surface Mount	0.500" L x 0.500" W (12.70mm x 12.70mm)	0.215" (5.46mm)
CTX100-1P-R INDUCT ARRAY 2 COIL 99.01UH SMD Eaton - Electronics Division	1,505	-	RFQ	Datasheet	Econo-Pac™	Nonstandard	Tape & Reel (TR)	Active	2	99.01 µH	396.06 µH	±20%	540 mA	270 mA	-	-	557mOhm Max	2.227Ohm Max	Unshielded	-	-40°C ~ 85°C	Surface Mount	0.450" L x 0.450" W (11.43mm x 11.43mm)	0.165" (4.19mm)
744851101 INDUCT ARRAY 2 COIL 10UH SMD Würth Elektronik	416	-	RFQ	Datasheet	WE-DCT	Nonstandard	Tape & Reel (TR)	Active	2	10 µH	40 µH	±10%	5.3 A	2.65 A	8 A	4 A	22mOhm Max	-	Shielded	-	-40°C ~ 125°C	Surface Mount	0.906" L x 0.728" W (23.00mm x 18.50mm)	0.453" (11.50mm)
744851039 INDUCT ARRAY 2 COIL 390NH SMD Würth Elektronik	349	-	RFQ	Datasheet	WE-DCT	Nonstandard	Tape & Reel (TR)	Active	2	390 nH	1.56 µH	±20%	10.6 A	5.3 A	50 A	25 A	6mOhm Max	-	Shielded	-	-40°C ~ 125°C	Surface Mount	0.906" L x 0.728" W (23.00mm x 18.50mm)	0.453" (11.50mm)
744851470 INDUCT ARRAY 2 COIL 4.7UH SMD Würth Elektronik	147	-	RFQ	Datasheet	WE-DCT	Nonstandard	Tape & Reel (TR)	Active	2	4.7 µH	18.8 µH	±10%	7.2 A	3.6 A	11 A	5.5 A	14mOhm Max	-	Shielded	-	-40°C ~ 125°C	Surface Mount	0.906" L x 0.728" W (23.00mm x 18.50mm)	0.453" (11.50mm)
74485540080 INDUCT ARRAY 2 COIL 800NH SMD Würth Elektronik	569	-	RFQ	Datasheet	WE-CFWI	4-SMD	Tape & Reel (TR)	Active	2	800 nH	3.2 µH	±20%	28 A	14 A	62 A	31 A	2.56mOhm Max	-	Shielded	-	-40°C ~ 150°C	Surface Mount	0.610" L x 0.520" W (15.50mm x 13.20mm)	0.413" (10.50mm)
P0181NL INDUCT ARRAY 2 COIL 47.6UH SMD Pulse Electronics	537	-	RFQ	Datasheet	Polecat	Nonstandard	Tube	Active	2	47.6 µH	190.3 µH	±10%	1.8 A	890 mA	-	-	151mOhm Max	604mOhm Max	Unshielded	-	-40°C ~ 130°C	Surface Mount	0.500" L x 0.500" W (12.70mm x 12.70mm)	0.215" (5.46mm)
CTX200-2P-R INDUCT ARRAY 2 COIL 201.59UH SMD Eaton - Electronics Division	2,780	-	RFQ	Datasheet	Econo-Pac™	Nonstandard	Tape & Reel (TR)	Active	2	201.59 µH	806.34 µH	±20%	460 mA	230 mA	-	-	951mOhm Max	3.804Ohm Max	Unshielded	-	-40°C ~ 85°C	Surface Mount	0.450" L x 0.450" W (11.43mm x 11.43mm)	0.235" (5.97mm)

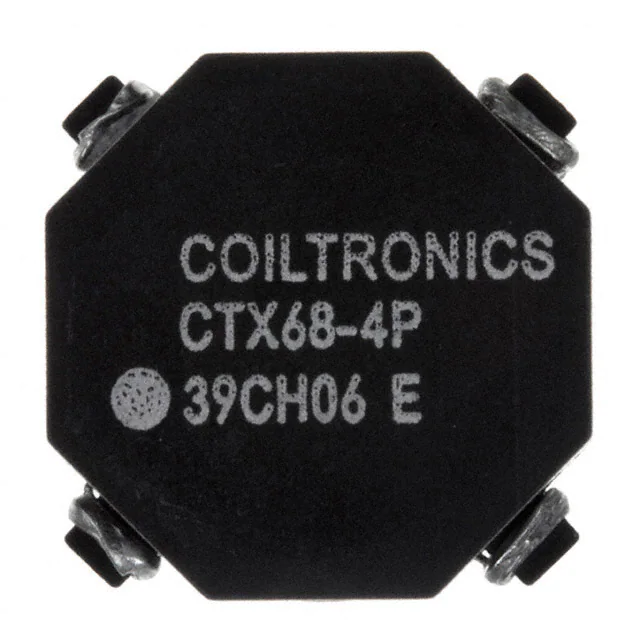

CTX68-4P-R INDUCT ARRAY 2 COIL 67.37UH SMD Eaton - Electronics Division	600	-	RFQ	Datasheet	Econo-Pac™	Nonstandard	Tape & Reel (TR)	Active	2	67.37 µH	269.5 µH	±20%	1.1 A	550 mA	-	-	238mOhm Max	952mOhm Max	Unshielded	-	-40°C ~ 85°C	Surface Mount	0.550" L x 0.550" W (13.97mm x 13.97mm)	0.250" (6.35mm)

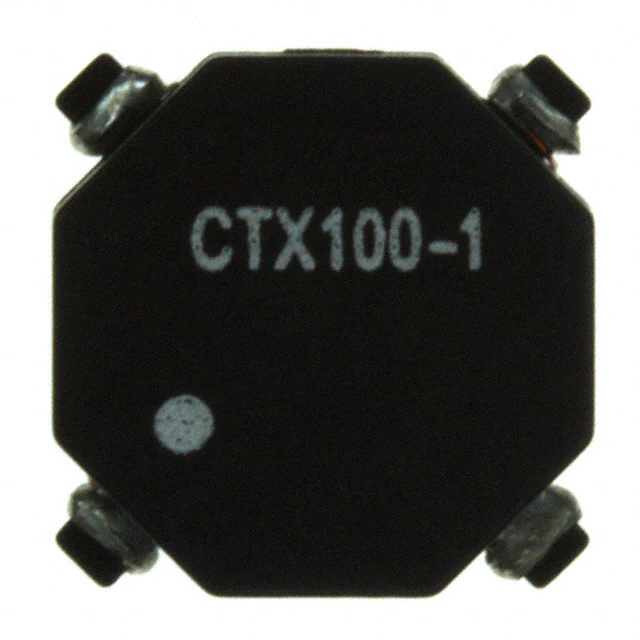

CTX100-1-R INDUCT ARRAY 2 COIL 99.23UH SMD Eaton - Electronics Division	1,362	-	RFQ	Datasheet	OCTA-PAC®	Nonstandard	Tape & Reel (TR)	Active	2	99.23 µH	396.9 µH	±20%	440 mA	220 mA	-	-	784mOhm Max	3.137Ohm Max	Unshielded	-	-40°C ~ 85°C	Surface Mount	0.450" L x 0.450" W (11.43mm x 11.43mm)	0.165" (4.19mm)

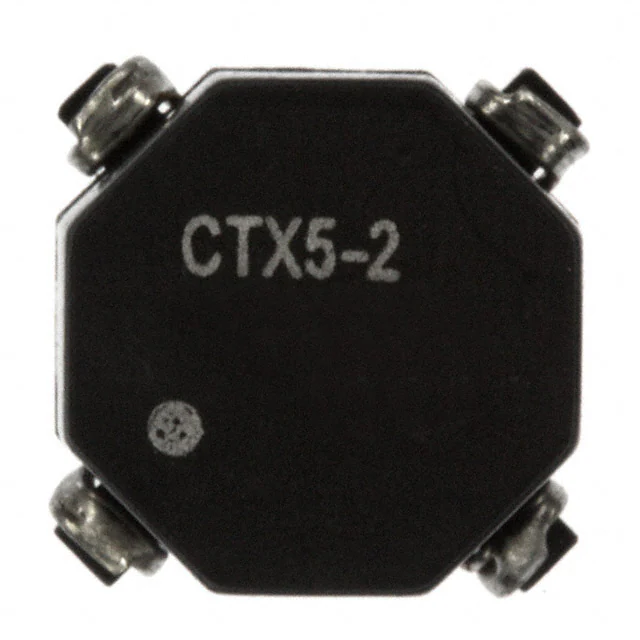

CTX5-2-R INDUCT ARRAY 2 COIL 4.7UH SMD Eaton - Electronics Division	565	-	RFQ	Datasheet	OCTA-PAC®	Nonstandard	Tape & Reel (TR)	Active	2	4.7 µH	18.8 µH	±20%	3 A	1.5 A	-	-	21mOhm Max	84mOhm Max	Unshielded	-	-40°C ~ 85°C	Surface Mount	0.450" L x 0.450" W (11.43mm x 11.43mm)	0.235" (5.97mm)

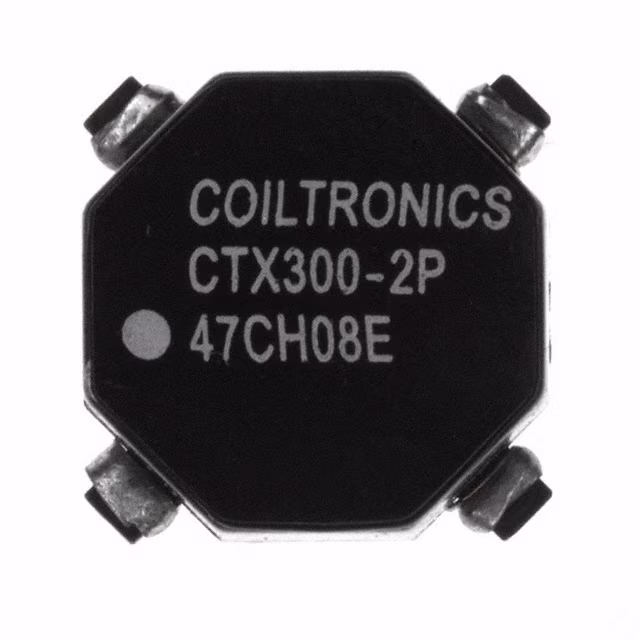

CTX300-2P-R INDUCT ARRAY 2 COIL 300.42UH SMD Eaton - Electronics Division	2,410	-	RFQ	Datasheet	Econo-Pac™	Nonstandard	Tape & Reel (TR)	Active	2	300.42 µH	1.2 mH	±20%	420 mA	210 mA	-	-	1.176Ohm Max	4.703Ohm Max	Unshielded	-	-40°C ~ 85°C	Surface Mount	0.450" L x 0.450" W (11.43mm x 11.43mm)	0.235" (5.97mm)
CTX100-4A-R INDUCT ARRAY 2 COIL 100.57UH SMD Eaton - Electronics Division	900	-	RFQ	Datasheet	OCTA-PAC® PLUS	Nonstandard	Tape & Reel (TR)	Active	2	100.57 µH	402.3 µH	±25%	1.37 A	690 mA	1.32 A	660 mA	235mOhm Max	939mOhm Max	Unshielded	-	-40°C ~ 85°C	Surface Mount	0.550" L x 0.550" W (13.97mm x 13.97mm)	0.250" (6.35mm)
CTX20-4A-R INDUCT ARRAY 2 COIL 19.58UH SMD Eaton - Electronics Division	124	-	RFQ	Datasheet	OCTA-PAC® PLUS	Nonstandard	Tape & Reel (TR)	Active	2	19.58 µH	78.3 µH	±25%	3.62 A	1.81 A	3 A	1.5 A	34mOhm Max	135mOhm Max	Unshielded	-	-40°C ~ 85°C	Surface Mount	0.550" L x 0.550" W (13.97mm x 13.97mm)	0.250" (6.35mm)
CTX15-4A-R INDUCT ARRAY 2 COIL 14.7UH SMD Eaton - Electronics Division	894	-	RFQ	Datasheet	OCTA-PAC® PLUS	Nonstandard	Tape & Reel (TR)	Active	2	14.7 µH	58.81 µH	±25%	3.87 A	1.94 A	3.46 A	1.73 A	29mOhm Max	117mOhm Max	Unshielded	-	-40°C ~ 85°C	Surface Mount	0.550" L x 0.550" W (13.97mm x 13.97mm)	0.250" (6.35mm)

WINSUN SOURCING SUPPORT

Need Arrays, Signal Transformers Sourcing Support?

Send the manufacturer, part number, quantity and target delivery requirement. Winsun (HK) Electronics can assist with availability checks, quotation support, shortage sourcing and hard-to-find or obsolete components.

Global component sourcing support BOM, shortage and EOL support

Send part number & quantity Request a Quote

Need sourcing assistance? Contact Sales

FREQUENTLY ASKED QUESTIONS

Arrays, Signal Transformers FAQ

Common questions about selecting, comparing and sourcing Arrays, Signal Transformers components through Winsun (HK) Electronics.

What should I check when selecting Arrays, Signal Transformers components?

Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.

Can Winsun help source specific Arrays, Signal Transformers part numbers?

Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.

Do you support shortage, obsolete or hard-to-find Arrays, Signal Transformers parts?

Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.

How do I request a quote for Arrays, Signal Transformers components?

Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
