Audio Transformers

Browse available Audio Transformers part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.

For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.

Compare Part Numbers Review available models and manufacturers

Datasheets & Specifications Access technical references quickly

RFQ & BOM Support Send quantities for sourcing and quotation

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Turns Ratio - Primary:Secondary	Impedance - Primary (Ohms)	Impedance - Secondary (Ohms)	DC Resistance (DCR) - Primary	DC Resistance (DCR) - Secondary	Transformer Type	Frequency Range	Frequency Response	Voltage - Isolation	Insertion Loss	Return Loss	Power Level	Operating Temperature	Approval Agency	Mounting Type	Size / Dimension	Height - Seated (Max)	Termination Style
SP-50-B AUDIO XFMR 500CT / 600 TH Triad Magnetics	1,702	-	RFQ	Datasheet	Red-Spec	Bulk	Active	1:1.1	500CT	600	67Ohm	98Ohm	Audio Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	50mW	-40°C ~ 85°C	-	Through Hole	0.410" L x 0.310" W (10.41mm x 7.87mm)	0.465" (11.80mm)	PC Pin
SP-69-B AUDIO XFMR 600 / 600 150/150 TH Triad Magnetics	3,318	-	RFQ	Datasheet	Red-Spec	Bulk	Active	2.1:1	600	600, 150/150	1kOhm	Parallel @ 565Ohm, Series @ 650Ohm	Audio Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	50mW	-40°C ~ 85°C	-	Through Hole	0.410" L x 0.310" W (10.41mm x 7.87mm)	0.465" (11.80mm)	PC Pin

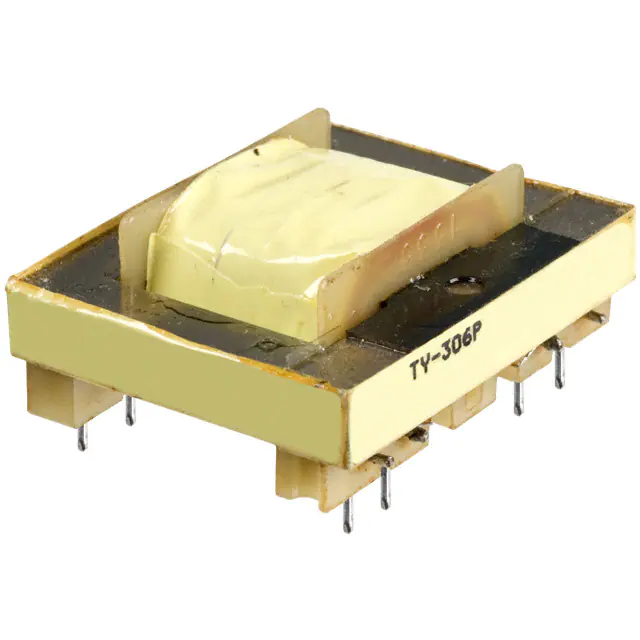

TY-306P AUDIO XFMR 600 150/150 / 600 TH Triad Magnetics	2,485	-	RFQ	Datasheet	TY	Bulk	Active	1:1	600, 150/150	600	31Ohm, 31Ohm	108Ohm	Data/Voice Coupling	300Hz ~ 3.5kHz	±0.5dB	1500VAC	1.5dB Typ	10dB Typ	-45dB ~ 7dB	-20°C ~ 85°C	-	Through Hole	1.650" L x 1.375" W (41.91mm x 34.93mm)	0.680" (17.27mm)	PC Pin
SP-13-B XFMR 25KCT 20KCT / 1KCT 800CT TH Triad Magnetics	1,471	-	RFQ	Datasheet	Red-Spec	Bulk	Active	5:1	25kCT, 20kCT	1kCT, 800CT	1.7kOhm	115Ohm	Audio Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	40mW	-40°C ~ 85°C	-	Through Hole	0.410" L x 0.310" W (10.41mm x 7.87mm)	0.465" (11.80mm)	PC Pin
TY-306P-B AUDIO XFMR 600/600 / 600 TH Triad Magnetics	2,899	-	RFQ	Datasheet	TY	Bulk	Active	1:2.21	600/600	600	31Ohm, 31Ohm	108Ohm	Data/Voice Coupling	300Hz ~ 3.5kHz	±0.5dB	1500VAC	1.5dB Typ	10dB Typ	-45dB ~ 7dB	-20°C ~ 85°C	-	Through Hole	1.650" L x 1.375" W (41.91mm x 34.93mm)	0.680" (17.27mm)	PC Pin

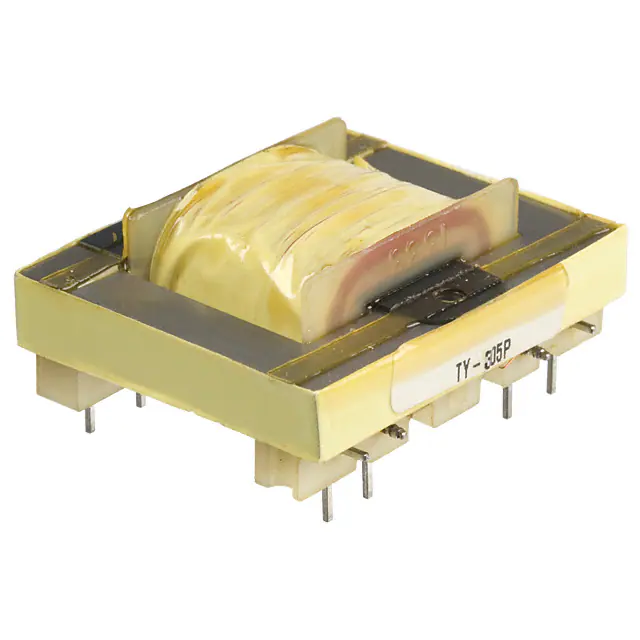

TY-305P AUDIO XFMR 600 / 600 TH Triad Magnetics	1,083	-	RFQ	Datasheet	TY	Bulk	Active	1:0.90	600	600	108Ohm	61Ohm	Data/Voice Coupling	300Hz ~ 3.5kHz	±0.5dB	1500VAC	1.5dB Typ	10dB Typ	-45dB ~ 7dB	-20°C ~ 85°C	-	Through Hole	1.650" L x 1.375" W (41.91mm x 34.93mm)	0.680" (17.27mm)	PC Pin
TY-305P-B AUDIO XFMR 600 / 600 TH Triad Magnetics	3,717	-	RFQ	Datasheet	TY	Bulk	Active	1:0.90	600	600	108Ohm	61Ohm	Data/Voice Coupling	300Hz ~ 3.5kHz	±0.5dB	1500VAC	1.5dB Typ	10dB Typ	-45dB ~ 7dB	-20°C ~ 85°C	-	Through Hole	1.650" L x 1.375" W (41.91mm x 34.93mm)	0.680" (17.27mm)	PC Pin
PL3141 POWER iNRCORE, LLC	2,337	-	RFQ	Datasheet	-	Tube	Active	1:1	600	-	55Ohm	67Ohm	General Purpose	300Hz ~ 3.5kHz	±0.5dB	1000V	1.5dB	-	-	-40°C ~ 85°C	-	Surface Mount	0.709" L x 0.551" W (18.01mm x 14.00mm)	0.413" (10.49mm)	Gull Wing
PL3141NL POWER iNRCORE, LLC	3,533	-	RFQ	Datasheet	-	Tube	Active	1:1	600	-	55Ohm	67Ohm	General Purpose	300Hz ~ 3.5kHz	±0.5dB	1000V	1.5dB	-	-	-40°C ~ 85°C	-	Surface Mount	0.709" L x 0.551" W (18.01mm x 14.00mm)	0.413" (10.49mm)	Gull Wing
108P AUDIO XFMR 10KCT / 1.5KCT TH Hammond Manufacturing	3,840	-	RFQ	Datasheet	108	Bulk	Active	2.58:1	10kCT	1.5kCT	438Ohm	110Ohm	Miniature Epoxy Potted	300Hz ~ 50kHz	±1.5dB	500Vrms	-	-	150mW	-	-	Through Hole	1.030" L x 0.770" W (26.16mm x 19.56mm)	0.770" (19.56mm)	PC Pin
102H AUDIO XFMR 2K / 500CT TH Hammond Manufacturing	1,657	-	RFQ	Datasheet	102	Bulk	Active	-	2k	500CT	341Ohm	62Ohm	Miniature Epoxy Potted	310Hz	-1dB	100V	1.5dB	-	20mW	-	-	Through Hole	0.570" L x 0.570" W (14.48mm x 14.48mm)	0.480" (12.19mm)	PC Pin
102J AUDIO XFMR 6K / 2KCT TH Hammond Manufacturing	4,685	-	RFQ	Datasheet	102	Bulk	Active	-	6k	2kCT	900Ohm	260Ohm	Miniature Epoxy Potted	310Hz	-1dB	100V	1.5dB	-	20mW	-	-	Through Hole	0.570" L x 0.570" W (14.48mm x 14.48mm)	0.480" (12.19mm)	PC Pin
102K AUDIO XFMR 10K / 2KCT TH Hammond Manufacturing	1,456	-	RFQ	Datasheet	102	Bulk	Active	-	10k	2kCT	1.585kOhm	260Ohm	Miniature Epoxy Potted	310Hz	-1dB	100V	1.5dB	-	20mW	-	-	Through Hole	0.570" L x 0.570" W (14.48mm x 14.48mm)	0.480" (12.19mm)	PC Pin
148F XFMR 1.5K / 500 125/125 TH Hammond Manufacturing	4,226	-	RFQ	Datasheet	148	Bulk	Active	-	1.5k	500, 125/125	220Ohm	58Ohm	Economical Open Type	200Hz ~ 15kHz	±1dB	-	0.5dB	-	75mW	-	-	Through Hole	0.820" L x 0.680" W (20.83mm x 17.27mm)	0.690" (17.53mm)	PC Pin
144B AUDIO XFMR 200CT / 3.2 CHAS MNT Hammond Manufacturing	3,761	-	RFQ	Datasheet	144	Bulk	Active	-	200CT	3.2	10Ohm	-	Economical Open Type	150Hz ~ 15kHz	±1dB	-	-	-	150mW	-	-	Chassis Mount	1.000" L x 0.690" W (25.40mm x 17.53mm)	0.690" (17.53mm)	Wire Leads
146D AUDIO XFMR 100CT / 3.2 CHAS MNT Hammond Manufacturing	1,127	-	RFQ	Datasheet	146	Bulk	Active	-	100CT	3.2	4.4Ohm	300mOhm	Economical Open Type	150Hz ~ 15kHz	±1dB	-	-	-	700mW	-	-	Chassis Mount	1.630" L x 0.880" W (41.40mm x 22.35mm)	0.810" (20.57mm)	Wire Leads
141B AUDIO XFMR 200KCT / 1K TH Hammond Manufacturing	1,351	-	RFQ	Datasheet	141	Bulk	Active	-	200kCT	1k	3.775kOhm	85Ohm	Low Profile, Open Type	200Hz ~ 15kHz	±2dB	-	-	-	4mW	-	-	Through Hole	0.780" L x 0.660" W (19.81mm x 16.76mm)	0.460" (11.68mm)	PC Pin
141M AUDIO XFMR 30KCT / 1.2KCT TH Hammond Manufacturing	2,378	-	RFQ	Datasheet	141	Bulk	Active	-	30kCT	1.2kCT	1.1kOhm	47Ohm	Low Profile, Open Type	200Hz ~ 15kHz	±2dB	-	-	-	100mW	-	-	Through Hole	0.780" L x 0.660" W (19.81mm x 16.76mm)	0.460" (11.68mm)	PC Pin
141D AUDIO XFMR 3KCT / 1KCT TH Hammond Manufacturing	2,836	-	RFQ	Datasheet	141	Bulk	Active	-	3kCT	1kCT	120Ohm	51Ohm	Low Profile, Open Type	200Hz ~ 15kHz	±2dB	-	-	-	150mW	-	-	Through Hole	0.780" L x 0.660" W (19.81mm x 16.76mm)	0.460" (11.68mm)	PC Pin
104K AUDIO XFMR 20K / 1KCT TH Hammond Manufacturing	2,045	-	RFQ	Datasheet	104	Bulk	Active	-	20k	1kCT	790Ohm	125Ohm	Miniature Epoxy Potted	200Hz	-1dB	200V	1dB	-	35mW	-	-	Through Hole	0.860" L x 0.710" W (21.84mm x 18.03mm)	0.750" (19.05mm)	PC Pin
