Automotive Relays
Browse available Automotive Relays part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Coil Type | Coil Current | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Features | Mounting Type | Termination Style | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PC776-1X-24S-D-XRELAY AUTOMOTIVE SPST 130A 24V |
2,302 | - |
|
Datasheet | PC776 | Tray | Active | Non Latching | 170.2 mA | 24VDC | SPST-NO (DM) (1 Form X) | 130 A | 40VDC - Max | 14.4 VDC | 2.4 VDC | 10 ms | 10 ms | Diode, Sealed - Fully | Chassis Mount | Screw Terminal | -40°C ~ 125°C |
|
|
PC776-1X-24S-R-XRELAY AUTOMOTIVE SPST 130A 24V |
1,322 | - |
|
Datasheet | PC776 | Tray | Active | Non Latching | 170.2 mA | 24VDC | SPST-NO (DM) (1 Form X) | 130 A | 40VDC - Max | 14.4 VDC | 2.4 VDC | 10 ms | 10 ms | Resistor, Sealed - Fully | Chassis Mount | Screw Terminal | -40°C ~ 125°C |
|
05903500RELAY24V.100A |
3,379 | - |
|
Datasheet | - | Box | Active | Non Latching | - | - | - | 100 A | 24VDC - Max | - | - | - | - | IP67 - Dust Tight, Waterproof | Chassis Mount | Stud | -40°C ~ 100°C |
|
|
K1157163ADR / GGVS 87-3-3000 |
2,292 | - |
|
Datasheet | 87, KISSLING | Bulk | Active | Latching, Dual Coil | 3 A | 24VDC | SPST-NO (1 Form A) | 300 A | - | - | - | - | - | Diode | Chassis Mount | Connector | -40°C ~ 85°C |
|
880107SD RELAY DUAL POLE |
2,676 | - |
|
Datasheet | SD | Bulk | Active | Latching, Single Coil | - | 12VDC | DPST-NO (2 Form A) | 300 A | 12VDC - Nom | - | - | - | - | - | Chassis Mount | Stud | -40°C ~ 85°C |
|
1-1414310-0RELAY AUTOMOTIVE SPST 40A 12V |
2,831 | - |
|
Datasheet | - | Bulk | Obsolete | Non Latching | - | 12VDC | SPDT (1 Form C) | 45 A | - | 6.9 VDC | 1.2 VDC | - | - | - | - | - | -40°C ~ 85°C |
|
|
9-1414992-1RELAY GEN PURPOSE SPST 25A 12V |
1,323 | - |
|
Datasheet | VFMA | Tray | Obsolete | Non Latching | 100.8 mA | 12VDC | SPST-NO (1 Form A) | 25 A | 14VDC - Nom | 7.2 VDC | 1.6 VDC | - | - | Resistor | Socketable | Quick Connect - 0.187"/0.250" | -40°C ~ 125°C |
|
CB1-R-24VRELAY AUTOMOTIVE SPDT 20A 24V |
4,350 | - |
|
Datasheet | CB | Bulk | Active | Non Latching | 84 mA | 24VDC | SPDT (1 Form C) | 20 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | 15 ms | Resistor, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
|
CB1AH-T-P-12VCB RELAY HR 1 FORM A 12V |
3,912 | - |
|
Datasheet | CB | Bulk | Active | Non Latching | 117 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | 15 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|
|
5601-24PT Series 30 A Time Delay Relay, |
4,634 | - |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
5-1393302-8Power/Signal Relay, 1 Form C, SP |
1,294 | - |
|
Datasheet | * | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
7421-24BRelay, 160 Amp / 24V, Bulk |
1,278 | - |
|
Datasheet | TH Series | Bulk | Active | Non Latching | 170 mA | 24VDC | SPST-NO (1 Form A) | 160 A | - | 16 VDC | - | - | - | Sealed - Fully | Chassis Mount | Stud, Wire Leads | - |
|
|
7422-24BRelay, 2x80 Amp / 24V, Bulk |
2,088 | - |
|
Datasheet | TH Series | Bulk | Active | Non Latching | 85 mA | 24VDC | DPST-NO (2 Form A) | 80 A | - | 16 VDC | - | - | - | Sealed - Fully | Chassis Mount | Stud, Wire Leads | - |
|
|
7610-24BAutomatic Charging Relay Plus - |
1,604 | - |
|
Datasheet | - | Bulk | Active | Non Latching | 170 mA | 24VDC | SPST-NO (1 Form A) | 160 A | - | 16 VDC | - | - | - | Sealed - Fully | Chassis Mount | Stud | - |
|
|
7612-24BAutomatic Charging Relay Plus - |
4,756 | - |
|
Datasheet | - | Bulk | Active | Non Latching | 85 mA | 24VDC | DPST-NO (2 Form A) | 80 A | - | 16 VDC | - | - | - | Sealed - Fully | Chassis Mount | Stud | - |
|
A41CS24VDCRELAY AUTOMOTIVE SPDT 20A 24V |
2,200 | - |
|
Datasheet | A4 | Tube | Active | Non Latching | 41.7 mA | 24VDC | SPDT (1 Form C) | 20 A | 380VAC, 75VDC - Max | 16.8 VDC | 2.4 VDC | 15 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|

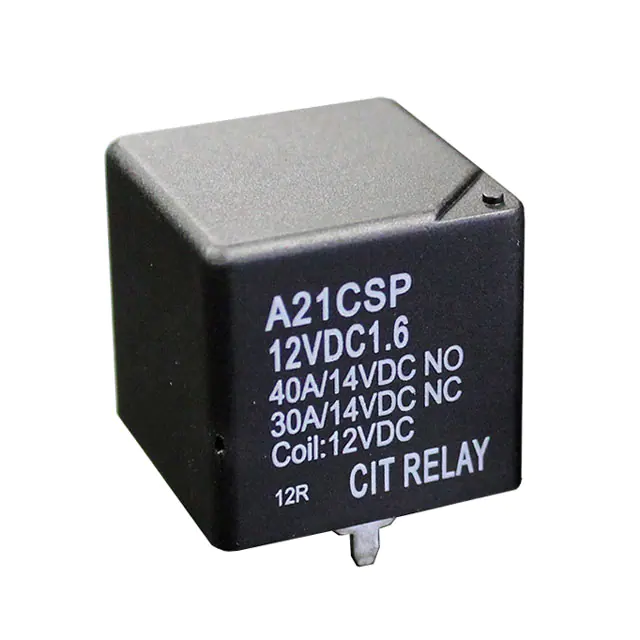

A21CSP12VDC1.6RELAY AUTOMOTIVE SPDT 40A 12V |
2,031 | - |
|
Datasheet | A2 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|

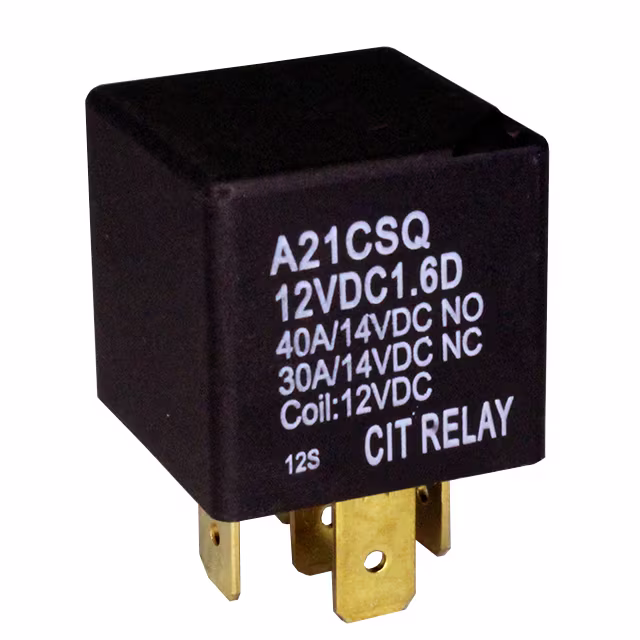

A21CSQ12VDC1.6DRELAY AUTOMOTIVE SPDT 40A 12V |
2,557 | - |
|
Datasheet | A2 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
CB1-P-12VRELAY AUTOMOTIVE SPDT 40A 12V |
1,693 | - |
|
Datasheet | CB | Bulk | Active | Non Latching | 117 mA | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | 15 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|

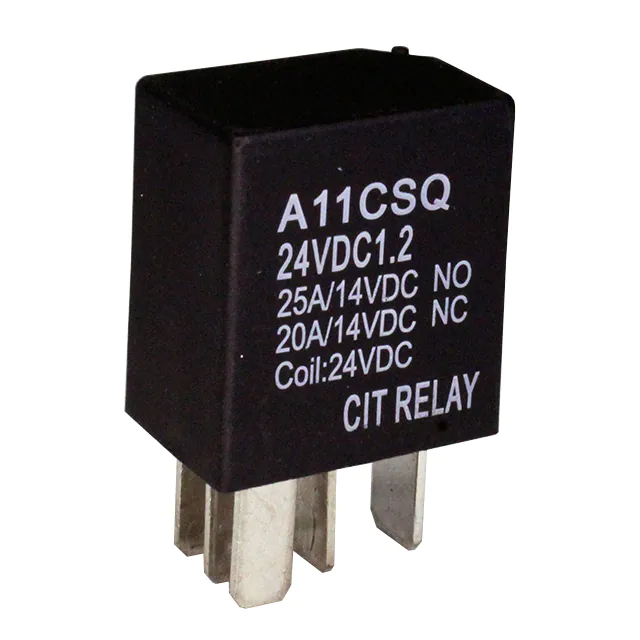

A11CSQ24VDC1.2RELAY AUTOMOTIVE SPDT 30A 24V |
3,795 | - |
|
Datasheet | A1 | Tube | Active | Non Latching | 50 mA | 24VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 7 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - 0.187" (4.7mm) | -40°C ~ 85°C |
Automotive Relays FAQ
Common questions about selecting, comparing and sourcing Automotive Relays components through Winsun (HK) Electronics.
What should I check when selecting Automotive Relays components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Automotive Relays part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Automotive Relays parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Automotive Relays components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
