Automotive Relays
Browse available Automotive Relays part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Coil Type | Coil Current | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Features | Mounting Type | Termination Style | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A31CCQ24VDC1DRELAY AUTOMOTIVE SPDT 60A 24V |
3,196 | - |
|
Datasheet | A3 | Tray | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 60 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Diode | Socketable | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
ACTP512RELAY AUTOMOTIVE SPDTX2 30A 12V |
4,571 | - |
|
Datasheet | ACTP | Tube | Active | Non Latching | 83.3 mA | 12VDC | SPDT (1 Form C) x 2 | 30 A | 14VDC - Nom | 7.2 VDC | 1 VDC | 10 ms | 10 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|
A2S1CSQ48VDC1.6RELAY AUTOMOTIVE SPDT 40A 48V |
4,268 | - |
|
Datasheet | A2 | Tray | Active | Non Latching | 33.3 mA | 48VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
CM1F-12VRELAY AUTOMOTIVE SPDT 35A 12V |
2,704 | - |
|
Datasheet | CM | Bulk | Active | Non Latching | 125 mA | 12VDC | SPDT (1 Form C) | 35 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 10 ms | 10 ms | Sealed - Flux Protection | Socketable | Plug In | -40°C ~ 85°C |
|

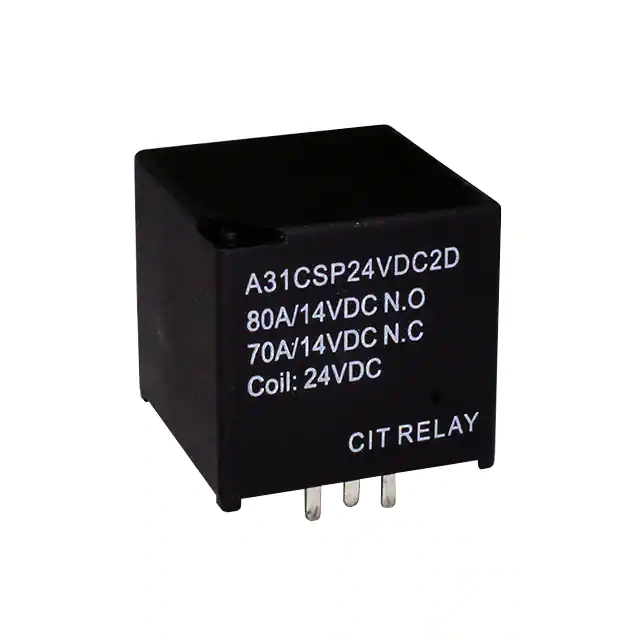

A31CSP24VDC2DRELAY AUTOMOTIVE SPDT 80A 24V |
4,534 | - |
|
Datasheet | A3 | Tray | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 80 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|
A11ASP24VDC1.2DRELAY AUTOMOTIVE SPST 30A 24V |
2,626 | - |
|
Datasheet | A1 | Tube | Active | Non Latching | 50 mA | 24VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 7 ms | Diode, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
ACJ1212PRELAY AUTOMOTIVE SPDT 20A 12V |
3,330 | - |
|
Datasheet | ACJ | Tube | Active | Non Latching | 53.3 mA | 12VDC | SPDT (1 Form C) | 20 A | 14VDC - Nom | 7.2 VDC | 1 VDC | 10 ms | 10 ms | Sealed - Flux Protection | Through Hole | PC Pin | -40°C ~ 85°C |
|

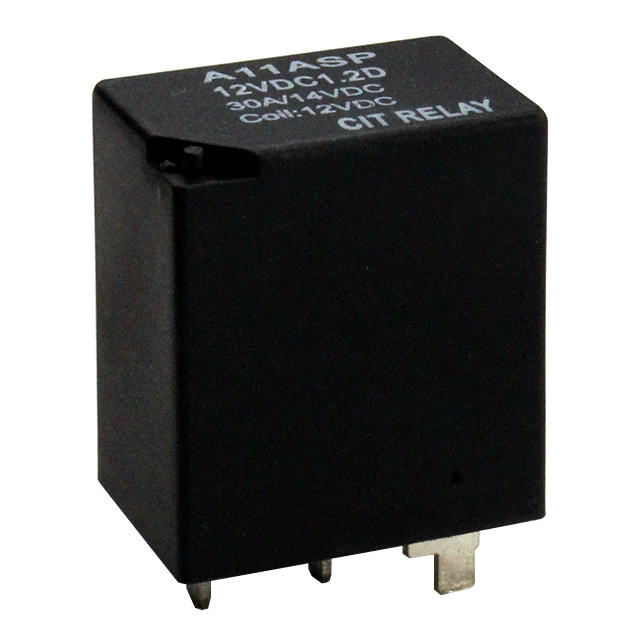

A11ASP12VDC1.2DRELAY AUTOMOTIVE SPST 30A 12V |
4,554 | - |
|
Datasheet | A1 | Tube | Active | Non Latching | 100 mA | 12VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 10 ms | 7 ms | Diode, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|

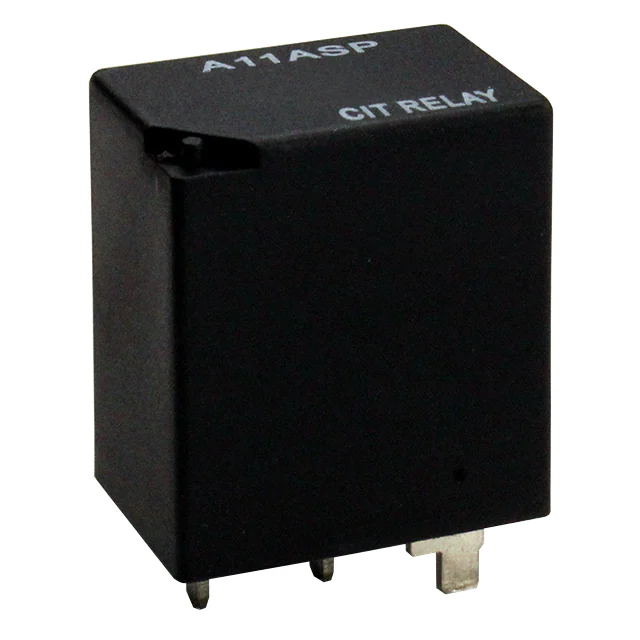

A11ASP24VDC1.5RRELAY AUTOMOTIVE SPST 30A 24V |
2,322 | - |
|
Datasheet | A1 | Tube | Active | Non Latching | 62.5 mA | 24VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 7 ms | Resistor, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|

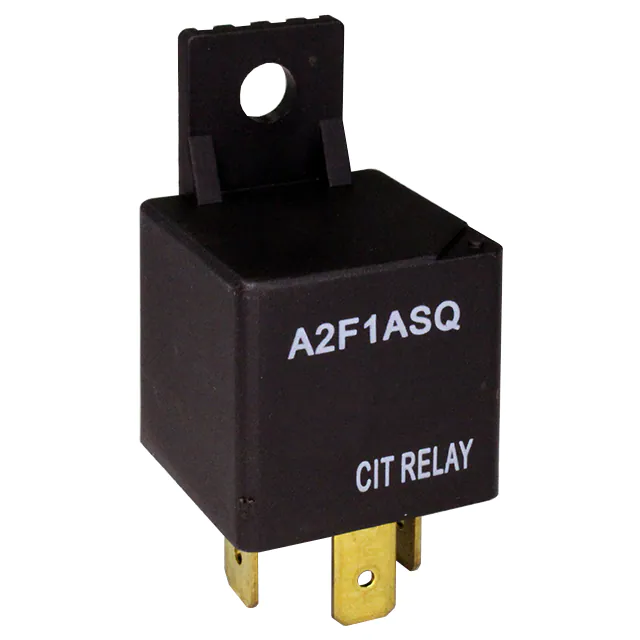

A2F1ASQ24VDC1.6RRELAY AUTOMOTIVE SPST 40A 24V |
4,780 | - |
|
Datasheet | A2 | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A2H1CSP12VDC1.6RRELAY AUTOMOTIVE SPDT 50A 12V |
2,538 | - |
|
Datasheet | A2H | Tray | Active | Non Latching | 150 mA | 12VDC | SPDT (1 Form C) | 50 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 10 ms | 10 ms | Resistor | Through Hole | PC Pin | -40°C ~ 125°C |
|
A21CSQ48VDC1.6DRELAY AUTOMOTIVE SPDT 40A 48V |
3,769 | - |
|
Datasheet | A2 | Tray | Active | Non Latching | 33.3 mA | 48VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
AZ9731-1A-12DC4R1RELAY AUTOMOTIVE SPST 40A 12V |
2,140 | - |
|
Datasheet | AZ9731 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 5 ms | Resistor, MINI-ISO, Shrouded w/ Steel Bracket Sealed - Epoxy | Chassis Mount | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

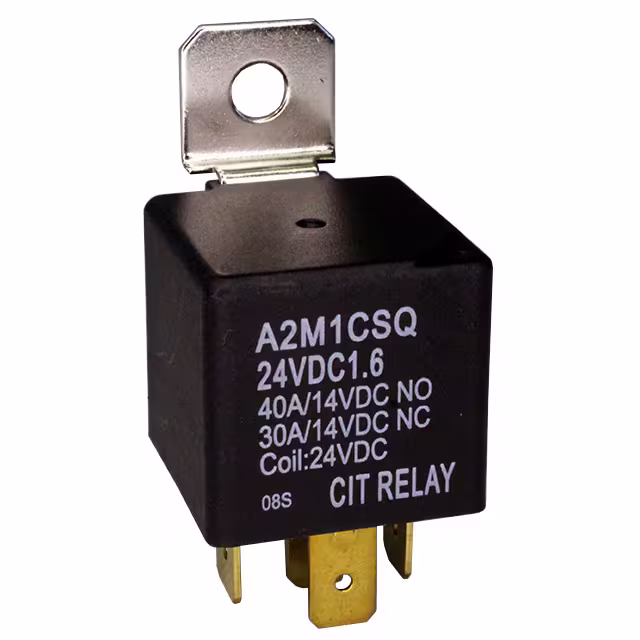

A2M1CSQ24VDC1.6RRELAY AUTOMOTIVE SPDT 40A 24V |
4,017 | - |
|
Datasheet | A2 | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

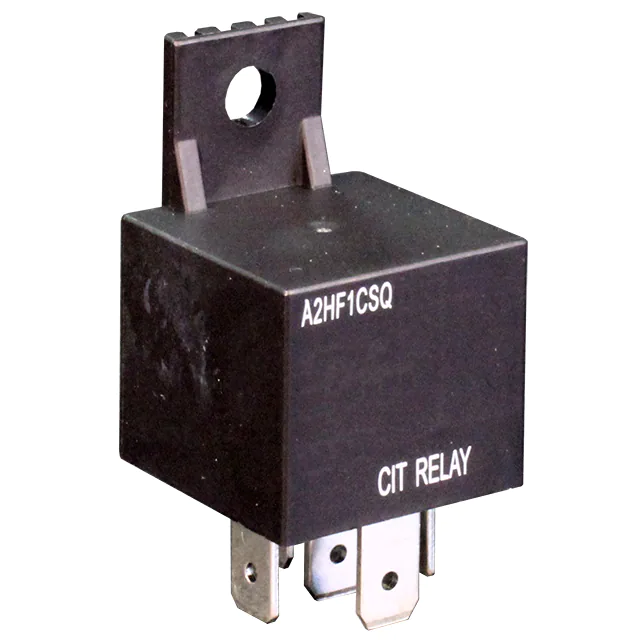

A2HF1CSQ24VDC1.6RELAY AUTOMOTIVE SPDT 50A 24V |
3,857 | - |
|
Datasheet | A2H | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 50 A | 75VDC - Max | 15.6 VDC | 2.4 VDC | 10 ms | 10 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

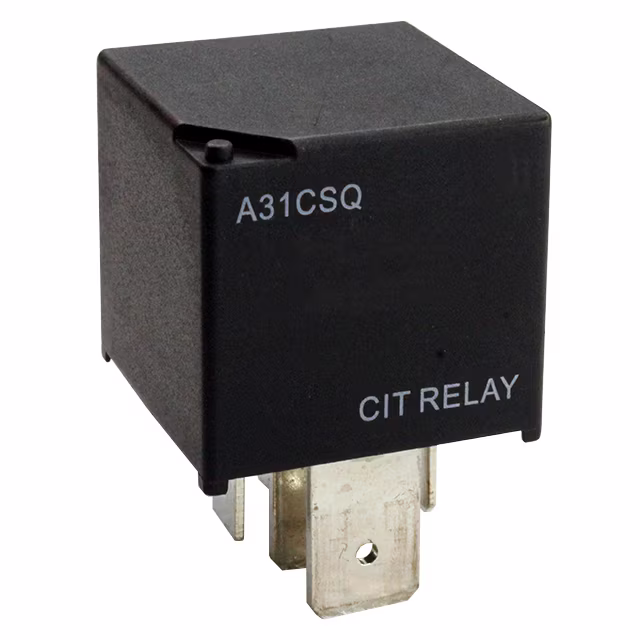

A31CSQ24VDC2RELAY AUTOMOTIVE SPDT 80A 24V |
1,619 | - |
|
Datasheet | A3 | Tray | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 80 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Sealed - Fully | Socketable | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A2S1ASQ48VDC1.6DRELAY AUTOMOTIVE SPST 40A 48V |
3,005 | - |
|
Datasheet | A2 | Tray | Active | Non Latching | 33.3 mA | 48VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A61CS12VDC.9RELAY AUTOMOTIVE SPDT 30A 12V |
2,978 | - |
|
Datasheet | A6 | Tray | Active | Non Latching | 75 mA | 12VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 5 ms | 2 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
A31CCQ24VDC1RELAY AUTOMOTIVE SPDT 60A 24V |
2,318 | - |
|
Datasheet | A3 | Tray | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 60 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | - | Socketable | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
CB1-T-R-M-12VCB RELAY WITH ISO TERMINAL |
1,318 | - |
|
Datasheet | CB | Bulk | Active | Non Latching | 134 mA | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | 15 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
Automotive Relays FAQ
Common questions about selecting, comparing and sourcing Automotive Relays components through Winsun (HK) Electronics.
What should I check when selecting Automotive Relays components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Automotive Relays part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Automotive Relays parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Automotive Relays components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
