Current Sense Transformers
Use the filters and product table below to compare Current Sense Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Frequency Range | Type | Current Rating (Amps) | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Current Ratio | DC Resistance (DCR) | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2277064CURR SENSE XFMR 1:20 100A DIN RL |
4,910 | - |
|
Datasheet | PACT | Bulk | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 100 A | - | - | - | - | - | - | DIN Rail | 2.362" L x 1.181" W (60.00mm x 30.00mm) | 3.150" (80.00mm) | Terminal Block |
|

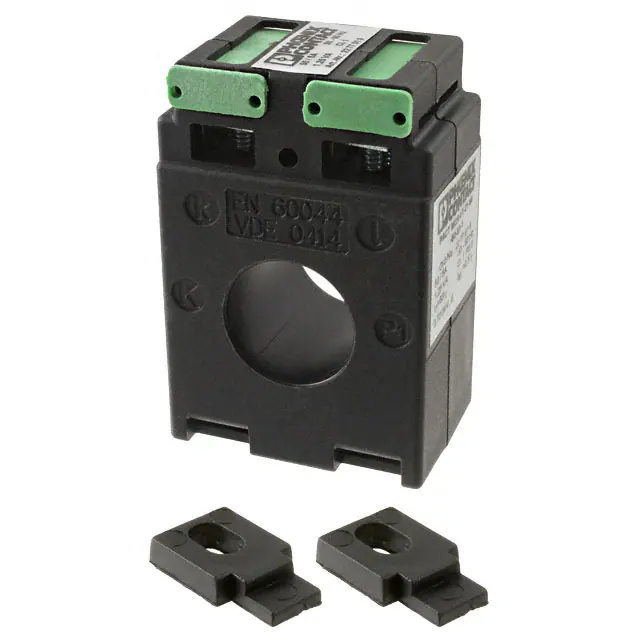

2277019CURR SENSE XFMR 1:10 50A DIN RL |
3,369 | - |
|
Datasheet | PACT | Bulk | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 50 A | - | - | - | - | - | - | DIN Rail | 1.732" L x 1.181" W (44.00mm x 30.00mm) | 2.598" (66.00mm) | Terminal Block |
|
|
2277611CURR SENSE XFMR 75A DIN RAIL |
3,561 | - |
|
Datasheet | - | Bulk | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 75 A | - | - | - | - | - | - | DIN Rail | 1.732" L x 1.181" W (44.00mm x 30.00mm) | 2.598" (66.00mm) | Terminal Block |
|
2277116CURR SENSE XFMR 1:50 250A DIN RL |
2,571 | - |
|
Datasheet | PACT | Bulk | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 250 A | - | - | 1:50 | - | - | - | DIN Rail | 2.756" L x 1.181" W (70.00mm x 30.00mm) | 3.543" (90.00mm) | Terminal Block |
|
2906231CURR SENSE XFMR 4000A DIN RAIL |
1,933 | - |
|
Datasheet | - | Bulk | Active | 16Hz ~ 1kHz | Non-Invasive (Split Core) | 4000 A | - | - | - | - | - | - | DIN Rail | 4.744" L x 0.244" W (120.50mm x 6.20mm) | 4.350" (110.50mm) | Terminal Block |
|
|
2277954PACT MCR-V2-6015- 85-1000-5A-1 |
4,472 | - |
|
Datasheet | - | Bulk | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 1 kA | - | - | - | - | - | - | DIN Rail | 3.346" L x 1.181" W (85.00mm x 30.00mm) | 4.252" (108.00mm) | Terminal Block |
|
|
1033483PACT RCP-4000A-1A-D140-10M |
3,628 | - |
|
Datasheet | - | Bulk | Active | 45Hz ~ 65Hz | Non-Invasive (Solid Core) | 4 kA | - | - | - | - | - | - | DIN Rail | 2.772" L x 0.886" W (70.40mm x 22.50mm) | 3.346" (85.00mm) | Terminal Block |
|
2910325CURR XFMR 4000A CHAS SET OF 2 |
3,941 | - |
|
Datasheet | PACT | Bulk | Active | 40Hz ~ 20kHz | Invasive | 4000 A | - | - | - | - | - | - | Chassis Mount | - | 3.346" (85.00mm) | Wire Leads with Connector |
|
|
2910326CURR XFMR 4000A CHAS SET OF 2 |
1,589 | - |
|
Datasheet | PACT | Bulk | Active | 40Hz ~ 20kHz | Invasive | 4000 A | - | - | - | - | - | - | Chassis Mount | - | 3.346" (85.00mm) | Wire Leads with Connector |
|
|
2910327CURR XFMR 4000A CHAS SET OF 2 |
4,126 | - |
|
Datasheet | PACT | Bulk | Active | 40Hz ~ 20kHz | Invasive | 4000 A | - | - | - | - | - | - | Chassis Mount | - | 3.346" (85.00mm) | Wire Leads with Connector |
Current Sense Transformers FAQ
Common questions about filtering, comparing and sourcing Current Sense Transformers components.
How can I narrow the Current Sense Transformers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Current Sense Transformers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
