Current Sense Transformers
Use the filters and product table below to compare Current Sense Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Frequency Range | Type | Current Rating (Amps) | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Current Ratio | DC Resistance (DCR) | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2276120CURR SENSE XFMR 1:40 200A DIN RL |
3,338 | - |
|
Datasheet | PACT | Bulk | Obsolete | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 200 A | - | - | 1:40 | - | - | - | DIN Rail | 3.346" L x 1.181" W (85.00mm x 30.00mm) | 4.252" (108.00mm) | Terminal Block |
|
|
2906233CURR SENSE XFMR 4000A DIN RAIL |
1,662 | - |
|
Datasheet | - | Bulk | Obsolete | 16Hz ~ 1kHz | Non-Invasive (Split Core) | 4000 A | - | - | - | - | - | - | DIN Rail | 4.744" L x 0.244" W (120.50mm x 6.20mm) | 4.350" (110.50mm) | Terminal Block |
|
2277815CURR SENSE XFMR 60A DIN RAIL |
3,438 | - |
|
Datasheet | - | Bulk | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 60 A | - | - | - | - | - | - | DIN Rail | 2.362" L x 1.181" W (60.00mm x 30.00mm) | 3.150" (80.00mm) | Terminal Block |
|

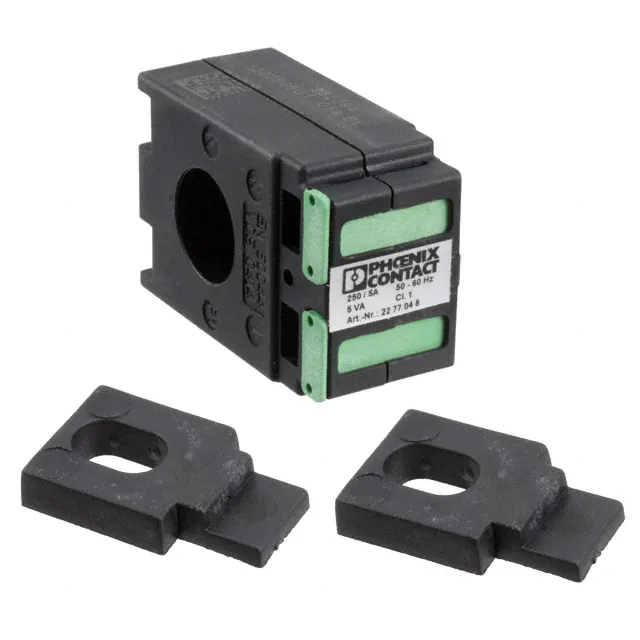

2277048CURR SENSE XFMR 250A DIN RAIL |
4,500 | - |
|
Datasheet | PACT | Bulk | Active | 50/60Hz | Non-Invasive (Solid Core) | 250 A | - | - | - | 200:5 | - | - | DIN Rail | 1.732" L x 1.181" W (44.00mm x 30.00mm) | 2.598" (66.00mm) | Terminal Block |
|
2277077CURR SENSE XFMR 1:30 150A DIN RL |
3,909 | - |
|
Datasheet | PACT | Bulk | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 150 A | - | - | 1:30 | - | - | - | DIN Rail | 2.362" L x 1.181" W (60.00mm x 30.00mm) | 3.150" (80.00mm) | Terminal Block |
|
|
2277682PACT MCR-V2-4012- 70- 500-5A-1 |
1,201 | - |
|
Datasheet | - | Bulk | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 500 A | - | - | - | - | - | - | DIN Rail | 2.756" L x 1.181" W (70.00mm x 30.00mm) | 3.543" (90.00mm) | Terminal Block |
|
|
2277022CURR SENSE XFMR 1:20 100A DIN RL |
3,321 | - |
|
Datasheet | PACT | Bulk | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 100 A | - | - | - | - | - | - | DIN Rail | 1.732" L x 1.181" W (44.00mm x 30.00mm) | 2.598" (66.00mm) | Terminal Block |
|
|
2277776CURR SENSE XFMR 200A DIN RAIL |
2,863 | - |
|
Datasheet | - | Bulk | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 200 A | - | - | - | - | - | - | DIN Rail | 1.732" L x 1.181" W (44.00mm x 30.00mm) | 2.598" (66.00mm) | Terminal Block |
|
|
2277035CURR SENSE XFMR 1:30 150A DIN RL |
2,955 | - |
|
Datasheet | PACT | Bulk | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 150 A | - | - | 1:30 | - | - | - | DIN Rail | 1.732" L x 1.181" W (44.00mm x 30.00mm) | 2.598" (66.00mm) | Terminal Block |
|
|
2277637CURR SENSE XFMR 200A DIN RAIL |
1,104 | - |
|
Datasheet | - | Bulk | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 200 A | - | - | - | - | - | - | DIN Rail | 2.362" L x 1.181" W (60.00mm x 30.00mm) | 3.150" (80.00mm) | Terminal Block |
Current Sense Transformers FAQ
Common questions about filtering, comparing and sourcing Current Sense Transformers components.
How can I narrow the Current Sense Transformers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Current Sense Transformers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
