Current Sense Transformers
Use the filters and product table below to compare Current Sense Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Frequency Range | Type | Current Rating (Amps) | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Current Ratio | DC Resistance (DCR) | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P8228NLCURR SENSE XFMR 1:100 10A SMD |
2,795 | - |
|
Datasheet | P822X | Tray | Active | 50kHz ~ 1MHz | Invasive | 10 A | 2 mH | - | 1:100 | - | 6mOhm Primary, 5.5Ohm Secondary | - | Surface Mount | 0.284" L x 0.330" W (7.21mm x 8.38mm) | 0.190" (4.83mm) | Gull Wing |
|
PA1005.050NLCURR SENSE XFMR 1:50 20A SMD |
491 | - |
|
Datasheet | - | Tray | Active | 50kHz ~ 1MHz | Invasive | 20 A | 500 µH | - | 1:50 | - | 0.75mOhm Primary, 1.5Ohm Secondary | - | Surface Mount | 0.284" L x 0.330" W (7.21mm x 8.38mm) | 0.217" (5.50mm) | Gull Wing |
|
|
PA1005.070QNLCURR SENSE XFMR 1:70 20A SMD |
560 | - |
|
Datasheet | - | Tray | Active | 50kHz ~ 1MHz | Invasive | 20 A | 980 µH | - | 1:70 | - | 0.75mOhm Primary, 4.75Ohm Secondary | AEC-Q200 | Surface Mount | 0.284" L x 0.330" W (7.21mm x 8.38mm) | 0.217" (5.50mm) | Gull Wing |
|
|
PA1005.070QNLTCURR SENSE XFMR 1:70 20A SMD |
900 | - |
|
Datasheet | PA1005QNL | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 20 A | 980 µH | - | 1:70 | - | 0.75mOhm Primary, 4.75Ohm Secondary Max | AEC-Q200 | Surface Mount | 0.284" L x 0.330" W (7.21mm x 8.38mm) | 0.217" (5.50mm) | Gull Wing |
|
PMS6322.100NLTTRANSF CURRENT SENSE 1:100 50A |
4,108 | - |
|
Datasheet | PMS6322.XXXNLT | Tape & Reel (TR) | Active | 20kHz ~ 1MHz | Invasive | 50 A | 4.5 mH | - | 1:100 | - | 500µOhm Primary, 2.6Ohm Secondary (Max) | - | Surface Mount | 0.122" L x 0.252" W (3.10mm x 6.40mm) | 0.295" (7.50mm) | Gull Wing |
|
|
PMS6322.200NLTTRANSF CURRENT SENSE 1:200 50A |
2,020 | - |
|
Datasheet | PMS6322.XXXNLT | Tape & Reel (TR) | Active | 20kHz ~ 1MHz | Invasive | 50 A | 17.5 mH | - | 1:200 | - | 500µOhm Primary, 12Ohm Secondary (Max) | - | Surface Mount | 0.122" L x 0.252" W (3.10mm x 6.40mm) | 0.295" (7.50mm) | Gull Wing |
|

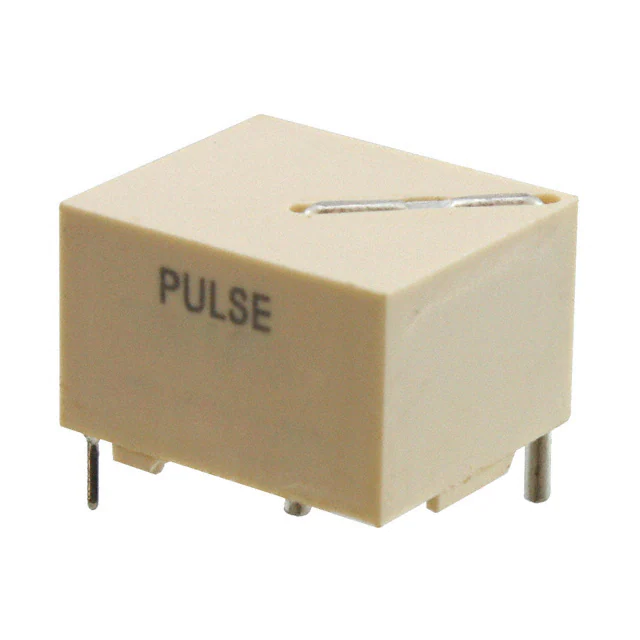

FIS115NLCURR SENSE XFMR 1:100 25A T/H |
3,895 | - |
|
Datasheet | FIS 1X5 | Tube | Active | 500kHz Max | Invasive | - | 18 mH | 350VµS | 1:100 | - | 2Ohm Max | - | Through Hole | 0.693" L x 0.591" W (17.60mm x 15.00mm) | 0.492" (12.50mm) | PC Pin |
|
PB0027NLCURR SENSE XFMR 200:1 35A SMD |
1,027 | - |
|
Datasheet | PB002XNL | Tray | Active | 50kHz ~ 500kHz | Invasive | 35 A | 22.4 mH | - | 200:1 | - | 0.42mOhm Primary, 2.9Ohm Secondary | - | Surface Mount | 0.591" L x 0.784" W (15.00mm x 19.91mm) | 0.394" (10.00mm) | Gull Wing |
|
PA0368.070NLCURR SENSE XFMR 1:70 4A SMD |
1,394 | - |
|
Datasheet | - | Tube | Active | 50kHz ~ 1MHz | Invasive | 4 A | 3.3 mH | - | 1:70 | - | 4mOhm Primary, 1.2Ohm Secondary | - | Surface Mount | 0.285" L x 0.352" W (7.25mm x 8.25mm) | 0.124" (3.15mm) | - |
|

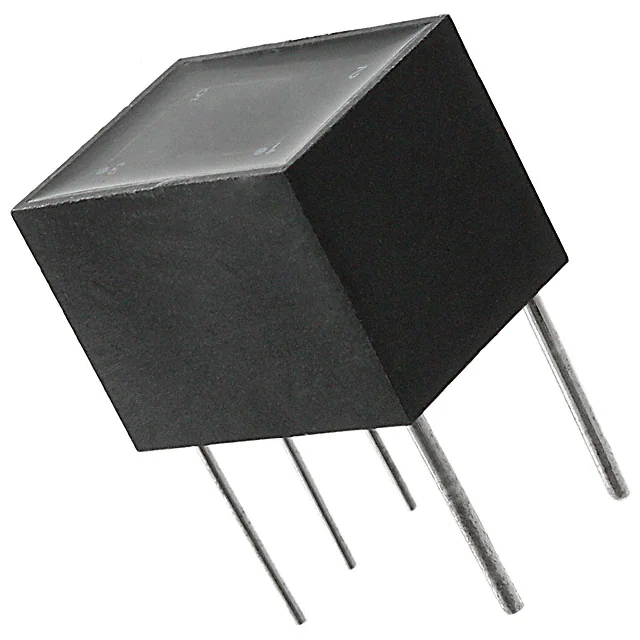

PE-63619NLCURR SENSE XFMR 20A T/H |
2,742 | - |
|
Datasheet | THT | Tray | Active | 20kHz ~ 200kHz | Invasive | 20 A | 80 mH | - | - | 200CT:1 | 200Ohm Primary, 4.5Ohm Secondary | - | Through Hole | 0.900" L x 0.700" W (22.86mm x 17.78mm) | 0.700" (17.78mm) | PC Pin |
