Current Sense Transformers
Use the filters and product table below to compare Current Sense Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Frequency Range | Type | Current Rating (Amps) | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Current Ratio | DC Resistance (DCR) | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PMS9494.150NLTXFMR SENSE SMT EE8.5 30A 150:1 |
2,753 | - |
|
Datasheet | - | Tape & Reel (TR) | Preliminary | 20kHz ~ 1MHz | Invasive | 30 A | 5 mH | - | 1.50:150 | 150:1.50 | 0.35mOhm Primary, 8.2Ohm Secondary | - | Surface Mount | 0.512" L x 0.413" W (13.00mm x 10.50mm) | 0.283" (7.20mm) | Gull Wing |
|
|
PE-63618NLCURR SENSE XFMR 20A T/H |
1,490 | - |
|
Datasheet | THT | Tray | Active | 20kHz ~ 200kHz | Invasive | 20 A | 20 mH | - | - | 100CT:1 | 100Ohm Primary, 1.4Ohm Secondary | - | Through Hole | 0.900" L x 0.700" W (22.86mm x 17.78mm) | 0.700" (17.78mm) | PC Pin |
|
|
PE-63691NLCURR SENSE XFMR 20A T/H |
3,428 | - |
|
Datasheet | THT | Tray | Active | 20kHz ~ 200kHz | Invasive | 20 A | 180 mH | - | - | 300CT:1 | 300Ohm Primary, 11Ohm Secondary | - | Through Hole | 0.900" L x 0.700" W (22.86mm x 17.78mm) | 0.700" (17.78mm) | PC Pin |
|
|
PE-63586NLCURR SENSE XFMR 20A T/H |
3,672 | - |
|
Datasheet | THT | Tray | Obsolete | 20kHz ~ 200kHz | Invasive | 20 A | 5 mH | - | - | 50:1 | 50Ohm Primary, 700mOhm Secondary | - | Through Hole | 0.900" L x 0.700" W (22.86mm x 17.78mm) | 0.700" (17.78mm) | PC Pin |
|
PB0025NLTCURR SENSE XFMR 50:1 35A SMD |
3,077 | - |
|
Datasheet | PB002XNL | Tape & Reel (TR) | Active | 50kHz ~ 500kHz | Invasive | 35 A | 1.4 mH | - | 50:1 | - | 0.42mOhm Primary, 700mOhm Secondary | - | Surface Mount | 0.591" L x 0.784" W (15.00mm x 19.91mm) | 0.394" (10.00mm) | Gull Wing |
|
P8205CURR SENSE XFMR 1:50 SMD |
2,614 | - |
|
Datasheet | P820X | Tray | Obsolete | 50kHz ~ 1MHz | Invasive | - | - | - | 1:50 | - | 6mOhm | - | Surface Mount | 0.284" L x 0.330" W (7.21mm x 8.38mm) | 0.217" (5.50mm) | - |
|
|
PB0026CURR SENSE XFMR 100:1 35A SMD |
1,962 | - |
|
Datasheet | - | Tray | Obsolete | 50kHz ~ 500kHz | Invasive | 35 A | 5.6 mH | - | 100:1 | - | 2.8mOhm Primary, 1.4Ohm Secondary | - | Surface Mount | 0.784" L x 0.570" W (19.91mm x 14.48mm) | 0.394" (10.00mm) | Gull Wing |
|

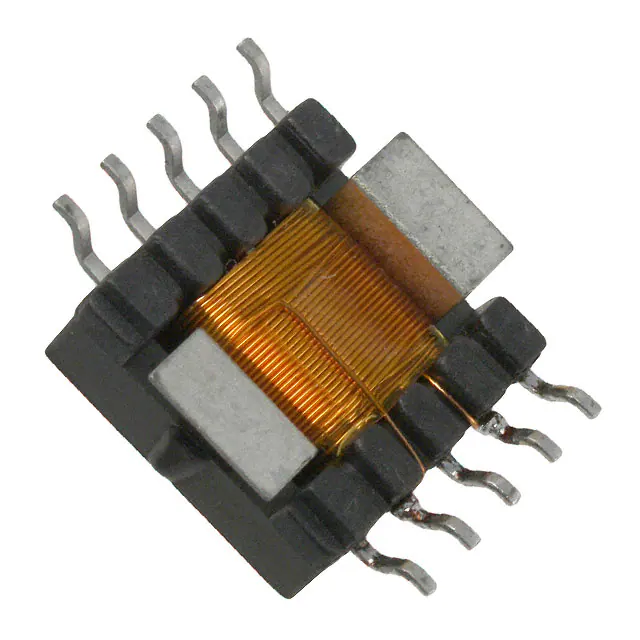

PB0027CURR SENSE XFMR 200:1 35A SMD |
4,970 | - |
|
Datasheet | - | Tray | Obsolete | 50kHz ~ 500kHz | Invasive | 35 A | 22.4 mH | - | 200:1 | - | 2.8mOhm Primary, 2.9Ohm Secondary | - | Surface Mount | 0.784" L x 0.570" W (19.91mm x 14.48mm) | 0.394" (10.00mm) | Gull Wing |
|
|
PE-51686CURR SENSE XFMR 20A T/H |
1,964 | - |
|
Datasheet | - | Tray | Obsolete | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | 20 A | 5 mH | - | - | 50:1 | - | - | Through Hole | 0.900" L x 0.700" W (22.86mm x 17.78mm) | 0.700" (17.78mm) | PC Pin |
|
|
PE-51687CURR SENSE XFMR 20A T/H |
1,909 | - |
|
Datasheet | - | Tray | Obsolete | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | 20 A | 20 mH | - | - | 100:1 | - | - | Through Hole | 0.900" L x 0.700" W (22.86mm x 17.78mm) | 0.700" (17.78mm) | PC Pin |
