Current Sense Transformers
Use the filters and product table below to compare Current Sense Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Frequency Range | Type | Current Rating (Amps) | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Current Ratio | DC Resistance (DCR) | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AC1040CURR SENSE XFMR 40A T/H |
166 | - |
|
Datasheet | AC | Tray | Active | 50/60Hz | Non-Invasive (Solid Core) | 40 A | - | - | - | 1000:1 | 49.3Ohm | - | Through Hole | 1.374" L x 0.563" W (34.90mm x 14.30mm) | 1.374" (34.90mm) | PC Pin |
|
AC1060CURR SENSE XFMR 60A T/H |
708 | - |
|
Datasheet | AC | Box | Active | 50/60Hz | Non-Invasive (Solid Core) | 60 A | - | - | - | 1000:1 | 24Ohm | - | Through Hole | 1.500" L x 0.626" W (38.10mm x 15.90mm) | 1.500" (38.10mm) | PC Pin |
|
AC1200CURR SENSE XFMR 200A T/H |
120 | - |
|
Datasheet | AC | Box | Active | 50/60Hz | Non-Invasive (Solid Core) | 200 A | - | - | - | 1000:1 | 11Ohm | - | Through Hole | 2.189" L x 0.811" W (55.60mm x 20.60mm) | 2.189" (55.60mm) | PC Pin |
|
AP-1000CURR SENSE XFMR 10A T/H |
2,475 | - |
|
Datasheet | AP | Tray | Active | - | Non-Invasive (Solid Core) | 10 A | - | - | - | 1000:1 | 70Ohm Max | - | Through Hole | 0.677" L x 0.375" W (17.20mm x 9.53mm) | 0.803" (20.40mm) | PC Pin |
|
AC1010CURR SENSE XFMR 10A T/H |
3,879 | - |
|
Datasheet | AC | Tray | Active | 50/60Hz | Non-Invasive (Solid Core) | 10 A | - | - | - | 1000:1 | 41.8Ohm | - | Through Hole | 0.937" L x 0.438" W (23.80mm x 11.12mm) | 0.937" (23.80mm) | PC Pin |
|

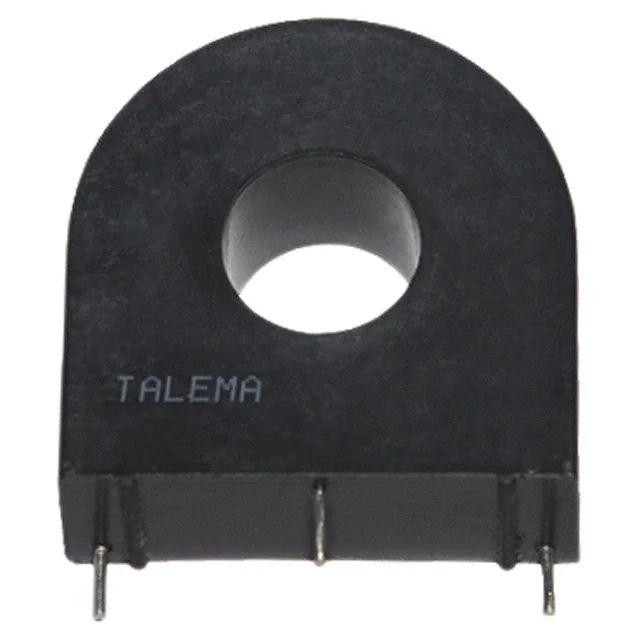

AC1075CURR SENSE XFMR 75A T/H |
4,455 | - |
|
Datasheet | AC | Tray | Active | 50/60Hz | Non-Invasive (Solid Core) | 75 A | - | - | - | 1000:1 | 24Ohm | - | Through Hole | 1.500" L x 0.626" W (38.10mm x 15.90mm) | 1.500" (38.10mm) | PC Pin |
|
AS-101CURR SENSE XFMR 1:100 15A T/H |
1,152 | - |
|
Datasheet | AS | Tray | Active | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | 15 A | 25 mH | 350VµS | 1:100 | - | 1.1Ohm Secondary | - | Through Hole | 0.677" L x 0.375" W (17.20mm x 9.53mm) | 0.803" (20.40mm) | PC Pin |
|
|
AS-102CURR SENSE XFMR 1:200 15A T/H |
3,258 | - |
|
Datasheet | AS | Tray | Active | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | 15 A | - | 700VµS | 1:200 | - | 4.5Ohm Secondary | - | Through Hole | 0.677" L x 0.375" W (17.20mm x 9.53mm) | 0.803" (20.40mm) | PC Pin |
|
|
AS-103CURR SENSE XFMR 1:300 15A T/H |
2,548 | - |
|
Datasheet | AS | Tray | Active | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | 15 A | - | 900VµS | 1:300 | - | 10Ohm Secondary | - | Through Hole | 0.677" L x 0.375" W (17.20mm x 9.53mm) | 0.803" (20.40mm) | PC Pin |
|
|
AS-104CURR SENSE XFMR 1:500 15A T/H |
2,148 | - |
|
Datasheet | AS | Tray | Active | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | 15 A | 700 mH | 1500VµS | 1:500 | - | 25Ohm Secondary | - | Through Hole | 0.677" L x 0.375" W (17.20mm x 9.53mm) | 0.803" (20.40mm) | PC Pin |
Current Sense Transformers FAQ
Common questions about filtering, comparing and sourcing Current Sense Transformers components.
How can I narrow the Current Sense Transformers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Current Sense Transformers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
