Current Sense Transformers
Use the filters and product table below to compare Current Sense Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Frequency Range | Type | Current Rating (Amps) | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Current Ratio | DC Resistance (DCR) | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AX-0750CURR SENSE XFMR 7.5A T/H |
1,469 | - |
|
Datasheet | AX | Tray | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 7.5 A | - | - | - | 750:1 | - | - | Through Hole | 0.677" L x 0.375" W (17.20mm x 9.53mm) | 0.803" (20.40mm) | PC Pin |
|
AX-1000CURR SENSE XFMR 10A T/H |
1,854 | - |
|
Datasheet | AX | Tray | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 10 A | - | - | - | 1000:1 | - | - | Through Hole | 0.677" L x 0.375" W (17.20mm x 9.53mm) | 0.803" (20.40mm) | PC Pin |
|
AP-1500CURR SENSE XFMR 10A T/H |
1,256 | - |
|
Datasheet | AP | Tray | Active | - | Non-Invasive (Solid Core) | 10 A | - | - | - | 1500:1 | 120Ohm Max | - | Through Hole | 0.677" L x 0.375" W (17.20mm x 9.53mm) | 0.803" (20.40mm) | PC Pin |
|
AX-1500CURR SENSE XFMR 15A T/H |
2,698 | - |
|
Datasheet | AX | Tray | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 15 A | - | - | - | 1500:1 | - | - | Through Hole | 0.677" L x 0.375" W (17.20mm x 9.53mm) | 0.803" (20.40mm) | PC Pin |
|
AP-2000CURR SENSE XFMR 15A T/H |
1,226 | - |
|
Datasheet | AP | Tray | Active | - | Non-Invasive (Solid Core) | 15 A | - | - | - | 2000:1 | 235Ohm Max | - | Through Hole | 0.677" L x 0.375" W (17.20mm x 9.53mm) | 0.803" (20.40mm) | PC Pin |
|
AP-2500CURR SENSE XFMR 15A T/H |
1,053 | - |
|
Datasheet | AP | Tray | Active | - | Non-Invasive (Solid Core) | 15 A | - | - | - | 2500:1 | 330Ohm Max | - | Through Hole | 0.677" L x 0.375" W (17.20mm x 9.53mm) | 0.803" (20.40mm) | PC Pin |
|

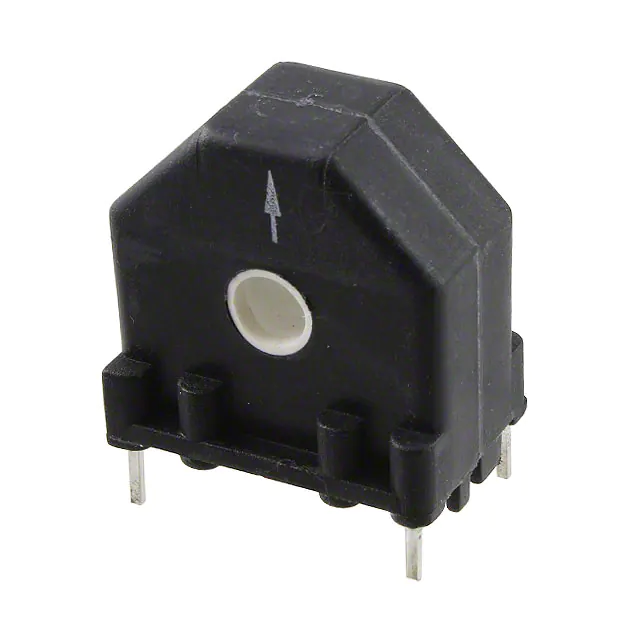

ASM-020CURR SENSE XFMR 10% 50/60HZ 20A |
3,049 | - |
|
Datasheet | ASM | Tray | Active | 50/60Hz | Non-Invasive (Solid Core) | - | - | - | - | - | - | - | - | 0.906" L x 0.610" W (23.00mm x 15.50mm) | 0.984" (25.00mm) | PC Pin |
|
ACX-1050CURR SENSE XFMR 2500:1 50A T/H |
1,157 | - |
|
Datasheet | ACX | Tray | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 50 A | - | - | 2500:1 | - | - | - | Through Hole | 0.937" L x 0.438" W (23.80mm x 11.12mm) | 0.937" (23.80mm) | PC Pin |
|
AS-407CURR SENSE XFMR 1:500 80A T/H |
3,917 | - |
|
Datasheet | AS | - | Active | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | 80 A | - | 7500VµS | 1:500 | - | - | - | Through Hole | 0.677" L x 0.375" W (17.20mm x 9.53mm) | 0.803" (20.40mm) | PC Pin |
|
AZ-1000CURR SENSE XFMR 1000:1 50A SMD |
3,272 | - |
|
Datasheet | AZ | Tray | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 50 A | - | - | 1000:1 | - | 72Ohm Primary | - | Chassis Mount | 0.748" Dia (19.00mm) | 0.453" (11.50mm) | Wire Leads |
Current Sense Transformers FAQ
Common questions about filtering, comparing and sourcing Current Sense Transformers components.
How can I narrow the Current Sense Transformers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Current Sense Transformers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
