Current Sense Transformers
Browse available Current Sense Transformers part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Frequency Range | Type | Current Rating (Amps) | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Current Ratio | DC Resistance (DCR) | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA3206NLCURR XFMR ROGOWSKI COIL 40A CHAS |
10,644 | - |
|
Datasheet | Sidewinder®, PA32XXNL | Tray | Active | 50/60Hz | Non-Invasive (Solid Core) | 40 A | 1.14 mH | - | Rogowski Coil | - | 54Ohm Max | - | Chassis Mount | 1.181" L x 0.563" W (30.00mm x 14.30mm) | 1.220" (31.00mm) | Wire Leads |
|
PE-51718NLCURR SENSE XFMR 20A T/H |
109 | - |
|
Datasheet | THT | Tray | Active | 20kHz ~ 200kHz | Invasive | 20 A | 20 mH | - | - | 100CT:1 | 100Ohm Primary, 1.4Ohm Secondary | - | Through Hole | 0.670" L x 0.390" W (17.01mm x 9.90mm) | 0.800" (20.32mm) | PC Pin |
|
PA3202NLCURR XFMR ROGOWSKI 200A CHAS |
755 | - |
|
Datasheet | Sidewinder®, PA32XXNL | Tray | Active | 50/60Hz | Non-Invasive (Solid Core) | 200 A | 1.75 mH | - | Rogowski Coil | - | 54Ohm Max | - | Chassis Mount | 1.669" L x 1.587" W (42.40mm x 40.30mm) | 0.580" (14.73mm) | Wire Leads |
|
P0581NLCURR SENSE XFMR 200:1:1 34A T/H |
112 | - |
|
Datasheet | THT | Tray | Active | 50kHz ~ 500kHz | Invasive | 34 A | 76 mH | - | 200:1:1 | - | 2.8Ohm Primary, 1.7mOhm Secondary | - | Through Hole | 0.810" L x 0.580" W (20.57mm x 14.73mm) | 0.750" (19.05mm) | PC Pin |
|
T60404E4622X501CURR SENSE XFMR 2000:1 20A TH |
10,079 | - |
|
Datasheet | - | Box | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 20 A | 110 H | - | 1:2000 | 2000:1 | 126Ohm | - | Through Hole | 0.965" L x 0.484" W (24.50mm x 12.30mm) | 0.994" (25.25mm) | PC Pin |
|
PA3208NLCURR XFMR ROGOWSKI 100A CHAS |
543 | - |
|
Datasheet | Sidewinder®, PA32XXNL | Tray | Active | 50/60Hz | Non-Invasive (Solid Core) | 100 A | 1.14 mH | - | Rogowski Coil | - | 54Ohm Max | - | Chassis Mount | 1.205" L x 1.189" W (30.60mm x 30.20mm) | 0.580" (14.73mm) | Wire Leads |
|
PAS6322.150NLTCURR SENSE XFMR 1:150 50A SMD |
261 | - |
|
Datasheet | PAS6322.XXXNLT | Tape & Reel (TR) | Active | 20kHz ~ 1MHz | Invasive | 50 A | 10 mH | - | 1:150 | - | 0.5mOhm Primary, 6Ohm Secondary Max | - | Surface Mount | 0.122" L x 0.252" W (3.10mm x 6.40mm) | 0.472" (12.00mm) | Gull Wing |
|
|
PAS6322.100NLTCURR SENSE XFMR 1:100 50A SMD |
516 | - |
|
Datasheet | PAS6322.XXXNLT | Tape & Reel (TR) | Active | 20kHz ~ 1MHz | Invasive | 50 A | 4.5 mH | - | 1:100 | - | 0.5mOhm Primary, 2.6Ohm Secondary Max | - | Surface Mount | 0.122" L x 0.252" W (3.10mm x 6.40mm) | 0.029" (0.73mm) | Gull Wing |
|
|
PAS6322.050NLTCURR SENSE XFMR 1:50 50A SMD |
194 | - |
|
Datasheet | PAS6322.XXXNLT | Tape & Reel (TR) | Active | 20kHz ~ 1MHz | Invasive | 50 A | 1.1 mH | - | 1:50 | - | 0.5mOhm Primary, 600mOhm Secondary Max | - | Surface Mount | 0.122" L x 0.252" W (3.10mm x 6.40mm) | 0.029" (0.73mm) | Gull Wing |
|
7492540100CURR SENSE XFMR 1:100 40A SMD |
1,028 | - |
|
Datasheet | MID-CST | Tape & Reel (TR) | Active | 1MHz | Invasive | 40 A | 5.6 mH | 248Vµs | 1:100 | - | 0.28mOhm Primary, 805mOhm Secondary | AEC-Q200 | Surface Mount | 0.570" L x 0.524" W (14.48mm x 13.30mm) | 0.413" (10.50mm) | Gull Wing |
|
AZ-0500CURR SENSE XFMR 25A IN-LINE |
601 | - |
|
Datasheet | AZ | Tray | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 25 A | - | - | 500:1 | - | 18Ohm Primary | - | Free Hanging (In-Line) | 0.748" Dia (19.00mm) | 0.453" (11.50mm) | Wire Leads |
|
|
PAS6322.200NLTCURR SENSE XFMR 1:20 50A SMD |
872 | - |
|
Datasheet | PAS6322.XXXNLT | Tape & Reel (TR) | Active | 20kHz ~ 1MHz | Invasive | 50 A | 17.5 mH | - | 1:200 | - | 0.5mOhm Primary, 12Ohm Secondary Max | - | Surface Mount | 0.122" L x 0.252" W (3.10mm x 6.40mm) | 0.029" (0.73mm) | Gull Wing |
|
CST306-3TCURR SENSE XFMR 25A T/H |
2,574 | - |
|
Datasheet | CST | Bulk | Active | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | 25 A | 55 mH | 2000VµS | - | 200CT:1 | 3.75Ohm Max | - | Through Hole | 0.690" L x 0.385" W (17.53mm x 9.78mm) | 0.915" (23.24mm) | PC Pin |
|

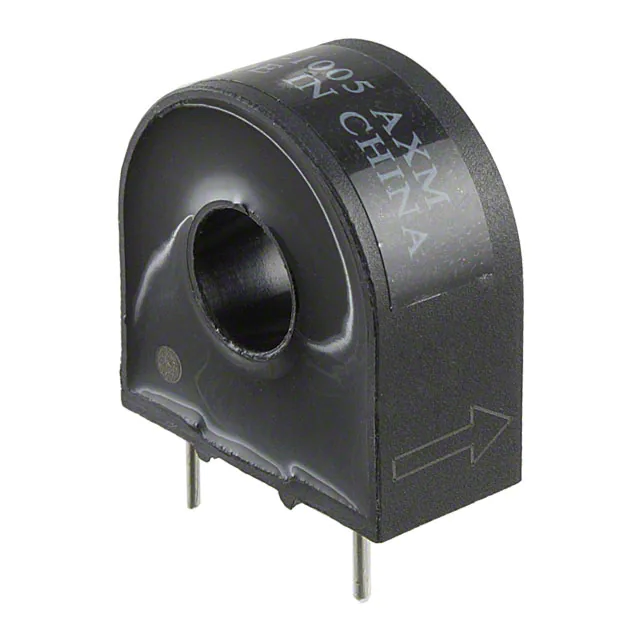

CST-1005CURR SENSE XFMR 5A T/H |
1,665 | - |
|
Datasheet | CST | Bulk | Active | 50/60Hz | Non-Invasive (Solid Core) | 5 A | - | - | - | 1000:1 | 40Ohm | - | Through Hole | 0.925" L x 0.472" W (23.50mm x 12.00mm) | 0.976" (24.80mm) | PC Pin |
|
|
CST306-2ACURR SENSE XFMR 25A T/H |
4,594 | - |
|
Datasheet | CST | Bulk | Active | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | 25 A | 14 mH | 1000VµS | - | 100:1 | 1.55Ohm Max | - | Through Hole | 0.690" L x 0.385" W (17.53mm x 9.78mm) | 0.915" (23.24mm) | PC Pin |
|
AC1025CURR SENSE XFMR 25A T/H |
1,194 | - |
|
Datasheet | AC | Tray | Active | 50/60Hz | Non-Invasive (Solid Core) | 25 A | - | - | - | 1000:1 | 48Ohm | - | Through Hole | 1.189" L x 0.563" W (30.20mm x 14.30mm) | 1.189" (30.20mm) | PC Pin |
|
AC1040CURR SENSE XFMR 40A T/H |
166 | - |
|
Datasheet | AC | Tray | Active | 50/60Hz | Non-Invasive (Solid Core) | 40 A | - | - | - | 1000:1 | 49.3Ohm | - | Through Hole | 1.374" L x 0.563" W (34.90mm x 14.30mm) | 1.374" (34.90mm) | PC Pin |
|

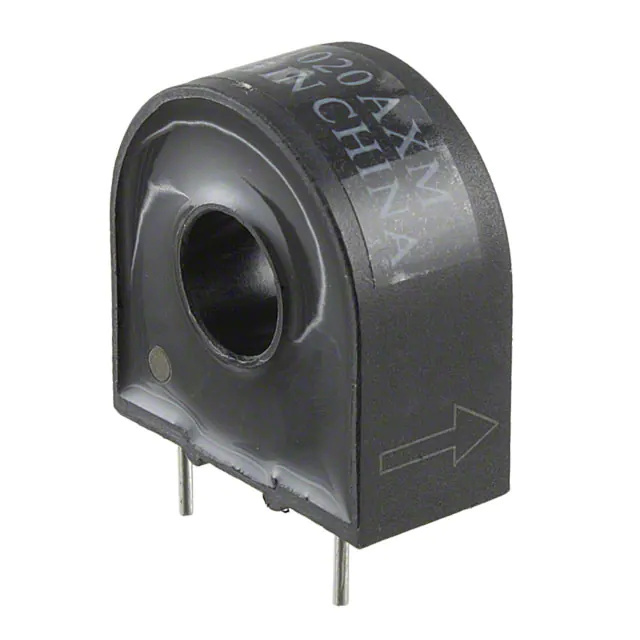

CST-1020CURR SENSE XFMR 20A T/H |
1,304 | - |
|
Datasheet | CST | Bulk | Active | 50/60Hz | Non-Invasive (Solid Core) | 20 A | - | - | - | 1000:1 | 40Ohm | - | Through Hole | 0.925" L x 0.472" W (23.50mm x 12.00mm) | 0.976" (24.80mm) | PC Pin |
|
CST206-1TCURR SENSE XFMR 110A T/H |
1,435 | - |
|
Datasheet | CST | Bulk | Active | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | 110 A | 14 mH | 2000VµS | - | 100:1 | 580mOhm Max | - | Through Hole | 1.075" L x 0.400" W (27.31mm x 10.16mm) | 1.225" (31.12mm) | PC Pin |
|
CT-1030CURR SENSE XFMR 30A T/H |
9,052 | - |
|
Datasheet | CT | Tray | Active | 50/60Hz | Non-Invasive (Solid Core) | 30 A | - | - | - | 1000:1 | 48Ohm | - | Through Hole | 1.189" L x 0.563" W (30.20mm x 14.30mm) | 1.189" (30.20mm) | PC Pin |
Current Sense Transformers FAQ
Common questions about selecting, comparing and sourcing Current Sense Transformers components through Winsun (HK) Electronics.
What should I check when selecting Current Sense Transformers components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Current Sense Transformers part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Current Sense Transformers parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Current Sense Transformers components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
