Current Sense Transformers

Browse available Current Sense Transformers part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.

For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.

Compare Part Numbers Review available models and manufacturers

Datasheets & Specifications Access technical references quickly

RFQ & BOM Support Send quantities for sourcing and quotation

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Frequency Range	Type	Current Rating (Amps)	Inductance	ET (Volt-Time)	Turns Ratio - Primary:Secondary	Current Ratio	DC Resistance (DCR)	Ratings	Mounting Type	Size / Dimension	Height - Seated (Max)	Termination Style
101990064 CURR SENSE XFMR 60A CHAS MNT Seeed Technology Co., Ltd	421	-	RFQ	Datasheet	SCT013	Bulk	Active	-	Non-Invasive (Split Core)	60 A	-	-	-	-	-	-	Chassis Mount	-	-	Wire Leads with Connector
101990061 CURR SENSE XFMR 1800:1 20A CHAS Seeed Technology Co., Ltd	153	-	RFQ	Datasheet	SCT013	Bulk	Active	-	Non-Invasive (Split Core)	20 A	-	-	1800:1	-	-	-	Chassis Mount	-	-	Wire Leads with Connector
101990059 CURR SENSE XFMR 10A CHAS MNT Seeed Technology Co., Ltd	131	-	RFQ	Datasheet	SCT013	Bulk	Active	-	Non-Invasive (Split Core)	10 A	-	-	-	-	-	-	Chassis Mount	-	-	Wire Leads with Connector
101990058 CURR SENSE XFMR 5A CHAS MNT Seeed Technology Co., Ltd	104	-	RFQ	Datasheet	SCT013	Bulk	Active	-	Non-Invasive (Split Core)	5 A	-	-	-	-	-	-	Chassis Mount	-	-	Wire Leads with Connector
T60404E4624X501 CURR SENSE XFMR 1:2500 60A TH VACUUMSCHMELZE	4,628	-	RFQ	Datasheet	-	Box	Active	50Hz	Non-Invasive (Solid Core)	60 A	3 H	-	1:2500	2500:1	55Ohm	-	Through Hole	1.220" L x 0.551" W (31.00mm x 14.00mm)	1.240" (31.50mm)	PC Pin
AC1060 CURR SENSE XFMR 60A T/H Talema Group LLC	708	-	RFQ	Datasheet	AC	Box	Active	50/60Hz	Non-Invasive (Solid Core)	60 A	-	-	-	1000:1	24Ohm	-	Through Hole	1.500" L x 0.626" W (38.10mm x 15.90mm)	1.500" (38.10mm)	PC Pin
CT-06-50 CURR SENSE XFMR 500:1 10A TH KEMET	965	-	RFQ	Datasheet	CT	Bulk	Active	50/60Hz	Non-Invasive (Solid Core)	5 A	-	-	500:1	500:1	-	-	Through Hole	0.709" L x 0.280" W (18.00mm x 7.10mm)	0.494" (22.40mm)	Wire Leads
CT-07-100 CURR SENSE XFMR 1000:1 10A TH KEMET	147	-	RFQ	Datasheet	CT	Tray	Active	50/60Hz	Non-Invasive (Solid Core)	10 A	-	-	1000:1	1000:1	-	-	Through Hole	0.748" L x 0.394" W (19.00mm x 10.00mm)	0.795" (20.20mm)	PC Pin

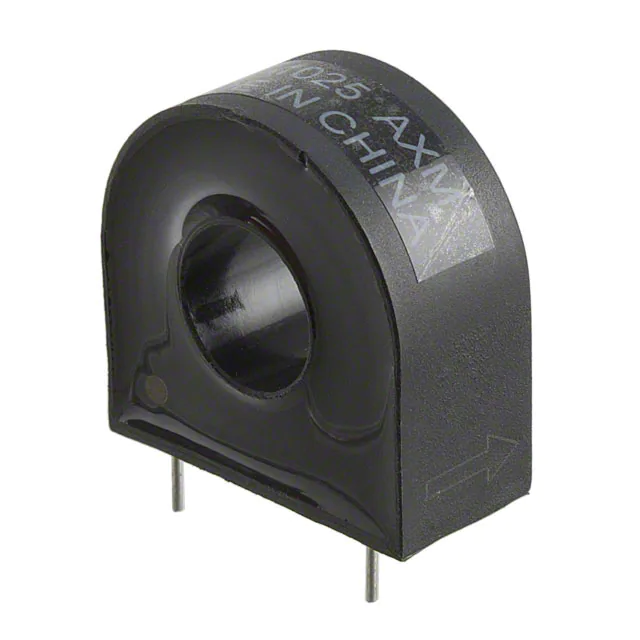

CST-1025 CURR SENSE XFMR 25A T/H Triad Magnetics	668	-	RFQ	Datasheet	CST	Bulk	Active	50/60Hz	Non-Invasive (Solid Core)	25 A	-	-	-	1000:1	46Ohm	-	Through Hole	1.189" L x 0.563" W (30.20mm x 14.30mm)	1.189" (30.20mm)	PC Pin
101990028 CURR SENSE XFMR 1800:1 30A CHAS Seeed Technology Co., Ltd	222	-	RFQ	Datasheet	SCT013	Bulk	Active	-	Non-Invasive (Split Core)	30 A	-	-	1800:1	-	-	-	Chassis Mount	-	-	Wire Leads with Connector
PE-64978NL CURR SENSE XFMR 20A T/H Pulse Electronics	148	-	RFQ	Datasheet	THT	Tube	Active	200kHz ~ 500kHz	Invasive	20 A	4 mH	-	-	50:1	6mOhm Primary, 240mOhm Secondary	-	Through Hole	0.550" L x 0.380" W (13.97mm x 9.65mm)	0.580" (14.73mm)	PC Pin

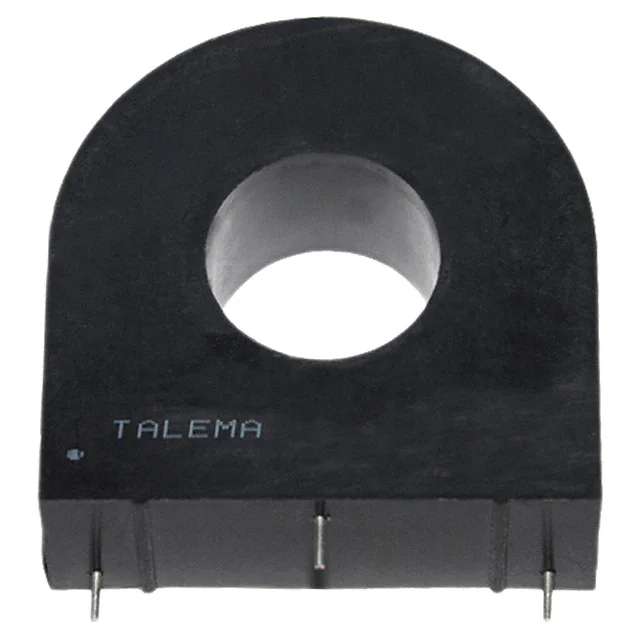

AC1200 CURR SENSE XFMR 200A T/H Talema Group LLC	120	-	RFQ	Datasheet	AC	Box	Active	50/60Hz	Non-Invasive (Solid Core)	200 A	-	-	-	1000:1	11Ohm	-	Through Hole	2.189" L x 0.811" W (55.60mm x 20.60mm)	2.189" (55.60mm)	PC Pin
CR8448-2500-N CURR SENSE XFMR 40A IN-LINE CR Magnetics Inc.	1,207	-	RFQ	Datasheet	CR8400	Bulk	Active	20Hz ~ 1kHz	Non-Invasive (Solid Core)	40 A	-	-	-	2500:1	134Ohm	-	Free Hanging (In-Line)	1.160" L x 0.922" W (29.46mm x 23.42mm)	0.435" (11.05mm)	Wire Leads

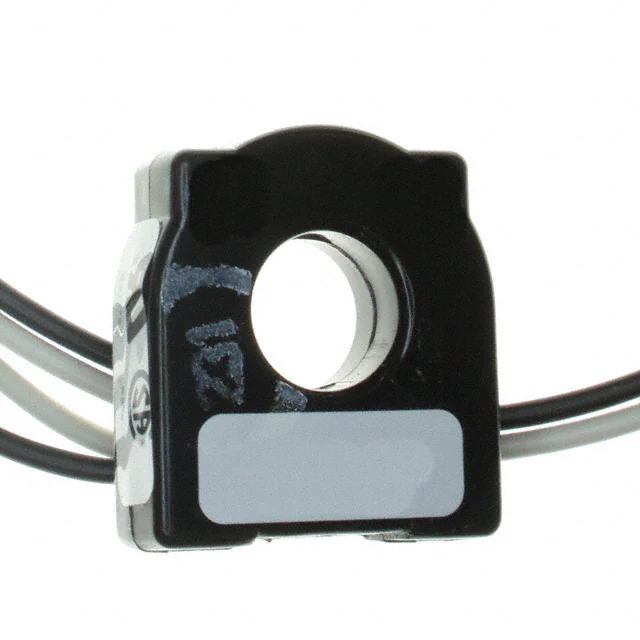

MODEL 18-600 CURR SENSE XFMR CR Magnetics Inc.	242	-	RFQ	Datasheet	PH	Bulk	Active	50Hz ~ 1kHz	Non-Invasive (Solid Core)	-	-	-	-	-	-	-	-	1.331" L x 0.520" W (33.80mm x 13.20mm)	1.488" (37.80mm)	Wire Leads
ART-B22-D70 CURR SENSE XFMR FLEXIBLE COIL LEM USA Inc.	1,599	-	RFQ	Datasheet	ART	Bulk	Active	50/60Hz	Non-Invasive (Split Core)	-	180 µH	-	Rogowski Coil	-	55Ohm	-	Free Hanging (In-Line)	2.205" L x 1.326" W (56.01mm x 33.69mm)	0.744" (18.91mm)	Wire Leads 1.5m
ART-B22-D300 CURR SENSE XFMR FLEXIBLE COIL LEM USA Inc.	1,563	-	RFQ	Datasheet	ART	Bulk	Active	50/60Hz	Non-Invasive (Split Core)	-	566 µH	-	Rogowski Coil	-	170Ohm	-	Free Hanging (In-Line)	2.205" L x 1.326" W (56.01mm x 33.69mm)	0.744" (18.91mm)	Wire Leads
PA0368.050NL CURR SENSE XFMR 1:50 4A SMD Pulse Electronics	314	-	RFQ	Datasheet	-	Tube	Active	50kHz ~ 1MHz	Invasive	4 A	1.7 mH	-	1:50	-	4mOhm Primary, 900mOhm Secondary	-	Surface Mount	0.285" L x 0.352" W (7.25mm x 8.25mm)	0.124" (3.15mm)	-
53020C CURR SENSE XFMR 1:20 10A SMD Murata Power Solutions Inc.	2,617	-	RFQ	Datasheet	5300	Tape & Reel (TR)	Active	50kHz ~ 500kHz	Invasive	-	80 µH	-	1:20	-	7mOhm Primary, 550mOhm Secondary	-	Surface Mount	0.283" L x 0.327" W (7.20mm x 8.30mm)	0.213" (5.40mm)	Gull Wing
54200C CURR SENSE XFMR 1:1:200 15A SMD Murata Power Solutions Inc.	450	-	RFQ	Datasheet	5400	Tape & Reel (TR)	Active	50kHz ~ 500kHz	Invasive	-	60 mH	-	1:1:200	-	7mOhm Primary, 6.6Ohm Secondary	-	Surface Mount	0.354" L x 0.425" W (9.00mm x 10.80mm)	0.323" (8.20mm)	Gull Wing
PA1005.030QNL CURR SENSE XFMR 1:30 20A SMD Pulse Electronics	1,562	-	RFQ	Datasheet	-	Tray	Active	50kHz ~ 1MHz	Invasive	20 A	180 µH	-	1:30	-	0.75mOhm Primary, 870mOhm Secondary	AEC-Q200	Surface Mount	0.284" L x 0.330" W (7.21mm x 8.38mm)	0.217" (5.50mm)	Gull Wing

WINSUN SOURCING SUPPORT

Need Current Sense Transformers Sourcing Support?

Send the manufacturer, part number, quantity and target delivery requirement. Winsun (HK) Electronics can assist with availability checks, quotation support, shortage sourcing and hard-to-find or obsolete components.

Global component sourcing support BOM, shortage and EOL support

Send part number & quantity Request a Quote

Need sourcing assistance? Contact Sales

FREQUENTLY ASKED QUESTIONS

Current Sense Transformers FAQ

Common questions about selecting, comparing and sourcing Current Sense Transformers components through Winsun (HK) Electronics.

What should I check when selecting Current Sense Transformers components?

Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.

Can Winsun help source specific Current Sense Transformers part numbers?

Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.

Do you support shortage, obsolete or hard-to-find Current Sense Transformers parts?

Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.

How do I request a quote for Current Sense Transformers components?

Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
