RF Diodes
Browse available RF Diodes part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Type | Voltage - Peak Reverse (Max) | Current - Max | Capacitance @ Vr, F | Resistance @ If, F | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1SV246-TL-EX1SV246 - PIN DIODE |
9,000 | - |
|
Datasheet | - | SC-70, SOT-323 | Bulk | Active | PIN - 1 Pair Series Connection | 50V | 50 mA | 0.23pF @ 50V, 1MHz | 5Ohm @ 10mA, 100MHz | 100 mW | 125°C (TJ) | - | - | 3-MCP |
|
BAT1902ELE6327XTMA1BAT19 - RF DIODE |
255,000 | - |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - |
|
BAP70-02/AXPIN DIODE PIN - SINGLE 50V 415MW |
64,300 | - |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - |
|
|
1SV233-TB-EQ1SV233 - PIN DI SINGLE RS 5 OHM |
81,000 | - |
|
Datasheet | - | 2-SMD, No Lead | Bulk | Obsolete | PIN - Single | 50V | 50 mA | 0.23pF @ 50V, 1MHz | 5Ohm @ 10mA, 100MHz | 150 mW | 125°C (TJ) | - | - | CS300 |
|
BAT2402ELSE6327XTSA1BAT24 - RF MIXER AND DETECTOR SC |
30,093 | - |
|
Datasheet | - | 0201 (0603 Metric) | Bulk | Active | Schottky - Single | 4V | 110 mA | 0.2pF @ 0V, 1MHz | - | 100 mW | -55°C ~ 150°C (TA) | - | - | PG-TSSLP-2-3 |
|
BAR8802VH6327XTSA1RF DIODE PIN 80V 250MW SC79-2 |
937 | - |
|
Datasheet | - | SC-79, SOD-523 | Tape & Reel (TR) | Not For New Designs | PIN - Single | 80V | 100 mA | 0.4pF @ 1V, 1MHz | 600mOhm @ 10mA, 100MHz | 250 mW | 150°C (TJ) | - | - | PG-SC79-2 |
|
MA4P604-30DIODE,PIN,CERAMIC_PKG,SI |
58 | - |
|
Datasheet | - | Stud | Tray | Active | PIN - Single | 1000V | - | 0.5pF @ 100V, 1MHz | 1Ohm @ 100mA, 100MHz | 15 W | -65°C ~ 175°C | - | - | - |
|

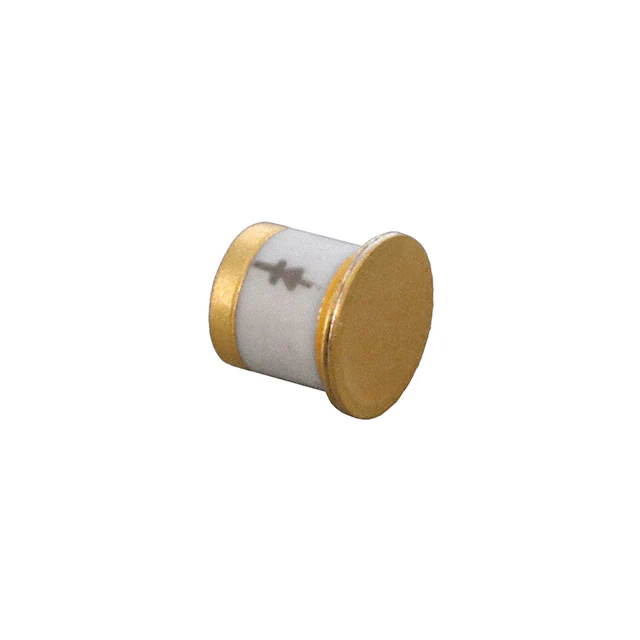

MA4PK2000DIODE,PIN,CERAMIC_PKG,SI,ODS1027 |
9 | - |
|
Datasheet | KILOVOLT™ | 2-SMD | Tray | Active | PIN - Single | 2000V | 25 A | 3.2pF @ 100V, 1MHz | 200mOhm @ 500mA, 4MHz | - | -65°C ~ 175°C (TA) | - | - | - |
|
MADL-011012-001RF DIODE 360W PWR LIMITER SMD |
25 | - |
|
Datasheet | - | Module | Bulk | Active | - | - | - | - | - | - | 175°C (TJ) | - | - | SMD |
|
MA4P4006B-402DIODE,PIN,CERAMIC,AXIAL,HI-PAX |
100 | - |
|
Datasheet | MA4P | Axial | Tray | Active | PIN - Single | 600V | - | 2.2pF @ 100V, 1MHz | 500mOhm @ 100mA, 100MHz | 12 W | -55°C ~ 175°C (TJ) | - | - | Axial |
|
CLA4602-000DIODE LIMITER SILICON 15-30V |
100 | - |
|
Datasheet | CLA | Die | Tray | Active | PIN - Single | 30V | 200 mA | - | 2Ohm @ 10mA, 1MHz | 510 mW | -65°C ~ 175°C (TJ) | - | - | Die |
|
MA4P607-212DIODE,PIN,CHIP,CERAMIC,SI |
100 | - |
|
Datasheet | - | Die | Tray | Active | PIN - Single | 1000V | - | 1.3pF @ 100V, 1MHz | 400mOhm @ 100mA, 100MHz | 37.5 W | 175°C (TJ) | - | - | Die |
|
MA4L021-120DIODE,PIN,CERAMIC_PKG,SI |
100 | - |
|
Datasheet | MA4L | Die | Tray | Active | PIN - Single | 35V | 100 mA | 0.2pF @ 0V, 1MHz | 2.1Ohm @ 10mA, 500MHz | 3 W | 175°C (TJ) | - | - | Chip |
|
MA4P4002B-402RF DIODE PIN 200V 2.5W AXIAL |
97 | - |
|
Datasheet | - | Axial | Bulk | Active | PIN - Single | 200V | - | - | 500mOhm @ 100mA, 100MHz | 2.5 W | -55°C ~ 175°C (TJ) | - | - | Axial |
|
|
MA4P4001B-402RF DIODE PIN 100V 2.5W AXIAL |
100 | - |
|
Datasheet | - | Axial | Bulk | Active | PIN - Single | 100V | - | - | 500mOhm @ 100mA, 100MHz | 2.5 W | -55°C ~ 175°C (TJ) | - | - | Axial |
|
RN142VMTE-1760V 100MA, SINGLE, LOW RF PIN DI |
994 | - |
|
Datasheet | - | SC-90, SOD-323F | Tape & Reel (TR) | Active | PIN - Single | 60V | 100 mA | 0.45pF @ 1V, 1MHz | 3Ohm @ 3mA, 100MHz | - | 150°C (TJ) | - | - | UMD2 |
|
SMPA1302-079LFRF DIODE PIN 200V 250MW SC79 |
407 | - |
|
Datasheet | - | SC-79, SOD-523 | Tape & Reel (TR) | Active | PIN - Single | 200V | - | 0.3pF @ 30V, 1MHz | 1.5Ohm @ 100mA, 100MHz | 250 mW | -65°C ~ 150°C (TA) | - | - | SC-79 |
|
LXP1002-23-0SI PIN NON HERMETIC EPSM SMT |
62 | - |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Bulk | Active | PIN - Single | 50V | 100 mA | 0.32pF @ 50V, 1MHz | 4Ohm @ 100mA, 100MHz | 250 mW | -55°C ~ 125°C | - | - | SOT-23-3 |
|
MMP4401-GM2SI PIN NON HERMETIC PLASTIC SMT |
36 | - |
|
Datasheet | MMP4400 | 0805 (2012 Metric) | Bulk | Active | PIN - Single | 500V | - | 0.35pF @ 50V, 1MHz | 800mOhm @ 100mA, 100MHz | 3.5 W | -55°C ~ 150°C | - | - | 0805 |
|
|
L8104RF PIN DIODE 180V 3W CERAMIC MEL |
93 | - |
|
Datasheet | - | SQ-MELF | Bulk | Active | PIN - Single | 180V | 50 mA | 1.2pF @ 40V, 100MHz | 750mOhm @ 50mA, 100MHz | 3 W | 175°C (TJ) | - | - | MELF |
