RF Diodes
Browse available RF Diodes part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Type | Voltage - Peak Reverse (Max) | Current - Max | Capacitance @ Vr, F | Resistance @ If, F | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MA4P504-30DIODE,PIN,CERAMIC_PKG,SI |
45 | - |
|
Datasheet | - | Stud | Tray | Active | PIN - Single | 500V | - | 0.4pF @ 100V, 1MHz | 600mOhm @ 100mA, 100MHz | 7.5 W | -65°C ~ 175°C | - | - | - |
|
|
MA4P404-30DIODE,PIN,CERAMIC_PKG,SI |
80 | - |
|
Datasheet | - | Stud | Tray | Active | PIN - Single | 250V | - | 0.4pF @ 10V, 1MHz | 700mOhm @ 50mA, 100MHz | 7.5 W | -65°C ~ 175°C | - | - | - |
|
MA47266-146DIODE,PIN,GLASS,AXIAL,HI_VOLUME |
39 | - |
|
Datasheet | - | Axial | Tray | Active | PIN - Single | 200V | - | 1.5pF @ 50V, 1MHz | 600mOhm @ 50mA, 100MHz | 500 mW | -55°C ~ 175°C | - | - | Axial |
|

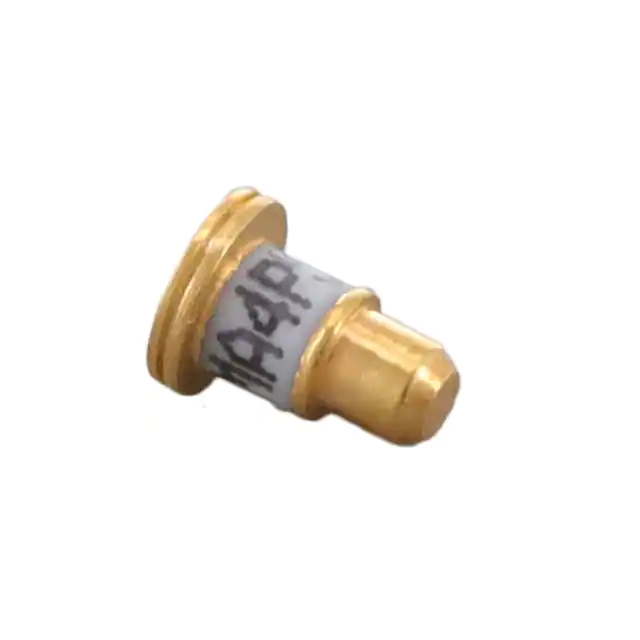

MA4P505-36CERAM PKG PINS,ODS36 |
17 | - |
|
Datasheet | - | Stud | Tray | Active | PIN - Single | 500V | - | 0.65pF @ 100V, 1MHz | 450mOhm @ 100mA, 100MHz | 15 W | -65°C ~ 175°C | - | - | ODS-36 |
|
|
MADL-011078-DIEDIODE |
100 | - |
|
Datasheet | - | Die | Case | Active | PIN - Single | - | - | - | - | - | 150°C (TJ) | - | - | Die |
|

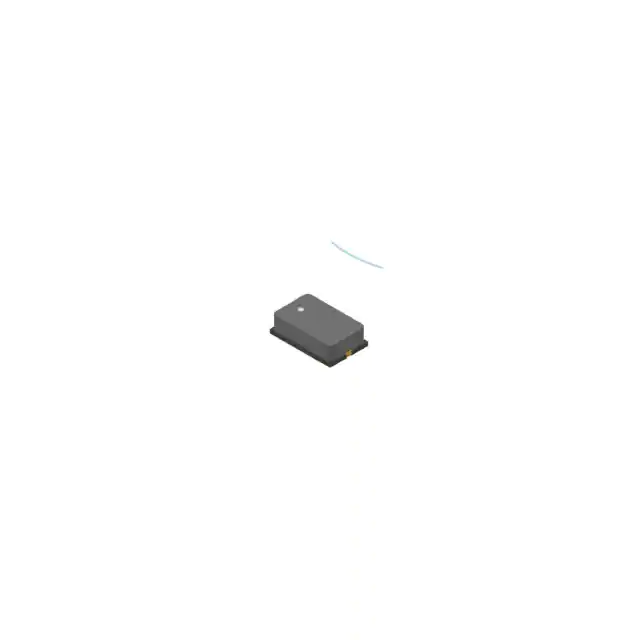

LM202802-Q-C-301-TLIMITER,SURFACE MOUNT MODULE,CS3 |
19 | - |
|
Datasheet | - | 2-SMD Module | Tube | Active | PIN - Single | - | - | - | - | - | 175°C (TJ) | - | - | CS301 |
|
BAT1706WH6327XTSA1DIODE SCHOTTKY 4V 150MW SOT323-3 |
428 | - |
|
Datasheet | - | SC-70, SOT-323 | Tape & Reel (TR) | Obsolete | Schottky - 1 Pair Common Anode | 4V | 130 mA | 0.75pF @ 0V, 1MHz | 15Ohm @ 5mA, 10kHz | 150 mW | 150°C (TJ) | - | - | PG-SOT323 |
|
1SS390TE61RF DIODE STANDARD 35V 150MW EMD2 |
341 | - |
|
Datasheet | - | SC-79, SOD-523 | Tape & Reel (TR) | Obsolete | Standard - Single | 35V | 100 mA | 1.2pF @ 6V, 1MHz | 900mOhm @ 2mA, 100MHz | 150 mW | 125°C (TJ) | - | - | EMD2 |
|
RB886CST2RADIODE SCHOTTKY 15V 10MA VMN2 |
908 | - |
|
Datasheet | - | 2-SMD, Flat Leads | Tape & Reel (TR) | Active | Schottky - Single | 5V | 10 mA | 0.8pF @ 1V, 1MHz | - | - | 125°C (TJ) | - | - | VMN2 (SOD-923) |
|
|
RN141STE61RF DIODE PIN 50V EMD2 |
501 | - |
|
Datasheet | - | SC-79, SOD-523 | Tape & Reel (TR) | Obsolete | PIN - Single | 50V | 100 mA | 0.8pF @ 1V, 1MHz | 2Ohm @ 3mA, 100MHz | - | 150°C (TJ) | - | - | EMD2 |
|
SBX201C-L-TB-EDIODE ARRAY SCHOTTKY 2V 50MA 3CP |
795 | - |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | Schottky - 1 Pair Series Connection | 2V | 50 mA | 0.28pF @ 0V, 1MHz | - | - | 150°C (TJ) | - | - | 3-CP |
|
DMV1500MFDRF DIODE STANDAR 1500V TO220FPAB |
956 | - |
|
Datasheet | - | TO-220-3 Full Pack | Tube | Obsolete | Standard - 1 Pair Series Connection | 1500V | 6 A | - | - | - | 150°C (TJ) | - | - | TO-220FPAB |
|
MA4SPS421DIODE,SILICON-GLASS,PIN,CHIP |
100 | - |
|
Datasheet | MA4SPS421 Surmount™ | Die | Tray | Active | PIN - Single | 200V | 250 mA | 0.175pF @ 0V, 1MHz | 6.2Ohm @ 10mA, 1GHz | 1.8 W | -55°C ~ 125°C (TJ) | - | - | Die |
|
|
MA4SPS302DIODE,SWITCH,HMIC,SURFACE_MOUNT |
100 | - |
|
Datasheet | MA4SPS302 Surmount™ | B15 | Tray | Active | PIN - Single | 100V | 600 mA | 0.45pF @ 40V, 1MHz | 2.2Ohm @ 10mA, 100MHz | 800 mW | 175°C (TJ) | - | - | B15 |
|
MML4401-GM3SI LIMITER NON HERMETIC PLASTIC |
49 | - |
|
Datasheet | MML4400 | 4-SMD, No Lead | Tape & Reel (TR) | Active | PIN - 2 Independent | 75V | - | 1.5pF @ 0V, 1MHz | 2.5Ohm @ 100mA, 100MHz | - | -55°C ~ 150°C | - | - | - |
|
MA4GP905DIODE,PIN,BEAM_LEAD,HMIC |
100 | - |
|
Datasheet | - | Die | Tray | Active | PIN - Single | 50V | 40 mA | 30pF @ 10V, 1MHz | 4.9Ohm @ 20mA, 1GHz | 100 mW | 175°C (TJ) | - | - | Die |
|
MMPN080045DIODE,PIN-CHIP, C50 |
100 | - |
|
Datasheet | - | C50 | Tray | Active | PIN - Single | 200V | 150 mA | - | - | - | 175°C (TJ) | - | - | C50 |
|
|
MSS25-145-B10DSCHOTTKY DIODE,BEAMLEAD, B10B |
100 | - |
|
Datasheet | MSS25-xxx-x | B10D | Tray | Active | Schottky - Single | 3V | - | 0.12pF @ 200mV, 1MHz | - | 150 mW | -65°C ~ 150°C | - | - | B10D |
|
MA4E2040DIODE,SCHOTTKY,BEAM_LEAD,GAAS,OD |
100 | - |
|
Datasheet | - | 2-SMD, Flat Leads | Tray | Active | Schottky - Single | 7V | - | 0.06pF @ 0V, 1MHz | 7Ohm @ 10mA, 1MHz | - | -65°C ~ 125°C | - | - | - |
|
MMDB45-B11DIODE,SRD,BEAMLEAD,B11 |
25 | - |
|
Datasheet | MMDx | B11 | Tray | Active | Standard - Single | 25V | 50 mA | 0.2pF @ 6V, 1MHz | - | 250 mW | -65°C ~ 175°C | - | - | B11 |
RF Diodes FAQ
Common questions about selecting, comparing and sourcing RF Diodes components through Winsun (HK) Electronics.
What should I check when selecting RF Diodes components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific RF Diodes part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find RF Diodes parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for RF Diodes components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
