RF Diodes
Browse available RF Diodes part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Type | Voltage - Peak Reverse (Max) | Current - Max | Capacitance @ Vr, F | Resistance @ If, F | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MA47223DIODE,PIN,MODULE,SI,ODS144 |
20 | - |
|
Datasheet | MA47223 | Stud | Bulk | Active | PIN - Single | 500V | - | 20pF @ 50V, 1MHz | 600mOhm @ 100mA, 500MHz | 7.5 W | -65°C ~ 150°C | - | - | - |
|
MA4PK3003DIODE,PIN,BONDED,STRIPLINE,SI |
9 | - |
|
Datasheet | KILOVOLT™ | Die | Bulk | Active | PIN - Single | 3000V | 25 A | 4pF @ 100V, 1MHz | 250mOhm @ 500mA, 4MHz | 50 W | -65°C ~ 175°C (TA) | - | - | Die |
|
CLA4603-085LFRF DIODE PIN 45V 2W 3QFN |
9,954 | - |
|
Datasheet | - | 2-VDFN Exposed Pad | Tape & Reel (TR) | Active | PIN - Single | 45V | 1.5 A | 0.4pF @ 6V, 1MHz | 2Ohm @ 10mA, 100MHz | 2 W | 175°C (TJ) | - | - | 3-QFN (2x2) |
|
|
CLA4606-085LFRF DIODE PIN 75V 3W 3QFN |
2,425 | - |
|
Datasheet | - | 2-VDFN Exposed Pad | Tape & Reel (TR) | Active | PIN - Single | 75V | 1.5 A | 0.38pF @ 6V, 1MHz | 2Ohm @ 10mA, 100MHz | 3 W | 175°C (TJ) | - | - | 3-QFN (2x2) |
|
|
CLA4605-085LFRF DIODE PIN 60V 1W 3QFN |
4,264 | - |
|
Datasheet | - | 2-VDFN Exposed Pad | Tape & Reel (TR) | Active | PIN - Single | 60V | 1.5 A | 0.45pF @ 6V, 1MHz | 2Ohm @ 10mA, 500MHz | 1 W | 175°C (TJ) | - | - | 3-QFN (2x2) |
|
|
CLA4608-085LFRF DIODE PIN 180V 2W 3QFN |
4,045 | - |
|
Datasheet | - | 2-VDFN Exposed Pad | Tape & Reel (TR) | Active | PIN - Single | 180V | 1.5 A | 0.65pF @ 38V, 1MHz | 1.2Ohm @ 10mA, 500MHz | 2 W | 175°C (TJ) | - | - | 3-QFN (2x2) |
|
|
SMP1330-085LFRF DIODE PIN 50V 3W 3QFN |
5,435 | - |
|
Datasheet | - | 2-VDFN Exposed Pad | Tape & Reel (TR) | Active | PIN - Single | 50V | 200 mA | 1pF @ 0V, 1MHz | 2Ohm @ 10mA, 100MHz | 3 W | 175°C (TJ) | - | - | 3-QFN (2x2) |
|
|
CLA4609-086LFRF DIODE PIN 250V 3QFN |
5,042 | - |
|
Datasheet | - | 2-VDFN Exposed Pad | Tape & Reel (TR) | Active | PIN - Single | 250V | 200 mA | 0.14pF @ 6V, 1MHz | 1.5Ohm @ 10mA, 500MHz | - | 175°C (TJ) | - | - | 3-QFN (2x2) |
|
|
CLA4610-085LFRF DIODE PIN 120V 10W 3QFN |
6,902 | - |
|
Datasheet | - | 2-VDFN Exposed Pad | Tape & Reel (TR) | Active | PIN - Single | 120V | 100 mA | 0.32pF @ 6V, 1MHz | 2.2Ohm @ 10mA, 500MHz | 10 W | 175°C (TJ) | - | - | 3-QFN (2x2) |
|

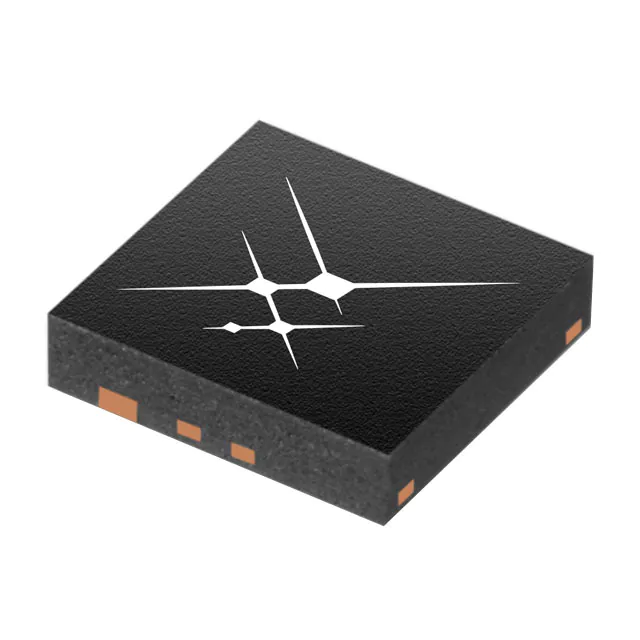

SKY16602-632LFRF DIODE PIN 20V 12W 2MLP |
9,387 | - |
|
Datasheet | - | 2-UDFN Exposed Pad | Tape & Reel (TR) | Active | PIN - Single | 20V | 50 mA | - | - | 12 W | -40°C ~ 85°C (TA) | - | - | 2-MLP (2.3x2.3) |
|

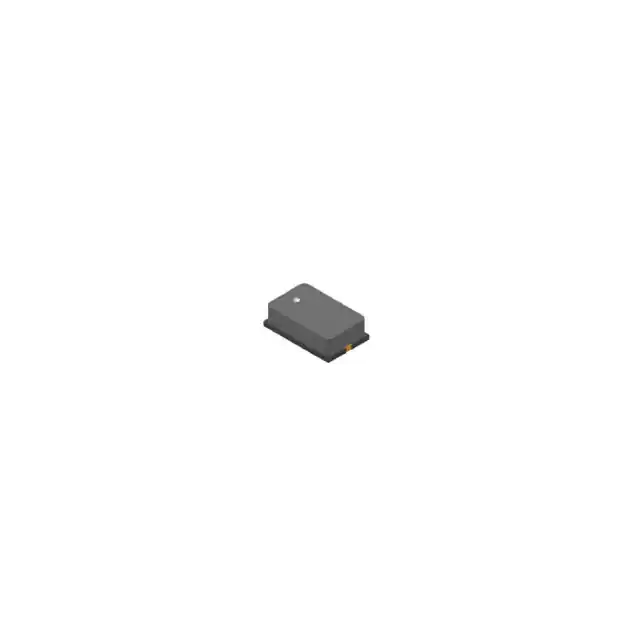

LM200802-M-A-300-TLIMITER,SURFACE MOUNT MODULE,CS3 |
8,227 | - |
|
Datasheet | - | 2-SMD, No Lead | Tube | Active | PIN - Single | - | - | - | - | - | 175°C (TJ) | - | - | CS300 |
|

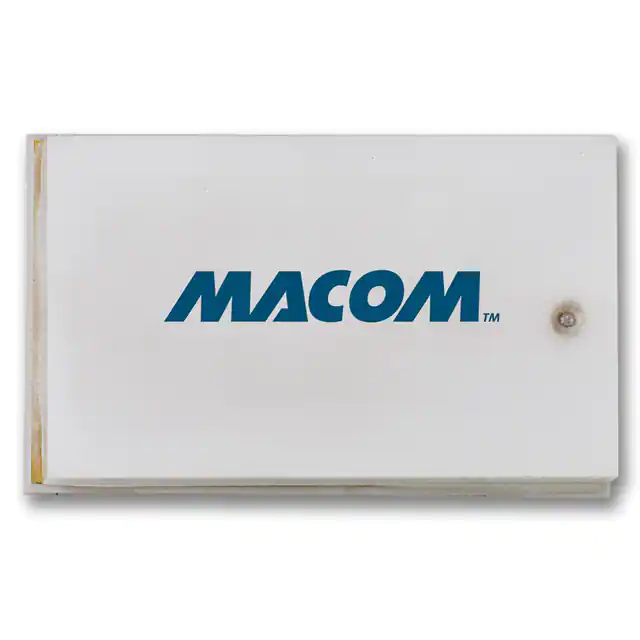

MADL-011014-001000LIMITER HIGH POWER,1.0-2.0GHZ,HE |
2,977 | - |
|
Datasheet | - | 2-SMD, No Lead | Tray | Active | PIN - 1 Pair Series Connection | - | - | - | - | 320 W | 175°C (TJ) | - | - | SMD |
|
MA4E1339B1-287TSCHOTTKY PLASTIC LEAD-FREE |
4,205 | - |
|
Datasheet | MA4E1339 | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Schottky - 1 Pair Series Connection | 20V | 30 mA | 1.2pF @ 0V, 1MHz | - | 250 mW | -55°C ~ 125°C (TJ) | - | - | SOT-23 |
|
DSG9500-000RF DIODE PIN 100V 250MW |
2,095 | - |
|
Datasheet | - | - | Tray | Active | PIN - Single | 100V | - | 0.025pF @ 50V, 1MHz | 4Ohm @ 50mA, 100MHz | 250 mW | -65°C ~ 150°C (TA) | - | - | - |
|
CLA4606-000DIODE LIMITER SILICON 45-75V |
3,862 | - |
|
Datasheet | CLA | Die | Tray | Active | PIN - Single | 75V | 200 mA | - | 2Ohm @ 10mA, 1MHz | 650 mW | -65°C ~ 175°C (TJ) | - | - | Die |
|
|
CLA4608-000DIODE LIMITER SILICON 120-180V |
3,022 | - |
|
Datasheet | CLA | Die | Tray | Active | PIN - Single | 180V | 200 mA | - | 1.2Ohm @ 10mA, 1MHz | 850 mW | -65°C ~ 175°C (TJ) | - | - | Die |
|
|
CLA4610-000RF DIODE PIN 120V 620MW DIE |
9,526 | - |
|
Datasheet | - | Die | Tray | Active | PIN - Single | 120V | 200 mA | 0.12pF @ 6V, 1MHz | 2.2Ohm @ 10mA, 500MHz | 620 mW | -65°C ~ 175°C (TJ) | - | - | Die |
|
MA4GP907GAAS,FLIPCHIP,PIN |
4,562 | - |
|
Datasheet | - | Die | Tray | Active | PIN - Single | 50V | - | 0.03pF @ 10V, 1MHz | 7Ohm @ 10mA, 1GHz | 250 mW | 175°C (TJ) | - | - | Chip |
|
|
UMX512SI PPIN HERMETIC MELF |
8,235 | - |
|
Datasheet | - | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - |
|
PMBD353,215RF DIODE SCHOTTKY 4V TO236AB |
41 | - |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Schottky - 1 Pair Series Connection | 4V | 30 mA | 1pF @ 0V, 1MHz | - | - | 100°C (TJ) | Automotive | AEC-Q100 | TO-236AB |
RF Diodes FAQ
Common questions about selecting, comparing and sourcing RF Diodes components through Winsun (HK) Electronics.
What should I check when selecting RF Diodes components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific RF Diodes part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find RF Diodes parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for RF Diodes components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
