Encoders
Use the filters and product table below to compare Encoders components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

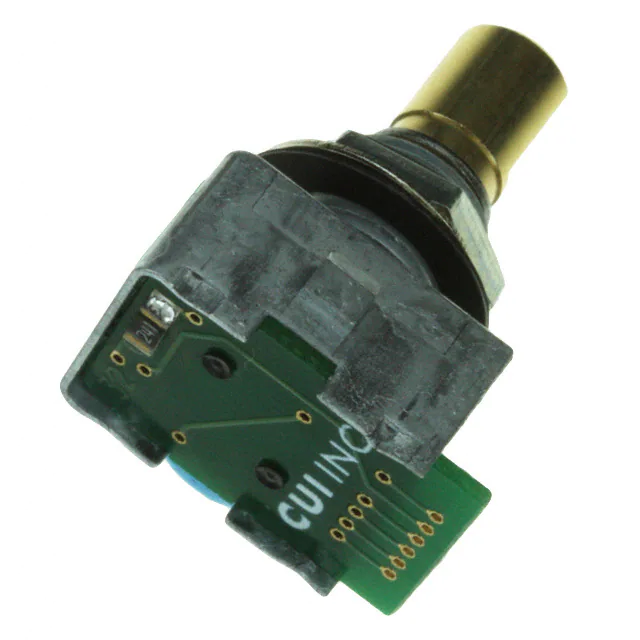

C14D32P-A3AENCODER OPT 32PPR IP65 SLD HOLE |
203 | - |
|
Datasheet | C14 | Box | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 1/4" Dia Flatted End | Yes | Yes | Panel Mount | Right Angle | Solder Lug | 1M | - | - |
|
AMT13A2Q-VKIT, AMT13A2Q-V INCREMENTAL ENCO |
180 | - |
|
Datasheet | AMT13A | Box | Active | - | Incremental | Quadrature Line Driver (Incremental) | Programmable | 4.5V ~ 5.5V | Open Center | No | No | Chassis Mount, Motors | Vertical | Connector | - | - | - |
|
AMT132Q-VKIT, AMT132Q, INCREMENTAL ENCODE |
422 | - |
|
Datasheet | AMT13 | Box | Active | - | Incremental | Quadrature Line Driver with Index (Incremental) | Programmable | 4.5V ~ 5.5V | Open Center | No | No | Chassis Mount, Motors | Vertical | Connector | - | - | - |
|

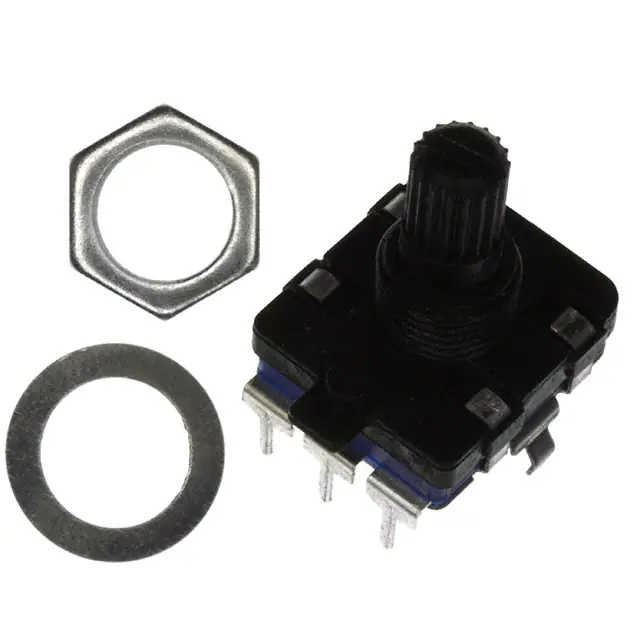

ACZ16NBR1E-15KQD1-24CROTARY ENCODER INCREMENT 24PPR |
110 | - |
|
Datasheet | ACZ16 | Box | Active | Not Verified | Incremental | Quadrature (Incremental) | 24 | 5V | 6mm Dia Knurled End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|

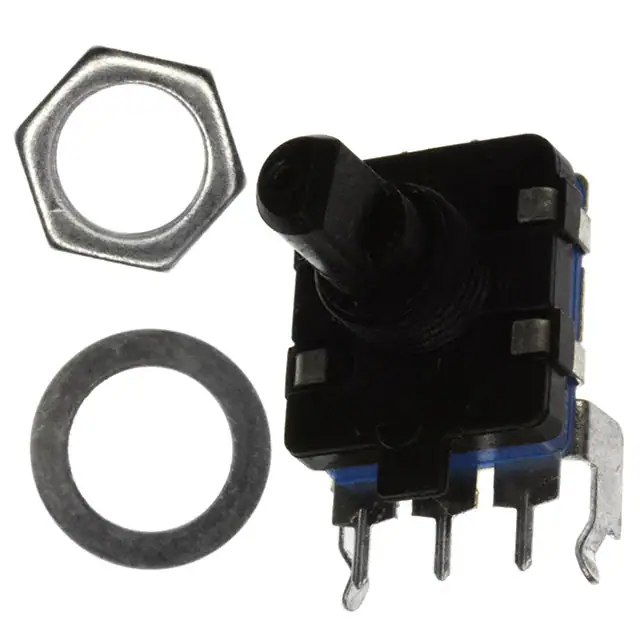

ACZ16NBR1E-15FA1-24CROTARY ENCODER INCREMENT 24PPR |
1,034 | - |
|
Datasheet | ACZ16 | Box | Active | Not Verified | Incremental | Quadrature (Incremental) | 24 | 5V | 6mm Dia Flatted End | Yes | No | Panel, PCB Through Hole | Right Angle | PC Pin | 100K | - | - |
|
ACZ16NBR1E-15FD1-12CROTARY ENCODER INCREMENT 12PPR |
2,792 | - |
|
Datasheet | ACZ16 | Box | Active | Not Verified | Incremental | Quadrature (Incremental) | 12 | 5V | 6mm Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|

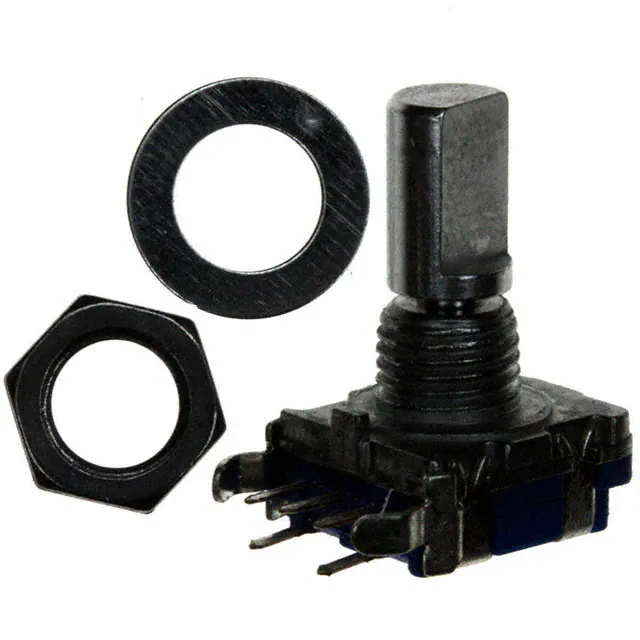

ACZ11BR1E-15FA1-20CROTARY ENCODER INCREMENT 20PPR |
10,937 | - |
|
Datasheet | ACZ11 | Box | Active | Not Verified | Incremental | Quadrature (Incremental) | 20 | 5V | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Right Angle | PC Pin | 30K | - | - |
|
ACZ11BR1E-15FD1-12CROTARY ENCODER INCREMENT 12PPR |
1,835 | - |
|
Datasheet | ACZ11 | Box | Active | Not Verified | Incremental | Quadrature (Incremental) | 12 | 5V | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|

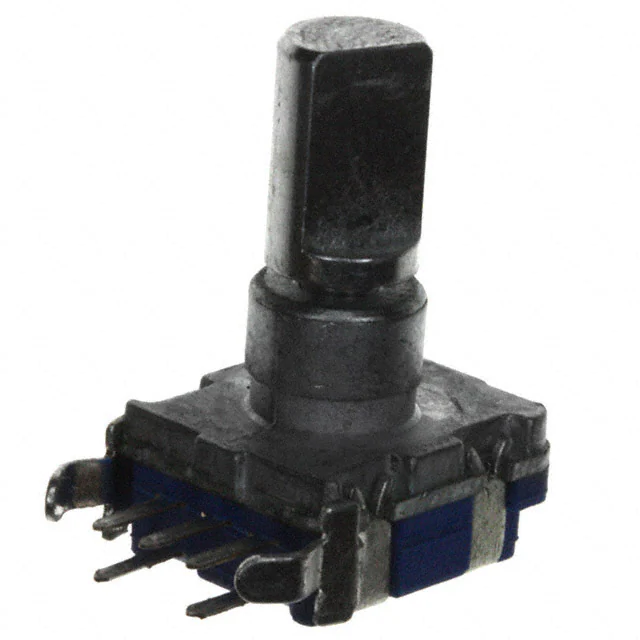

ACZ11BR4E-15FA1-20CROTARY ENCODER INCREMENT 20PPR |
1,293 | - |
|
Datasheet | ACZ11 | Box | Active | Not Verified | Incremental | Quadrature (Incremental) | 20 | 5V | 6mm Dia Flatted End | Yes | Yes | PCB, Through Hole | Right Angle | PC Pin | 30K | - | - |
|

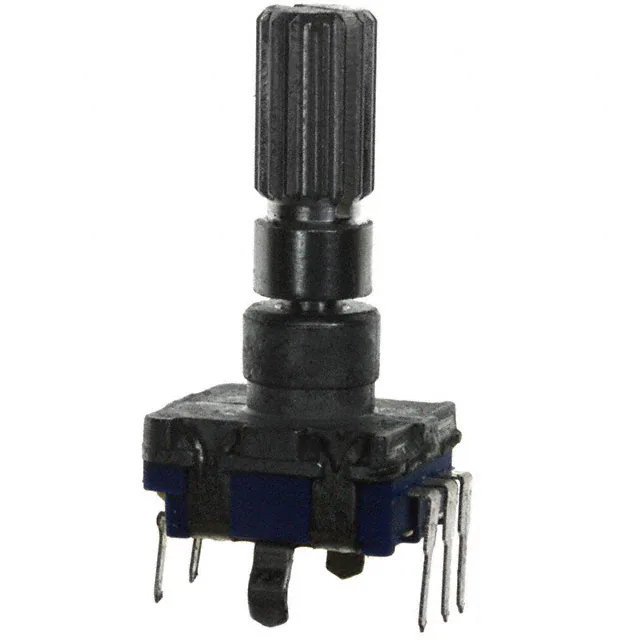

ACZ11BR4E-20KQD1-12CROTARY ENCODER INCREMENT 12PPR |
1,040 | - |
|
Datasheet | ACZ11 | Box | Active | Not Verified | Incremental | Quadrature (Incremental) | 12 | 5V | 6mm Dia Knurled End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
Encoders FAQ
Common questions about filtering, comparing and sourcing Encoders components.
How can I narrow the Encoders selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Encoders part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
