Encoders
Use the filters and product table below to compare Encoders components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RIC11-22S15D7-THINCR ENC, MECH, 20 PPR 20 DET, 5 |
958 | - |
|
Datasheet | RIC11 | Box | Active | - | Incremental | Quadrature, 2-Bit | 20 | 5V | 6mm Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 100K | - | - |
|
|
RIC11-22S10D5S-THINCR ENC, MECH, 20 PPR 20 DET, 5 |
919 | - |
|
Datasheet | RIC11 | Box | Active | - | Incremental | Quadrature, 2-Bit | 20 | 5V | 6mm Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 100K | - | - |
|
|
RIC11-31S15K7-THINCR ENC, MECH, 15 PPR 30 DET, 5 |
622 | - |
|
Datasheet | RIC11 | Box | Active | - | Incremental | Quadrature, 2-Bit | 15 | 5V | 6mm Dia Knurled End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 100K | - | - |
|

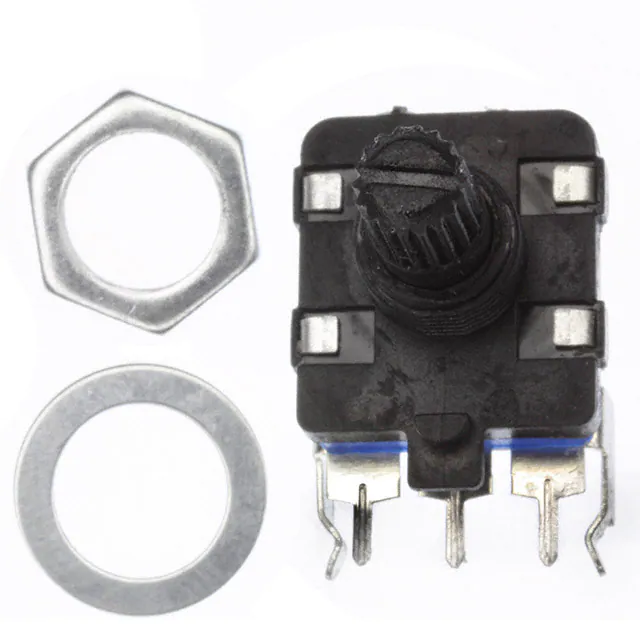

ACZ16NBR1E-15KQA1-24CROTARY ENCODER INCREMENT 24PPR |
3,666 | - |
|
Datasheet | ACZ16 | Box | Active | Not Verified | Incremental | Quadrature (Incremental) | 24 | 5V | 6mm Dia Knurled End | Yes | No | Panel, PCB Through Hole | Right Angle | PC Pin | 100K | - | - |
|
ACZ16BR1E-20KQD1-24CROTARY ENCODER INCREMENT 24PPR |
967 | - |
|
Datasheet | ACZ16 | Bulk | Active | Not Verified | Incremental | Quadrature (Incremental) | 24 | 5V | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|

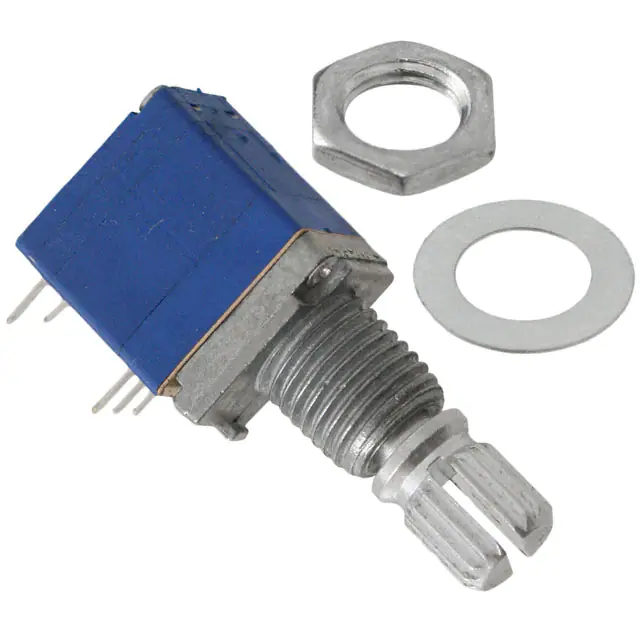

ACZ09BR2E-15KQA1-20C10PROTARY ENCODER INCREMENT 10PPR |
3,069 | - |
|
Datasheet | ACZ09 | Box | Active | Not Verified | Incremental | Quadrature (Incremental) | 10 | 5V | 6mm Dia Knurled End | Yes | Yes | Panel, PCB Through Hole | Right Angle | PC Pin | 30K | - | - |
|
|
AMT102-D2048-I8000-SAMT10, RADIAL, CAP, SINGLE ENDED |
1,527 | - |
|
Datasheet | AMT10 | Box | Active | - | Incremental | Quadrature with Index (Incremental) | 2048 | 3.6V ~ 5.5V | 8mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
|
AMT102-D2048-I5000-SAMT10, RADIAL, CAP, SINGLE ENDED |
2,159 | - |
|
Datasheet | AMT10 | Box | Active | - | Incremental | Quadrature with Index (Incremental) | 2048 | 3.6V ~ 5.5V | 5mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|

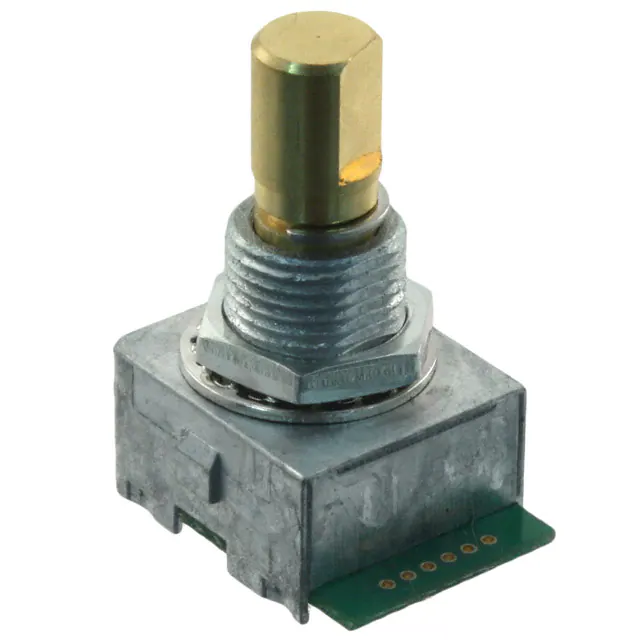

C14D16P-A3ROTARY ENCODER OPTICAL 16PPR |
2,137 | - |
|
Datasheet | C14 | Box | Active | Not Verified | Optical | Quadrature (Incremental) | 16 | 5V | 1/4" Dia Flatted End | Yes | Yes | Panel Mount | Right Angle | Solder Lug | 1M | - | - |
|

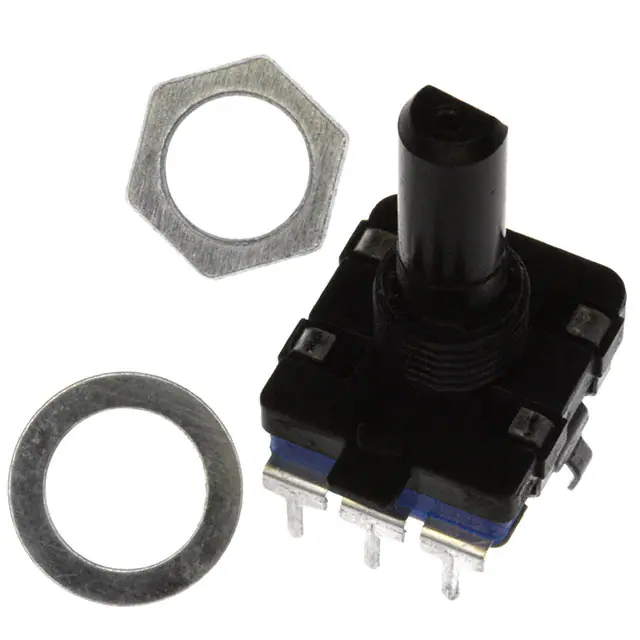

ACZ16NBR1E-20FD1-24CROTARY ENCODER INCREMENT 24PPR |
4,757 | - |
|
Datasheet | ACZ16 | Box | Active | Not Verified | Incremental | Quadrature (Incremental) | 24 | 5V | 6mm Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
Encoders FAQ
Common questions about filtering, comparing and sourcing Encoders components.
How can I narrow the Encoders selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Encoders part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
