Encoders
Use the filters and product table below to compare Encoders components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ACZ11BR1E-20FA1-20CENC INCRE QUAD RGHT ANGLE PC PIN |
320 |
1+：$4.09000 5+：$3.44200 10+：$3.19600 25+：$2.89680 60+：$2.63700 120+：$2.44783 300+：$2.21833 540+：$2.08256 1020+：$1.94502 |
|
Datasheet | ACZ11 | Box | Active | Not Verified | Incremental | Quadrature (Incremental) | 20 | 5V | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Right Angle | PC Pin | 30K | - | - |
|

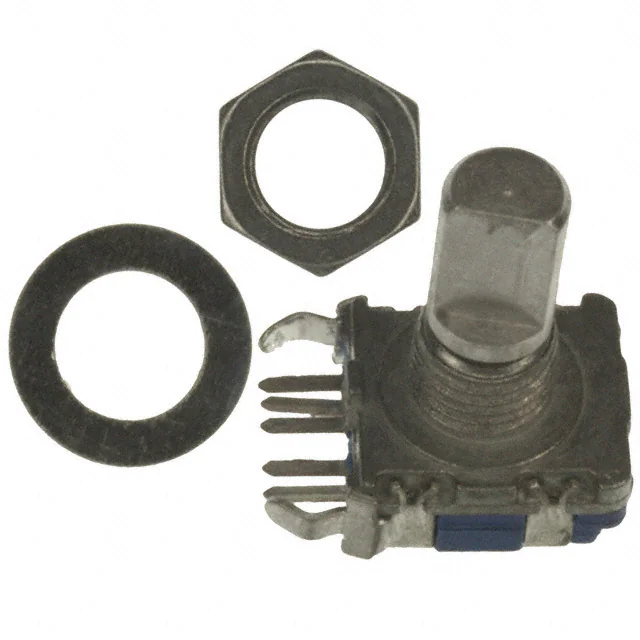

ACZ11BR1E-15FA1-12CENC INCRE QUAD RGHT ANGLE PC PIN |
494 |
1+：$4.09000 5+：$3.44200 10+：$3.19600 25+：$2.89680 60+：$2.63700 120+：$2.44783 300+：$2.21833 540+：$2.08256 1020+：$1.94502 |
|
Datasheet | ACZ11 | Box | Active | Not Verified | Incremental | Quadrature (Incremental) | 12 | 5V | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Right Angle | PC Pin | 30K | - | - |
|

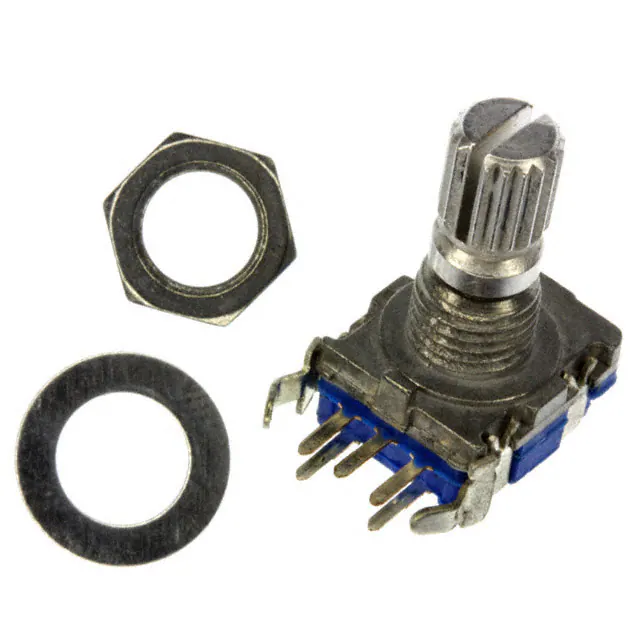

ACZ11BR1E-15KQA1-12CENC INCRE QUAD RGHT ANGLE PC PIN |
221 |
1+：$4.09000 5+：$3.44200 10+：$3.19600 25+：$2.89680 60+：$2.63700 120+：$2.44783 300+：$2.21833 540+：$2.08256 1020+：$1.94502 |
|
Datasheet | ACZ11 | Box | Active | Not Verified | Incremental | Quadrature (Incremental) | 12 | 5V | 6mm Dia Knurled End | Yes | Yes | Panel, PCB Through Hole | Right Angle | PC Pin | 30K | - | - |
|
ACZ11BR1E-15KQD1-20CROTARY ENCODER INCREMENT 20PPR |
341 | - |
|
Datasheet | ACZ11 | Box | Active | Not Verified | Incremental | Quadrature (Incremental) | 20 | 5V | 6mm Dia Knurled End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|

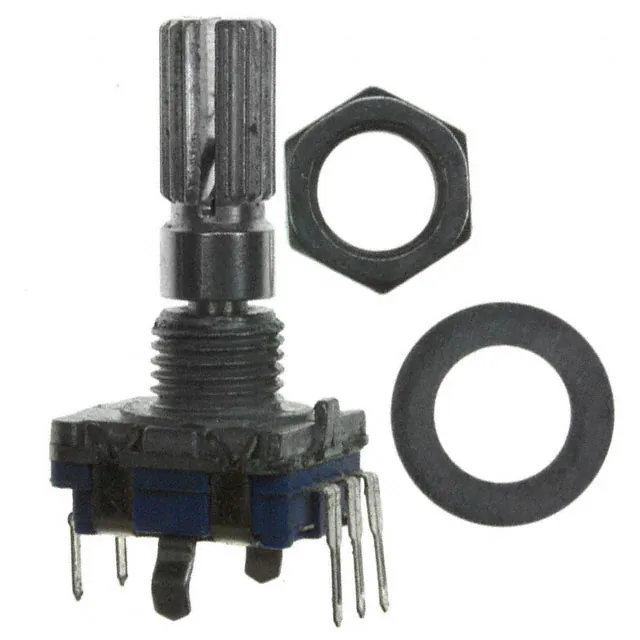

ACZ11BR1E-20KQD1-20CROTARY ENCODER INCREMENT 20PPR |
873 | - |
|
Datasheet | ACZ11 | Box | Active | Not Verified | Incremental | Quadrature (Incremental) | 20 | 5V | 6mm Dia Knurled End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
C14D32P-A2PENC OPTCL QUAD RGT ANG SOLDR LUG |
186 |
1+：$43.29000 5+：$36.41600 10+：$33.80200 25+：$30.63360 50+：$28.43680 100+：$26.39850 250+：$26.01376 |
|
Datasheet | C14 | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 4.75V ~ 5.25V | 6mm Dia Round End | Yes | Yes | Panel Mount | Right Angle | Solder Lug | 1M | - | - |
|

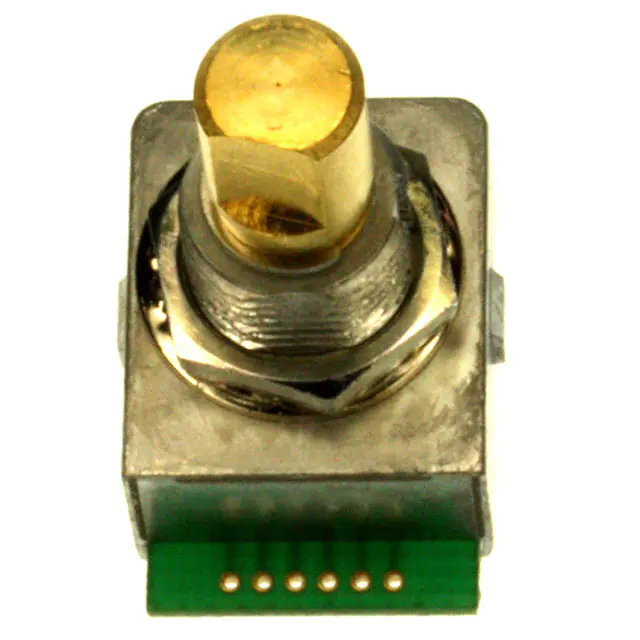

C14N32N-A3ROTARY ENCODER OPTICAL 32PPR |
204 | - |
|
Datasheet | C14 | Box | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 1/4" Dia Flatted End | No | No | Panel Mount | Right Angle | Solder Lug | 1M | - | - |
|
AMT11A2S-VKIT, AMT11A2S, INCREMENTAL ENCOD |
194 | - |
|
Datasheet | AMT11A | Box | Active | Not Verified | Capacitive, Incremental | Voltage | - | 4.5V ~ 5.5V | - | No | No | Chassis Mount | Right Angle | Connector | - | - | - |
|
AMT133S-VKIT, AMT133S, INCREMENTAL ENCODE |
113 | - |
|
Datasheet | AMT13 | Box | Active | - | Incremental | Voltage | Programmable | 4.5V ~ 5.5V | Open Center | No | No | Chassis Mount, Motors | Right Angle | Connector | - | - | - |
|
AMT13A2S-VENC INCREM VOLTAGE VERT CONNECTR |
181 |
1+：$59.21000 5+：$49.80600 10+：$46.23100 25+：$41.89840 50+：$38.89500 100+：$37.72500 |
|
Datasheet | AMT13A | Box | Active | - | Incremental | Voltage | Programmable | 4.5V ~ 5.5V | Open Center | No | No | Chassis Mount, Motors | Vertical | Connector | - | - | - |
Encoders FAQ
Common questions about filtering, comparing and sourcing Encoders components.
How can I narrow the Encoders selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Encoders part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
