FETs, MOSFETs
Use the filters and product table below to compare FETs, MOSFETs components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APT40M70JVRMOSFET N-CH 400V 53A SOT227 |
40 | - |
|
Datasheet | POWER MOS V® | SOT-227-4, miniBLOC | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 400 V | 53A (Tc) | 10V | 70mOhm @ 26.5A, 10V | 4V @ 2.5mA | 495 nC @ 10 V | ±30V | 8890 pF @ 25 V | - | 450W (Tc) | -55°C ~ 150°C (TJ) | - | - | Chassis Mount | SOT-227 (ISOTOP®) |
|
|
APT10045JLLMOSFET N-CH 1000V 21A ISOTOP |
20 | - |
|
Datasheet | POWER MOS 7® | SOT-227-4, miniBLOC | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 21A (Tc) | 10V | 450mOhm @ 11.5A, 10V | 5V @ 2.5mA | 154 nC @ 10 V | ±30V | 4350 pF @ 25 V | - | 460W (Tc) | -55°C ~ 150°C (TJ) | - | - | Chassis Mount | ISOTOP® |
|
MSC100SM70JCU2SICFET N-CH 700V 124A SOT227 |
8 | - |
|
Datasheet | - | SOT-227-4, miniBLOC | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 700 V | 124A (Tc) | 20V | 19mOhm @ 40A, 20V | 2.4V @ 4mA | 215 nC @ 20 V | +25V, -10V | 4500 pF @ 700 V | - | 365W (Tc) | -55°C ~ 150°C (TJ) | - | - | Chassis Mount | SOT-227 (ISOTOP®) |
|
|
APT60M60JFLLMOSFET N-CH 600V 70A ISOTOP |
10 | - |
|
Datasheet | POWER MOS 7® | SOT-227-4, miniBLOC | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 70A (Tc) | 10V | 60mOhm @ 35A, 10V | 5V @ 5mA | 289 nC @ 10 V | ±30V | 12630 pF @ 25 V | - | 694W (Tc) | -55°C ~ 150°C (TJ) | - | - | Chassis Mount | ISOTOP® |
|
APT30F50BMOSFET N-CH 500V 30A TO247 |
95 | - |
|
Datasheet | POWER MOS 8™ | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 30A (Tc) | 10V | 190mOhm @ 14A, 10V | 5V @ 1mA | 115 nC @ 10 V | ±30V | 4525 pF @ 25 V | - | 415W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 [B] |
|
APT9M100SMOSFET N-CH 1000V 9A D3PAK |
47 | - |
|
Datasheet | POWER MOS 8™ | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 9A (Tc) | 10V | 1.4Ohm @ 5A, 10V | 5V @ 1mA | 80 nC @ 10 V | ±30V | 2605 pF @ 25 V | - | 335W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | D3PAK |
|
MSC080SMA120B4SICFET N-CH 1200V 37A TO247-4 |
94 | - |
|
Datasheet | - | TO-247-4 | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 37A (Tc) | 20V | 100mOhm @ 15A, 20V | 2.8V @ 1mA | 64 nC @ 20 V | +23V, -10V | 838 pF @ 1000 V | - | 200W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247-4 |
|
MSC060SMA070BSICFET N-CH 700V 39A TO247-3 |
79 | - |
|
Datasheet | - | TO-247-3 | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 700 V | 39A (Tc) | 20V | 75mOhm @ 20A, 20V | 2.4V @ 1mA | 56 nC @ 20 V | +23V, -10V | 1175 pF @ 700 V | - | 143W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247-3 |
|

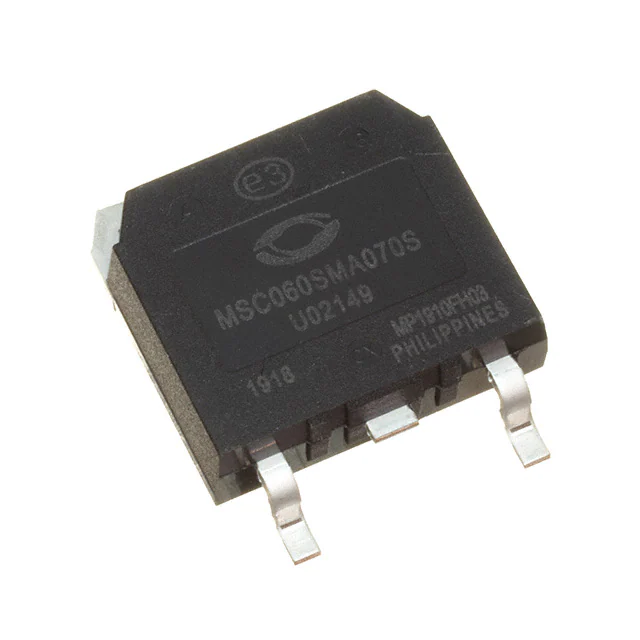

MSC060SMA070SSICFET N-CH 700V 37A D3PAK |
92 | - |
|
Datasheet | - | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 700 V | 37A (Tc) | 20V | 75mOhm @ 20A, 20V | 2.4V @ 1mA (Typ) | 56 nC @ 20 V | +23V, -10V | 1175 pF @ 700 V | - | 130W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D3PAK |
|
|
APT1204R7BFLLGMOSFET N-CH 1200V 3.5A TO247 |
43 | - |
|
Datasheet | POWER MOS 7® | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 1200 V | 3.5A (Tc) | 10V | 4.7Ohm @ 1.75A, 10V | 5V @ 1mA | 31 nC @ 10 V | ±30V | 715 pF @ 25 V | - | 135W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 [B] |
FETs, MOSFETs FAQ
Common questions about filtering, comparing and sourcing FETs, MOSFETs components.
How can I narrow the FETs, MOSFETs selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific FETs, MOSFETs part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
