Fixed Inductors

Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.

If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.

Parametric Selection Filter options by technical parameters

Stock & Datasheets Review availability and technical references

RFQ & BOM Support Send your target MPN, quantity or BOM

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Type	Material - Core	Inductance	Tolerance	Current Rating (Amps)	Current - Saturation (Isat)	Shielding	DC Resistance (DCR)	Q @ Freq	Frequency - Self Resonant	Ratings	Operating Temperature	Inductance Frequency - Test	Features	Mounting Type	Supplier Device Package	Size / Dimension	Height - Seated (Max)

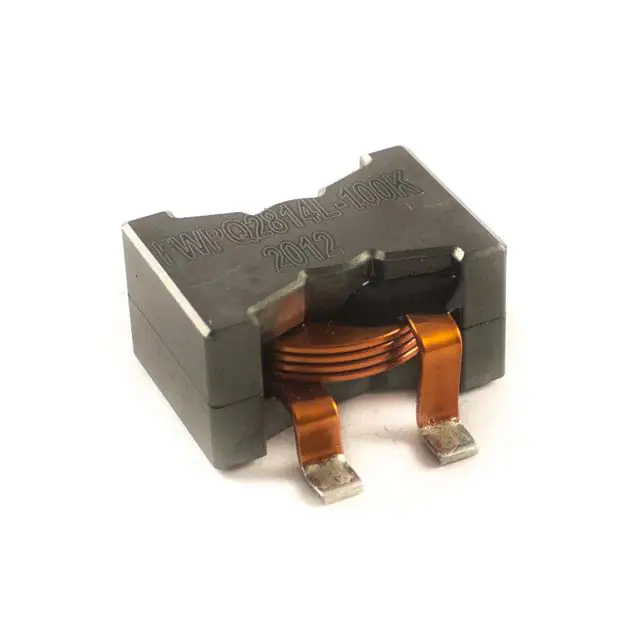

FWPQ2814L-4R7K 4.7uH +/-10% Flat Wire SMD Power Allied Components International	4,099	-	RFQ	Datasheet	FWPQ2814L	2-SMD, Gull Wing	Tray	Active	Wirewound	-	4.7 µH	±10%	30 A	39A	Shielded	1.62mOhm Max	-	30MHz	-	-40°C ~ 85°C	500 kHz	-	Surface Mount	2-SMD	1.102" L x 0.760" W (28.00mm x 19.30mm)	0.571" (14.50mm)
FWPQ2814L-2R2K 2.2uH +/-10% Flat Wire SMD Power Allied Components International	1,655	-	RFQ	Datasheet	FWPQ2814L	2-SMD, Gull Wing	Tray	Active	Wirewound	-	2.2 µH	±10%	30 A	84.8A	Shielded	1.62mOhm Max	-	50MHz	-	-40°C ~ 85°C	500 kHz	-	Surface Mount	2-SMD	1.102" L x 0.760" W (28.00mm x 19.30mm)	0.571" (14.50mm)

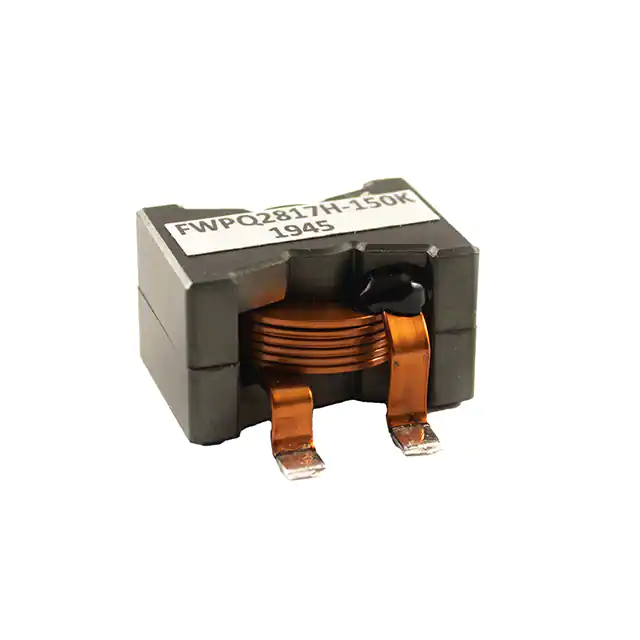

FWPQ2817H-100K 10uH +/-10% Flat Wire SMD Power Allied Components International	2,978	-	RFQ	Datasheet	FWTPQ2817H	2-SMD, Gull Wing	Tray	Active	Wirewound	-	10 µH	±10%	28 A	32.1A	Shielded	2.82mOhm	-	20MHz	-	-40°C ~ 85°C	500 kHz	-	Surface Mount	2-SMD	1.102" L x 0.760" W (28.00mm x 19.30mm)	0.669" (17.00mm)
FWPQ2817H-3R3K 3.3uH +/-10% Flat Wire SMD Power Allied Components International	4,924	-	RFQ	Datasheet	FWTPQ2817H	2-SMD, Gull Wing	Tray	Active	Wirewound	-	3.3 µH	±10%	28 A	93.6A	Shielded	2.82mOhm	-	40MHz	-	-40°C ~ 85°C	500 kHz	-	Surface Mount	2-SMD	1.102" L x 0.760" W (28.00mm x 19.30mm)	0.669" (17.00mm)

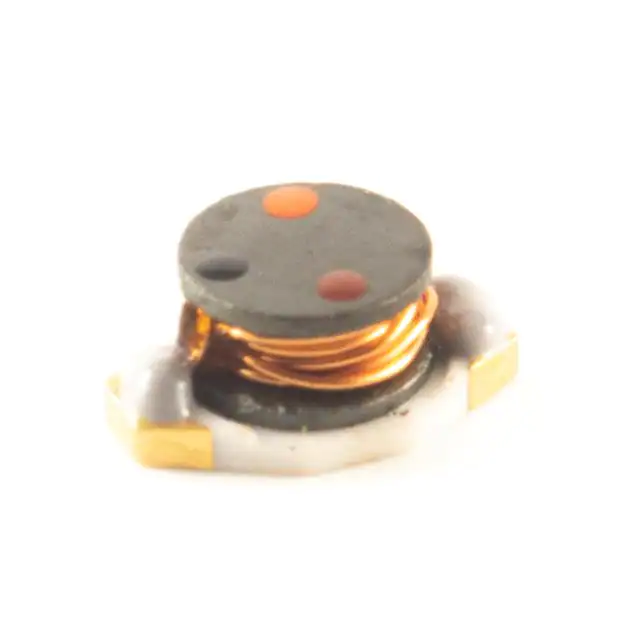

PCI20-1R0M-RC 1.0uH +/-20% Power Chip Inductor Allied Components International	2,686	-	RFQ	Datasheet	PCI20	Nonstandard	Tape & Reel (TR)	Active	-	-	1 µH	±20%	2.9 A	2.9A	Unshielded	50mOhm Max	-	130MHz	-	-40°C ~ 85°C	100 kHz	-	Surface Mount	-	0.260" L x 0.175" W (6.60mm x 4.45mm)	0.115" (2.92mm)
PCI20-3R3M-RC 3.3uH +/-20% Power Chip Inductor Allied Components International	1,660	-	RFQ	Datasheet	PCI20	Nonstandard	Tape & Reel (TR)	Active	-	-	3.3 µH	±20%	2 A	2A	Unshielded	80mOhm Max	-	70MHz	-	-40°C ~ 85°C	100 kHz	-	Surface Mount	-	0.260" L x 0.175" W (6.60mm x 4.45mm)	0.115" (2.92mm)

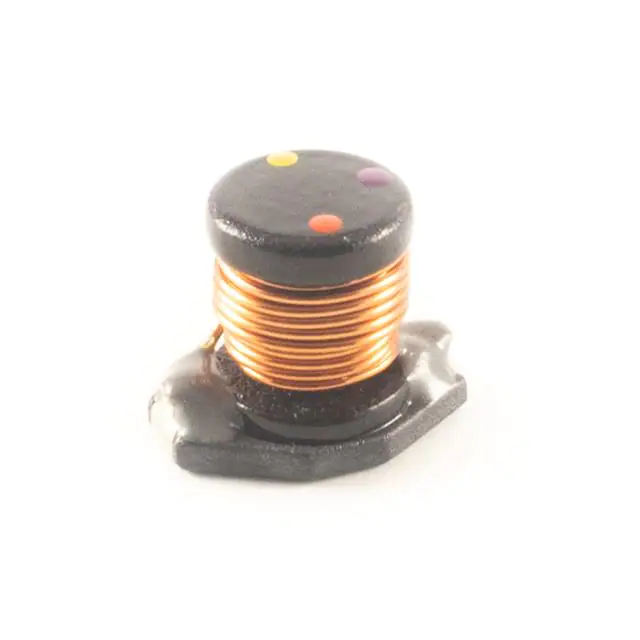

PCI50-4R7M-RC 4.7uH +/-20% Power Chip Inductor Allied Components International	3,242	-	RFQ	Datasheet	PCI50	Nonstandard	Tape & Reel (TR)	Active	Wirewound	-	4.7 µH	±20%	3.5 A	8A	Unshielded	33mOhm Max	-	25MHz	-	-40°C ~ 125°C	100 kHz	-	Surface Mount	-	0.510" L x 0.370" W (12.95mm x 9.40mm)	0.450" (11.43mm)
AM30-5R6M-RC 5.6uH +20% Axial Molded Inductor Allied Components International	2,232	-	RFQ	Datasheet	AM30	Axial	Bag	Active	Molded	-	5.6 µH	±10%	565 mA	-	Unshielded	320mOhm Max	45 @ 7.9MHz	60MHz	-	-55°C ~ 125°C	7.9 MHz	-	Through Hole	Axial	0.156" Dia (3.96mm)	0.375" (9.53mm)

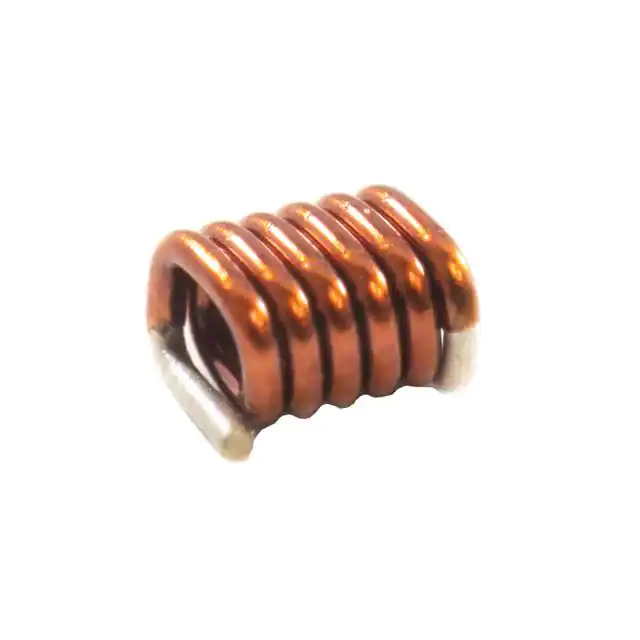

SQAC0806-12NJ-RC 12.3nH +/-5% Square Wound Coil Allied Components International	4,433	-	RFQ	Datasheet	SQAC0806	Nonstandard	Tape & Reel (TR)	Active	-	Air	12 nH	±5%	2.9 A	-	Unshielded	8mOhm Max	90 @ 400MHz	4.8GHz	-	-40°C ~ 125°C	400 MHz	-	Surface Mount	-	0.076" L x 0.072" W (1.93mm x 1.83mm)	0.059" (1.50mm)

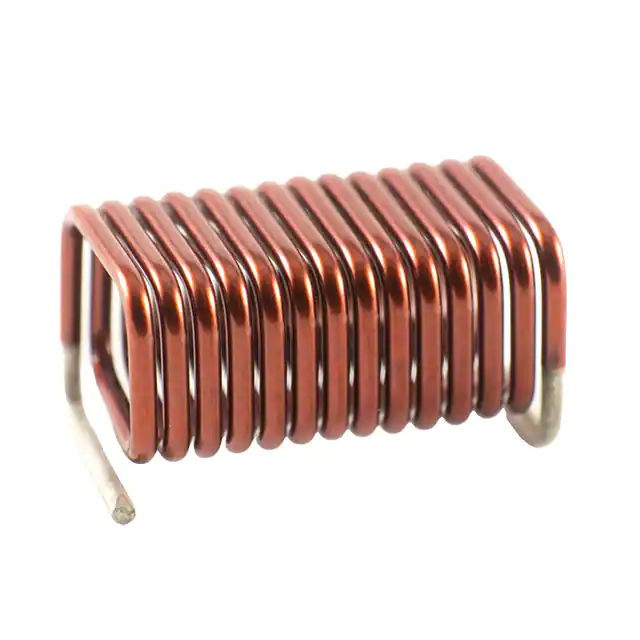

SQAC2929-431NG-RC 430nH +/-2% SMD Sq. Air Core Ind Allied Components International	2,472	-	RFQ	Datasheet	SQAC2929	Nonstandard	Tape & Reel (TR)	Active	Wirewound	Air	430 nH	±2%	4.2 A	-	Unshielded	16.5mOhm Max	180 @ 50MHz	500MHz	-	-40°C ~ 125°C	50 MHz	-	Surface Mount	-	0.520" L x 0.295" W (13.21mm x 7.49mm)	0.295" (7.49mm)

WINSUN SOURCING SUPPORT

Need Help Sourcing Fixed Inductors?

Send the target part number, manufacturer, specifications and quantity. Winsun (HK) Electronics can assist with availability checks, quotation support, shortage sourcing and alternative-part options when appropriate.

Availability and lead-time support BOM, shortage and alternative sourcing

Send part number & quantity Request a Quote

Need sourcing assistance? Contact Sales

FREQUENTLY ASKED QUESTIONS

Fixed Inductors FAQ

Common questions about filtering, comparing and sourcing Fixed Inductors components.

How can I narrow the Fixed Inductors selection?

Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.

Should I confirm the datasheet before selecting a part?

Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.

Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?

Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.

Do you support BOM, shortage or alternative-part requirements?

Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
