Fixed Inductors

Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.

If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.

Parametric Selection Filter options by technical parameters

Stock & Datasheets Review availability and technical references

RFQ & BOM Support Send your target MPN, quantity or BOM

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Type	Material - Core	Inductance	Tolerance	Current Rating (Amps)	Current - Saturation (Isat)	Shielding	DC Resistance (DCR)	Q @ Freq	Frequency - Self Resonant	Ratings	Operating Temperature	Inductance Frequency - Test	Features	Mounting Type	Supplier Device Package	Size / Dimension	Height - Seated (Max)
SQAC2929-501NG-RC 500nH +/-2% SMD Sq. Air Core Ind Allied Components International	2,058	-	RFQ	Datasheet	SQAC2929	Nonstandard	Tape & Reel (TR)	Active	Wirewound	Air	500 nH	±2%	4.3 A	-	Unshielded	15.5mOhm Max	180 @ 50MHz	550MHz	-	-40°C ~ 125°C	50 MHz	-	Surface Mount	-	0.551" L x 0.295" W (14.00mm x 7.49mm)	0.295" (7.49mm)
SQAC1515-82NG-RC 82nH +/-2% SMD Air Core Inductor Allied Components International	1,877	-	RFQ	Datasheet	SQAC1515	Nonstandard	Tape & Reel (TR)	Active	Wirewound	Air	82 nH	±2%	5.6 A	-	Unshielded	9.4mOhm Max	230 @ 400MHz	1.79GHz	-	-40°C ~ 125°C	400 MHz	-	Surface Mount	-	0.230" L x 0.140" W (5.84mm x 3.56mm)	0.154" (3.91mm)
HFC05-100NJ-RC 100nH +/-5% High Frequency Chip Allied Components International	2,212	-	RFQ	Datasheet	HFC05	0603 (1608 Metric)	Tape & Reel (TR)	Active	Multilayer	Ceramic	100 nH	±5%	300 mA	-	Unshielded	1.2Ohm Max	12 @ 100MHz	770MHz	-	-55°C ~ 125°C	100 MHz	-	Surface Mount	0603	0.063" L x 0.031" W (1.60mm x 0.80mm)	0.037" (0.95mm)
HFC05-120NJ-RC 120nH +/-5% High Frequency Chip Allied Components International	4,427	-	RFQ	Datasheet	HFC05	0603 (1608 Metric)	Tape & Reel (TR)	Active	Multilayer	Ceramic	120 nH	±5%	300 mA	-	Unshielded	1.3Ohm Max	8 @ 100MHz	650MHz	-	-55°C ~ 125°C	100 MHz	-	Surface Mount	0603	0.063" L x 0.031" W (1.60mm x 0.80mm)	0.037" (0.95mm)
HFC05-5N6K-RC 5.6nH +/-10% High Frequency Chip Allied Components International	2,583	-	RFQ	Datasheet	HFC05	0603 (1608 Metric)	Tape & Reel (TR)	Active	Multilayer	Ceramic	5.6 nH	±10%	600 mA	-	Unshielded	180mOhm Max	10 @ 100MHz	4.1GHz	-	-55°C ~ 125°C	100 MHz	-	Surface Mount	0603	0.063" L x 0.031" W (1.60mm x 0.80mm)	0.037" (0.95mm)
LS03-R12J-RC .12uH +/-5% Ferrite Core Chip Allied Components International	1,269	-	RFQ	Datasheet	LS03	0603 (1608 Metric)	Tape & Reel (TR)	Active	Wirewound	Ferrite	120 nH	±5%	-	1.5A	Unshielded	150mOhm Max	17 @ 7.9MHz	1.35GHz	-	-40°C ~ 125°C	7.9 MHz	-	Surface Mount	0603	0.071" L x 0.049" W (1.80mm x 1.25mm)	0.040" (1.02mm)
LS03-72NJ-RC .072uH +/-5% Ferrite Core Chip Allied Components International	1,595	-	RFQ	Datasheet	LS03	0603 (1608 Metric)	Tape & Reel (TR)	Active	Wirewound	Ferrite	72 nH	±5%	-	1.5A	Unshielded	120mOhm Max	17 @ 7.9MHz	1.7GHz	-	-40°C ~ 125°C	7.9 MHz	-	Surface Mount	0603	0.071" L x 0.049" W (1.80mm x 1.25mm)	0.040" (1.02mm)
LS10-4R7J-RC 4.7uH +/-5% Ferrite Core Chip Allied Components International	3,171	-	RFQ	Datasheet	LS10	1210 (3225 Metric)	Tape & Reel (TR)	Active	Wirewound	Ferrite	4.7 µH	±5%	800 mA	-	Unshielded	1.35Ohm Max	37 @ 7.9MHz	130MHz	-	-25°C ~ 85°C	7.9 MHz	-	Surface Mount	1210	0.118" L x 0.098" W (2.99mm x 2.50mm)	0.087" (2.20mm)

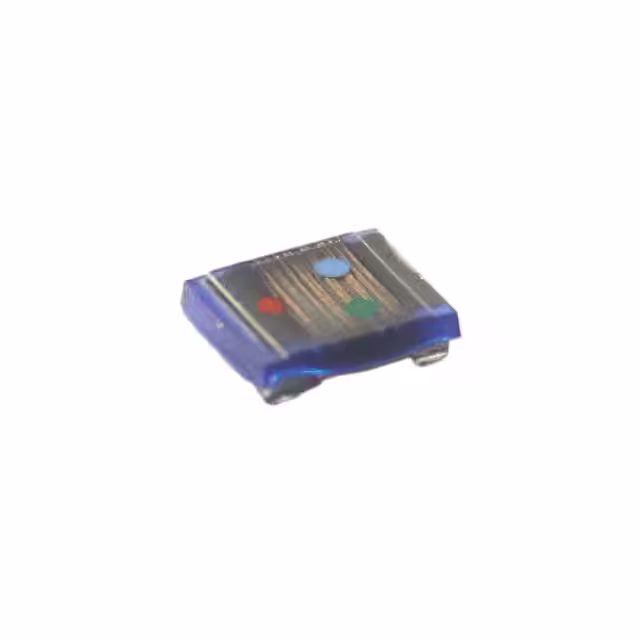

LT20-4R7J-RC 4.7uH +/-5% L.P. Ferrite Chip Allied Components International	2,069	-	RFQ	Datasheet	LT20	1210 (3225 Metric)	Tape & Reel (TR)	Active	Wirewound	Ferrite	4.7 µH	±5%	-	880mA	Unshielded	1.48Ohm Max	20 @ 7.96MHz	155MHz	-	-25°C ~ 85°C	7.96 MHz	-	Surface Mount	1210	0.148" L x 0.122" W (3.75mm x 3.10mm)	0.041" (1.05mm)
PCSLF1275-220M-RC 22uH +/-20% Power Chip Inductor Allied Components International	3,832	-	RFQ	Datasheet	PCSLF1275	Nonstandard	Tape & Reel (TR)	Active	Wirewound	-	22 µH	±20%	4 A	4A	Shielded	26mOhm Max	-	-	-	-40°C ~ 85°C	1 kHz	-	Surface Mount	-	0.492" L x 0.492" W (12.50mm x 12.50mm)	0.309" (7.85mm)
