Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

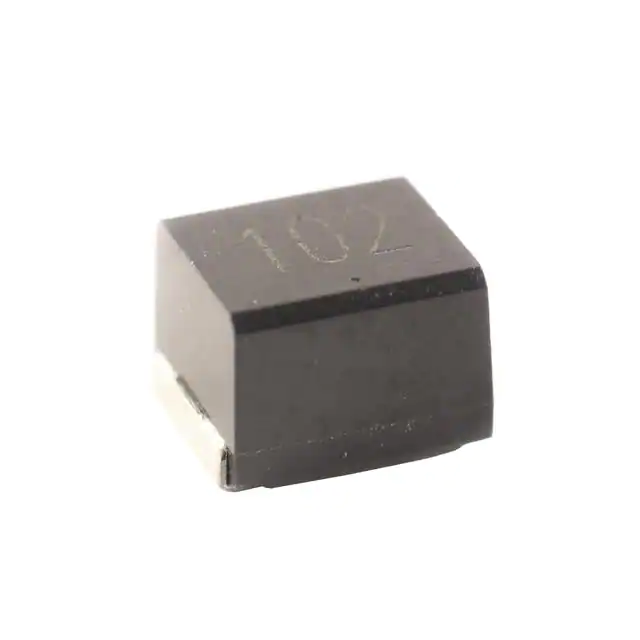

MCHC40-102J-RC1000UH 5% Molded Chip Inductor |
3,278 | - |
|
Datasheet | MCHC40 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 mH | ±5% | - | 85mA | Unshielded | 15Ohm Max | 20 @ 252kHz | 1.8MHz | - | -40°C ~ 125°C | 252 kHz | - | Surface Mount | - | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.165" (4.20mm) |
|
|
MCHC40-103K-RC10mH 10% Molded Chip Inductor |
3,527 | - |
|
Datasheet | MCHC40 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 mH | ±10% | - | 25mA | Unshielded | 150Ohm Max | 20 @ 79.6kHz | 500kHz | - | -40°C ~ 125°C | 79.6 kHz | - | Surface Mount | - | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.165" (4.20mm) |
|
VTC230-101L-RC100uH +/-15% V.M. Toroidal Choke |
2,803 | - |
|
Datasheet | TC230 | Vertical, No Base, 2 PC Pin | Tray | Active | Toroidal | - | 100 µH | ±15% | 7 A | - | Unshielded | 37mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Vertical, No Base, 2 PC Pin | 1.280" Dia (32.51mm) | - |
|
|
VTC100-220K-RC22uH +/-10% V.M. Toroidal Choke |
2,431 | - |
|
Datasheet | TC100 | Vertical, No Base, 2 PC Pin | Tray | Active | Toroidal | - | 22 µH | ±10% | 3.5 A | 3.9A | Unshielded | 29mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Vertical, No Base, 2 PC Pin | 0.600" Dia (15.24mm) | - |
|
|
VTC230HT-2R7L-RC2.7uH +/-15% V.M. Toroidal Choke |
2,749 | - |
|
Datasheet | TC230HT | Vertical, No Base, 2 PC Pin | Tray | Active | Toroidal | - | 2.7 µH | ±15% | 31.6 A | - | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | Vertical, No Base, 2 PC Pin | 1.280" Dia (32.51mm) | - |
|

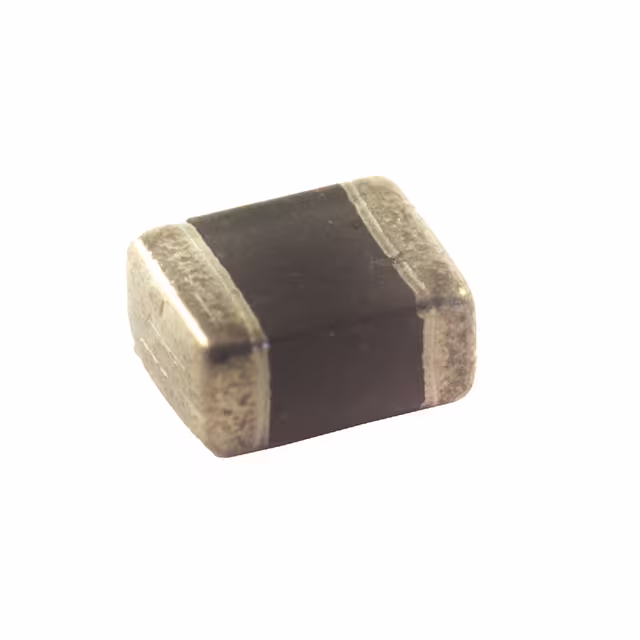

MLPC12-2R2M-RC2.2uH +/-20% Multilayer Pwr Chip |
1,452 | - |
|
Datasheet | MLPC12 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±20% | 1 A | - | Shielded | 130mOhm Max | - | - | - | -55°C ~ 125°C | 3 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
VTC3221-500-20A50uH @ 20A Vert. Mount Toroid |
2,011 | - |
|
Datasheet | VTC3221-500-20A | Vertical, No Base, 2 PC Pin | Tape & Reel (TR) | Active | Toroidal | - | 58.75 µH | ±12% | 20 A | - | Unshielded | 12mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Vertical, No Base, 2 PC Pin | 1.260" L x 0.827" W (32.00mm x 21.00mm) | 0.827" (21.00mm) |
|
VTCB5427-431-10A570uh @ 16.5A Vert. Mount Toroid |
4,703 | - |
|
Datasheet | VTCB5427-431-10A | Vertical, 8 PC Pin | Tape & Reel (TR) | Active | Toroidal | - | 570 µH | ±15% | 16.5 A | - | Unshielded | 50mOhm Max | - | - | - | -20°C ~ 125°C | 10 kHz | - | Through Hole | Vertical, 8 PC Pin | 2.126" L x 1.102" W (54.00mm x 28.00mm) | 2.146" (54.50mm) |
|
FWPQ2817H-330K33uH+/-10% Flat Wire Pwr Induct. |
1,016 | - |
|
Datasheet | FWTPQ2817H | 2-SMD, Gull Wing | Tray | Active | Wirewound | - | 33 µH | ±10% | 28 A | 9.6A | Shielded | 2.82mOhm Max | - | 10MHz | - | -40°C ~ 85°C | 500 kHz | - | Surface Mount | 2-SMD | 1.102" L x 0.760" W (28.00mm x 19.30mm) | 0.669" (17.00mm) |
|
PCI30-151M-RC150uH +/-20% SMD Power Inductor |
4,915 | - |
|
Datasheet | PCI30 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 150 µH | ±20% | - | 740mA | Unshielded | 940mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.118" (3.00mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
