Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHLP6767GZER1R5M01FIXED IND 1.5UH 42A 1.88MOHM SMD |
1,608 | - |
|
Datasheet | IHLP-6767GZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 42 A | 65A | Shielded | 1.88mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
|
IHLP6767GZERR22M01FIXED IND 220NH 80A 0.75MOHM SMD |
501 | - |
|
Datasheet | IHLP-6767GZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 220 nH | ±20% | 80 A | 129A | Shielded | 0.75mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
|
IHLP6767GZER220M5AFIXED IND 22UH 11.7A 22.27 MOHM |
2,478 | - |
|
Datasheet | IHLP-6767GZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 22 µH | ±20% | 11.7 A | 11A | Shielded | 22.27mOhm Max | - | 5.79MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
|
IHLP6767GZER3R3M01FIXED IND 3.3UH 28A 3.88MOHM SMD |
1,442 | - |
|
Datasheet | IHLP-6767GZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 28 A | 54A | Shielded | 3.88mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
|
IHLP6767GZER2R2M11FIXED IND 2.2UH 43.5A 1.98 MOHM |
671 | - |
|
Datasheet | IHLP-6767GZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 43.5 A | 28A | Shielded | 1.98mOhm Max | - | 19MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|

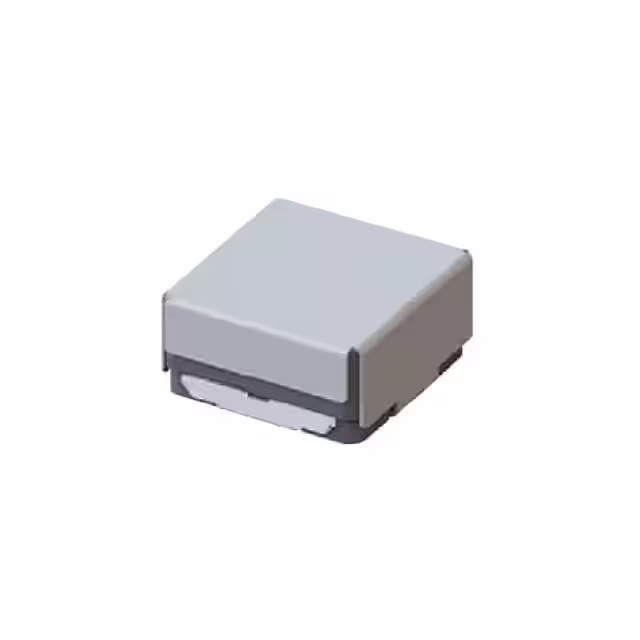

IHLE5050FHER101M5AFIXED IND 100UH 3.1A 205MOHM SMD |
766 | - |
|
Datasheet | IHLE-5050FH-5A | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±20% | 3.1 A | 4.3A | Shielded | 205mOhm Max | - | 2.8MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.550" L x 0.535" W (13.97mm x 13.59mm) | 0.268" (6.80mm) |
|
|
IHLP6767GZER8R2M01FIXED IND 8.2UH 18A 10.66MOHM SM |
159 | - |
|
Datasheet | IHLP-6767GZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 8.2 µH | ±20% | 18 A | 25A | Shielded | 10.66mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
|
IHLP6767GZER820M11FIXED IND 82UH 5.5A 91.7MOHM SMD |
521 | - |
|
Datasheet | IHLP-6767GZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 82 µH | ±20% | 5.5 A | 4.5A | Shielded | 91.7mOhm Max | - | 2.6MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|

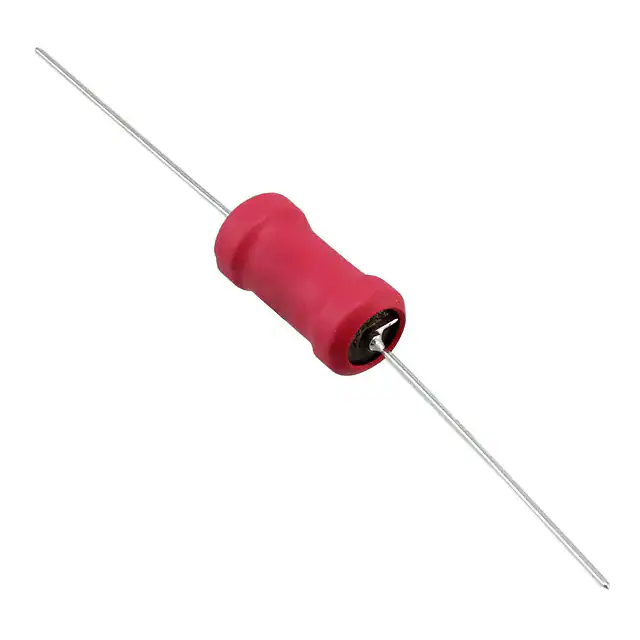

IHD3EB104LFIXED IND 100MH 70MA 76 OHM TH |
1,010 | - |
|
Datasheet | IHD | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 mH | ±15% | 70 mA | 60mA | Unshielded | 76Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.460" Dia x 0.900" L (11.68mm x 22.86mm) | - |
|
|
IHLP6767GZER8R2M11FIXED IND 8.2UH 21A 8.1 MOHM SMD |
799 | - |
|
Datasheet | IHLP-6767GZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 8.2 µH | ±20% | 21 A | 18A | Shielded | 8.1mOhm Max | - | 10MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
