Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IH10EB101KFIXED IND 100UH 10A 30 MOHM TH |
121 | - |
|
Datasheet | IH | Radial, Horizontal Cylinder | - | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 10 A | 7A | Unshielded | 30mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.935" Dia x 1.625" L (23.75mm x 41.28mm) | - |
|
IHDM1107BBEV8R2M30FG, IHDM-1107BB-30 8.2 20% |
268 | - |
|
Datasheet | IHDM-1107BB-30 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Iron Powder | 8.2 µH | ±20% | 39 A | 73A | Unshielded | 1.73mOhm Max | - | 22MHz | - | -55°C ~ 180°C | 100 kHz | - | Through Hole | - | 1.055" L x 0.705" W (26.80mm x 17.90mm) | 0.882" (22.40mm) |
|
IHLP8787MZER100M51FIXED IND 10UH 28A 4.14 MOHM SMD |
120 | - |
|
Datasheet | IHLP-8787MZ-51 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 28 A | 28A | Shielded | 4.14mOhm Max | - | 6.04MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.885" L x 0.866" W (22.48mm x 22.00mm) | 0.512" (13.00mm) |
|
IHDF1300AEEH1R0K1AFIXED IND 1UH 72A 0.79 MOHM TH |
127 | - |
|
Datasheet | IHDF-1300AE-1A | Nonstandard | Tray | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±10% | 72 A | 230A | Unshielded | 0.79mOhm Max | - | 39MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Through Hole | - | 1.299" L x 1.173" W (33.00mm x 29.80mm) | 0.606" (15.40mm) |
|
|
IHLP8787MZER4R7M5AFIXED IND 4.7UH 47A 1.84MOHM SMD |
200 | - |
|
Datasheet | IHLP-8787MZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 47 A | 37A | Shielded | 1.84mOhm Max | - | 10.2MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.885" L x 0.866" W (22.48mm x 22.00mm) | 0.512" (13.00mm) |
|
|
IHDM1107BBEV4R3M20FG, IHDM-1107BB-20 4.3 20% |
277 | - |
|
Datasheet | IHDM-1107BB-20 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Iron Powder | 4.3 µH | ±20% | 48 A | 164A | Unshielded | 1.3mOhm Max | - | 33MHz | - | -55°C ~ 180°C | 100 kHz | - | Through Hole | - | 1.055" L x 0.705" W (26.80mm x 17.90mm) | 0.882" (22.40mm) |
|
|
IHDM1107BBEVR68M30FG, IHDM-1107BB-30 .68 20% |
182 | - |
|
Datasheet | IHDM-1107BB-30 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Iron Powder | 680 nH | ±20% | 125 A | 248A | Unshielded | 0.3mOhm Max | - | 181MHz | - | -55°C ~ 180°C | 100 kHz | - | Through Hole | - | 1.055" L x 0.705" W (26.80mm x 17.90mm) | 0.882" (22.40mm) |
|
|
IHDM1107BBEV1R5M30FG, IHDM-1107BB-30 1.5 20% |
352 | - |
|
Datasheet | IHDM-1107BB-30 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Iron Powder | 1.5 µH | ±20% | 91 A | 165A | Unshielded | 0.41mOhm Max | - | 80MHz | - | -55°C ~ 180°C | 100 kHz | - | Through Hole | - | 1.055" L x 0.705" W (26.80mm x 17.90mm) | 0.882" (22.40mm) |
|
|
IHDM1107BBEV5R6M20FG, IHDM-1107BB-20 5.6 20% |
184 | - |
|
Datasheet | IHDM-1107BB-20 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Iron Powder | 5.6 µH | ±20% | 37 A | 142A | Unshielded | 1.73mOhm Max | - | 30MHz | - | -55°C ~ 180°C | 100 kHz | - | Through Hole | - | 1.055" L x 0.705" W (26.80mm x 17.90mm) | 0.882" (22.40mm) |
|

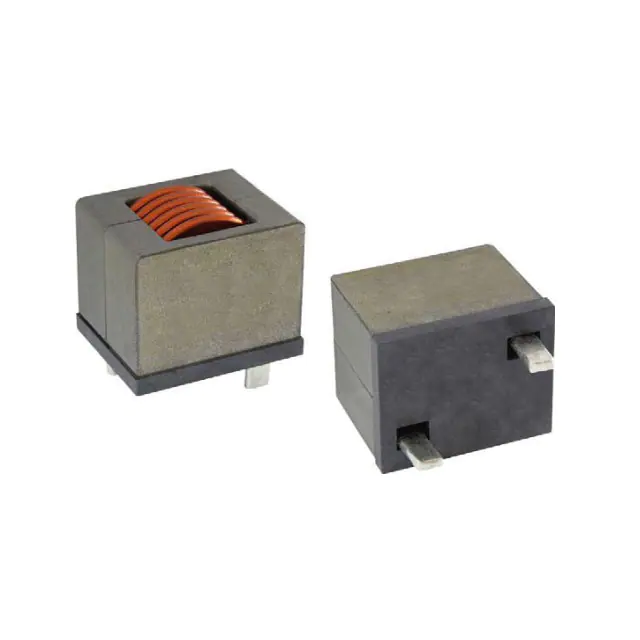

IHDM1008BCEV1R2M3AFIXED IND 1.2UH 80A 0.3 MOHM TH |
265 | - |
|
Datasheet | IHDM-1008BC-3A | Nonstandard | Tray | Active | Drum Core, Wirewound | Iron Powder | 1.2 µH | ±20% | 80 A | 150A | Unshielded | 0.3mOhm Max | - | 90MHz | - | -40°C ~ 180°C | 100 kHz | - | Through Hole | - | 1.005" L x 0.816" W (25.53mm x 20.73mm) | 0.896" (22.75mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
