Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHHP0805ZHERR47M01IHHP-0805ZH-01 .47 20% ER E3 |
12,820 | - |
|
Datasheet | IHHP-0805ZH-01 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | - | Iron Powder | 470 nH | ±20% | 3.7 A | 4.3A | Shielded | 33mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.031" (0.80mm) |
|
IFSC1111ABER2R2M01FIXED IND 2.2UH 1.9A 98 MOHM SMD |
13,335 | - |
|
Datasheet | IFSC-1111AB | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±20% | 1.9 A | 1.7A | Shielded | 98mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.114" L x 0.114" W (2.90mm x 2.90mm) | 0.051" (1.30mm) |
|
IFSC1515AHERR56M01FIXED IND 560NH 5.4A 22 MOHM SMD |
3,890 | - |
|
Datasheet | IFSC-1515AH-01 | Nonstandard | Tape & Reel (TR) | Active | - | - | 560 nH | ±20% | 5.4 A | 5.5A | Shielded | 22mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.075" (1.90mm) |
|
|
IFSC1515AHER8R2M01FIXED IND 8.2UH 1.4A 132MOHM SMD |
2,288 | - |
|
Datasheet | IFSC-1515AH-01 | Nonstandard | Tape & Reel (TR) | Active | - | - | 8.2 µH | ±20% | 1.4 A | 1.4A | Shielded | 132mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.075" (1.90mm) |
|
|
IFSC1111ABER100M01FIXED IND 10UH 1A 336 MOHM SMD |
7,183 | - |
|
Datasheet | IFSC-1111AB | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 1 A | 800mA | Shielded | 336mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.114" L x 0.114" W (2.90mm x 2.90mm) | 0.051" (1.30mm) |
|
IFSC0806AZER4R7M01FIXED IND 4.7UH 900MA 398MOHM SM |
6,499 | - |
|
Datasheet | IFSC-0806AZ-01 | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 900 mA | 850mA | Shielded | 398mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
IFSC0806AZER220M01FIXED IND 22UH 300MA 2.84OHM SMD |
4,221 | - |
|
Datasheet | IFSC-0806AZ-01 | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 300 mA | 430mA | Shielded | 2.84Ohm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|

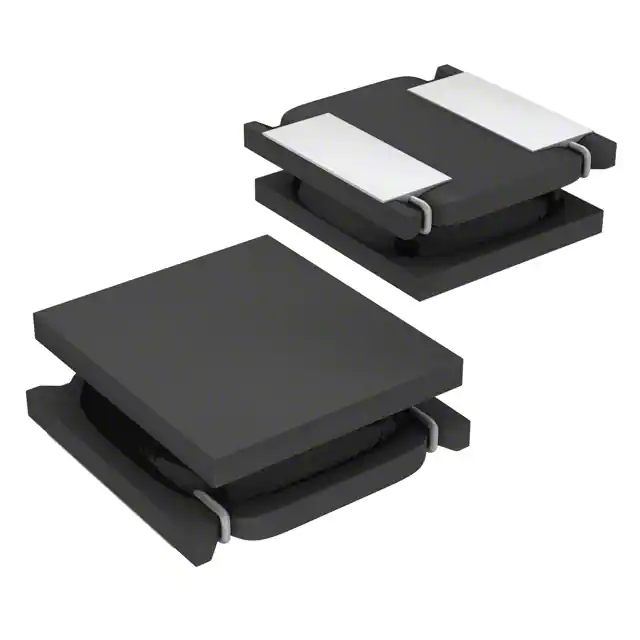

IFSC1111AZER150M01FIXED IND 15UH 650MA 570MOHM SMD |
3,427 | - |
|
Datasheet | IFSC-1111AZ | Nonstandard | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 650 mA | 400mA | Shielded | 570mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.117" L x 0.117" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
IFSC0806AZER2R2M01FIXED IND 2.2UH 1.3A 236MOHM SMD |
3,320 | - |
|
Datasheet | IFSC-0806AZ-01 | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±20% | 1.3 A | 1.4A | Shielded | 236mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
IFSC1008ABERR47M01FIXED IND 470NH 3.35A 0.0285OHM |
1,952 | - |
|
Datasheet | IFSC-1008AB | Nonstandard | Tape & Reel (TR) | Active | - | - | 470 nH | ±20% | 3.35 A | 3.5A | Shielded | 28.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
