Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHLP6767GZER3R3M5AFIXED IND 3.3UH 32.2A 3.27 MOHM |
398 | - |
|
Datasheet | IHLP-6767GZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 32.2 A | 32A | Shielded | 3.27mOhm Max | - | 16.5MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
IHLP6767GZER150M8AFIXED IND 15UH 12.5A 16.96 MOHM |
234 | - |
|
Datasheet | IHLP-6767GZ-8A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 15 µH | ±20% | 12.5 A | 13A | Shielded | 16.96mOhm Max | - | 8.55MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
.jpg "IHLP7575GZER1R0M51")
|

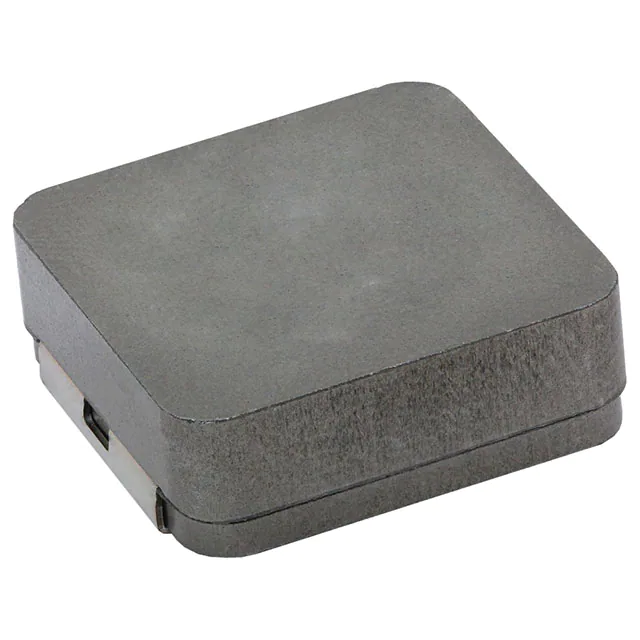

IHLP7575GZER1R0M51FIXED IND 1UH 55A 0.00134OHM SMD |
118 | - |
|
Datasheet | IHLP-7575GZ-51 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 55 A | 81A | Shielded | 1.34mOhm Max | - | 31.5MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.752" L x 0.750" W (19.10mm x 19.05mm) | 0.276" (7.00mm) |
|

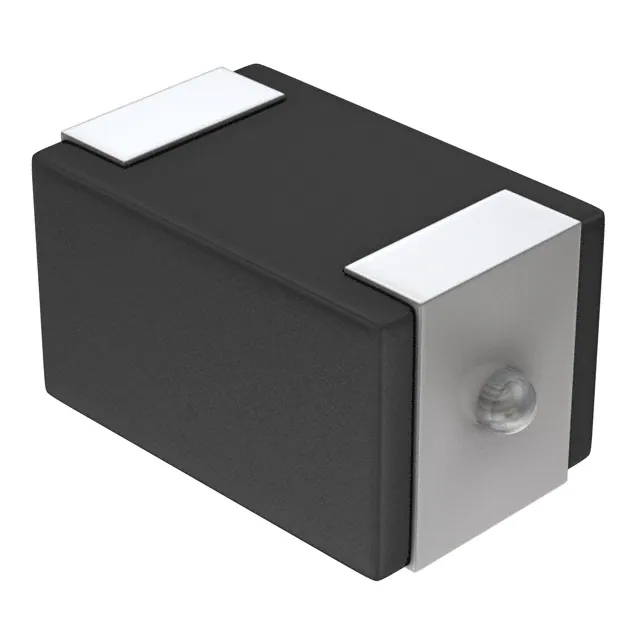

IHSM3825ER101LFIXED IND 100UH 480MA 1.44OHM SM |
428 | - |
|
Datasheet | IHSM-3825 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±15% | 480 mA | 420mA | Unshielded | 1.44Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.440" L x 0.250" W (11.18mm x 6.35mm) | 0.225" (5.72mm) |
|

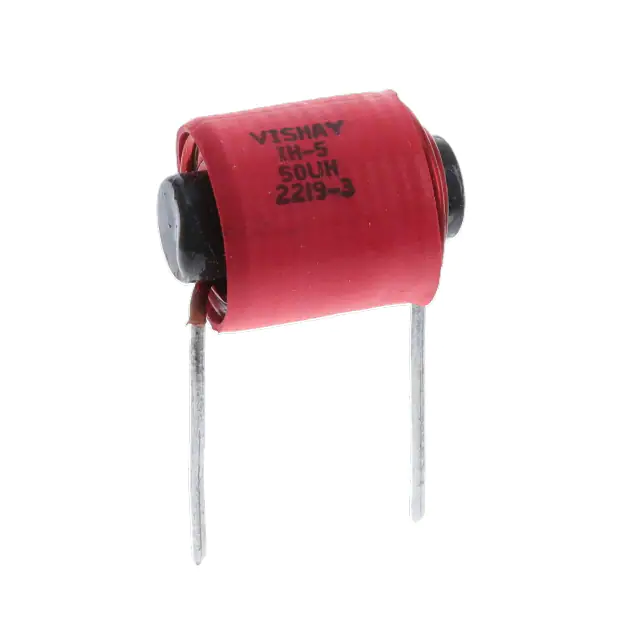

IH05BQ500KFIXED IND 50UH 8A 30 MOHM TH |
429 | - |
|
Datasheet | IH | Radial, Horizontal Cylinder | - | Active | Drum Core, Wirewound | Ferrite | 50 µH | ±10% | 8 A | 10A | Unshielded | 30mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.840" Dia x 1.125" L (21.34mm x 28.58mm) | - |
|
IHDF1300AEEH3R3K1AFIXED IND 3.3UH 59A 1.11MOHM TH |
283 | - |
|
Datasheet | IHDF-1300AE-1A | Nonstandard | Tray | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±10% | 59 A | 112A | Unshielded | 1.11mOhm Max | - | 18MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Through Hole | - | 1.299" L x 1.173" W (33.00mm x 29.80mm) | 0.606" (15.40mm) |
|
IHDM1008BCEV1R2M30FIXED IND 1.2UH 80A 0.3 MOHM TH |
148 | - |
|
Datasheet | IHDM-1008BC-x0 | Vertical, 2 PC Pin | Tray | Active | Drum Core, Wirewound | Iron Powder | 1.2 µH | ±20% | 100 A | 205A | Unshielded | 0.3mOhm Max | - | 91MHz | - | -40°C ~ 180°C | 100 kHz | - | Through Hole | Vertical, 2 PC Pin | 1.005" L x 0.816" W (25.53mm x 20.73mm) | 0.896" (22.75mm) |
|
IHDM1107BBEVR47M20FG, IHDM-1107BB-20 .47 20% |
684 | - |
|
Datasheet | IHDM-1107BB-20 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Iron Powder | 470 nH | ±20% | 128 A | 422A | Unshielded | 0.3mOhm Max | - | 217MHz | - | -55°C ~ 180°C | 100 kHz | - | Through Hole | - | 1.055" L x 0.705" W (26.80mm x 17.90mm) | 0.882" (22.40mm) |
|
|
IHLP8787MZERR47M5AFIXED IND 470NH 80A 0.67MOHM SMD |
544 | - |
|
Datasheet | IHLP-8787MZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 80 A | 100A | Shielded | 0.67mOhm Max | - | 47.5MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.885" L x 0.866" W (22.48mm x 22.00mm) | 0.512" (13.00mm) |
|
IHTH1125KZEB2R2M5AFIXED IND 2.2UH 72A 0.77 MOHM TH |
142 | - |
|
Datasheet | IHTH-1125KZ-5A | Radial, Vertical Cylinder | Bulk | Active | - | Metal Composite | 2.2 µH | ±20% | 72 A | 64A | Shielded | 0.77mOhm Max | - | 17.25MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Through Hole | - | 1.125" Dia (28.58mm) | 0.433" (11.00mm) |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
