Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

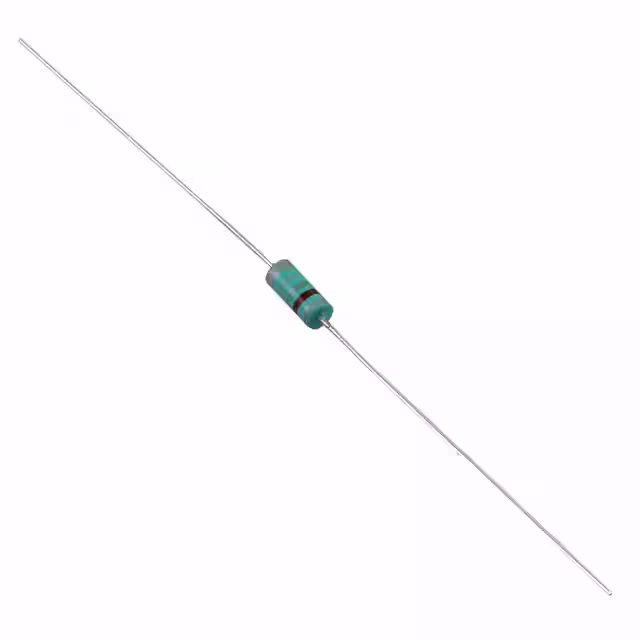

IM02EB6R8KFIXED IND 6.8UH 175MA 2 OHM TH |
3,500 | - |
|
Datasheet | IM | Axial | Bulk | Obsolete | Molded | Iron | 6.8 µH | ±10% | 175 mA | - | Unshielded | 2Ohm Max | 50 @ 7.9MHz | 60MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
IM02EB8R2KFIXED IND 8.2UH 155MA 2.7 OHM TH |
2,695 | - |
|
Datasheet | IM | Axial | Bulk | Obsolete | Molded | Iron | 8.2 µH | ±10% | 155 mA | - | Unshielded | 2.7Ohm Max | 55 @ 7.9MHz | 55MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
IM02EBR10KFIXED IND 100NH 1.35A 80 MOHM TH |
1,974 | - |
|
Datasheet | IM | Axial | Bulk | Obsolete | Molded | Phenolic | 100 nH | ±10% | 1.35 A | - | Unshielded | 80mOhm Max | 40 @ 25MHz | 680MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
IM02EBR15KFIXED IND 150NH 1.2A 100 MOHM TH |
4,785 | - |
|
Datasheet | IM | Axial | Bulk | Obsolete | Molded | Phenolic | 150 nH | ±10% | 1.2 A | - | Unshielded | 100mOhm Max | 38 @ 25MHz | 600MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
IM02EBR33KFIXED IND 330NH 815MA 220MOHM TH |
1,007 | - |
|
Datasheet | IM | Axial | Bulk | Obsolete | Molded | Phenolic | 330 nH | ±10% | 815 mA | - | Unshielded | 220mOhm Max | 30 @ 25MHz | 410MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
IM02EBR47KFIXED IND 470NH 650MA 350MOHM TH |
1,678 | - |
|
Datasheet | IM | Axial | Bulk | Obsolete | Molded | Phenolic | 470 nH | ±10% | 650 mA | - | Unshielded | 350mOhm Max | 30 @ 25MHz | 330MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
IM02EBR68KFIXED IND 680NH 495MA 600MOHM TH |
4,369 | - |
|
Datasheet | IM | Axial | Bulk | Obsolete | Molded | Phenolic | 680 nH | ±10% | 495 mA | - | Unshielded | 600mOhm Max | 28 @ 25MHz | 275MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|

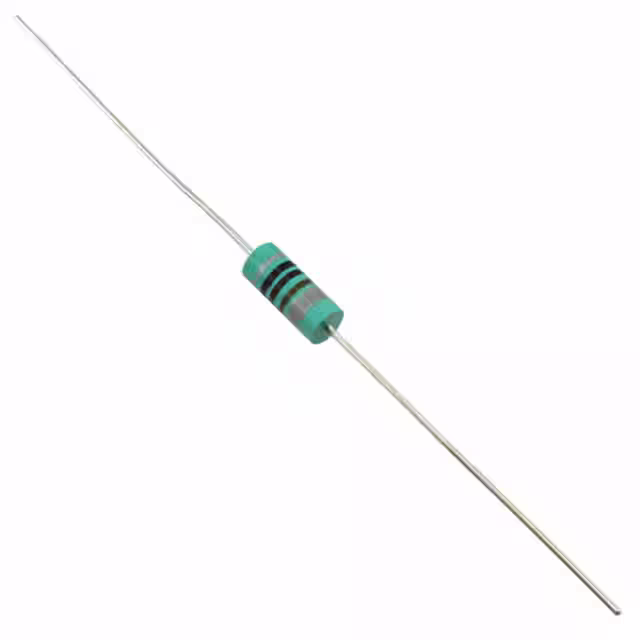

IM04EB100KFIXED IND 10UH 290MA 900 MOHM TH |
3,813 | - |
|
Datasheet | IM | Axial | Bulk | Obsolete | Molded | Iron | 10 µH | ±10% | 290 mA | - | Unshielded | 900mOhm Max | 55 @ 7.9MHz | 45MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
IM04EB150KFIXED IND 15UH 240MA 1.4 OHM TH |
4,957 | - |
|
Datasheet | IM | Axial | Bulk | Obsolete | Molded | Iron | 15 µH | ±10% | 240 mA | - | Unshielded | 1.4Ohm Max | 65 @ 2.5MHz | 40MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|

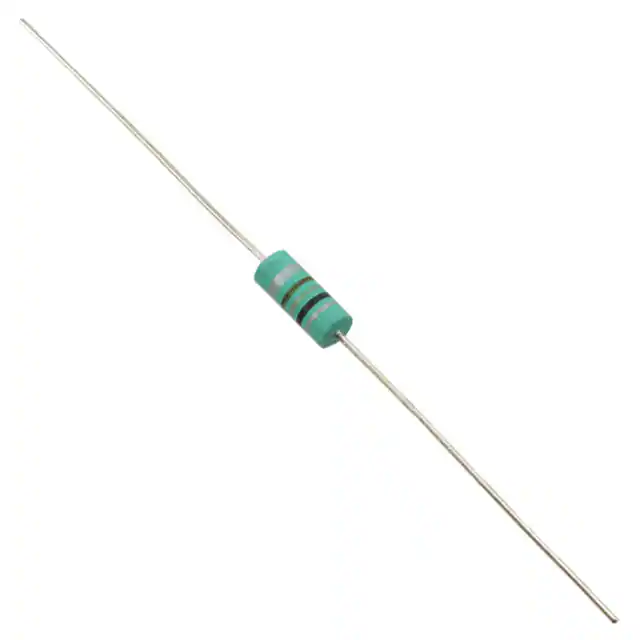

IM04EB1R0KFIXED IND 1UH 785MA 290 MOHM TH |
4,346 | - |
|
Datasheet | IM | Axial | Bulk | Obsolete | Molded | Phenolic | 1 µH | ±10% | 785 mA | - | Unshielded | 290mOhm Max | 50 @ 25MHz | 200MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
