Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

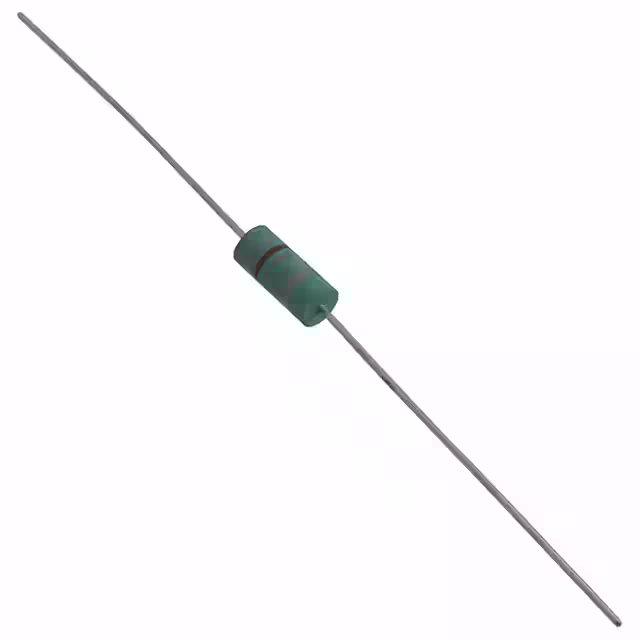

IM04EB8R2KFIXED IND 8.2UH 360MA 600MOHM TH |
2,272 | - |
|
Datasheet | IM | Axial | Bulk | Obsolete | Molded | Iron | 8.2 µH | ±10% | 360 mA | - | Unshielded | 600mOhm Max | 50 @ 7.9MHz | 50MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
IM04EBR15MFIXED IND 150NH 2.45A 30 MOHM TH |
4,913 | - |
|
Datasheet | IM | Axial | Bulk | Obsolete | Molded | Phenolic | 150 nH | ±20% | 2.45 A | - | Unshielded | 30mOhm Max | 50 @ 25MHz | 525MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|

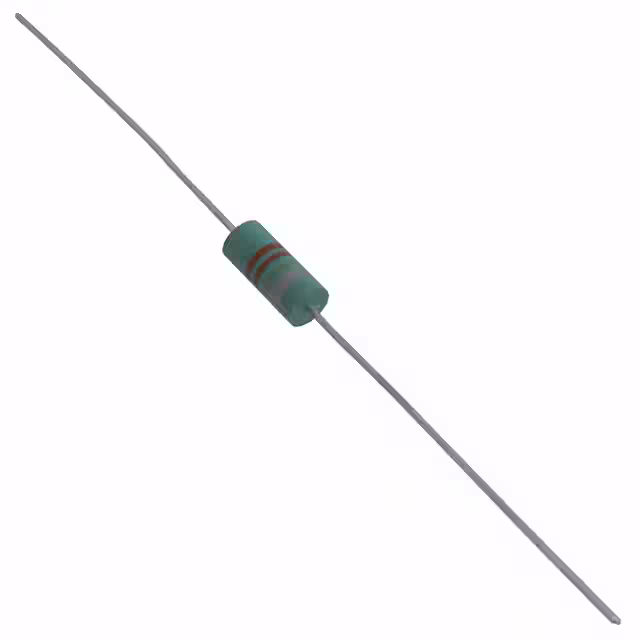

IM04EBR33MFIXED IND 330NH 1.4A 90 MOHM TH |
4,749 | - |
|
Datasheet | IM | Axial | Bulk | Obsolete | Molded | Phenolic | 330 nH | ±20% | 1.4 A | - | Unshielded | 90mOhm Max | 45 @ 25MHz | 360MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
IM04EBR47MFIXED IND 470NH 1.225A 120 MOHM |
4,004 | - |
|
Datasheet | IM | Axial | Bulk | Obsolete | Molded | Phenolic | 470 nH | ±20% | 1.225 A | - | Unshielded | 120mOhm Max | 45 @ 25MHz | 310MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
IMS05EB100KFIXED IND 10UH 220MA 1.62 OHM TH |
4,774 | - |
|
Datasheet | IMS-5 | Axial | Bulk | Obsolete | Molded | Iron Powder | 10 µH | ±10% | 220 mA | - | Shielded | 1.62Ohm Max | 50 @ 7.9MHz | 46MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
IMS05EB101KFIXED IND 100UH 160MA 3.12OHM TH |
2,861 | - |
|
Datasheet | IMS-5 | Axial | Bulk | Obsolete | Molded | Ferrite | 100 µH | ±10% | 160 mA | 120mA | Shielded | 3.12Ohm Max | 50 @ 2.5MHz | 10MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
IMS05EB102KFIXED IND 1MH 70MA 17.5 OHM TH |
2,982 | - |
|
Datasheet | IMS-5 | Axial | Bulk | Obsolete | Molded | Ferrite | 1 mH | ±10% | 70 mA | 40mA | Shielded | 17.5Ohm Max | 60 @ 790kHz | 3.8MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
IMS05EB150KFIXED IND 15UH 315MA 800 MOHM TH |
1,326 | - |
|
Datasheet | IMS-5 | Axial | Bulk | Obsolete | Molded | Ferrite | 15 µH | ±10% | 315 mA | 250mA | Shielded | 800mOhm Max | 45 @ 2.5MHz | 49MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
IMS05EB1R0KFIXED IND 1UH 1.07A 70 MOHM TH |
4,685 | - |
|
Datasheet | IMS-5 | Axial | Bulk | Obsolete | Molded | Iron Powder | 1 µH | ±10% | 1.07 A | - | Shielded | 70mOhm Max | 44 @ 25MHz | 140MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
IMS05EB1R2KFIXED IND 1.2UH 895MA 100MOHM TH |
2,447 | - |
|
Datasheet | IMS-5 | Axial | Bulk | Obsolete | Molded | Iron Powder | 1.2 µH | ±10% | 895 mA | - | Shielded | 100mOhm Max | 44 @ 7.9MHz | 130MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
