Fixed Inductors
Use the filters and product table below to compare Fixed Inductors components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

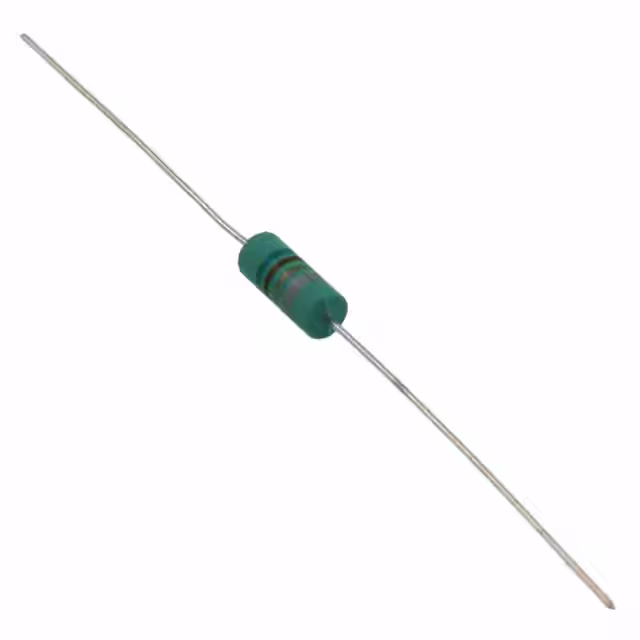

IM04EB1R2KFIXED IND 1.2UH 650MA 420MOHM TH |
1,862 | - |
|
Datasheet | IM | Axial | Bulk | Obsolete | Molded | Phenolic | 1.2 µH | ±10% | 650 mA | - | Unshielded | 420mOhm Max | 33 @ 7.9MHz | 180MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|

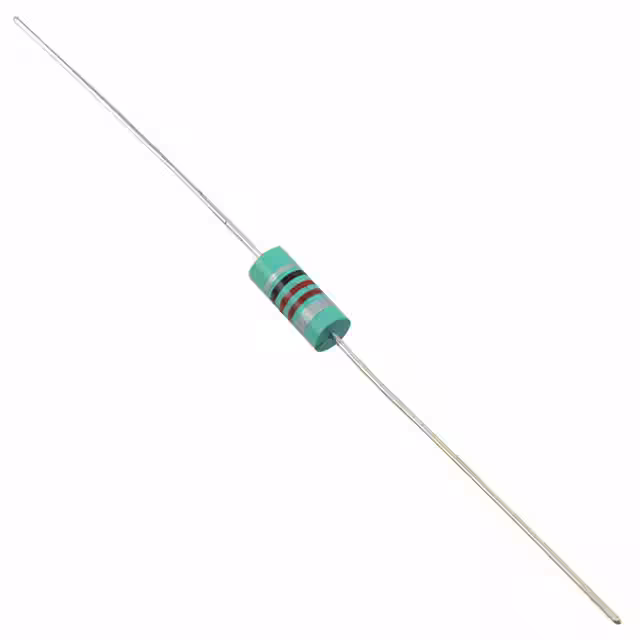

IM04EB220KFIXED IND 22UH 175MA 2.5 OHM TH |
3,273 | - |
|
Datasheet | IM | Axial | Bulk | Obsolete | Molded | Iron | 22 µH | ±10% | 175 mA | - | Unshielded | 2.5Ohm Max | 75 @ 2.5MHz | 30MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
IM04EB2R2KFIXED IND 2.2UH 435MA 950MOHM TH |
1,776 | - |
|
Datasheet | IM | Axial | Bulk | Obsolete | Molded | Phenolic | 2.2 µH | ±10% | 435 mA | - | Unshielded | 950mOhm Max | 33 @ 7.9MHz | 135MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
IM04EB2R7KFIXED IND 2.7UH 385MA 1.2 OHM TH |
2,065 | - |
|
Datasheet | IM | Axial | Bulk | Obsolete | Molded | Phenolic | 2.7 µH | ±10% | 385 mA | - | Unshielded | 1.2Ohm Max | 33 @ 7.9MHz | 120MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
IM04EB330KFIXED IND 33UH 165MA 3 OHM TH |
3,996 | - |
|
Datasheet | IM | Axial | Bulk | Obsolete | Molded | Iron | 33 µH | ±10% | 165 mA | - | Unshielded | 3Ohm Max | 65 @ 2.5MHz | 19MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
IM04EB390KFIXED IND 39UH 176MA 2.6 OHM TH |
4,785 | - |
|
Datasheet | IM | Axial | Bulk | Obsolete | Molded | Iron | 39 µH | ±10% | 176 mA | - | Unshielded | 2.6Ohm Max | 60 @ 2.5MHz | 14.5MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|

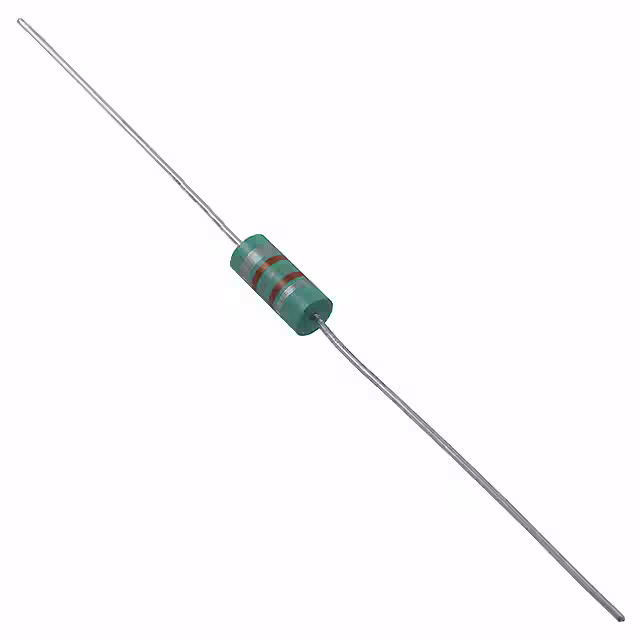

IM04EB3R3KFIXED IND 3.3UH 300MA 2 OHM TH |
2,936 | - |
|
Datasheet | IM | Axial | Bulk | Obsolete | Molded | Phenolic | 3.3 µH | ±10% | 300 mA | - | Unshielded | 2Ohm Max | 33 @ 7.9MHz | 110MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|

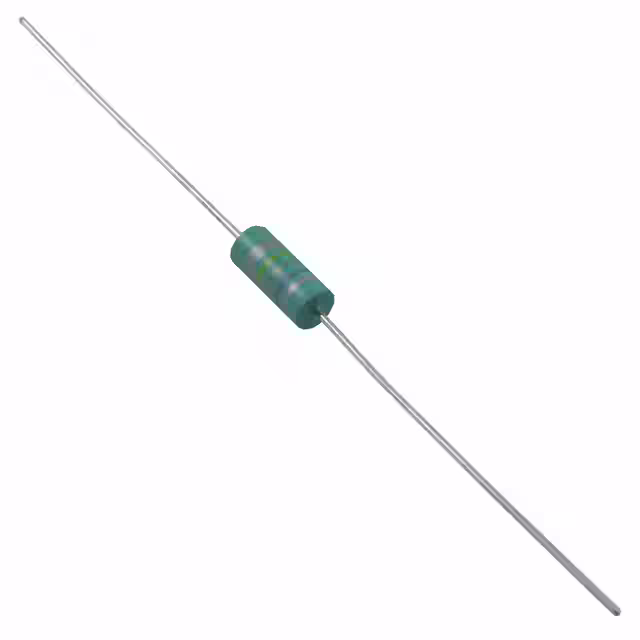

IM04EB4R7KFIXED IND 4.7UH 260MA 2.6 OHM TH |
3,327 | - |
|
Datasheet | IM | Axial | Bulk | Obsolete | Molded | Phenolic | 4.7 µH | ±10% | 260 mA | - | Unshielded | 2.6Ohm Max | 33 @ 7.9MHz | 90MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|

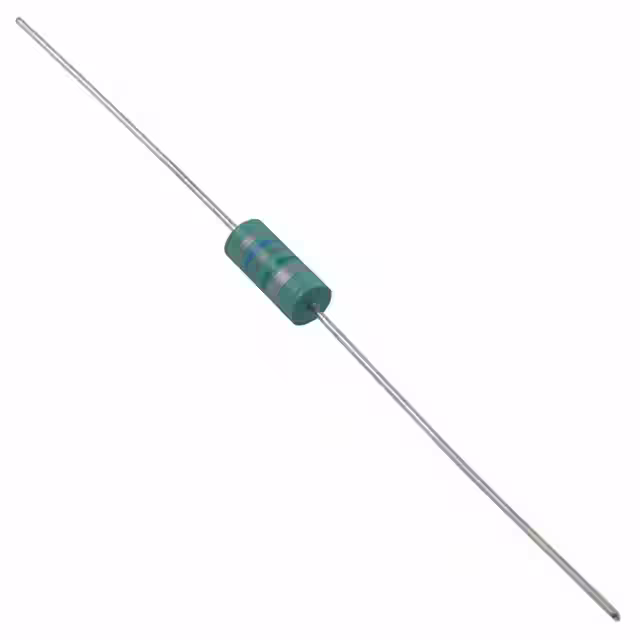

IM04EB5R6KFIXED IND 5.6UH 495MA 320MOHM TH |
2,826 | - |
|
Datasheet | IM | Axial | Bulk | Obsolete | Molded | Iron | 5.6 µH | ±10% | 495 mA | - | Unshielded | 320mOhm Max | 45 @ 7.9MHz | 60MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|

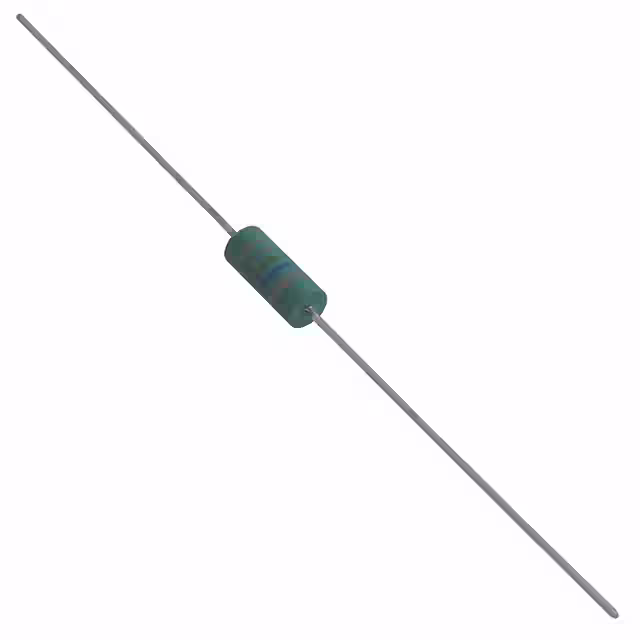

IM04EB6R8KFIXED IND 6.8UH 395MA 500MOHM TH |
3,150 | - |
|
Datasheet | IM | Axial | Bulk | Obsolete | Molded | Iron | 6.8 µH | ±10% | 395 mA | - | Unshielded | 500mOhm Max | 50 @ 7.9MHz | 55MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
Fixed Inductors FAQ
Common questions about filtering, comparing and sourcing Fixed Inductors components.
How can I narrow the Fixed Inductors selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Fixed Inductors part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
