Fixed Inductors
Browse available Fixed Inductors part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CM32253R9KSBWOUND CHIP INDUCTOR,3225, 3.90UH |
100 | - |
|
Datasheet | CM3225-S | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.9 µH | ±10% | 250 mA | - | Unshielded | 1.3Ohm Max | 30 @ 7.96MHz | 50MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
CM32258R2KSBWOUND CHIP INDUCTOR,3225, 8.20UH |
100 | - |
|
Datasheet | CM3225-S | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 8.2 µH | ±10% | 170 mA | - | Unshielded | 2Ohm Max | 30 @ 7.96MHz | 30MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
CM4532120KSBWOUND CHIP INDUCTOR,4532, 12.00U |
100 | - |
|
Datasheet | CM4532-S | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 12 µH | ±10% | 225 mA | - | Unshielded | 2Ohm Max | 50 @ 2.52MHz | 20MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
CM4532101KSBWOUND CHIP INDUCTOR,4532, 100.00 |
100 | - |
|
Datasheet | CM4532-S | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 100 µH | ±10% | 110 mA | - | Unshielded | 8Ohm Max | 40 @ 796kHz | 8MHz | - | -40°C ~ 125°C | 796 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
CM4532150KSBWOUND CHIP INDUCTOR,4532, 15.00U |
100 | - |
|
Datasheet | CM4532-S | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±10% | 200 mA | - | Unshielded | 2.5Ohm Max | 50 @ 2.52MHz | 18MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
CM32251R5KSBWOUND CHIP INDUCTOR,3225, 1.50UH |
100 | - |
|
Datasheet | CM3225-S | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.5 µH | ±10% | 370 mA | - | Unshielded | 850mOhm Max | 30 @ 7.96MHz | 160MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
CM3225R27MSBWOUND CHIP INDUCTOR,3225, 0.27UH |
100 | - |
|
Datasheet | CM3225-S | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 270 nH | ±20% | 450 mA | - | Unshielded | 360mOhm Max | 30 @ 25.2MHz | 525MHz | - | -40°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
CM32255R6KSBWOUND CHIP INDUCTOR,3225, 5.60UH |
100 | - |
|
Datasheet | CM3225-S | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 5.6 µH | ±10% | 200 mA | - | Unshielded | 1.6Ohm Max | 30 @ 7.96MHz | 40MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
CM45322R2KSBWOUND CHIP INDUCTOR,4532, 2.20UH |
100 | - |
|
Datasheet | CM4532-S | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±10% | 380 mA | - | Unshielded | 700mOhm Max | 50 @ 7.96MHz | 160MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
CM4532391KSBWOUND CHIP INDUCTOR,4532, 390.00 |
100 | - |
|
Datasheet | CM4532-S | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 390 µH | ±10% | 80 mA | - | Unshielded | 18Ohm Max | 40 @ 796kHz | 3.5MHz | - | -40°C ~ 125°C | 796 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
CM3225680KSBWOUND CHIP INDUCTOR,3225, 68.00U |
100 | - |
|
Datasheet | CM3225-S | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 68 µH | ±10% | 50 mA | - | Unshielded | 9Ohm Max | 30 @ 2.52MHz | 11MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
CM4532R15MSBWOUND CHIP INDUCTOR,4532, 0.15UH |
100 | - |
|
Datasheet | CM4532-S | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 150 nH | ±20% | 730 mA | - | Unshielded | 220mOhm Max | 35 @ 25.2MHz | 615MHz | - | -40°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
CM4532R56MSBWOUND CHIP INDUCTOR,4532, 0.56UH |
100 | - |
|
Datasheet | CM4532-S | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 560 nH | ±20% | 520 mA | - | Unshielded | 360mOhm Max | 40 @ 25.2MHz | 325MHz | - | -40°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
CM32251R2KSBWOUND CHIP INDUCTOR,3225, 1.20UH |
1,335 | - |
|
Datasheet | CM3225-S | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.2 µH | ±10% | 390 mA | - | Unshielded | 750mOhm Max | 30 @ 7.96MHz | 255MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|

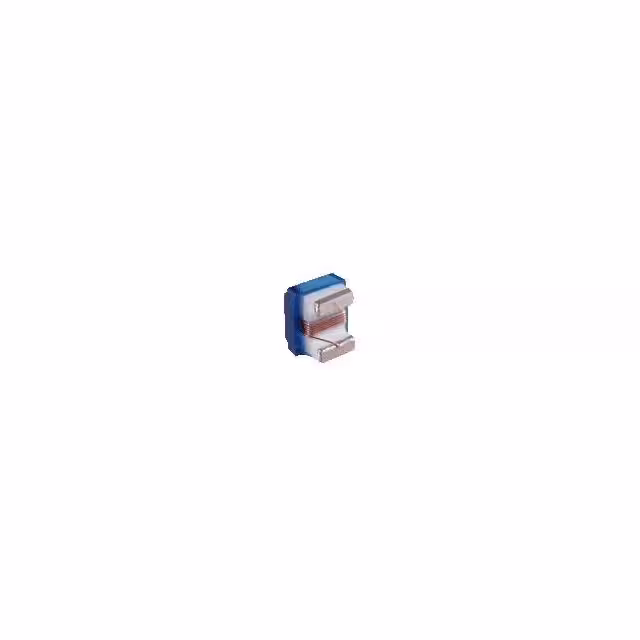

CT0402QWF-R10GSMD CER CORE WIRE-WOUND INDUCTOR |
4,765 | - |
|
Datasheet | ct0402qwf | - | Tape & Reel (TR) | Active | Wirewound | - | 100 nH | ±2% | - | - | - | 2.52Ohm | - | 1.5GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT0402QWF-10NGSMD CER CORE WIRE-WOUND INDUCTOR |
1,166 | - |
|
Datasheet | ct0402qwf | - | Tape & Reel (TR) | Active | Wirewound | - | 10 nH | ±2% | - | - | - | 170mOhm | - | 5.5GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT0402QWF-3N9HSMD CER CORE WIRE-WOUND INDUCTOR |
2,537 | - |
|
Datasheet | ct0402qwf | - | Tape & Reel (TR) | Active | Wirewound | - | 3.9 nH | ±3% | - | - | - | 70mOhm | - | 10GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT0402QWF-27NGSMD CER CORE WIRE-WOUND INDUCTOR |
4,185 | - |
|
Datasheet | ct0402qwf | - | Tape & Reel (TR) | Active | Wirewound | - | 27 nH | ±2% | - | - | - | 520mOhm | - | 3.5GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT0402QWF-56NGSMD CER CORE WIRE-WOUND INDUCTOR |
4,317 | - |
|
Datasheet | ct0402qwf | - | Tape & Reel (TR) | Active | Wirewound | - | 56 nH | ±2% | - | - | - | 1.17Ohm | - | 2.8GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
CTLVH2010F-6R8MSMD SHIELDED POWER INDUCTOR |
4,030 | - |
|
Datasheet | CTLVH2010F | 0806 (2016 Metric) | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±20% | 820 mA | 960mA | Shielded | 438mOhm Max | - | 19MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
Fixed Inductors FAQ
Common questions about selecting, comparing and sourcing Fixed Inductors components through Winsun (HK) Electronics.
What should I check when selecting Fixed Inductors components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Fixed Inductors part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Fixed Inductors parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Fixed Inductors components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
