Fixed Inductors
Browse available Fixed Inductors part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTMC1210SF-R68KSMD FERRITE CORE WW INDUCTOR |
4,986 | - |
|
Datasheet | CTMC1210SF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 nH | ±10% | 450 mA | - | Unshielded | 600mOhm Max | 30 @ 25.2MHz | 370MHz | - | -40°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
CTMC1210SF-R33KSMD FERRITE CORE WW INDUCTOR |
1,961 | - |
|
Datasheet | CTMC1210SF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 nH | ±10% | 450 mA | - | Unshielded | 400mOhm Max | 30 @ 25.2MHz | 520MHz | - | -40°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
CTMC1210SF-R82KSMD FERRITE CORE WW INDUCTOR |
1,847 | - |
|
Datasheet | CTMC1210SF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 nH | ±10% | 450 mA | - | Unshielded | 650mOhm Max | 30 @ 25.2MHz | 310MHz | - | -40°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
CTMC1210SF-R27KSMD FERRITE CORE WW INDUCTOR |
2,354 | - |
|
Datasheet | CTMC1210SF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 270 nH | ±10% | 450 mA | - | Unshielded | 360mOhm Max | 30 @ 25.2MHz | 525MHz | - | -40°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
CTMC1210SF-R18KSMD FERRITE CORE WW INDUCTOR |
1,229 | - |
|
Datasheet | CTMC1210SF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 nH | ±10% | 450 mA | - | Unshielded | 280mOhm Max | 30 @ 25.2MHz | 685MHz | - | -40°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
CTMC1210SF-8R2JSMD FERRITE CORE WW INDUCTOR |
2,083 | - |
|
Datasheet | CTMC1210SF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±5% | 170 mA | - | Unshielded | 2Ohm Max | 30 @ 7.96MHz | 30MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
CTMC1210SF-R56KSMD FERRITE CORE WW INDUCTOR |
1,728 | - |
|
Datasheet | CTMC1210SF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 560 nH | ±10% | 450 mA | - | Unshielded | 550mOhm Max | 30 @ 25.2MHz | 395MHz | - | -40°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
CTMC1210SF-R39KSMD FERRITE CORE WW INDUCTOR |
1,390 | - |
|
Datasheet | CTMC1210SF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 390 nH | ±10% | 450 mA | - | Unshielded | 450mOhm Max | 30 @ 25.2MHz | 470MHz | - | -40°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
CTMC1210SF-R22KSMD FERRITE CORE WW INDUCTOR |
4,767 | - |
|
Datasheet | CTMC1210SF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 nH | ±10% | 450 mA | - | Unshielded | 320mOhm Max | 30 @ 25.2MHz | 560MHz | - | -40°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
CTMC1210SF-820JSMD FERRITE CORE WW INDUCTOR |
2,668 | - |
|
Datasheet | CTMC1210SF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±5% | 45 mA | - | Unshielded | 10Ohm Max | 30 @ 2.52MHz | 10MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
CTMC1210SF-5R6JSMD FERRITE CORE WW INDUCTOR |
2,037 | - |
|
Datasheet | CTMC1210SF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±5% | 200 mA | - | Unshielded | 1.6Ohm Max | 30 @ 7.96MHz | 40MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
CTMC1210SF-680JSMD FERRITE CORE WW INDUCTOR |
1,183 | - |
|
Datasheet | CTMC1210SF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±5% | 50 mA | - | Unshielded | 9Ohm Max | 30 @ 2.52MHz | 11MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
CTMC1210SF-R12KSMD FERRITE CORE WW INDUCTOR |
2,805 | - |
|
Datasheet | CTMC1210SF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 nH | ±10% | 450 mA | - | Unshielded | 220mOhm Max | 30 @ 25.2MHz | 875MHz | - | -40°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
CT1210LSCF-220KSMD FER CORE WIRE-WOUND INDUCTOR |
1,421 | - |
|
Datasheet | ct1210lscf | - | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±10% | - | - | - | 770mOhm | - | 16MHz | - | -25°C ~ 85°C | - | - | Surface Mount | - | - | - |
|

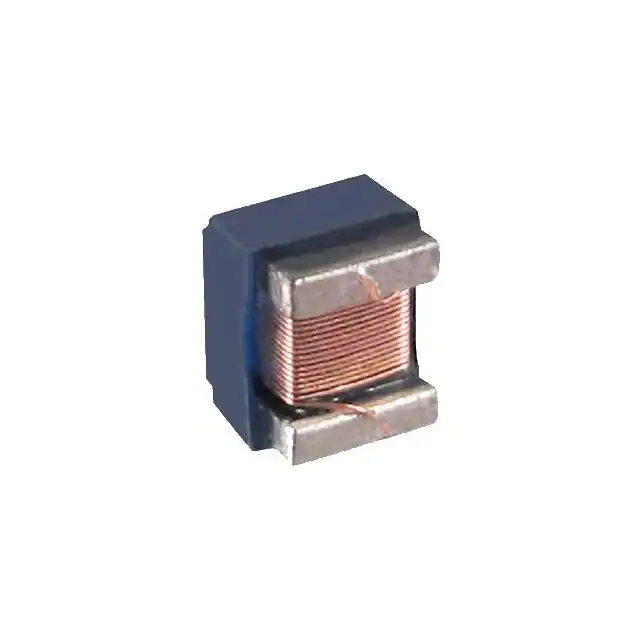

CT0402LSF-R10KSMD FER CORE WIRE-WOUND INDUCTOR |
2,217 | - |
|
Datasheet | ct0402lsf | - | Tape & Reel (TR) | Active | Wirewound | - | 100 nH | ±10% | - | - | - | 160mOhm | - | 1.4GHz | - | -40°C ~ 105°C | - | - | Surface Mount | - | - | - |
|
|
CT1210LSCF-6R8JSMD FER CORE WIRE-WOUND INDUCTOR |
1,746 | - |
|
Datasheet | ct1210lscf | - | Tape & Reel (TR) | Active | Wirewound | - | 6.8 µH | ±5% | - | - | - | 270mOhm | - | 33MHz | - | -25°C ~ 85°C | - | - | Surface Mount | - | - | - |
|
|
CTMC1210SF-6R8JSMD FERRITE CORE WW INDUCTOR |
4,185 | - |
|
Datasheet | CTMC1210SF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±5% | 180 mA | - | Unshielded | 1.8Ohm Max | 30 @ 7.96MHz | 35MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
CT0805HTF-R39GSMD CER CORE WIRE-WOUND INDUCTOR |
100 | - |
|
Datasheet | ct0805htf | - | Tape & Reel (TR) | Active | Wirewound | - | 390 nH | ±2% | - | - | - | 1.6Ohm | - | 700MHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
CTMLP080504CF-1R0M1.0UH SMD MULTIL POWER INDUCTOR |
2,165 | - |
|
Datasheet | CTMLP080504CF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1 µH | ±20% | 1.8 A | 1.4A | Shielded | 100mOhm | - | - | - | -55°C ~ 125°C | 3 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
|
CTMLP080504CF-2R2M2.2UH SMD MULTIL POWER INDUCTOR |
3,145 | - |
|
Datasheet | CTMLP080504CF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±20% | 1.6 A | 500mA | Shielded | 125mOhm | - | - | - | -55°C ~ 125°C | 3 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
Fixed Inductors FAQ
Common questions about selecting, comparing and sourcing Fixed Inductors components through Winsun (HK) Electronics.
What should I check when selecting Fixed Inductors components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Fixed Inductors part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Fixed Inductors parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Fixed Inductors components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
