Fixed Inductors
Browse available Fixed Inductors part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTMLP080504CF-R24M0.24UH SMD MULTIL POWER INDUCTOR |
4,232 | - |
|
Datasheet | CTMLP080504CF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 240 nH | ±20% | 2.4 A | 2.7A | Shielded | 30mOhm | - | - | - | -55°C ~ 125°C | 3 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
|
CTMLP080504CF-R47M0.47UH SMD MULTIL POWER INDUCTOR |
2,725 | - |
|
Datasheet | CTMLP080504CF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 470 nH | ±20% | 2.2 A | 1.6A | Shielded | 60mOhm | - | - | - | -55°C ~ 125°C | 3 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
CT0805HTF-56NGSMD CER CORE WIRE-WOUND INDUCTOR |
1,476 | - |
|
Datasheet | ct0805htf | - | Tape & Reel (TR) | Active | Wirewound | - | 56 nH | ±2% | - | - | - | 390mOhm | - | 1.85GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT0805HTF-47NJSMD CER CORE WIRE-WOUND INDUCTOR |
1,965 | - |
|
Datasheet | ct0805htf | - | Tape & Reel (TR) | Active | Wirewound | - | 47 nH | ±5% | - | - | - | 390mOhm | - | 2GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|

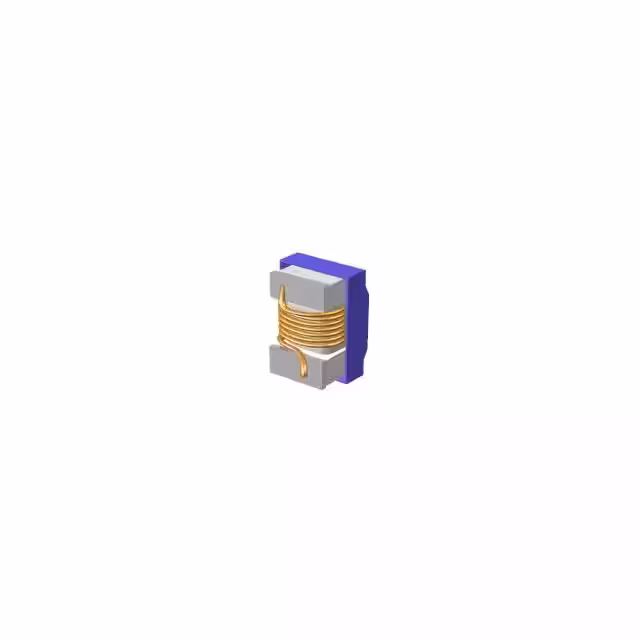

CT0603HCF-1N6JSMD CER CORE WIRE-WOUND INDUCTOR |
1,325 | - |
|
Datasheet | ct0603hcf | - | Tape & Reel (TR) | Active | Wirewound | - | 1.6 nH | ±5% | - | - | - | 30mOhm | - | 12.5GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT0603HCF-240JSMD CER CORE WIRE-WOUND INDUCTOR |
4,577 | - |
|
Datasheet | ct0603hcf | - | Tape & Reel (TR) | Active | Wirewound | - | 24 nH | ±5% | - | - | - | 105mOhm | - | 2.4GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
NPIM104PA5R6MTRQYFIND SMT 11X10X3.85.6UH9A19.3M |
2,016 | - |
|
Datasheet | - | - | Tape & Reel (TR) | Active | - | Metal Composite | 5.6 µH | - | - | 14A | Shielded | 19.3mOhm | - | - | AEC-Q200 | -55°C ~ 125°C | - | High Current | - | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.149" (3.80mm) |
|
CT0805CSF-220JSMD CER CORE WIRE-WOUND INDUCTOR |
4,400 | - |
|
Datasheet | ct0805csf | - | Tape & Reel (TR) | Active | Wirewound | - | 22 nH | ±5% | - | - | - | 220mOhm | - | 2.6GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
CTMLP100804BF-1R5M1.5UH SMD MULTIL POWER INDUCTOR |
3,103 | - |
|
Datasheet | CTMLP100804BF | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1.5 µH | ±20% | 1.4 A | 800mA | Shielded | 70mOhm | - | - | - | -55°C ~ 125°C | 3 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
CTMLP100804BF-3R3M3.3UH SMD MULTIL POWER INDUCTOR |
1,318 | - |
|
Datasheet | CTMLP100804BF | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 3.3 µH | ±20% | 1.2 A | 400mA | Shielded | 100mOhm | - | - | - | -55°C ~ 125°C | 3 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
CTMLP100804BF-4R7M4.7UH SMD MULTIL POWER INDUCTOR |
4,281 | - |
|
Datasheet | CTMLP100804BF | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 4.7 µH | ±20% | 1.1 A | 300mA | Shielded | 110mOhm | - | - | - | -55°C ~ 125°C | 3 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
CT0805CSF-152JSMD CER CORE WIRE-WOUND INDUCTOR |
3,074 | - |
|
Datasheet | ct0805csf | - | Tape & Reel (TR) | Active | Wirewound | - | 1.5 µH | ±5% | - | - | - | 2.5Ohm | - | 100MHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT0805CSF-221KSMD CER CORE WIRE-WOUND INDUCTOR |
1,077 | - |
|
Datasheet | ct0805csf | - | Tape & Reel (TR) | Active | Wirewound | - | 220 nH | ±10% | - | - | - | 700mOhm | - | 850MHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT0805CSF-151JSMD CER CORE WIRE-WOUND INDUCTOR |
4,240 | - |
|
Datasheet | ct0805csf | - | Tape & Reel (TR) | Active | Wirewound | - | 150 nH | ±5% | - | - | - | 560mOhm | - | 920MHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT0805CSF-240JSMD CER CORE WIRE-WOUND INDUCTOR |
3,645 | - |
|
Datasheet | ct0805csf | - | Tape & Reel (TR) | Active | Wirewound | - | 24 nH | ±5% | - | - | - | 220mOhm | - | 2GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT0805CSF-681JSMD CER CORE WIRE-WOUND INDUCTOR |
2,243 | - |
|
Datasheet | ct0805csf | - | Tape & Reel (TR) | Active | Wirewound | - | 680 nH | ±5% | - | - | - | 2.2Ohm | - | 188MHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT0805CSF-181JSMD CER CORE WIRE-WOUND INDUCTOR |
2,138 | - |
|
Datasheet | ct0805csf | - | Tape & Reel (TR) | Active | Wirewound | - | 180 nH | ±5% | - | - | - | 640mOhm | - | 870MHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
CT0201LSF-39NJSMD FER CORE WIRE-WOUND INDUCTOR |
4,450 | - |
|
Datasheet | ct0201lsf | - | Tape & Reel (TR) | Active | Wirewound | - | 39 nH | ±5% | - | - | - | 240mOhm | - | 2.3GHz | - | -25°C ~ 105°C | - | - | Surface Mount | - | - | - |
|
|
CT0201LSF-R10JSMD FER CORE WIRE-WOUND INDUCTOR |
4,408 | - |
|
Datasheet | ct0201lsf | - | Tape & Reel (TR) | Active | Wirewound | - | 100 nH | ±5% | - | - | - | 410mOhm | - | 1.5GHz | - | -25°C ~ 105°C | - | - | Surface Mount | - | - | - |
|
|
CT0201LSF-78NJSMD FER CORE WIRE-WOUND INDUCTOR |
3,689 | - |
|
Datasheet | ct0201lsf | - | Tape & Reel (TR) | Active | Wirewound | - | 78 nH | ±5% | - | - | - | 300mOhm | - | 2GHz | - | -25°C ~ 105°C | - | - | Surface Mount | - | - | - |
Fixed Inductors FAQ
Common questions about selecting, comparing and sourcing Fixed Inductors components through Winsun (HK) Electronics.
What should I check when selecting Fixed Inductors components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Fixed Inductors part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Fixed Inductors parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Fixed Inductors components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
