Fixed Inductors
Browse available Fixed Inductors part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTLVC6028F-3R3M3.3UH SMD POWER INDUCTOR |
1,753 | - |
|
Datasheet | CTLVC6028F | 2424 (6060 Metric) | Tape & Reel (TR) | Active | - | - | 3.3 µH | ±20% | 3.15 A | 3.87A | Shielded | 28mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
|
CTLVC6028F-2R7N2.7UH SMD POWER INDUCTOR |
2,292 | - |
|
Datasheet | CTLVC6028F | 2424 (6060 Metric) | Tape & Reel (TR) | Active | - | - | 2.7 µH | ±30% | 3.33 A | 4.41A | Shielded | 26mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
|
CTLVC6028F-2R2N2.2UH SMD POWER INDUCTOR |
1,204 | - |
|
Datasheet | CTLVC6028F | 2424 (6060 Metric) | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±30% | 3.6 A | 4.86A | Shielded | 20mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
|
CTLVC6028F-1R0N1.0UH SMD POWER INDUCTOR |
2,144 | - |
|
Datasheet | CTLVC6028F | 2424 (6060 Metric) | Tape & Reel (TR) | Active | - | - | 1 µH | ±30% | 4.68 A | 6.84A | Shielded | 13mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
|
CTLVC6028F-220M22UH SMD POWER INDUCTOR |
2,109 | - |
|
Datasheet | CTLVC6028F | 2424 (6060 Metric) | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 1.35 A | 1.44A | Shielded | 135mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
|
CTLVC6028F-330M33UH SMD POWER INDUCTOR |
3,111 | - |
|
Datasheet | CTLVC6028F | 2424 (6060 Metric) | Tape & Reel (TR) | Active | - | - | 33 µH | ±20% | 1.26 A | 1.17A | Shielded | 220mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
CTRL5480F-2-101K100UH RADIAL FIXED INDUCTOR |
3,011 | - |
|
Datasheet | CTRL5480F-2 | Radial, Vertical Cylinder | Bulk | Active | - | - | 100 µH | ±10% | 490 mA | 530mA | Unshielded | 270mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.272" Dia (6.90mm) | 0.366" (9.30mm) |
|
|
CTLVC6028F-6R8M6.8UH SMD POWER INDUCTOR |
2,622 | - |
|
Datasheet | CTLVC6028F | 2424 (6060 Metric) | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±20% | 2.43 A | 2.79A | Shielded | 50mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|

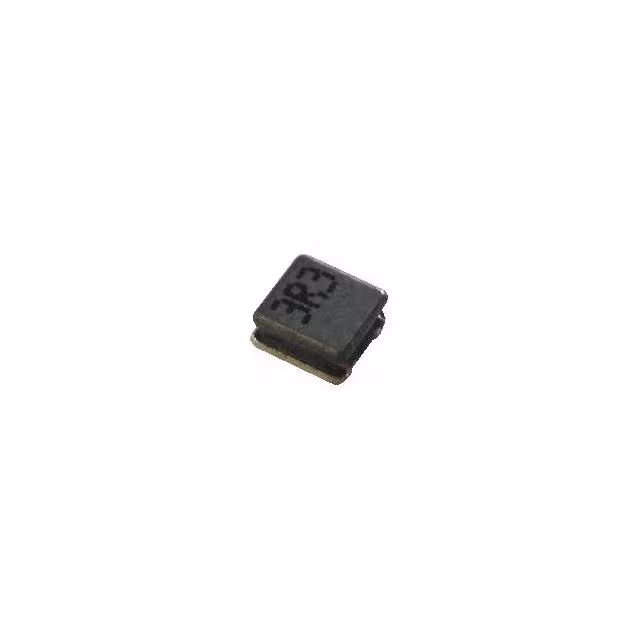

CTLVC4012F-2R2M2.2UH SMD POWER INDUCTOR |
4,229 | - |
|
Datasheet | CTLVC4012F | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±20% | 1.35 A | 1.53A | Shielded | 65mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.051" (1.30mm) |
|
CTMMP73VCZF-1R0MSMD Shielded Power Inductor |
3,025 | - |
|
Datasheet | - | - | Bulk | Active | - | - | 1 µH | ±20% | 22 A | - | Shielded | 9mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.260" L x 0.287" W (6.60mm x 7.30mm) | 0.118" (3.00mm) |
|
|
CTMMP73VCZF-4R7MSMD Shielded Power Inductor |
2,068 | - |
|
Datasheet | - | - | Bulk | Active | - | - | 4.7 µH | ±20% | 9 A | - | Shielded | 35mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.260" L x 0.287" W (6.60mm x 7.30mm) | 0.118" (3.00mm) |
|
CTLV4026SF-3R3MSMD POWER INDUCTOR |
2,815 | - |
|
Datasheet | CTLV4026SF | Nonstandard | Tape & Reel (TR) | Active | - | - | 3.3 µH | ±20% | 2.25 A | 2.7A | Shielded | 67mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.110" (2.80mm) |
|
|
CTLV4026SF-5R6MSMD POWER INDUCTOR |
4,386 | - |
|
Datasheet | CTLV4026SF | Nonstandard | Tape & Reel (TR) | Active | - | - | 5.6 µH | ±20% | 1.71 A | 2.07A | Shielded | 110mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.110" (2.80mm) |
|
|
CTLV4026SF-4R7MSMD POWER INDUCTOR |
4,485 | - |
|
Datasheet | CTLV4026SF | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 1.8 A | 2.34A | Shielded | 92mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.110" (2.80mm) |
|
|
CTLV4026SF-220MSMD POWER INDUCTOR |
4,267 | - |
|
Datasheet | CTLV4026SF | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 900 mA | 1.09A | Shielded | 330mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.110" (2.80mm) |
|
|
CTLV4026SF-1R5MSMD POWER INDUCTOR |
2,880 | - |
|
Datasheet | CTLV4026SF | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.5 µH | ±20% | 3.33 A | 3.78A | Shielded | 35mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.110" (2.80mm) |
|
|
CTLV4026SF-1R0MSMD POWER INDUCTOR |
4,600 | - |
|
Datasheet | CTLV4026SF | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | 3.6 A | 4.5A | Shielded | 30mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.110" (2.80mm) |
|
|
CTLV4026SF-330MSMD POWER INDUCTOR |
1,361 | - |
|
Datasheet | CTLV4026SF | Nonstandard | Tape & Reel (TR) | Active | - | - | 33 µH | ±20% | 730 mA | 900mA | Shielded | 480mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.110" (2.80mm) |
|
|
CTLV4026SF-150MSMD POWER INDUCTOR |
4,004 | - |
|
Datasheet | CTLV4026SF | Nonstandard | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 1.08 A | 1.3A | Shielded | 240mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.110" (2.80mm) |
|
|
CTMMP73VCZF-R33MSMD Shielded Power Inductor |
2,940 | - |
|
Datasheet | - | - | Bulk | Active | - | - | 0.33 µH | ±20% | 33 A | - | Shielded | 4mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.260" L x 0.287" W (6.60mm x 7.30mm) | 0.118" (3.00mm) |
Fixed Inductors FAQ
Common questions about selecting, comparing and sourcing Fixed Inductors components through Winsun (HK) Electronics.
What should I check when selecting Fixed Inductors components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Fixed Inductors part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Fixed Inductors parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Fixed Inductors components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
