Fixed Inductors
Browse available Fixed Inductors part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTMMP73VCZF-R82MSMD Shielded Power Inductor |
1,689 | - |
|
Datasheet | - | - | Bulk | Active | - | - | 0.82 µH | ±20% | 23 A | - | Shielded | 7.5mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.260" L x 0.287" W (6.60mm x 7.30mm) | 0.118" (3.00mm) |
|
|
CTMMP73VCZF-2R2MSMD Shielded Power Inductor |
2,624 | - |
|
Datasheet | - | - | Bulk | Active | - | - | 2.2 µH | ±20% | 14 A | - | Shielded | 17mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.260" L x 0.287" W (6.60mm x 7.30mm) | 0.118" (3.00mm) |
|
|
CTMMP73VCZF-R47MSMD Shielded Power Inductor |
3,053 | - |
|
Datasheet | - | - | Bulk | Active | - | - | 0.47 µH | ±20% | 27 A | - | Shielded | 5mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.260" L x 0.287" W (6.60mm x 7.30mm) | 0.118" (3.00mm) |
|
|
CTMMP73VCZF-R68MSMD Shielded Power Inductor |
2,394 | - |
|
Datasheet | - | - | Bulk | Active | - | - | 0.68 µH | ±20% | 24 A | - | Shielded | 5.7mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.260" L x 0.287" W (6.60mm x 7.30mm) | 0.118" (3.00mm) |
|
|
CTMMP73VCZF-R22MSMD Shielded Power Inductor |
1,810 | - |
|
Datasheet | - | - | Bulk | Active | - | - | 0.22 µH | ±20% | 40 A | - | Shielded | 2.5mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.260" L x 0.287" W (6.60mm x 7.30mm) | 0.118" (3.00mm) |
|
CT1008PSF-103MSMD WIRE-WOUND INDUCTOR |
2,682 | - |
|
Datasheet | ct1008psf | - | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | - | - | - | 750mOhm | - | 95MHz | - | -25°C ~ 85°C | - | - | Surface Mount | - | - | - |
|
CTMPC100805F-2R2M2.2UH SMD SHLDED POWER INDUCTOR |
3,006 | - |
|
Datasheet | CTMPC100805F | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 2 A | 3.3A | Shielded | 115mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
CTLV5020SF-1R0M1.0UH SMD POWER INDUCTOR |
2,689 | - |
|
Datasheet | CTLV5020SF | 2020 (5050 Metric) | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | 3.69 A | 5.4A | Shielded | 18mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.087" (2.20mm) |
|
|
CTMPC100805F-R47M0.47UH SMD SHLDED POWER INDUCTOR |
4,871 | - |
|
Datasheet | CTMPC100805F | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 3.7 A | 6.2A | Shielded | 39mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|

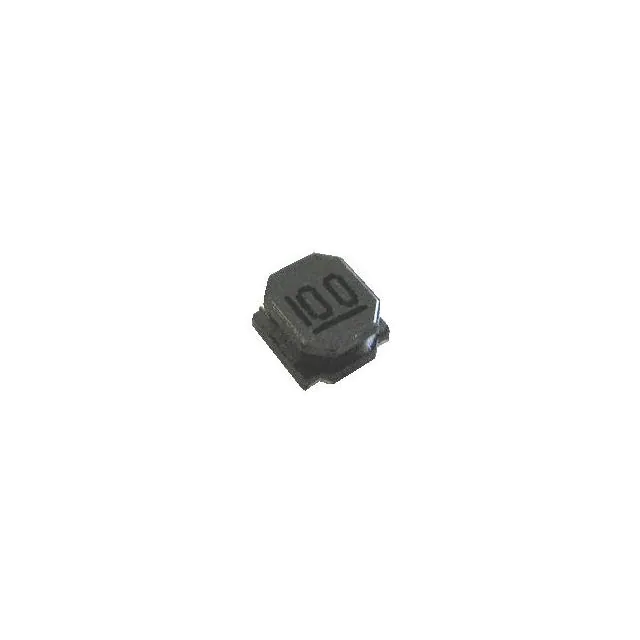

CTLV4015SF-4R7M4.7UH SMD POWER INDUCTOR |
1,925 | - |
|
Datasheet | CTLV4015SF | 1616 (4040 Metric) | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 1.44 A | 1.62A | Shielded | 100mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.067" (1.70mm) |
|
|
CTLV4015SF-150M15UH SMD POWER INDUCTOR |
2,014 | - |
|
Datasheet | CTLV4015SF | 1616 (4040 Metric) | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 820 mA | 940mA | Shielded | 300mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.067" (1.70mm) |
|
|
CTLV4015SF-220M22UH SMD POWER INDUCTOR |
3,293 | - |
|
Datasheet | CTLV4015SF | 1616 (4040 Metric) | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 640 mA | 760mA | Shielded | 400mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.067" (1.70mm) |
|
|
CTLV4015SF-6R8M6.8UH SMD POWER INDUCTOR |
1,423 | - |
|
Datasheet | CTLV4015SF | 1616 (4040 Metric) | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±20% | 1.26 A | 1.44A | Shielded | 138mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.067" (1.70mm) |
|
|
CTLV4015SF-100M10UH SMD POWER INDUCTOR |
4,236 | - |
|
Datasheet | CTLV4015SF | 1616 (4040 Metric) | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 900 mA | 1.08A | Shielded | 200mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.067" (1.70mm) |
|
|
CTLV4015SF-1R5M1.5UH SMD POWER INDUCTOR |
3,915 | - |
|
Datasheet | CTLV4015SF | 1616 (4040 Metric) | Tape & Reel (TR) | Active | - | - | 1.5 µH | ±20% | 2.7 A | 2.88A | Shielded | 41mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.067" (1.70mm) |
|
|
CTLV5020SF-220M22UH SMD POWER INDUCTOR |
1,864 | - |
|
Datasheet | CTLV5020SF | 2020 (5050 Metric) | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 900 mA | 1.08A | Shielded | 265mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.087" (2.20mm) |
|
|
CTLV5020SF-100M10UH SMD POWER INDUCTOR |
4,578 | - |
|
Datasheet | CTLV5020SF | 2020 (5050 Metric) | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 1.44 A | 1.62A | Shielded | 125mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.087" (2.20mm) |
|
|
CTLV5020SF-150M15UH SMD POWER INDUCTOR |
4,296 | - |
|
Datasheet | CTLV5020SF | 2020 (5050 Metric) | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 1.08 A | 1.26A | Shielded | 195mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.087" (2.20mm) |
|
|
CTLV5020SF-6R8M6.8UH SMD POWER INDUCTOR |
2,747 | - |
|
Datasheet | CTLV5020SF | 2020 (5050 Metric) | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±20% | 1.62 A | 1.98A | Shielded | 93mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.087" (2.20mm) |
|
|
CTLV5020SF-4R7N4.7UH SMD POWER INDUCTOR |
4,303 | - |
|
Datasheet | CTLV5020SF | 2020 (5050 Metric) | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±30% | 1.98 A | 2.43A | Shielded | 60mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.087" (2.20mm) |
Fixed Inductors FAQ
Common questions about selecting, comparing and sourcing Fixed Inductors components through Winsun (HK) Electronics.
What should I check when selecting Fixed Inductors components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Fixed Inductors part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Fixed Inductors parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Fixed Inductors components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
