Fixed Inductors
Browse available Fixed Inductors part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

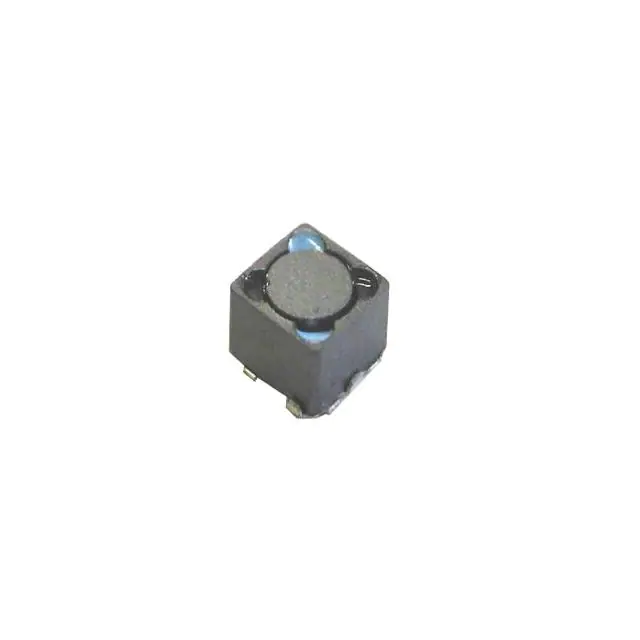

CTSPI2D18F-1R2MSMD SHIELDED POWER INDUCTOR |
4,231 | - |
|
Datasheet | CTSPI2D18F | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.2 µH | ±20% | 1.76 A | 940mA | Shielded | 41mOhm | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.071" (1.80mm) |
|
|
CTSPI2D18F-100MSMD SHIELDED POWER INDUCTOR |
2,538 | - |
|
Datasheet | CTSPI2D18F | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 880 mA | 360mA | Shielded | 190mOhm | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.071" (1.80mm) |
|
CTSPI2D15F-6R8MSMD SHIELDED POWER INDUCTOR |
3,001 | - |
|
Datasheet | CTSPI2D15F | Nonstandard | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±20% | 1 A | 420mA | Shielded | 166mOhm | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.063" (1.60mm) |
|
CTLQ1210NF-221J220UH 65MA SMD WW INDUCTOR |
2,202 | - |
|
Datasheet | CTLQ1210NF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 220 µH | ±5% | 65 mA | - | Unshielded | 11.8Ohm Max | 40 @ 796kHz | 5.5MHz | - | -25°C ~ 85°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
CTLQ1210NF-1R0M1.0UH 445MA SMD WW INDUCTOR |
2,083 | - |
|
Datasheet | CTLQ1210NF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±20% | 445 mA | - | Unshielded | 500mOhm Max | 20 @ 1MHz | 100MHz | - | -25°C ~ 85°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
CTLQ1206NF-R68K0.68UH 190MA SMD WW INDUCTOR |
3,784 | - |
|
Datasheet | CTLQ1206NF | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 680 nH | ±10% | 190 mA | - | Unshielded | 930mOhm Max | 30 @ 25MHz | 160MHz | - | -25°C ~ 85°C | 1 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
|
CTLQ1206NF-8R2J8.2UH 105MA SMD WW INDUCTOR |
3,969 | - |
|
Datasheet | CTLQ1206NF | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 8.2 µH | ±5% | 105 mA | - | Unshielded | 2.86Ohm Max | 35 @ 8MHz | 23MHz | - | -25°C ~ 85°C | 1 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
|
CTLQ1206NF-680J68UH 50MA SMD WW INDUCTOR |
4,039 | - |
|
Datasheet | CTLQ1206NF | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±5% | 50 mA | - | Unshielded | 12.87Ohm Max | 40 @ 2.5MHz | 8.5MHz | - | -25°C ~ 85°C | 1 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
CTMMP1304AF-R68MSMD Shielded Power Inductor |
2,388 | - |
|
Datasheet | - | - | Bulk | Active | - | - | 0.68 µH | ±20% | 6.1 A | - | Shielded | 34mOhm | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.039" (1.00mm) |
|
|
CTMMP1304AF-R47MSMD Shielded Power Inductor |
1,937 | - |
|
Datasheet | - | - | Bulk | Active | - | - | 0.47 µH | ±20% | 7.2 A | - | Shielded | 25mOhm | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.039" (1.00mm) |
|
|
CTMMP1304AF-2R2MSMD Shielded Power Inductor |
1,523 | - |
|
Datasheet | - | - | Bulk | Active | - | - | 2.2 µH | ±20% | 3.4 A | - | Shielded | 98mOhm | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.039" (1.00mm) |
|
|
CTMMP1304AF-6R8MSMD Shielded Power Inductor |
4,802 | - |
|
Datasheet | - | - | Bulk | Active | - | - | 6.8 µH | ±20% | 2 A | - | Shielded | 360mOhm | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.039" (1.00mm) |
|
|
CTMMP1304AF-4R7MSMD Shielded Power Inductor |
2,445 | - |
|
Datasheet | - | - | Bulk | Active | - | - | 4.7 µH | ±20% | 2.8 A | - | Shielded | 266mOhm | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.039" (1.00mm) |
|
|
CTMMP1304AF-3R3MSMD Shielded Power Inductor |
4,818 | - |
|
Datasheet | - | - | Bulk | Active | - | - | 3.3 µH | ±20% | 3.1 A | - | Shielded | 191mOhm | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.039" (1.00mm) |
|
|
CTMMP1304AF-R82MSMD Shielded Power Inductor |
3,754 | - |
|
Datasheet | - | - | Bulk | Active | - | - | 0.82 µH | ±20% | 5.8 A | - | Shielded | 41mOhm | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.039" (1.00mm) |
|
|
CTMMP1304AF-1R0MSMD Shielded Power Inductor |
3,316 | - |
|
Datasheet | - | - | Bulk | Active | - | - | 1 µH | ±20% | 5.5 A | - | Shielded | 50mOhm | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.039" (1.00mm) |
|
|
CTMMP1304AF-R56MSMD Shielded Power Inductor |
4,318 | - |
|
Datasheet | - | - | Bulk | Active | - | - | 0.56 µH | ±20% | 6.6 A | - | Shielded | 31mOhm | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.039" (1.00mm) |
|
|
CTMMP1304AF-5R6MSMD Shielded Power Inductor |
2,644 | - |
|
Datasheet | - | - | Bulk | Active | - | - | 5.6 µH | ±20% | 2.2 A | - | Shielded | 310mOhm | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.039" (1.00mm) |
|
|
CTMMP1304AF-1R5MSMD Shielded Power Inductor |
3,267 | - |
|
Datasheet | - | - | Bulk | Active | - | - | 1.5 µH | ±20% | 4 A | - | Shielded | 71mOhm | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.039" (1.00mm) |
|
|
CTMMP1304AF-8R2MSMD Shielded Power Inductor |
3,404 | - |
|
Datasheet | - | - | Bulk | Active | - | - | 8.2 µH | ±20% | 1.7 A | - | Shielded | 420mOhm | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.039" (1.00mm) |
Fixed Inductors FAQ
Common questions about selecting, comparing and sourcing Fixed Inductors components through Winsun (HK) Electronics.
What should I check when selecting Fixed Inductors components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Fixed Inductors part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Fixed Inductors parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Fixed Inductors components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
