Fixed Inductors
Browse available Fixed Inductors part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CT0807SQF-6N9JSMD SQUARE AIR CORE INDUCTOR |
4,862 | - |
|
Datasheet | ct0807sqf | - | Tape & Reel (TR) | Active | Wirewound | - | 6.9 nH | ±5% | - | - | - | 6mOhm | - | 4.6GHz | - | -40°C ~ 105°C | - | - | Surface Mount | - | - | - |
|
CTMC2220F-122J1200UH FERRITE CORE WW INDUCTOR |
3,986 | - |
|
Datasheet | CTMC2220F | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 1.2 mH | ±5% | 75 mA | - | Unshielded | 17Ohm Max | 20 @ 252kHz | 1.5MHz | - | -25°C ~ 85°C | 252 kHz | - | Surface Mount | - | 0.232" L x 0.205" W (5.90mm x 5.20mm) | 0.169" (4.30mm) |
|
|
CTMC2220F-182J1800UH FERRITE CORE WW INDUCTOR |
4,346 | - |
|
Datasheet | CTMC2220F | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 1.8 mH | ±5% | 60 mA | - | Unshielded | 30Ohm Max | 20 @ 252kHz | 1.3MHz | - | -25°C ~ 85°C | 252 kHz | - | Surface Mount | - | 0.232" L x 0.205" W (5.90mm x 5.20mm) | 0.169" (4.30mm) |
|

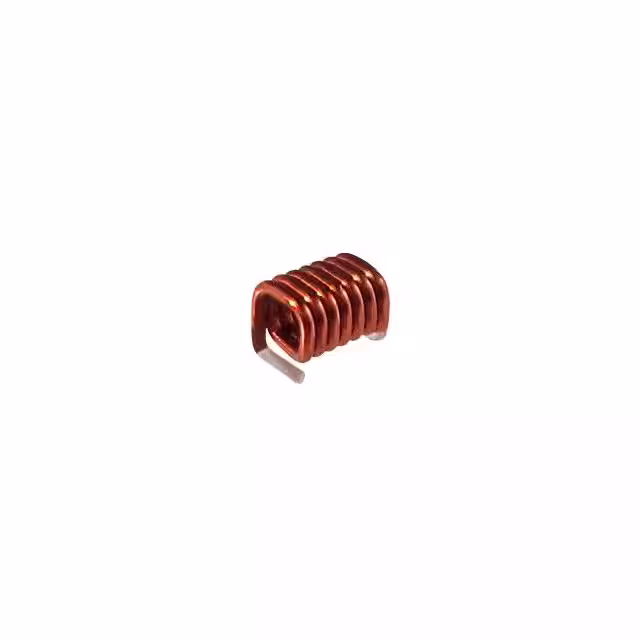

CT0908SQF-27NJSMD SQUARE AIR CORE INDUCTOR |
4,770 | - |
|
Datasheet | ct0908sqf | - | Tape & Reel (TR) | Active | Wirewound | - | 27.3 nH | ±5% | - | - | - | 10mOhm | - | 3.2GHz | - | -40°C ~ 105°C | - | - | Surface Mount | - | - | - |
|
CTDO3308PF-47347UH SMD POWER INDUCTOR |
2,762 | - |
|
Datasheet | CTDO3308PF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±20% | 1 A | 1.3A | Unshielded | 320mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.118" (3.00mm) |
|
CTDO3340PF-684680UH SMD POWER INDUCTOR |
3,710 | - |
|
Datasheet | CTDO3340PF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 680 µH | ±20% | 200 mA | 1A | Unshielded | 1.2Ohm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.450" (11.43mm) |
|
|
CTDO3340PF-15315UH SMD POWER INDUCTOR |
1,266 | - |
|
Datasheet | CTDO3340PF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 15 µH | ±20% | 3 A | 7A | Unshielded | 40mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.450" (11.43mm) |
|
|
CTDO3308PF-22322UH SMD POWER INDUCTOR |
2,199 | - |
|
Datasheet | CTDO3308PF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 1.5 A | 1.8A | Unshielded | 180mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.118" (3.00mm) |
|
CT1210SF-1R2MSMD SHIELDED WIRE-WOUND INDUCTOR |
2,197 | - |
|
Datasheet | CT1210SF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 1.2 µH | ±20% | 390 mA | - | Shielded | 750mOhm Max | 50 @ 2.52MHz | 180MHz | - | -35°C ~ 85°C | 2.52 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.098" (2.50mm) |
|
|
CT1210SF-3R9MSMD SHIELDED WIRE-WOUND INDUCTOR |
3,391 | - |
|
Datasheet | CT1210SF | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 3.9 µH | ±20% | - | - | Shielded | - | - | - | - | -35°C ~ 85°C | - | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.098" (2.50mm) |
|
|
CT1210SF-220MSMD SHIELDED WIRE-WOUND INDUCTOR |
1,361 | - |
|
Datasheet | CT1210SF | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 22 µH | ±20% | - | - | Shielded | - | - | - | - | -35°C ~ 85°C | - | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.098" (2.50mm) |
|
|
CT1210SF-100MSMD SHIELDED WIRE-WOUND INDUCTOR |
3,636 | - |
|
Datasheet | CT1210SF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 185 mA | - | Shielded | 2Ohm Max | 30 @ 2.52MHz | 25MHz | - | -35°C ~ 85°C | 2.52 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.098" (2.50mm) |
|
|
CTMC2220F-332J3300UH FERRITE CORE WW INDUCTOR |
4,561 | - |
|
Datasheet | CTMC2220F | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 3.3 mH | ±5% | 40 mA | - | Unshielded | 60Ohm Max | 20 @ 252kHz | 1MHz | - | -25°C ~ 85°C | 252 kHz | - | Surface Mount | - | 0.232" L x 0.205" W (5.90mm x 5.20mm) | 0.169" (4.30mm) |
|
|
CTMC2220F-822J8200UH FER CORE WIRE-WND INDUCTR |
3,401 | - |
|
Datasheet | CTMC2220F | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 8.2 mH | ±5% | - | 28A | Unshielded | 125Ohm Max | 20 @ 252kHz | 600kHz | - | -25°C ~ 85°C | 252 kHz | - | Surface Mount | - | 0.232" L x 0.205" W (5.90mm x 5.20mm) | 0.169" (4.30mm) |
|
CTMMP2818AF-100MSMD Shielded Power Inductor |
1,486 | - |
|
Datasheet | - | - | Bulk | Active | - | - | 10 µH | ±20% | 7.5 A | - | Shielded | 60mOhm | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.189" (4.80mm) |
|
CTCDRH105RF-6R8N6.8UH SMD SHIELDED POWR INDUCTOR |
3,028 | - |
|
Datasheet | CTCDRH105RF | Nonstandard | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±30% | - | 5.5A | Shielded | 18mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.201" (5.10mm) |
|
|
CTCDRH105RF-120N12UH SMD SHIELDED POWER INDUCTOR |
1,815 | - |
|
Datasheet | CTCDRH105RF | Nonstandard | Tape & Reel (TR) | Active | - | - | 12 µH | ±30% | - | 4A | Shielded | 33mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.201" (5.10mm) |
|
CTSPMA4020F-4R7MPOWR INDUCTOR SMD SHIELDED 4.7UH |
1,765 | - |
|
Datasheet | CTSPMA4020F | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 2.7 A | 4A | Shielded | 91mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.173" W (4.40mm x 4.40mm) | 0.079" (2.00mm) |
|
|
CTCDRH105RF-221N220UH SMD SHIELDED POWR INDUCTOR |
2,202 | - |
|
Datasheet | CTCDRH105RF | Nonstandard | Tape & Reel (TR) | Active | - | - | 220 µH | ±30% | - | 940mA | Shielded | 500mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.201" (5.10mm) |
|
CTCDRH2D09F-100N10UH SMD SHIELDED POWER INDUCTOR |
1,351 | - |
|
Datasheet | CTCDRH2D09F | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±30% | 420 mA | 280mA | Shielded | 538mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.039" (1.00mm) |
Fixed Inductors FAQ
Common questions about selecting, comparing and sourcing Fixed Inductors components through Winsun (HK) Electronics.
What should I check when selecting Fixed Inductors components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Fixed Inductors part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Fixed Inductors parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Fixed Inductors components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
